Configuring IPCop Firewalls




Firewall Analyzer supports IPCop Firewall Version 1.4.17 / 1.4.18

Configuring IPCop To Send Audit Data To Firewall Analyzer

  1. Open the Log Settings Administrative Web Page

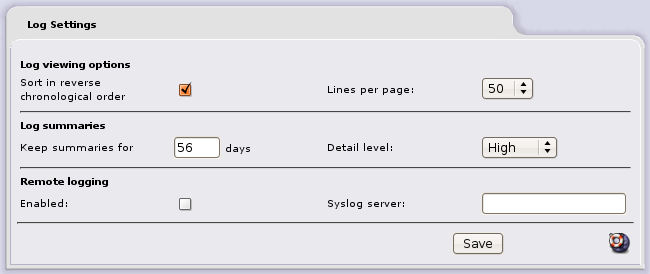

  2. Log Settings: This page allows you to control how the logs are displayed, specify the detail level and how long the log summaries are kept for, and control remote logging.
  3. Click the Save button after making any changes to save the settings and restart the syslogd daemon.
  4. Sort in reverse chronological order: Check the Sort in reverse chronological order checkbox if you want to see recent events at the top of a page, rather than at the bottom.
  5. Lines per page: Select the number of log entries to display on a page from the Lines per page drop down menu. This can vary from between 15 and 500. Be aware that a large number of lines will take longer to process and display on slower hardware.
  6. Keep summaries for n days: You can choose how long the logwatch summaries are kept on IPCop. If you are short of disk space, reduce the number of days.
  7. Detail level: You can choose between Low, Medium and High levels of detail in the logwatch summaries from the Detail level drop down menu.
  8. Remote logging: Select the Enabled checkbox to allow logging to a remote syslog server.
  9. Specify the hostname or hostname.domainname or IP Address of the remote server in the Syslog server field provided. All logs will be forwarded to that server.
  10. Remember to click the Save button after making any changes.

IPCop Firewall Configuration



The IPCop will now send log data to Firewall Analyzer.



For more information, refer the IPCop documentation.
