Home » Configuring Firewalls » Configuring Palo Alto Firewalls

Configuring Palo Alto


Firewall Analyzer supports Palo Alto Firewall PANOS 4.1.0

Configure Palo Alto Syslog Server Setup

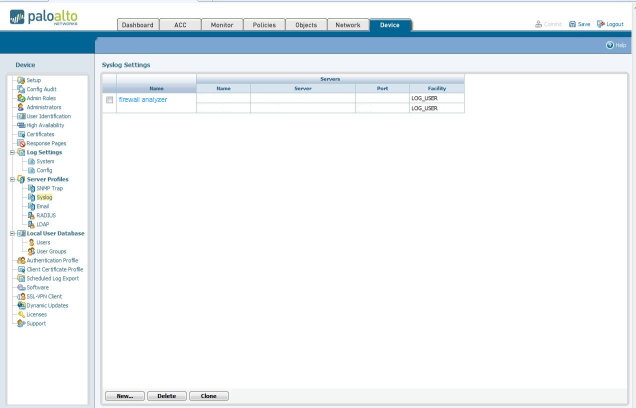

  1. Select the Device tab and add the Syslog server profile

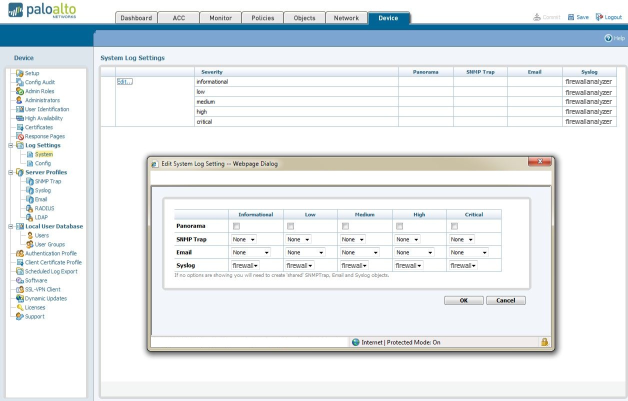

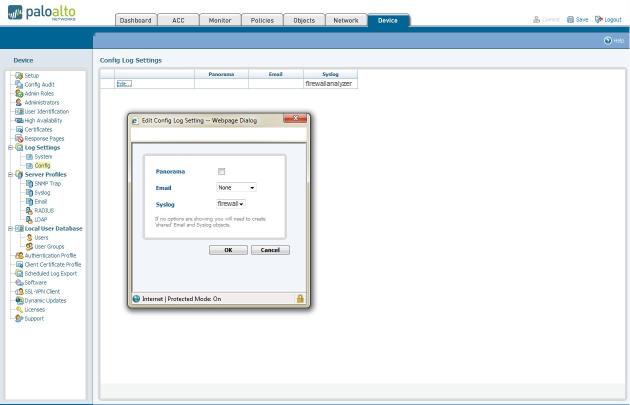

  2. Add the profile to log settings for informational level

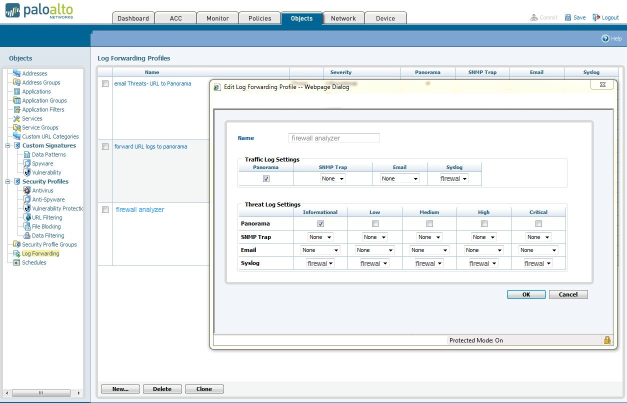

  3. Apply log forwarding to utilize new profile
  4. Enable the Security policy to forward logs using the new Syslog profile

Palo Alto Configuration Screen 1



Palo Alto Configuration Screen 1





Palo Alto Configuration Screen 1







Palo Alto Configuration Screen 1





Palo Alto Configuration Screen 1





Either you can send the syslogs to the default listener ports (514 or 1514) of Firewall Analyzer
