Advanced Security Analytics Module


Security Analytics Dashboard

The "Security Analytics Dashboard" gives you a quick view of the security events in the network. It has four different reporting options that displays the top problem classes, top algorithm types, top problems and top resources along with their graphical representations. They are:



Security Posture report: Displays the top problem classes and their respective problems. It also lists the number of events and unique resources involved for each problem. Click on the problem name to go to the problem analysis tab. The event distribution for each problem is represented as a pie chart and the number of resources involved for each problem is represented as a bar graph. The time-distribution graph is a multi-line graph that represents the number of events, problems, and resources involved for a specific problem class over a given time period.



security posture

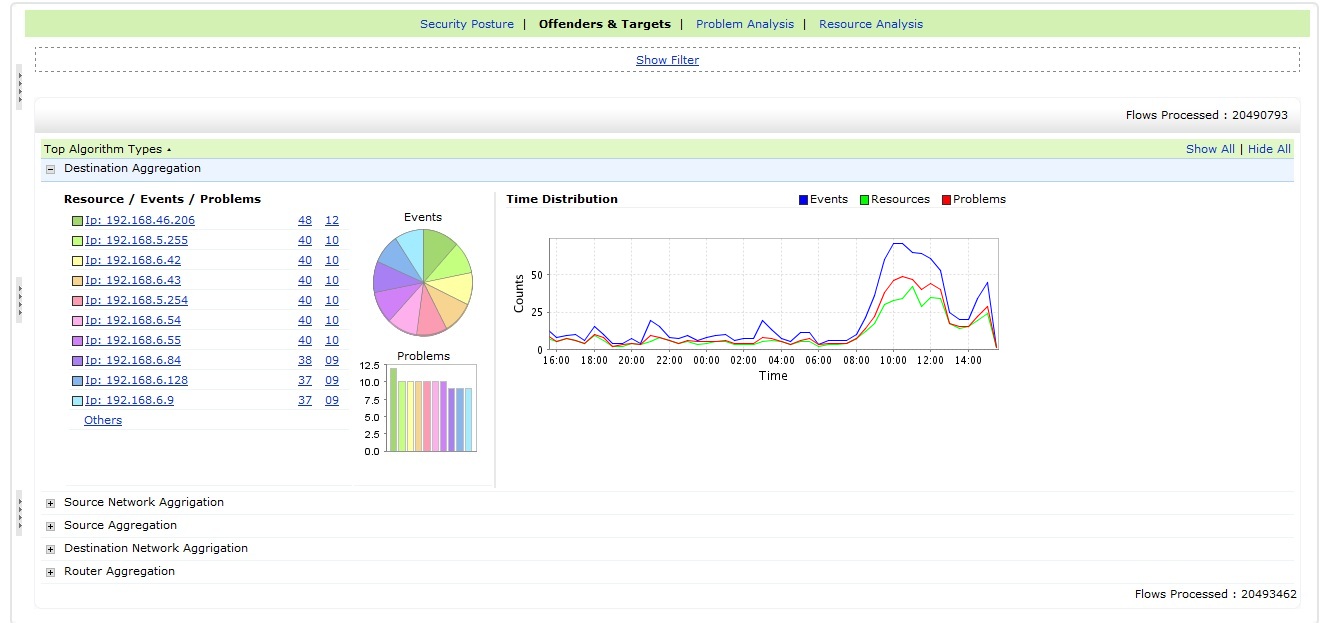

Offenders & Targets report: Displays the top algorithm types and the unique resources involved. It also lists the number of events and distinct problem created by each resource. Click on the resource name to go to the resource analysis tab. The event distribution for each resource is represented as a pie chart and the number of problems created by each resource is represented as a bar graph. The time-distribution graph is a multi-line graph that represents the number of events, problems, and resources involved for an algorithm over a given time period.





offenders and dashboard

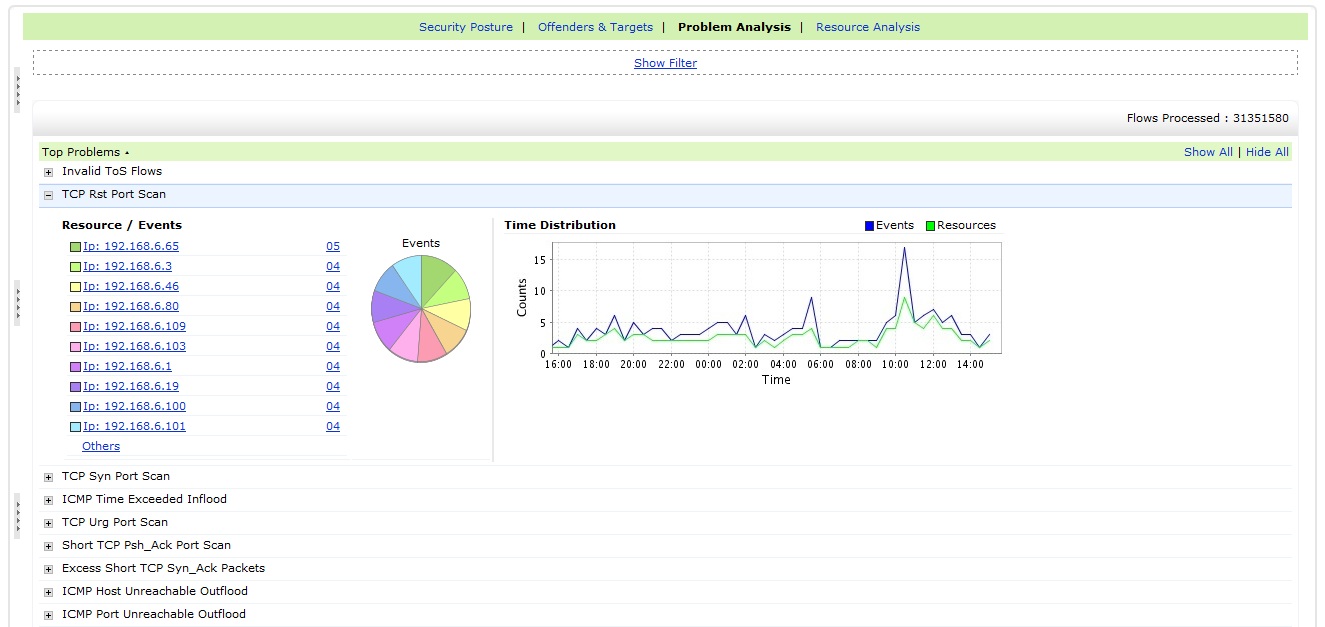

Problem Analysis report: Displays the top problem names and the unique resources involved. It also lists the number of events and the problem caused by a specific resource. The event distribution for each resource is represented as a pie chart. The time-distribution graph is a multi-line graph that represents the number of events and resources involved for a specific problem over a given time period.

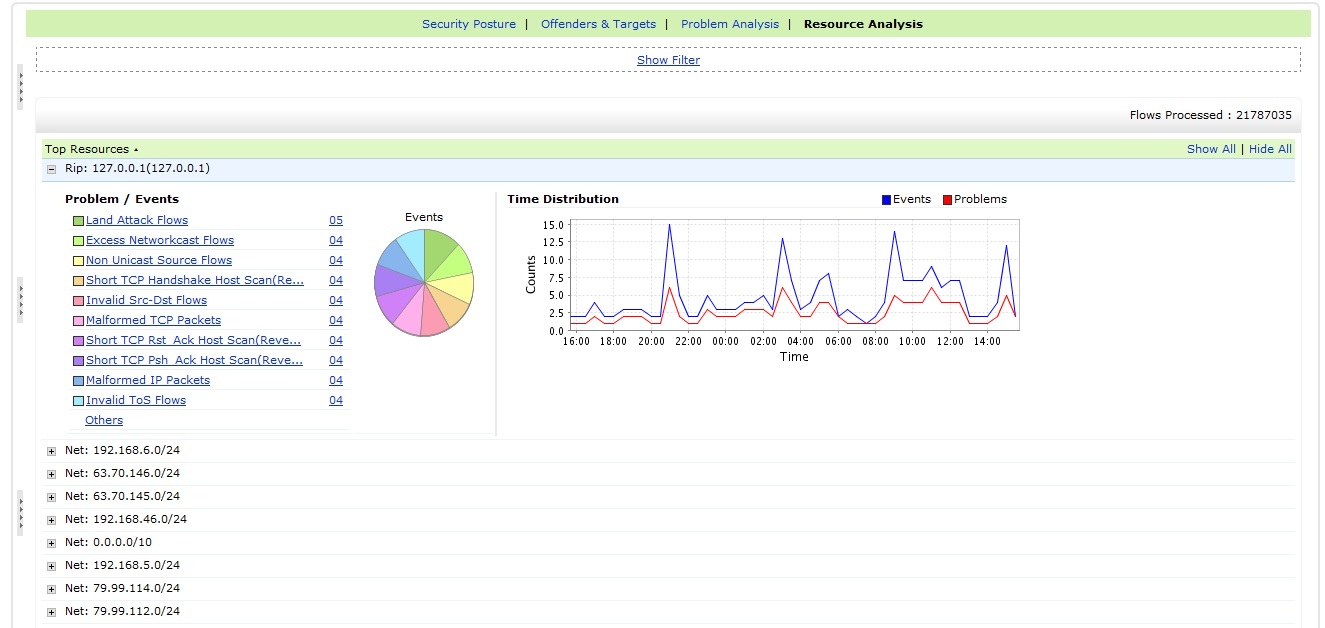

Resource Analysis report: Displays the top resources and the problem caused by them. It also lists the number of events of the problem caused by each resource. Here, the pie chart represents the event distribution for each problem.The time-distribution graph is a multi-line graph that represents the problem and the number of events for a specific resource over a given time period.





resource analysis



1.2 Security Events Filter Options

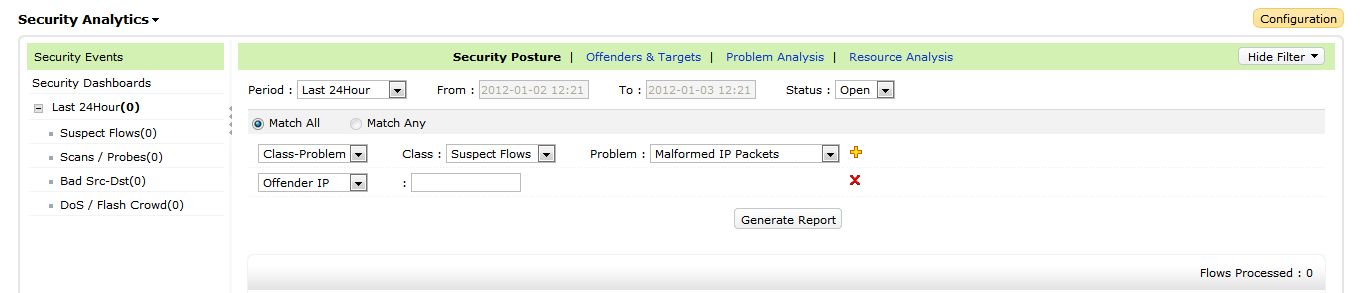

The Filter option is used to generate reports based on the filter criteria. Click on the "Show Filter" button to view the filters. You can filter the events based on:



Period: For any selected time period from last hour to last month. The custom time option can be used to generate report for a specific time period.



Status: Denotes the status of the event on whether it is open, closed, or ignored. You can also choose "all" to select all the available events.



event list filter



You can also choose to match all or any of the filter criteria given below:



Click "Generate Report" button to generate the reports based on the filter criteria.
