Lucidchart
Unified Authentication for Lucidchart with ADSelfService Plus
Lucidchart enables teams to create diagrams, flowcharts, mind maps, wireframes, and other visual designs to support idea generation and process visualization. By integrating ADSelfService Plus with Lucidchart, organizations can enable secure one-click SSO access, simplifying user login process.
Simplify user access to Lucidchart through SSO
Provide single-click SSO access, allowing users to log in seamlessly and focus on visual collaboration.
Enhanced security with advanced authentication
Implement FIDO2, biometrics, and other MFA methods to secure access, ensuring only authorized personnel can log in.
Effortless access with passwordless login
Streamline entry to Lucidchart with passwordless logins, minimizing login delays and alleviating the hassle of managing passwords.
Configuring SAML SSO for LucidChart
These steps will guide you through setting up the single sign-on functionality between ADSelfService Plus and LucidChart.
Prerequisite
- Login to ADSelfService Plus as an administrator.
- Navigate to Configuration → Self-Service → Password Sync/Single Sign On → Add Application, and select LucidChart from the applications displayed.Note: You can also find LucidChart application that you need from the search bar located in the left pane or the alphabet wise navigation option in the right pane.
- Click IdP details in the top-right corner of the screen.
- In the pop-up that appears, copy the Login URL and download the metadata file by clicking on the Download Metadata.
Lucid Chart (Service Provider) configuration steps
- Login to LucidChart with an administrator’s credentials.
- Navigate to Team → Identity Management
- Click Configure link under Allow SAML Authentication.
- Click Upload Metadata. You can upload the metadata file in the respective field. (Refer Step 4 of Prerequisite).
- Click Save changes.
ADSelfService Plus (Identity Provider) configuration steps
- Now, switch to ADSelfService Plus’ LucidChart configuration page.
- Enter the Application Name and Description.
- In the Assign Policies field, select the policies for which SSO need to be enabled.Note: ADSelfService Plus allows you to create OU and group-based policies for your AD domains. To create a policy, go to Configuration → Self-Service → Policy Configuration → Add New Policy.
- Select Enable Single Sign-On.

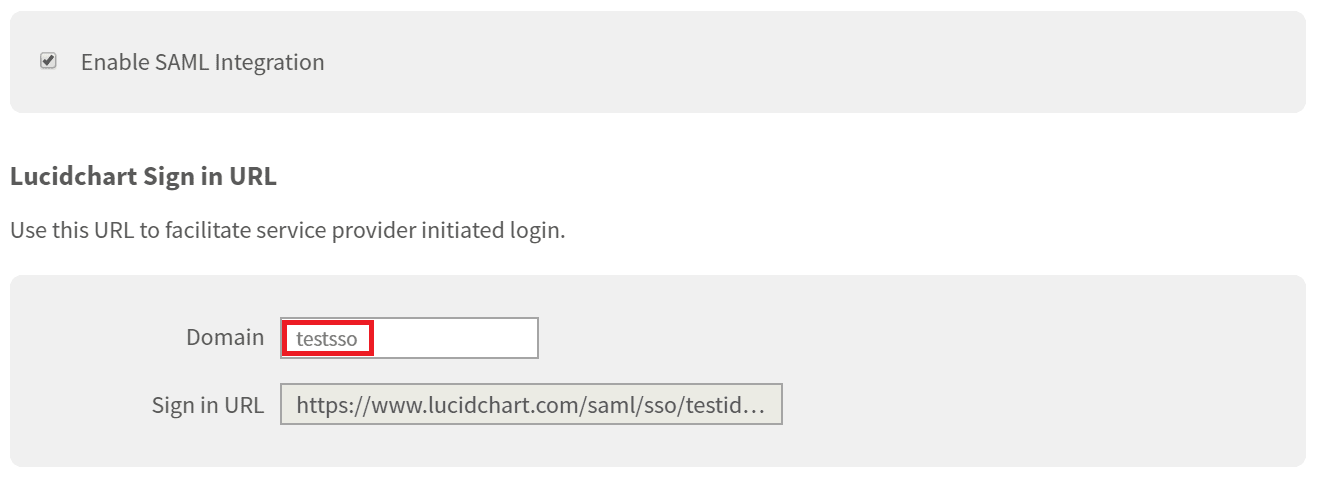

- Enter the Domain Name of your LucidChart account. For example, if you use johndoe@thinktodaytech.com to log in to LucidChart, then thinktodaytech.com is the domain name.
- Enter the SP Identifier of your LucidChart account in the SP Identifier field.
- In the Name ID Format field, choose the format for the user login attribute value specific to the application.Note: Use Unspecified as the default option if you are unsure about the format of the login attribute value used by the application.
- Click Add Application.
