Understanding playbook states

    Last updated on:

    In this page

    Overview

    Playbook states are the building blocks used to design automated workflows in the playbook builder. Each state represents a discrete action, control mechanism, or operation that is executed as part of the playbook flow. States are configured using inputs derived from the playbook payload and are executed sequentially, conditionally, or in parallel based on the playbook design.

    State grouping in the playbook builder

    When adding a state in the playbook builder, states are grouped exactly as shown in the User Interface. You must first choose a category, and then select the required state within that category. The available categories are:

    • Flow control
    • Functional
    • Log360Cloud
    Understanding playbook states

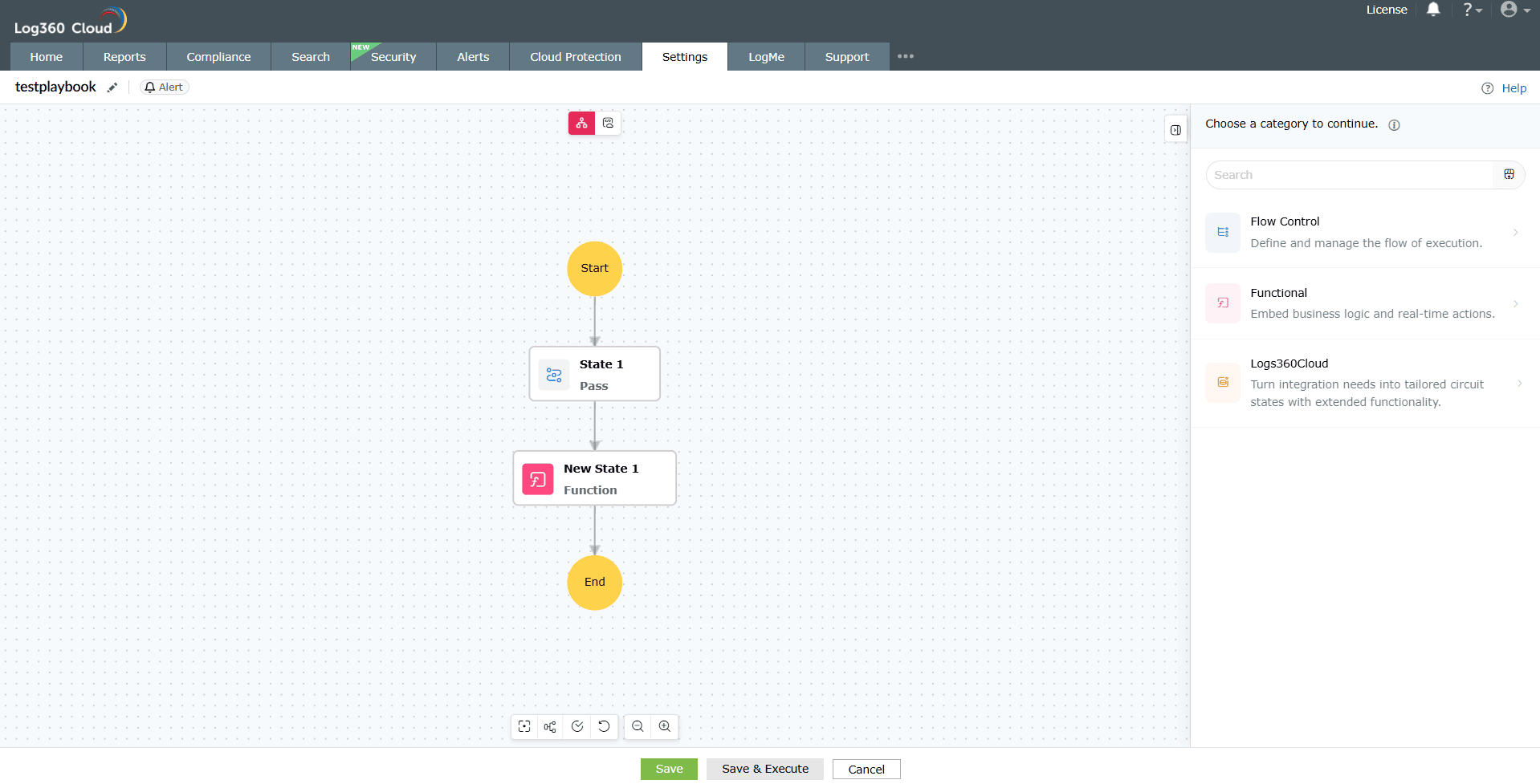

    Image: Playbook states in ManageEngine Log360 Cloud

    Each category contains a fixed set of supported states for this release. Playbook states are organized into the following categories:

    Flow control states

    Flow control states define and manage how execution moves through the playbook. These states do not perform data processing or remediation actions.

    State name Description Purpose
    Pass Passes the current execution data to the next state without modification.
    • Maintain continuity between states.
    • Act as a logical connector in the playbook.
    Branch Routes execution into different paths based on defined conditions.
    • Conditional execution using payload values.
    • Early termination or alternate handling paths.
    Parallel Runs multiple states simultaneously.
    • Execute independent actions simultaneously.
    • Reduce overall execution time.
    Wait Pauses execution for a defined duration.
    • Delay follow-up actions.
    • Time-based coordination.
    Batch Groups items and processes them together in batches.
    • Iterate through collections such as alerts or logs.
    • Apply the same actions to multiple items.
    Success Terminates the execution as successfully completed. Explicitly end execution after successful handling.
    Failure Terminates the execution as failed. Stop execution when a critical condition is met.

    Functional states

    Functional states embed business logic, reusable workflows, and integrations within a playbook. These states are used to execute logic or communicate with external systems without directly performing product or endpoint actions.

    State name Description Purpose
    Function Invoke custom functions created and deployed in Log360 Cloud (Developer Space → Custom Functions) to execute user-defined logic within the playbook workflow.
    • Execute user-defined logic by calling deployed custom functions with Delgue or Python language
    • Transform, enrich, or validate payload data.
    • Reuse logic across multiple playbooks
    NOTE
    • Only deployed functions are available for selection
    • Functions can return outputs that are passed to subsequent states
    Circuit Invoke another playbook as a sub-playbook, allowing modular and reusable automation workflows.
    • Invoke an existing playbook as a sub-playbook within the current workflow.
    • Pass context and data between the parent and child playbook.
    • Enable modular playbook design by reusing predefined automation workflows.
    • Enable outbound and inbound automation playbooks.

    Log360 Cloud states

    Log360 Cloud states allow playbooks to interact with platform services and managed endpoints. These states are grouped in the UI based on their behavior.

    Action name Description Parameters Response
    Configuration field display name Input data type Field description Success response example Error Code HTTP Status Title Error Message
    Create Incident Creates a new incident record.

    Purpose: Automatic incident creation

    		 Name string Unique name of the incident

    Maximum Length: 250

    		 { "data": { "incident_id": 100123, "incident_id_str": "100123", "message": "Incident has been created successfully." } } 10001043 401 Unauthorized Access Denied
    Description string Description of the incident

    Maximum Length: 1000

    		 10001068 400 Bad Request This name is already in use. Please choose a different name.
    Severity string Severity of the incident. Allowed values - critical, trouble, attention 10001010 400 Bad Request Something went wrong (ID=0)
    Status string Status of the incident. Allowed values - open, in_progress, closed 10001013 400 Required Params Missing Evidence provided without source field
    Assignee string Assignee of the incident
    Due date string Due date of the incident, in ISO 8601 date-time format.

    The value must be ≥ 1970-01-01T00:00:00Z.
    Notes string array Notes for the incident.

    Maximum Length: 100000
    Source string Source of the evidence. Allowed values - search, report, alert, Incident Workbench
    Evidence string array Evidence for the incident. uuids can be taken from the search, report, alert fetch states or from Playbook input
    Update Incident Updates an existing incident.

    Purpose: Change status, severity, or assignment

    		 Incident id string Unique Id of the incident to be updated { "data": { "message": "Incident has been updated successfully." } } 10001013 400 Bad Request Required params missing
    Name string Unique name of the incident

    Maximum Length: 250

    		 10001043 401 Unauthorized Access Denied
    Description string Description of the incident

    Maximum Length: 1000

    		 10001068 400 Bad Request This name is already in use. Please choose a different name.
    Severity string Severity of the incident. Allowed values - critical, trouble, attention 10001010 400 Bad Request Generic error
    Status string Status of the incident. Allowed values - open, in_progress, closed
    Assignee string Assignee of the incident
    Due date string Due date of the incident, in ISO 8601 date-time format. The value must be ≥ 1970-01-01T00:00:00Z.
    Notes string array Notes for the Incident

    Maximum Length: 100000
    Source string Source of the evidence. Allowed values - search, report, alert, Incident Workbench
    Evidence string array Evidence for the incident. uuids can be taken from the search, report, alert fetch states or from Playbook input
    List Incident Lists all existing incidents.

    Purpose: Incident triage and review

    		 Incident name string Unique name of the incident

    Maximum Length: 260

    		 { "data": [ { "incident_id": 100123, "incident_id_str": "100123", "incident_name": "Suspicious Logon Activity", "incident_description": "Multiple failed login attempts from unknown IP", "created_time": "2026-04-24 10:30:00", "due_date": "2026-04-25 10:30:00", "created_by": "Admin", "assign_to": "Security Analyst", "severity": "Critical", "status": "Open" } ], "meta": { "total_items": 50, "per_page": 10, "total_pages": 5 } } 10001013 400 Bad Request Required params missing
    Severity string array Filters incidents based on severity levels. Allowed values - critical, trouble, attention. 10001002 403 Forbidden Invalid FROM/LIMIT
    Status string array Filters incidents based on their status. Allowed values - open, in_progress, closed. 10001043 401 Unauthorized Access Denied
    Created by user id string Filters incidents based on created users with user id
    Assign to string Filters incidents based on assignee with user id 10001015 200 Forbidden {}
    From integer The starting index of the response range. 10001010 400 Bad Request Generic error
    Limit integer The number of incidents to return in the search response.

    Maximum: 100
    Delete Incident Deletes an existing incident.

    Purpose: Cleanup invalid or duplicate incidents

    		 Incident ids string array List of incident IDs to delete. It can be taken from the List Incidents state or from playbook input { "data": { "message": "Incident has been deleted successfully." } } 10001043 401 Unauthorized Access Denied
    10001010 400 Bad Request Delete failed
    0000107 400 Bad request The value for the parameter incident_ids.0 is invalid
    Get Alerts Fetches alerts from the platform.

    Purpose: Retrieve alert context for downstream actions

    		 Query string Search query formed using the MetaData APIs.

    Maximum Length: 5000

    		 10001014 400 Invalid Query
    Start Time string Start time range for Search in ISO 8601 date-time format. The value must be greater than or equal to 1970-01-01T00:00:00Z. Timezone offsets are supported. 10001001 403 Forbidden Max search hits exceeded
    End Time string End time range for Search in ISO 8601 date-time format. The value must be greater than or equal to 1970-01-01T00:00:00Z. Timezone offsets are supported. 10001015 200 Forbidden {}
    From integer The starting index of the response range. 10001010 400 Bad Request Generic error
    Limit integer The number of alerts to return in the search response. Users can specify a value up to a maximum of 500. 10001002 403 Forbidden Invalid FROM/LIMIT
    Severity string array Filters alerts based on severity levels. Allowed values - critical, trouble, attention.
    Profile ids string array List of profile IDs to filter the alerts. It can be retrieved using the List Alert Profile state or from playbook input
    List Alert Profiles Lists configured alert profiles.

    Purpose: Profile-based automation

    		 From integer The starting index of the response range. { "data": [ { "profile_id": 12345, "profile_id_str": "12345", "profile_name": "Failed Logon Attempts", "severity": "Critical", "profile_type": "Custom", "threshold_interval": 300, "threshold_occurrence": 5, "status": "enabled", "creator_type": "Admin", "created_by": "admin@company.com", "notification_type": ["Email"] } ], "meta": { "total_items": 50, "per_page": 10, "total_pages": 5 } } 10001015 200 Forbidden {}
    Limit integer The number of alert profiles to return in the search response. Users can specify a value up to a maximum of 100. 10001010 400 Bad Request Generic error
    Severity string array Filters alerts based on severity levels. Allowed values - critical, trouble, attention.
    status string Filters alerts based on their status. Allowed values - enabled, disabled.
    Profile type string Filters alerts based on profile type. Allowed values - Rule based, Report based, custom, compliance.
    Get Log Sources Retrieves available log sources.

    Purpose: Source validation

    		 Log source string The name of the log source

    Maximum Length: 250

    		 { "data": { "log_sources": [{ "log_type_name": "Windows", "log_source_id": 10000000000339450, "log_type": "Windows", }] }, "meta": { "total": 36, "limit": 10, "from": 1, "page": 1, "no_of_log_sources": 36 } } 10001012 400 Bad Request Invalid FROM/LIMIT
    Log source ID string The ID of the log source from playbook input
    • 10001010
    • 00000107
    • 10001012
    • 400
    • 400
    • 400
    • Bad Request
    • Bad Request
    • Bad Request
    • The value for the parameter {parameter_name} is invalid
    • Generic Error
    • Invalid FROM/LIMIT
    Log Type string Type of the Log

    Maximum Length: 250
    Domain name string The name of the domain to fetch computer details from.

    Maximum Length: 250
    Log source group string The name of the log source group.

    Maximum Length: 250
    Log collection status string The status of the log collector. Allowed values: active, inactive, decommissioned_device
    Log collector state string The state of the log collection. Allowed values: Active, InActive, Decommissioned Devices
    Page integer Page number

    Maximum: 1000

    Default: 1
    From integer Starting point for the results.

    Default: 1

    Maximum: 1000
    Limit integer Number of results per page.

    Maximum: 1000

    Default: 10
    Sort string Sort based on log source parameters. Allowed values: log_source_id, log_source

    Default: log_source_id
    is ascending boolean Sort order — `true` for ascending, `false` for descending

    Default: true
    Fetch process tree Fetches the process tree for analysis.

    Purpose: Investigate process lineage

    		 After time string Time upto which log has to be processed in ISO 8601 date-time format. The value must be ≥ 1970-01-01T00:00:00Z. - 10001010 400 Bad Request Generic error
    ID string Process ID in the Log

    Maximum Length: 20
    Log UUID string UUID of the Log which can be obtained from Playbook input

    Maximum Length: 150
    Domain name string Domain Name

    Maximum Length: 256
    Child Limit integer Maximum Supported depth for Child process.

    Maximum: 5
    Parent Depth Limit integer Maximum Supported depth for Parent process.

    Maximum : 10
    Log time string Time of the log which has to be processed in ISO 8601 date-time format. The value must be ≥ 1970-01-01T00:00:00Z.
    Before time string Time before which log has to be processed in ISO 8601 date-time format. The value must be ≥ 1970-01-01T00:00:00Z.
    Risk Score Retrieves or calculates the risk score.

    Purpose: Risk-based decision making

    		 Entity type integer Type of Entity.

    Allowed Values: User (0), Host (1) Default 0(user)

    		 test 10001010 400 Bad Request Generic error
    Domain name string Domain name of the entity

    Maximum Length: 256
    Entity name string Name of the Entity

    Maximum Length: 256
    Get working hours Retrieves configured working hours.

    Purpose: Time-aware automation

    		 { "data": { "working_hours_type": "custom", "working_hours_settings": { "working_days": [1,2,3,4,5], "working_hours": { "start": "09:00", "end": "18:00" } } } } 10001010 400 Bad Request Generic error
    Search Logs Searches logs using a query and filter conditions. Purpose: Investigate related activity; validate event context Query string The search query, which can be formed using the log fields API.

    Maximum Length: 6000

    		 { "data": { "rows": [ { "hostname": "server01", "message": "User logon successful" } ] }, "meta": { "total_items": 1500 } } 10001013 400 Bad Request Required params missing
    Start Time string Start time for the search range, in ISO 8601 date-time format. The value must be ≥ 1970-01-01T00:00:00Z.
    • 10001002
    • 10001001
    • 10001059
    • 403
    • 403
    • 400
    • Forbidden
    • Forbidden
    • bad request
    • Invalid FROM/LIMIT
    • Max Search hits limit for Search API exceeds(500000 hits), Use Bulk Search API to search.
    • Time range should not exceed 365 days.
    End Time string End time for the search range, in ISO 8601 date-time format. The value must be ≥ 1970-01-01T00:00:00Z.
    Log Source Group IDs string array List of device group IDs to search. Can be obtained via the log sources API.

    Maximum: 100 group IDs

    		 10001014 400 Bad Request Query not valid
    Log Types string array List of log types to search. Can be obtained via the log types API.

    Maximum: 100 log types

    		 10001003 403 Forbidden URL Throttle limit exceeded
    Log source IDs string array List of host IDs to search. Can be obtained via the log sources API.

    Maximum: 100 host IDs

    		 10001015 200 Forbidden {}
    From integer Start Range of the response. Default: 1
    Limit integer Count of logs in search response.

    Maximum: 500

    Default: 10
    Manage Service Starts, stops, or restarts a service on the target device using service name and host details.

    Purpose: Service-level remediation

    Use cases: Stopping malicious or resource-intensive services

    		 Service Name string Service Name in Destination device

    Maximum Length: 100

    		 { "data":{"STATUS":3}} 10001102 404 Device credential not found The device credential is not available or has not been updated in the database.
    Domain Name string Domain Name of the Destination Device

    Maximum Length: 255
    Operation string Actions to be performed on the provided service.

    Allowed values:

    StartService, StopService, TestService
    Destination Device string Destination device in which the action will be performed. Provide Host ID or Device Name from configured device.

    Maximum Length: 64

    		 10001105 400 Invalid action The input parameters provided are invalid.
    Manage Process Manages processes running on the target device.

    Purpose: Terminate or manage suspicious processes

    Use cases: Killing suspicious processes

    		 Name string Command to start the process. Only non-interactive processes will be created in remote machines.

    Maximum Length: 2000

    		 { "data":{"STATUS":3}} 10001102 404 Device credential not found The device credential is not available or has not been updated in the database.
    Path string The directory from where you want to execute the process

    Maximum Length: 255
    Domain Name string Domain Name of the Destination Device

    Maximum Length: 255
    Operation string Actions to be performed on the provided process.

    Allowed value:

    StartProcess, StopProcess, TestProcess
    Destination Device string Destination device in which the action will be performed. Provide Host ID or Device Name from configured device.

    Maximum Length: 64

    		 10001105 400 Invalid action The input parameters provided are invalid.
    Machine Actions Performs machine-level actions such as logoff, shutdown, or restart.

    Purpose: Endpoint containmentUse cases: Immediate containment actions

    		 Force Action boolean check to force the action on the device {"data":{"STATUS":3}} 10001102 404 Device credential not found The device credential is not available or has not been updated in the database.
    Domain Name string Domain Name of the Destination Device

    Maximum Length: 255

    		 10001105 400 Invalid action The input parameters provided are invalid.
    Destination Device string Destination device in which the action will be performed. Provide Host ID or Device Name from configured device.

    Maximum Length: 64
    Operation string Actions to be performed on the destination deviceAllowed values: LogOff, ShutDownSystem, RestartSystem
    Disable Usb Disables USB devices on endpoints.

    Purpose: Prevent data exfiltration

    Use cases: Preventing data exfiltration or malware spread

    		 Dismount All Drive boolean check to dismount all removable drives on the device {"data":{"STATUS":3}} 10001102 404 Device credential not found The device credential is not available or has not been updated in the database.
    Domain Name string Domain Name of the Destination Device

    Maximum Length: 255
    Destination Device string Destination device in which the action will be performed. Provide Host ID or Device Name from configured device.

    Maximum Length: 64
    Write To File Writes content to files on endpoints.

    Purpose: Store execution or remediation data

    Use cases: Logging remediation actions; creating audit artifacts

    		 File Name string Name of the File

    Maximum Length: 255

    		 {"data":{"STATUS":3}} 10001102 404 Device credential not found The device credential is not available or has not been updated in the database.
    Path string Path where the file will be present

    Maximum Length: 255
    Data string Data that should be written to the file

    Maximum Length: 5000
    Append To File boolean Check this box to append the text to the file if it already exists. If unchecked, an existing file will be overwritten
    Prepend Time Stamp boolean Check this box to prepend the current timestamp before the data. If unchecked, only the data will be appended to the file without the timestamp.
    Domain Name string Domain Name of the Destination Device

    Maximum Length: 255
    Destination Device string Destination device in which the action will be performed. Provide Host ID or Device Name from configured device.

    Maximum Length: 64
    Send Popup Message Sends popup notifications to endpoints.

    Purpose: User notification

    		 Message string Message to be shown in the popup notification.

    PowerShell is required to send sound alert on Windows machines.

    Maximum Length: 255

    		 {"data":{"STATUS":3}} 10001102 404 Device Credential Not Found The device credential is not available or has not been updated in the database.
    Domain Name string Domain Name of the Destination Device

    Maximum Length: 255
    Destination Device string Destination device in which the action will be performed.

    Provide Host ID or Device Name from configured device.

    Maximum Length: 64
    Execute Script Executes scripts on target devices.

    Purpose: Custom remediation actions

    Use cases: User notification; security warnings

    		 Script Type string Type of the script that will be executed. Allowed values: VBScript, Powershell, Batch, Shell, Bash {"data": {"STATUS": 3,"TASK_RESULT": {"OUTPUT": "<Response Content>"}}} 10001102 404 Device Credential Not Found The device credential is not available or has not been updated in the database.
    Script File Name string File name of the script that will be executed.

    Maximum Length: 255
    Arguments string Script arguments as a comma-separated string.

    Maximum Length: 10000
    Timeout (seconds) integer Timeout in seconds for script execution

    Maximum: 120

    		 10001106 400 Invalid Parameters The input parameters provided are invalid.
    Working Directory string Location where the script should be executed

    Maximum: 255
    Domain Name string Domain Name of the Destination Device

    Maximum Length: 255
    Destination Device string Destination device in which the action will be performed. Provide Host ID or Device Name from configured device.

    Maximum Length: 64
    Ping Device Pings a device to test connectivity.

    Purpose: Reachability validation

    Use cases: Network validation

    		 Number of Requests integer Limit to avoid flooding the destination.

    Maximum: 5

    		 {"data": {"STATUS": 3,"TASK_RESULT": {"OUTPUT": "<Response Content>"}}} - - - -
    Packet Size (bytes) integer Size of each packet to be sent in bytes

    Maximum: 1472
    Timeout (seconds) integer Timeout in seconds to wait for each ping reply

    Maximum: 10
    Retry Count integer Number of retries to attempt

    Maximum: 3
    Domain Name string Domain Name of the Destination Device

    Maximum Length: 255
    Agent ID string Agent Id from which the action to be executed
    Destination Device string Device for which ping to be performed

    Maximum Length: 64
    Trace Route Traces the network path to a destination device.

    Purpose: Network troubleshooting

    		 Max Hops integer The maximum number of hops (TTL values) to attempt

    Maximum: 64

    		 {"data": {"STATUS": 3,"TASK_RESULT": {"OUTPUT": "<Response Content>"}}} - - - -
    Timeout (seconds) integer Timeout in seconds to wait for each trace

    Maximum: 10
    Domain Name string Domain Name of the Destination Device

    Maximum Length: 255
    Agent ID string Agent Id from which the action to be executed
    Destination Device string Device for which trace route to be performed

    Maximum Length: 64
    Invoke Url Via Agent Invokes a URL through the endpoint agent.

    Purpose: Agent-based API and integration calls

    Use cases: External integrations; API-based automation

    		 URL string The request URL whose resources need to be accessed

    Maximum Length: 1000

    		 {"data": {"STATUS": 3,"TASK_RESULT": {"OUTPUT": "<Response Content>"}}} 10001106 400 Invalid Parameters The input parameters provided are invalid.
    HTTP Method string The HTTP request method

    Allowed Values: GET, POST, PATCH, PUT, DELETE
    Headers JSON Object The attributes or the header values

    Maximum Length: 5000
    Query Params JSON Object The query parameters to be appended to the URL

    Maximum Length: 5000
    Body JSON Object The body of the request

    Maximum Length: 5000
    Connection Name string The connection name of the required application

    Maximum Length: 256

    		 10001110 400 Missing Required Parameters One or more required parameters are missing.
    Destination Device string Provide Host ID or Device Name from configured device to get associated connection.

    Maximum Length: 64
    Domain Name string Domain Name of the Destination Device

    Maximum Length: 255
    Agent ID string Agent Id from which the action to be executed

    Sample error message:

    {
"code": "<Error Code>",
"message": "<Error message>"
}
"Create Incident" state content issues"

    Dynamic error cases

    Error Code Error Message Scenario
    JSON_SCHEMA_VALIDATION_FAILED $.<param>: must have a maximum value of <max-length> Dynamic value exceeds max length defined in qntrl conf file
    JSON_SCHEMA_VALIDATION_FAILED $: required property '<param>' not found Dynamic value resolved to null or missing
    JSON_SCHEMA_VALIDATION_FAILED $.<param>: string found, number expected Dynamic value for mismatched data type

    Example format for ISO 8601 date time formatting report

    • Due date of the incident, in ISO 8601 date-time format.
    • The value must be ≥ 1970-01-01T00:00:00Z.
    • Examples: 2024-03-15T10:30:00Z, 2024-03-15T10:30:00+05:30

    Common Error Applicable for all Agent Actions

    Error Code HTTP Status Title Error Message
    10001101 500 Internal Error An unexpected error occurred on the server.
    10001103 502 Agent Action Failure An internal error occurred while executing the agent action.
    10001104 404 Device Not Found The specified device is not available in the database.
    10001107 400 Incompatible Device The device is incompatible. (Unsupported OS type or script type)
    10001108 503 Device Offline The device is not reachable. (agent not running, upgrading or offline)
    10001109 409 Duplicate Collector A duplicate device entry exists in the database.

    State execution notes

    • States are selected and added based on the category structure shown in the builder UI
    • Execution follows the configured flow unless altered by flow control states

    Read also

    This page explained the different playbook state types available in Log360 Cloud and how they are used to control execution flow, embed logic, and perform platform and endpoint actions. To continue learning about playbook design and automation, refer to the following pages:
