Certificate signing request (CSR)

SSL/TLS certificates define how users interact with devices and websites in the modern world and establish secure means for internal communications. Businesses usually obtain these certificates from trusted certificate authorities (CAs)—organizations authorized to issue valid digital certificates. However, CAs require organization-specific information to issue a certificate that reflects relevant details of the organization. A certificate signing request addresses this need.

Create a certificate signing request

Last updated date : 13 May 2025

What is a certificate signing request?

A certificate signing request (commonly known as CSR) is when encrypted data about an organization requesting a new SSL/TLS certificate is sent to a CA to get a new certificate issued. A certificate signing request initiated by an organization contains a variety of information, including the server's public key and the CA's name. Using this information, a CA will be able to create and issue a valid certificate.

Automate your certificate life cycle management

What information does a certificate signing request contain?

Apart from the public key, a typical certificate signing request contains the following information:

  • Common Name

    The Common Name is the fully qualified domain name of your organization. For example: manageengine.com

  • Organization Name

    The Organization Name will be the full, legal name of your organization. This must be inclusive of suffixes, if any. For example: Zoho Corporation. The organization name cannot contain the following characters: < > ~ ! @ # $ % ^ * / \ ( ) ? . , &

  • Locality

    The Locality field refers to the town, city, or village your organization belongs to. For example: Austin

  • State

    The State field refers to the state your organization belongs to. For example: Texas

  • Country

    The Country field refers to the two-digit country code of your organization. For example: US

  • Email Address

    The email address field requires the email address of the admin or the employee who will oversee the whole process. For example: admin@zylker.com



Note: The email address field is often optional and may not be required or used by all CAs.

  • Fields
    Example

  • Common Name

    manageengine.com

  • SANs

    DNS:www.manageengine.com,
    DNS:manageengine.com,
    DNS:blogs.manageengine.com

  • Organization Name

    Zoho Corporation

  • Organizational Unit

    IT Department

  • Locality

    Austin

  • State

    Texas

  • Country

    US

  • Email Address

    admin@zylker.com

Prerequisites before creating a certificate signing request

Before creating a certificate signing request for an X.509 certificate, you will have to generate a public-private key pair. The public key will be sent to the CA along with the certificate signing request, while the private key must be kept a secret and used for signing the information in the certificate signing request.

How to create a certificate signing request

You can create a CSR either manually or using certificate lifecycle management software.

Creating a certificate signing request manually

To create a CSR manually, you will have to:

01. Create an RSA private key pair

Log in to your server, then create an RSA private key with CSR using OpenSSL or keytool.

openssl
  • Command
    Function

  • openssl

    To invoke OpenSSL.

  • req

    Indicates the generation of a new certificate signing request.

  • -new -newkey rsa:2048

    Generates a new 2048-bit RSA private key.
    Note: 4096-bit key pairs are more secure. If you wish to use them instead, replace 2048 with 4096.

  • -keyout domain_name.key

    Specifies the domain for which you're creating a new key. Replace domain_name with a name of your choice.

  • -out MYCSR.csr

    Specifies the name of the output file that stores your CSR. Replace MYCSR with a name of your choice.

keytool
  • Command
    Function

  • keytool

    To invoke Keytool.

  • genkey

    Generates a new key pair.

  • -alias ALIAS

    The name used to identify the key pair in the keystore. Replace ALIAS with a name of your choice.

  • -keyalg ALGORITHM

    Specifies the algorithm (RSA, DSA, EC) to be used to generate the key pair.

  • -keystore server.keystore

    Specifies the name of the keystore file that will store the key pair. Replace server.keystore with a file name of your choice.

  • -storetype TYPE

    Specifies the type of keystore that will be created. Replace TYPE with the keystore type of your choice (JKS, PKCS12, etc).

Note: You will typically require appropriate permissions (like root or administrator privileges or user rights to write files) on the server. The server must also have the respective tool (OpenSSL or Java Development Kit for keytool) installed. When using keytool, you will be prompted to enter and confirm passwords for the keystore and key entry.



02. Submit certificate signing request details

Soon after you run the command, you will be asked to enter relevant certificate signing request details, including Common Name, Organization Name, Organizational Unit, Locality, State, Country, and Email Address. You can also enter a password for your key pair at the end.

Sending certificate signing request details to the certificate authority

To send the generated CSR details to the CA:

  • Access the newly created CSR. You can find it in your working directory. Copy the entire content to a separate file. If your certificate authority does not allow you to upload a file, you can copy & paste the CSR details manually.

  • Verify the details before sending them to your CA. Many CAs also offer CSR decoders to troubleshoot error messages that appear during CSR generation.





Example of a CSR

After generating a CSR, you will get an output that resembles the example shown below. The CA uses this information to verify the request and issue the corresponding SSL/TLS certificate.

-----BEGIN NEW CERTIFICATE REQUEST-----

MIIE1zCCAr8CAQAwbTELMAkGA1UEBhMCSU4xEzARBgNVBAgTClRhbWlsIE5hZHUxEDAOBgNVBAcTB0NoZW5uYWkxFjAUBgNVBAsTDU1hbmFnZSBFbmdpbmUxDTALBgNVBAoTBFpvaG8xEDAOBgNVBAMTB3Rlc3RDU1IwggIiMA0GCSqGSIb3DQEBAQUAA4ICDwAwggIKAoICAQDgCx5kIVbqwVnBQmGIca7Ni3JzLgdnH4oVLpPXLHErtaYnXAwIY9VknLzSvxEapCmkme2ELZ8FfbTslyuCrrqLL4fnytsIX4QZDpzBPRyjyrwCNcSl5DeOYwjy3+f88BAm8lYX69hRoqr7QUulcfxSUSwZzGgN+MFQFw56+5HQ58ZP9MQn1yqBjM4ajhAJ6tGKwb3es3PA/dIGu/9Arkw7JYm0GWTv+Gwg0blH1NKrNovG4H4QeS2euCMnpmiojexWtD+3t4x9OW1lg1nvbGQGu6cKyn3h0ltIOsyete2wCLTFWwjPLnma7XoCDIzFGTdNOy5BFqq+2624GLw+8gjz8LSvIGhwfUY8+i+EWuGDb85+K4j40fvUq2krsZye9WKyUVdgEP9RjfZtvxB/1/tPiMWrbmZnY6yjdYKdG8Kxrp6N+rrNruB3iYqQKCD9XbEwAwl82I7jkyn/4a0nWJokfN7BEiR2GK1dOC3fn5r84TBm4McraaVZBPuxwpFP5YXAaJc5S4bo0JtJSWHdia65zrj3wbs9Cb8MZlki8fElwA2MumcjBt7aEipzFYkyKmYS9EF6qAnPixKE8V5U5VdNtDc22WBwwk9FsaaG4gYJi2YYcWLsOSnjw+Qhm5m54OharLnBAiKR3Ev0AQwaFgqqBIgp+rL4ynfl3LHVrOU17QIDAQABoCUwIwYJKoZIhvcNAQkOMRYwFDASBgNVHREECzAJggd0ZXN0Q1NSMA0GCSqGSIb3DQEBCwUAA4ICAQAc6TpPe1Yx05V6atsTxjgjsvXg+Bhgsqld5pgNWCCqUViAqtYA670rKO95DXP2xk3+iEKmzWCkxz9HcDY29WH48fVuxxwjh/S+tfJO9vdFu2DrG+ocUltLAPWDsRSlaxI3mUw7+78/kTSnDOFCDe/RZ7ck0C/9aT9eqLIcxM8sv/NlcVa5rnJ8J/nJ3ZEp1lBsVLuB046TFvEIx7EhLiC9/THRgpNtAXSLMimtXq1/SG+xf5BH1eSn/MpOAZ/nOvUf/qPwBhcWqbCAmQsyjPrW1jAOR11xZ6MEUn/5NIPJrW+4rHXFX/df14Ha/h06y4HzRhw6LYRxIhf7E9jBz7zkciR3VV5hl8eRglIRO47ihRJcGEJx1nXTUE4aJ3MNh0L3x9BDpRpfVpZ+6v2TPvEk/PWuHz5+J87BQaMmgc3HpwcLoUX8a8C6YANxygxjO91SMlHL/CWEXPp6DXwN9vfmOVROw5yQViHUXbMuvk6GpKOUkluDt8qrE3+6E1XzYUvfS0Tu/ahbp1Vh6ZACHxNaRKBa8RGLIMwu4z725J36WgwfBDd/pAnYtRDwMLKzBVH8DVA66NFg8dpwJYKDvATURhGYM5FSQNU4lqBOfBlsZQurpe1gumPkNwgheXAdh98GRVbDiHJwWM3vS6/vacZ2AfCPcB1wSIYzg7ePew+Kig==

-----END NEW CERTIFICATE REQUEST-----



Note: The specific encoded characters will differ for every unique certificate signing request generated.

So why does a certificate signing request look like a long string of characters?

The certificate signing request consists of Base64 encoded data, containing the public key and the distinguished name information entered initially. A major portion of the certificate signing request is the public key. This key is a large number and is inherently binary data. On top of the public key, the data within a CSR (Common Name, Organization, etc.) is organized into a specific, standardized data structure defined by Abstract Syntax Notation One (ASN. 1). This ensures that any CA can parse the request and understand it regardless of the system that generated it. This is why the certificate signing request appears as a long string of random characters.

You can use a certificate signing request decoder to verify the authenticity of the information stored in your certificate signing request.

Automate your certificate signing requests using Key Manager Plus

While manually creating a certificate signing request request can seem intuitive, it isn't scalable when you manage multiple devices in your organization. In such cases, it might be helpful to use machine identity management software that automates the certificate signing request process. For example, a solution like ManageEngine Key Manager Plus helps enterprises create new certificate signing requests, import or export certificate signing requests, set up certificate signing request templates, order new certificates from popular CAs, and much more.

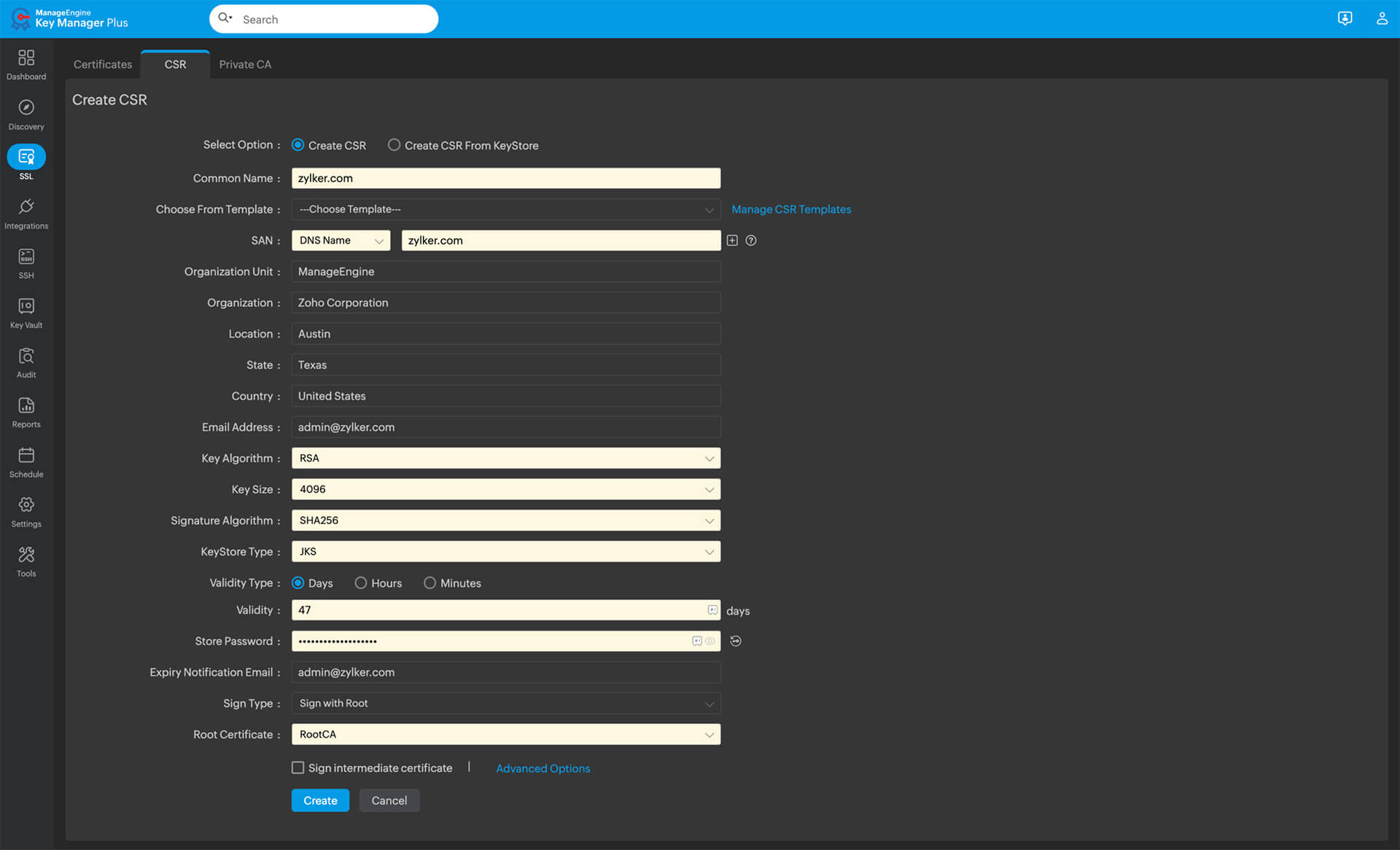

Generating a certificate signing request using a CSR tool

Simplify your certificate life cycle management

Managing certificate signing requests is one part of managing certificate life cycles in your enterprise. From encrypting data for secure communication to validating user identities, certificates form an essential part of our online world. If you do not yet use a certificate life cycle management solution, you should consider adopting one.

Try Key Manager Plus now

PKI management with a certificate life cycle management solution
