Log Forwarder

EventLog Analyzer's syslog forwarder sends logs from syslog devices as raw data and logs from other sources are converted to RFC 3164 or RFC 5424 and forwarded to the destination server.

Steps to start forwarding logs

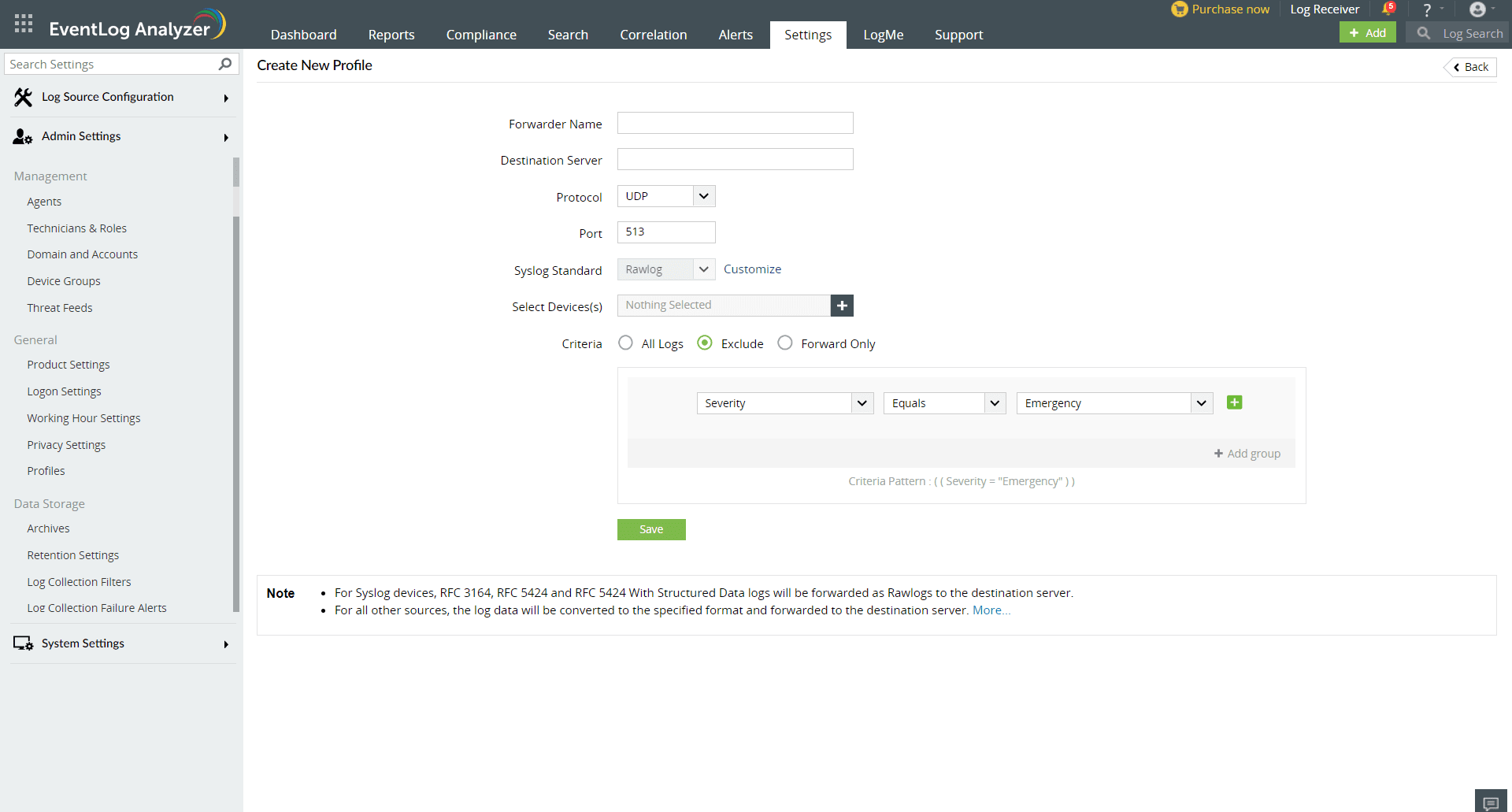

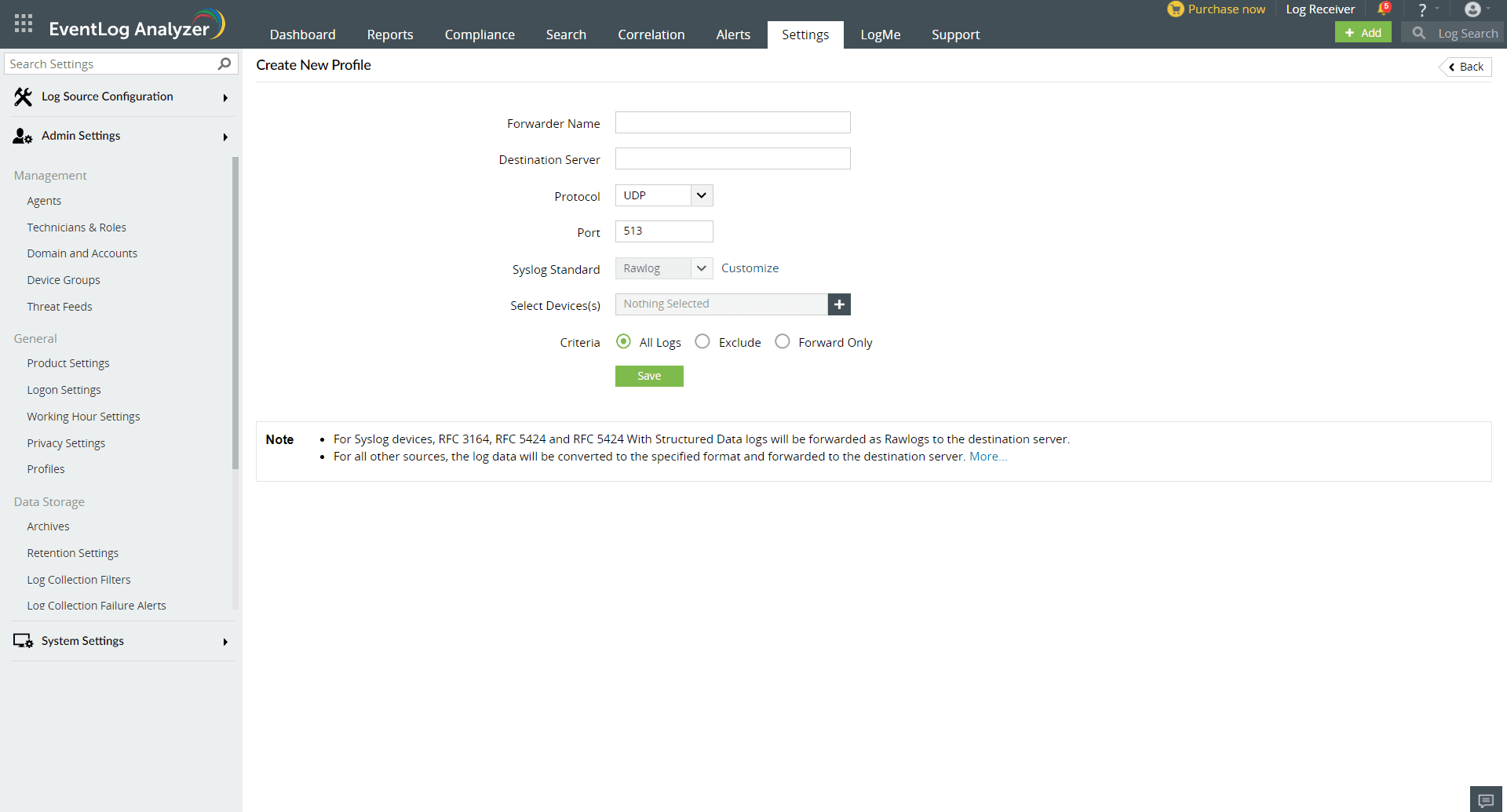

1. Navigate to Settings > Configurations > Log Forwarder.
2. Enable the Syslog forwarder.
3. Enter the destination server to which the logs have to be forwarded to and the port number(Default port:513).

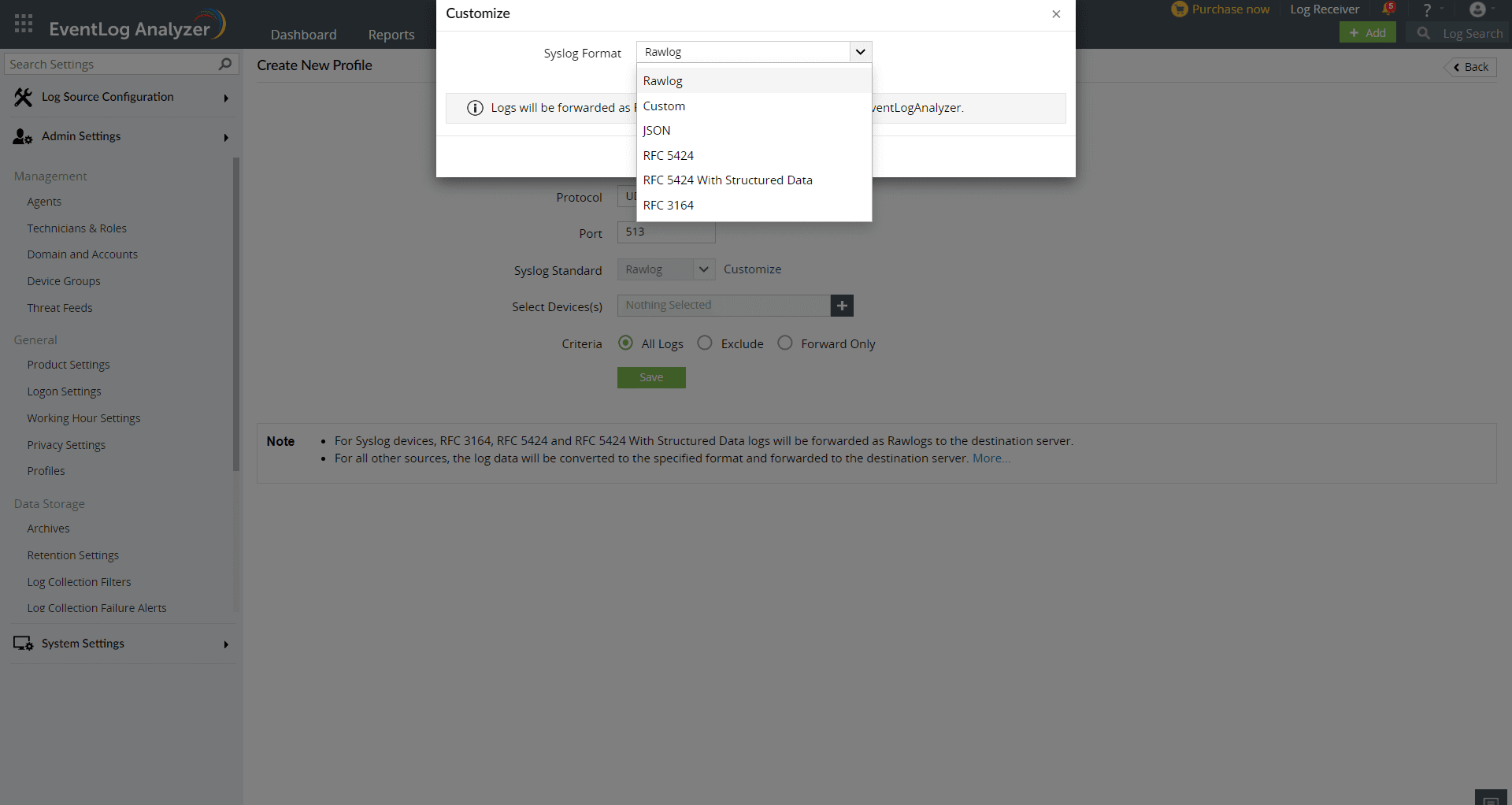

4. Select the protocol (UDP only), RFC standard (RFC 3164 or RFC 5424), and the source devices from which logs have to be forwarded.
• Enter the destination server to which the logs have to be forwarded, and the protocol (UDP only) to be used.
• Select the port number (Default port: 513), RFC standard (RFC 3164 or RFC 5424), and the source devices (i.e.) logs from these devices will be forwarded.
5. Click Save.
