Configuring SAML SSO for EZOfficeInventory

These steps will guide you through setting up the single sign-on functionality between ADSelfService Plus and EZOfficeInventory.

Prerequisites

1. Log in to ADSelfService Plus as an administrator.
2. Navigate to  Configuration > Self-Service > Password Sync/Single Sign On > Add Application, and select EZOfficeInventory from the applications displayed.
   Note: You can also find the application that you need from the search bar located in the left pane or the alphabet-wise navigation option in the right pane.

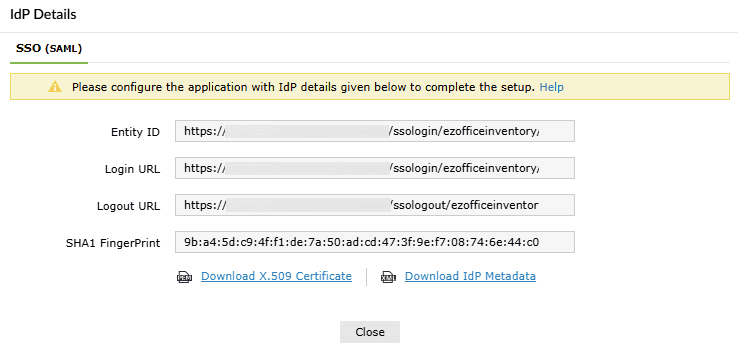

3. Click IdP details at the top-right corner of the screen.
4. In the pop-up that appears, copy the Login URL and download the SSO certificate by clicking on the Download X.509 Certificate link.

EZOfficeInventory (Service Provider) configuration steps

1. Login to EZOfficeInventory with an administrator’s credentials.
2. From the drop-down at the top-right corner, click Settings.
3. Navigate to the Integrations tab, and scroll down to the SAML Integration section.



4. Select Enabled.
5. Enable Use the same SAML settings for the Request Portal.
6. Paste the Login URL copied in step 4 of the prerequisites in the Identity Provider URL field.
7. Open the SSO certificate downloaded in step 4 of the prerequisites as a text file. Copy and paste the content it in the Identity Provider Certificate text field.
8. You can customize the login button.
9. Check the attribute values or add the following values.
   First name as “first_name”
   Last name as “last_name”
   and mail as “mail”

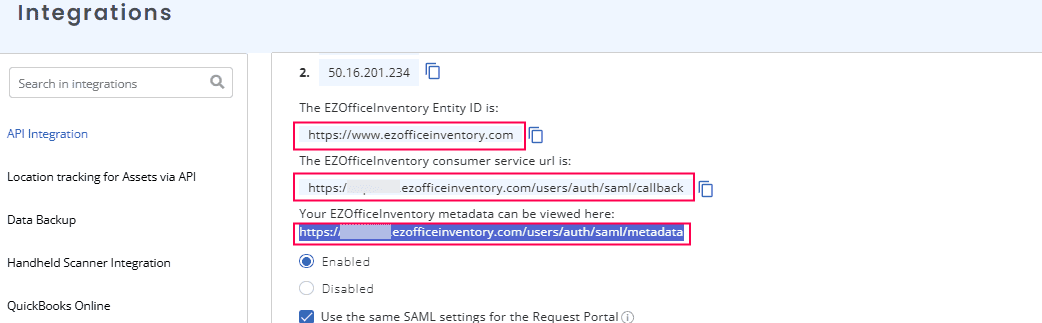

10. Copy the EZOffice Inventory consumer service URL and the EZOfficeInventory Entity ID. This will be required later.



11. Click the EZOfficeInventory metadata link in your browser to view its metadata.



12. Click Update to save the changes.

ADSelfService Plus (Identity Provider) configuration steps

1. Now, switch to ADSelfService Plus’ EZOfficeInventory configuration page.



2. Enter the Application Name and Description.
3. In the Assign Policies field, select the policies for which SSO need to be enabled.
   Note: ADSelfService Plus allows you to create OU and group-based policies for your AD domains. To create a policy, go to Configuration > Self-Service > Policy Configuration > Add New Policy.
4. Select Enable Single Sign-On.
5. Enter the Domain Name of your EZOfficeInventory account. For example, if you use johndoe@thinktodaytech.com to log in to EZOfficeInventory, then thinktodaytech.com is the domain name.
6. Enter the Subdomain of your EZOfficeInventory account in the SP Identifier field. For Eg: https://<sp_identifier>.ezofficeinventory.com
7. Enter the EZOfficeInventory consumer service URL copied in step 10 of the SP configuration in the Assertion Consumer Service URL field.
Note: If the EZOfficeInventory metadata downloaded in step 11 of the SP configuration contains multiple Assertion Consumer URLs, click the + button next to the text field to add each of them.
8. In the Name ID Format field, choose the format for the user login attribute value specific to the application.

Note: Use Unspecified as the default option if you are unsure about the format of the login attribute value used by the application

9. Click Add Application.
