Execute workflow

    Last updated on:

    In this page

    Overview

    The Execute workflow API allows you to automate workflow actions using tickets in ManageEngine Log360.

    You can:

    • Fetch a list of available workflows
    • Retrieve template data for specific workflows
    • Execute workflows directly using a ticketing tool connection.

    Fetch all available workflows

    This API allows you to fetch the list of all available workflows configured in the product console.

    Request URL

    GET http://hostname:8095/RestAPI/v1/workflow/templates/list

    Request Header

    Header name Value Mandatory Description
    Authorization Bearer {{AuthToken}} Yes AuthToken generated from the API Settings page.

    Example: Bearer abcd1234xyz

    Response

    The response will be a JSON object containing the following key/value pairs:

    Parameter name Description
    workflow_list A JSON array containing the list of all available workflows and their details in the product console.
    message Status of the API call to fetch all available workflows.

    Executing the API using cURL

    Sample request

    curl --location 'http://localhost:8095/RestAPI/v1/workflow/templates/list' \

    --header 'Authorization: Bearer abcd1234xyz' \

    Sample response

    {"workflow_list":[{"CREATED_BY":1,"STATUS":1,"TEMPLATE_NAME":"Popup Alert","CREATED_ON":0,"LAST_MODIFIED":0,"TEMPLATE_DESCRIPTION":"This workflow displays a popup alert on the affected device and emails the status to the administrator.","TEMPLATE_ID":1},{"CREATED_BY":1,"

    STATUS":1,"TEMPLATE_NAME":"Kill Process","CREATED_ON":0,"LAST_MODIFIED":0,"TEMPLATE_DESCRIPTION":"This workflow kills a process on a potentially compromised device and emails the status to the administrator.","TEMPLATE_ID":2},{"CREATED_BY":1,"STATUS":1,"TEMPLATE_NAME":"S

    top Service","CREATED_ON":0,"LAST_MODIFIED":0,"TEMPLATE_DESCRIPTION":"This workflow stops a service on a potentially compromised device and emails the status to the administrator.","TEMPLATE_ID":3},{"CREATED_BY":1,"STATUS":1,"TEMPLATE_NAME":"Disable Computer","CREATED_ON

    ":0,"LAST_MODIFIED":0,"TEMPLATE_DESCRIPTION":"This workflow disables a potentially compromised computer and emails the status to the administrator.","TEMPLATE_ID":4},{"CREATED_BY":1,"STATUS":1,"TEMPLATE_NAME":"Log Off and Disable User","CREATED_ON":0,"LAST_MODIFIED":0,"T

    EMPLATE_DESCRIPTION":"This workflow logs off and disables a potentially compromised user account and emails the status to the administrator.","TEMPLATE_ID":5},{"CREATED_BY":1,"STATUS":1,"TEMPLATE_NAME":"Block USB","CREATED_ON":0,"LAST_MODIFIED":0,"TEMPLATE_DESCRIPTION":"

    This workflow blocks the USB port on a potentially compromised device and emails the status to the administrator.","TEMPLATE_ID":6}],"message":"Workflow List fetched successfully"}

    Executing the API using Postman

    Execute workflow

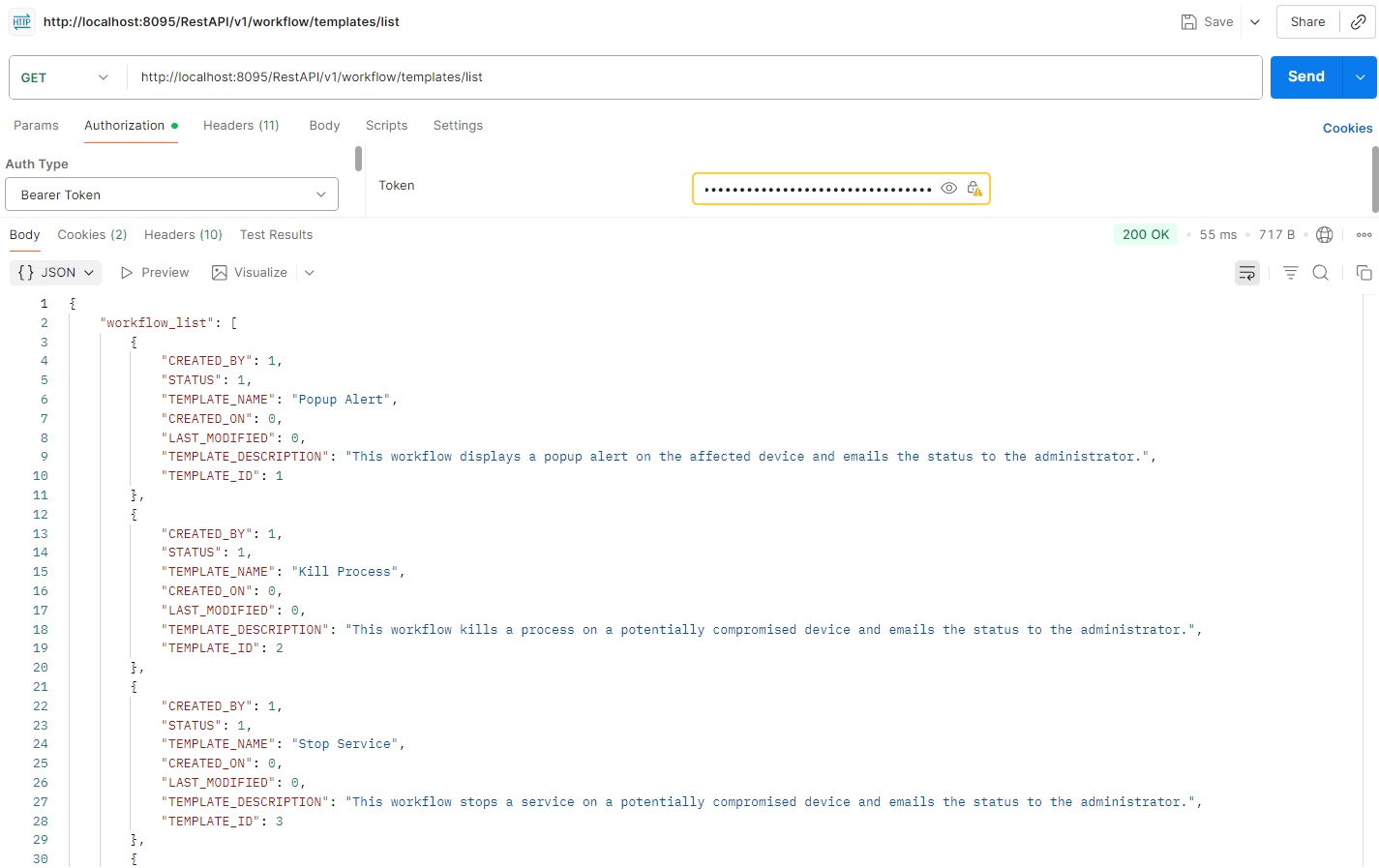

    Figure 1: Executing the API using Postman

    Fetch template data for workflow

    This API allows you to fetch detailed template data for a specific workflow.

    Request URL

    GET http://hostname:8095/RestAPI/v1/workflow/templates/details

    Request Header

    Header name Value Mandatory Description
    Authorization Bearer {{AuthToken}} Yes AuthToken generated from the API Settings page.

    Example: Bearer abcd1234xyz

    Request Parameters

    Parameter Name Mandatory Type Description
    template_id Yes Long Template ID of the workflow whose template details needs to be fetched.

    Response

    The response will be a JSON object containing the following key/value pairs:

    Parameter name Description
    workflow_details A JSON array containing the block details of the workflow.
    message Status of the API call to fetch workflow template data.

    Executing the API using cURL

    Sample request

    curl --location 'http://localhost:8095/RestAPI/v1/workflow/template/details?template_id=1' \

    --header 'Authorization: Bearer abcd1234xyz' \

    Sample response

    {"message":"Workflow details fetched successfully","workflow_details":[{"INPUT":[{"ATTRIB_NAME":"destinationDevice","VALUE":"%HOSTNAME%","MIN_VALUE":0,"IS_EDITABLE":true,"MAX_LENGTH":500,"IS_VISIBLE":true,"MAX_LEN_TEXT":"Destination Device can be a maximum of 500 charact

    ers long.","LABEL":"Destination Device","ID":68,"INPUT_TYPE":"text","IS_CUSTOM_INPUT":false,"TEMPLATE_VALUE":"%HOSTNAME%","VALIDATION_IDS":"validate-max-length validate-text","MACROS":[{"title":"Device","value":"HOSTNAME"}],"IS_MANDATORY":true},{"HELP_TEXT":"Powershell i

    s required to send sound alert on Windows machine","ATTRIB_NAME":"message","VALUE":"Incident detected on %HOSTNAME%.","MIN_VALUE":0,"IS_EDITABLE":true,"MAX_LENGTH":255,"IS_VISIBLE":true,"MAX_LEN_TEXT":"Message can be a maximum of 255 characters long.","LABEL":"Message","

    ID":69,"INPUT_TYPE":"text","IS_CUSTOM_INPUT":false,"TEMPLATE_VALUE":"Incident detected on %HOSTNAME%.","VALIDATION_IDS":"validate-max-length validate-text","MACROS":[{"title":"Device","value":"HOSTNAME"},{"title":"Service Name","value":"SERVICENAME"},{"title":"Process Na

    me","value":"PROCESSNAME"},{"title":"Username","value":"USERNAME"},{"title":"Alert Name","value":"ALERTNAME"}],"IS_MANDATORY":true}],"ID":1,"NAME":"Send Popup Notification"},{"INPUT":[],"ID":2,"NAME":"Popup message sent?"},{"INPUT":[{"HELP_TEXT":"Use comma to separate mu

    ltiple mail IDs","ATTRIB_NAME":"toAddress","VALUE":"%ADMINEMAIL%","MIN_VALUE":0,"IS_EDITABLE":true,"MAX_LENGTH":500,"IS_VISIBLE":true,"MAX_LEN_TEXT":"To Address can be a maximum of 500 characters long.","LABEL":"To Address","ID":70,"INPUT_TYPE":"text","IS_CUSTOM_INPUT":f

    alse,"TEMPLATE_VALUE":"%ADMINEMAIL%","VALIDATION_IDS":"validate-max-length ads-validate-multiple-email validate-text","MACROS":[{"title":"Admin Email","value":"ADMINEMAIL"}],"IS_MANDATORY":true},{"ATTRIB_NAME":"subject","VALUE":"Workflow status: Failed to send popup mess

    age","MIN_VALUE":0,"IS_EDITABLE":true,"MAX_LENGTH":500,"IS_VISIBLE":true,"MAX_LEN_TEXT":"Mail Subject can be a maximum of 500 characters long.","LABEL":"Mail Subject","ID":71,"INPUT_TYPE":"text","IS_CUSTOM_INPUT":false,"TEMPLATE_VALUE":"Workflow status: Failed to send po

    pup message","VALIDATION_IDS":"validate-max-length validate-text","MACROS":[{"title":"Device","value":"HOSTNAME"},{"title":"Service Name","value":"SERVICENAME"},{"title":"Process Name","value":"PROCESSNAME"},{"title":"Username","value":"USERNAME"},{"title":"Alert Name","

    value":"ALERTNAME"}],"IS_MANDATORY":true},{"ATTRIB_NAME":"message","VALUE":"An incident was detected in the network. Details:\nAlert Name: %ALERTNAME%\nDevice Name: %HOSTNAME%\n\nFailed to send popup message to %HOSTNAME%.","MIN_VALUE":0,"IS_EDITABLE":true,"MAX_LENGTH":5

    00,"IS_VISIBLE":true,"MAX_LEN_TEXT":"Mail Body can be a maximum of 500 characters long.","LABEL":"Mail Body","ID":72,"INPUT_TYPE":"textarea","IS_CUSTOM_INPUT":false,"TEMPLATE_VALUE":"An incident was detected in the network. Details:\nAlert Name: %ALERTNAME%\nDevice Name:

    %HOSTNAME%\n\nFailed to send popup message to %HOSTNAME%.","VALIDATION_IDS":"validate-max-length validate-text","MACROS":[{"title":"Device","value":"HOSTNAME"},{"title":"Service Name","value":"SERVICENAME"},{"title":"Process Name","value":"PROCESSNAME"},{"title":"Userna

    me","value":"USERNAME"},{"title":"Alert Name","value":"ALERTNAME"}],"IS_MANDATORY":true}],"ID":3,"NAME":"Failure Notification"},{"INPUT":[{"HELP_TEXT":"Use comma to separate multiple mail IDs","ATTRIB_NAME":"toAddress","VALUE":"%ADMINEMAIL%","MIN_VALUE":0,"IS_EDITABLE":t

    rue,"MAX_LENGTH":500,"IS_VISIBLE":true,"MAX_LEN_TEXT":"To Address can be a maximum of 500 characters long.","LABEL":"To Address","ID":70,"INPUT_TYPE":"text","IS_CUSTOM_INPUT":false,"TEMPLATE_VALUE":"%ADMINEMAIL%","VALIDATION_IDS":"validate-max-length ads-validate-multipl

    e-email validate-text","MACROS":[{"title":"Admin Email","value":"ADMINEMAIL"}],"IS_MANDATORY":true},{"ATTRIB_NAME":"subject","VALUE":"Workflow status: Popup message successfully sent","MIN_VALUE":0,"IS_EDITABLE":true,"MAX_LENGTH":500,"IS_VISIBLE":true,"MAX_LEN_TEXT":"Mai

    l Subject can be a maximum of 500 characters long.","LABEL":"Mail Subject","ID":71,"INPUT_TYPE":"text","IS_CUSTOM_INPUT":false,"TEMPLATE_VALUE":"Workflow status: Popup message successfully sent","VALIDATION_IDS":"validate-max-length validate-text","MACROS":[{"title":"Dev

    ice","value":"HOSTNAME"},{"title":"Service Name","value":"SERVICENAME"},{"title":"Process Name","value":"PROCESSNAME"},{"title":"Username","value":"USERNAME"},{"title":"Alert Name","value":"ALERTNAME"}],"IS_MANDATORY":true},{"ATTRIB_NAME":"message","VALUE":"An incident w

    as detected in the network. Details:\nAlert Name: %ALERTNAME%\nDevice Name: %HOSTNAME%\n\nPopup message sent to %HOSTNAME%.","MIN_VALUE":0,"IS_EDITABLE":true,"MAX_LENGTH":500,"IS_VISIBLE":true,"MAX_LEN_TEXT":"Mail Body can be a maximum of 500 characters long.","LABEL":"M

    ail Body","ID":72,"INPUT_TYPE":"textarea","IS_CUSTOM_INPUT":false,"TEMPLATE_VALUE":"An incident was detected in the network. Details:\nAlert Name: %ALERTNAME%\nDevice Name: %HOSTNAME%\n\nPopup message sent to %HOSTNAME%.","VALIDATION_IDS":"validate-max-length validate-te

    xt","MACROS":[{"title":"Device","value":"HOSTNAME"},{"title":"Service Name","value":"SERVICENAME"},{"title":"Process Name","value":"PROCESSNAME"},{"title":"Username","value":"USERNAME"},{"title":"Alert Name","value":"ALERTNAME"}],"IS_MANDATORY":true}],"ID":4,"NAME":"Succ

    ess Notification"}]}

    Executing the API using Postman

    Execute workflow

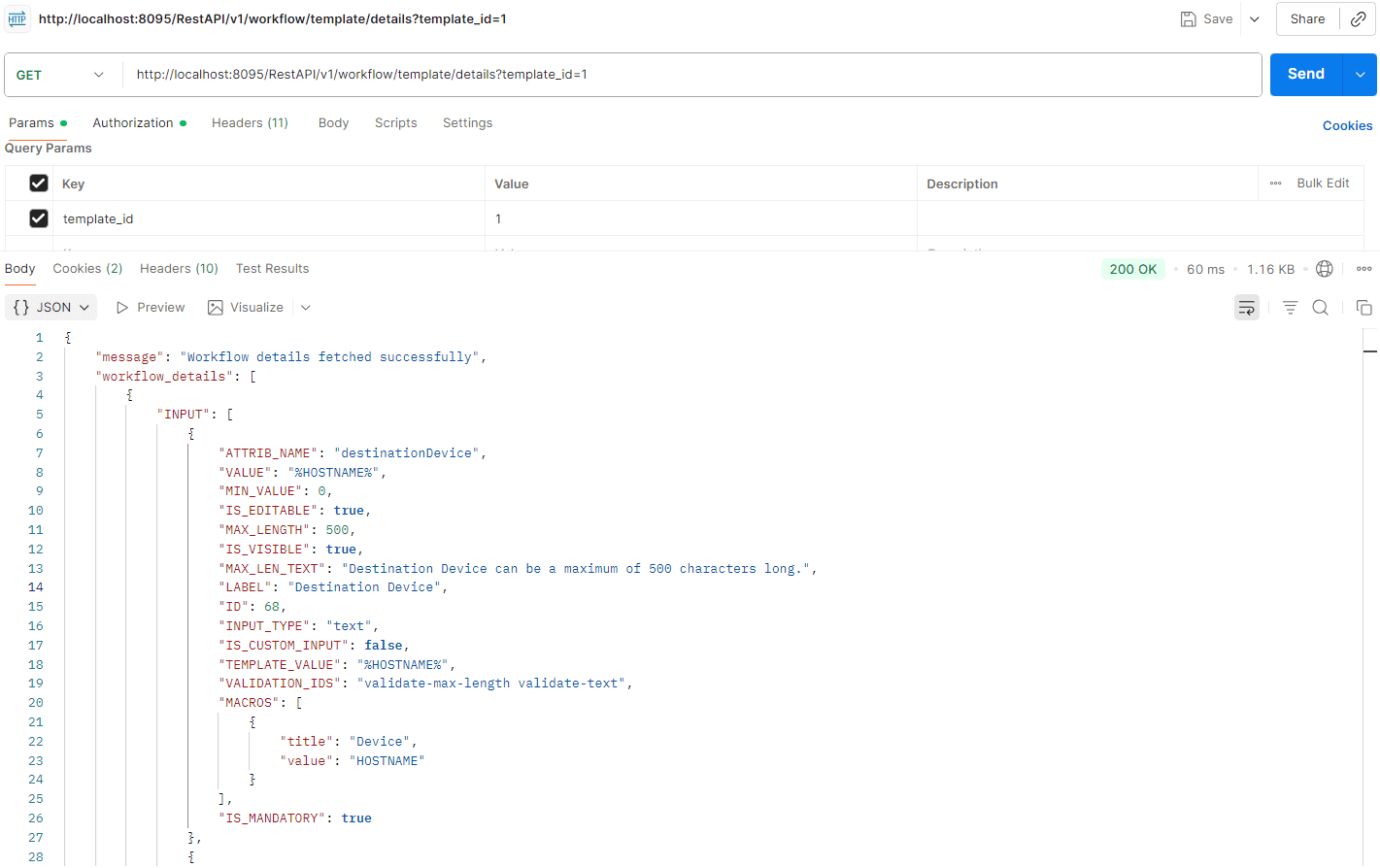

    Figure 2: Executing the API using Postman

    Execute the workflow from ticket

    This API allows you to execute a workflow in the product console using a ticket.

    Request URL

    POST http://hostname:8095/RestAPI/v1/ticket/workflow/execute

    Request Header

    Header name Value Mandatory Description
    Authorization Bearer {{AuthToken}} Yes AuthToken generated from the API Settings page.

    Example: Bearer abcd1234xyz

    Request Parameters

    Parameter Name Mandatory Type Description
    template_id Yes Long ID of the workflow template to be executed.
    template_name Yes String Name of the workflow to be executed.
    ticket_id Yes String ID of the ticket from which the workflow is being executed.
    tool_name Yes String Name of the ticketing tool from which the workflow is being executed.
    type No String If the ticket is created from an alert, the value should be "alert".
    custom_input Yes String Workflow template block data (fetched from the previous Fetch Template Data for Workflow API).

    Response

    The response will be a JSON object containing the following key/value pair.

    Parameter name Description
    workflow_details A JSON array containing the block details of the workflow.
    message Status of the workflow execution.

    Executing API using cURL

    Sample request

    curl --location 'http://localhost:8095/RestAPI/v1/ticket/workflow/execute' \

    --header 'Content-Type: application/json' \

    --header 'Authorization: Bearer abcd1234xyz' \

    --data '{

    "template_id": 1,

    "template_name": "Popup Alert",

    "ticket_id": "33741",

    "tool_name": "ZEN_DESK_CLOUD",

    "type":"alert",

    "custom_input": "{\"1\":[{\"ATTRIB_NAME\":\"destinationDevice\",\"VALUE\":\"%HOSTNAME%\",\"MIN_VALUE\":0,\"IS_EDITABLE\":true,\"MAX_LENGTH\":500,\"IS_VISIBLE\":true,\"MAX_LEN_TEXT\":\"Destination Device can be a maximum of 500 characters long.\",\"LABEL\":\"Destination Device\",\"ID\":68,\"INPUT_TYPE\":\"text\",\"IS_CUSTOM_INPUT\":false,\"TEMPLATE_VALUE\":\"%HOSTNAME%\",\"VALIDATION_IDS\":\"validate-max-length validate-text\",\"MACROS\":[{\"title\":\"Device\",\"value\":\"HOSTNAME\"}],\"IS_MANDATORY\":true},{\"HELP_TEXT\":\"Powershell is required to send sound alert on Windows machine\",\"ATTRIB_NAME\":\"message\",\"VALUE\":\"Incident detected on %HOSTNAME%.\",\"MIN_VALUE\":0,\"IS_EDITABLE\":true,\"MAX_LENGTH\":255,\"IS_VISIBLE\":true,\"MAX_LEN_TEXT\":\"Message can be a maximum of 255 characters long.\",\"LABEL\":\"Message\",\"ID\":69,\"INPUT_TYPE\":\"text\",\"IS_CUSTOM_INPUT\":false,\"TEMPLATE_VALUE\":\"Incident detected on %HOSTNAME%.\",\"VALIDATION_IDS\":\"validate-max-length validate-text\",\"MACROS\":[{\"title\":\"Device\",\"value\":\"HOSTNAME\"},{\"title\":\"Service Name\",\"value\":\"SERVICENAME\"},{\"title\":\"Process Name\",\"value\":\"PROCESSNAME\"},{\"title\":\"Username\",\"value\":\"USERNAME\"},{\"title\":\"Alert Name\",\"value\":\"ALERTNAME\"}],\"IS_MANDATORY\":true}],\"2\":[],\"3\":[{\"HELP_TEXT\":\"Use comma to separate multiple mail IDs\",\"ATTRIB_NAME\":\"toAddress\",\"VALUE\":\"%ADMINEMAIL%\",\"MIN_VALUE\":0,\"IS_EDITABLE\":true,\"MAX_LENGTH\":500,\"IS_VISIBLE\":true,\"MAX_LEN_TEXT\":\"To Address can be a maximum of 500 characters long.\",\"LABEL\":\"To Address\",\"ID\":70,\"INPUT_TYPE\":\"text\",\"IS_CUSTOM_INPUT\":false,\"TEMPLATE_VALUE\":\"%ADMINEMAIL%\",\"VALIDATION_IDS\":\"validate-max-length ads-validate-multiple-email validate-text\",\"MACROS\":[{\"title\":\"Admin Email\",\"value\":\"ADMINEMAIL\"}],\"IS_MANDATORY\":true},{\"ATTRIB_NAME\":\"subject\",\"VALUE\":\"Workflow status: Failed to send popup message\",\"MIN_VALUE\":0,\"IS_EDITABLE\":true,\"MAX_LENGTH\":500,\"IS_VISIBLE\":true,\"MAX_LEN_TEXT\":\"Mail Subject can be a maximum of 500 characters long.\",\"LABEL\":\"Mail Subject\",\"ID\":71,\"INPUT_TYPE\":\"text\",\"IS_CUSTOM_INPUT\":false,\"TEMPLATE_VALUE\":\"Workflow status: Failed to send popup message\",\"VALIDATION_IDS\":\"validate-max-length validate-text\",\"MACROS\":[{\"title\":\"Device\",\"value\":\"HOSTNAME\"},{\"title\":\"Service Name\",\"value\":\"SERVICENAME\"},{\"title\":\"Process Name\",\"value\":\"PROCESSNAME\"},{\"title\":\"Username\",\"value\":\"USERNAME\"},{\"title\":\"Alert Name\",\"value\":\"ALERTNAME\"}],\"IS_MANDATORY\":true},{\"ATTRIB_NAME\":\"message\",\"VALUE\":\"An incident was detected in the network. Details:\\nAlert Name: %ALERTNAME%\\nDevice Name: %HOSTNAME%\\n\\nFailed to send popup message to %HOSTNAME%.\",\"MIN_VALUE\":0,\"IS_EDITABLE\":true,\"MAX_LENGTH\":500,\"IS_VISIBLE\":true,\"MAX_LEN_TEXT\":\"Mail Body can be a maximum of 500 characters long.\",\"LABEL\":\"Mail Body\",\"ID\":72,\"INPUT_TYPE\":\"textarea\",\"IS_CUSTOM_INPUT\":false,\"TEMPLATE_VALUE\":\"An incident was detected in the network. Details:\\nAlert Name: %ALERTNAME%\\nDevice Name: %HOSTNAME%\\n\\nFailed to send popup message to %HOSTNAME%.\",\"VALIDATION_IDS\":\"validate-max-length validate-text\",\"MACROS\":[{\"title\":\"Device\",\"value\":\"HOSTNAME\"},{\"title\":\"Service Name\",\"value\":\"SERVICENAME\"},{\"title\":\"Process Name\",\"value\":\"PROCESSNAME\"},{\"title\":\"Username\",\"value\":\"USERNAME\"},{\"title\":\"Alert Name\",\"value\":\"ALERTNAME\"}],\"IS_MANDATORY\":true}],\"4\":[{\"HELP_TEXT\":\"Use comma to separate multiple mail IDs\",\"ATTRIB_NAME\":\"toAddress\",\"VALUE\":\"%ADMINEMAIL%\",\"MIN_VALUE\":0,\"IS_EDITABLE\":true,\"MAX_LENGTH\":500,\"IS_VISIBLE\":true,\"MAX_LEN_TEXT\":\"To Address can be a maximum of 500 characters long.\",\"LABEL\":\"To Address\",\"ID\":70,\"INPUT_TYPE\":\"text\",\"IS_CUSTOM_INPUT\":false,\"TEMPLATE_VALUE\":\"%ADMINEMAIL%\",\"VALIDATION_IDS\":\"validate-max-length ads-validate-multiple-email validate-text\",\"MACROS\":[{\"title\":\"Admin Email\",\"value\":\"ADMINEMAIL\"}],\"IS_MANDATORY\":true},{\"ATTRIB_NAME\":\"subject\",\"VALUE\":\"Workflow status: Popup message successfully sent\",\"MIN_VALUE\":0,\"IS_EDITABLE\":true,\"MAX_LENGTH\":500,\"IS_VISIBLE\":true,\"MAX_LEN_TEXT\":\"Mail Subject can be a maximum of 500 characters long.\",\"LABEL\":\"Mail Subject\",\"ID\":71,\"INPUT_TYPE\":\"text\",\"IS_CUSTOM_INPUT\":false,\"TEMPLATE_VALUE\":\"Workflow status: Popup message successfully sent\",\"VALIDATION_IDS\":\"validate-max-length validate-text\",\"MACROS\":[{\"title\":\"Device\",\"value\":\"HOSTNAME\"},{\"title\":\"Service Name\",\"value\":\"SERVICENAME\"},{\"title\":\"Process Name\",\"value\":\"PROCESSNAME\"},{\"title\":\"Username\",\"value\":\"USERNAME\"},{\"title\":\"Alert Name\",\"value\":\"ALERTNAME\"}],\"IS_MANDATORY\":true},{\"ATTRIB_NAME\":\"message\",\"VALUE\":\"An incident was detected in the network. Details:\\nAlert Name: %ALERTNAME%\\nDevice Name: %HOSTNAME%\\n\\nPopup message sent to %HOSTNAME%.\",\"MIN_VALUE\":0,\"IS_EDITABLE\":true,\"MAX_LENGTH\":500,\"IS_VISIBLE\":true,\"MAX_LEN_TEXT\":\"Mail Body can be a maximum of 500 characters long.\",\"LABEL\":\"Mail Body\",\"ID\":72,\"INPUT_TYPE\":\"textarea\",\"IS_CUSTOM_INPUT\":false,\"TEMPLATE_VALUE\":\"An incident was detected in the network. Details:\\nAlert Name: %ALERTNAME%\\nDevice Name: %HOSTNAME%\\n\\nPopup message sent to %HOSTNAME%.\",\"VALIDATION_IDS\":\"validate-max-length validate-text\",\"MACROS\":[{\"title\":\"Device\",\"value\":\"HOSTNAME\"},{\"title\":\"Service Name\",\"value\":\"SERVICENAME\"},{\"title\":\"Process Name\",\"value\":\"PROCESSNAME\"},{\"title\":\"Username\",\"value\":\"USERNAME\"},{\"title\":\"Alert Name\",\"value\":\"ALERTNAME\"}],\"IS_MANDATORY\":true}]}"

    }'
    NOTE The value of custom_input should be the exact JSON string returned from the Fetch Template Data for Workflow API, properly escaped.

    Sample response

    {"message":"Workflow Popup Alert executed in EventLog Analyzer successfully"}
