FileVault Encryption Report

Q: How do I export recovery keys for multiple devices?

Use the Export All Recovery Keys option, provide a password and reason for the export, and download the password-protected ZIP file containing the CSV of recovery keys.

The FileVault Encryption Report gives IT administrators a centralized dashboard to monitor macOS FileVault encryption compliance across all managed devices. It displays encryption status, categorizes devices by encryption type (Personal, Institutional, or both), and tracks personal and institutional recovery key availability. Administrators can drill into device-level data, securely export recovery keys, and apply best practices to maintain encryption compliance during security audits.

The FileVault Encryption Report offers a centralized view of macOS FileVault encryption compliance across all managed devices. It helps IT administrators monitor encryption status, validate recovery key availability, and ensure that sensitive data remains secure.

Overview of Report

The dashboard provides three key visual insights:

1. Devices By Encryption Status

Displays the overall FileVault enablement across macOS devices:

Enabled: Devices with FileVault successfully turned on.
Not Enabled: Devices where FileVault is turned off.

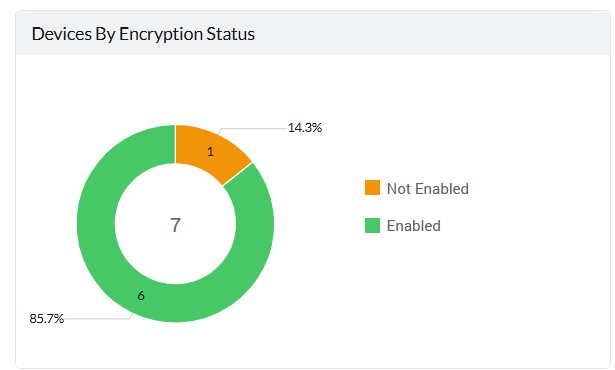

FileVault Status Chart

This chart shows how many devices have FileVault enabled or not.

Example:

Enabled: 6 devices (85.7%)
Not Enabled: 1 device (14.3%)

This helps identify non-compliant devices that require immediate attention.

2. Devices Grouped By Encryption Type

Categorizes macOS devices based on the FileVault encryption type used. Displays only the devices that were marked as Encryption Enabled in the previous chart.

Personal & Institutional
Personal
Institutional
Unknown

Encryption Type Chart

Devices By Personal Recovery Key Availability

Represents the availability of Personal Recovery Keys for devices under Personal and Personal & Institutional categories in the previous chart:

Available: The recovery key has been safely stored and can be used when needed.
Not Available: This means the device’s FileVault encryption is not managed by MDM, and a personal recovery key is not available.

This chart shows whether the personal recovery key is stored and accessible.

Personal Recovery Key Chart

Example:

Available: 2 devices
Not Available: 1 device

Personal Recovery Key Not Available — Next Steps:

If the Personal Recovery Key (PRK) is not available, you can:

Upload the previous PRK using a CSV file if the old recovery key exists.
Enable automatic PRK rotation to create and store a new recovery key for devices that are already encrypted.

Device-Level Data Table

Beneath the widgets, a detailed table lists device-specific encryption data:

Field	Description
Device Name	Name of the managed macOS device.
Serial Number	Unique serial number of the device.
FileVault Enabled	Shows whether FileVault is active on the device. Indicates if disk encryption is currently turned on or off.
FileVault Encryption Type	Displays the type of recovery key used for encryption. Possible values include Personal, Institutional, or both.
Personal Recovery Key	Indicates the status of personal recovery key availability. Shows whether the personal recovery key is securely stored and retrievable when needed.
Institutional Recovery Key	Indicates the status of institutional recovery key availability. Displays whether the organization’s shared recovery key is configured and accessible.

The additional columns include UDID (Unique Device Identifier), Email (Associated user email), OS Version (macOS version running on the device), and Model Name (Hardware model of the device).

You can sort, search, or filter this table to locate specific devices or key attributes.

Exporting Recovery Keys

Administrators can export all available personal and institutional recovery keys securely using the Export All Recovery Keys option.

How to Export:

Click Export All Recovery Keys in the FileVault Encryption Report.
A pop-up appears asking for:
- Password: Used to encrypt the exported ZIP file.
- Reason: Mention the reason for downloading keys (for audit/compliance logging).
Click Download.
A CSV file containing the recovery keys will be compressed into a password-protected ZIP file.

Export Recovery Keys Popup

Best Practices

Regularly monitor the report to ensure all corporate devices are encrypted.
Verify that both Personal and Institutional Recovery Keys are available, depending on your organization’s policy.
Use this report during security audits to validate encryption compliance.

Frequently Asked Questions

What does "Not Available" mean under Personal Recovery Key Availability?
It means the device's FileVault encryption is not managed by MDM, so a personal recovery key has not been captured. Upload the previous key via CSV or enable automatic PRK rotation to resolve this.

What is the difference between Personal and Institutional Recovery Keys?
A Personal Recovery Key is unique to each device/user, while an Institutional Recovery Key is a shared certificate-based key that lets administrators unlock any encrypted device in the organization.

How do I export recovery keys for multiple devices?
Use the Export All Recovery Keys option, provide a password and reason for the export, and download the password-protected ZIP file containing the CSV of recovery keys.

Why is a device shown as encryption "Not Enabled"?
This means FileVault has not been turned on for that device. Distribute a FileVault Encryption profile to bring the device into compliance.
