Adding New NOC View (CCTV)

NOC View or CCTV helps you view only the required dashboards repeatedly at required intervals. To add a new NOC view follow the steps given below:

  1. Go to Dashboard page and click NOC views.

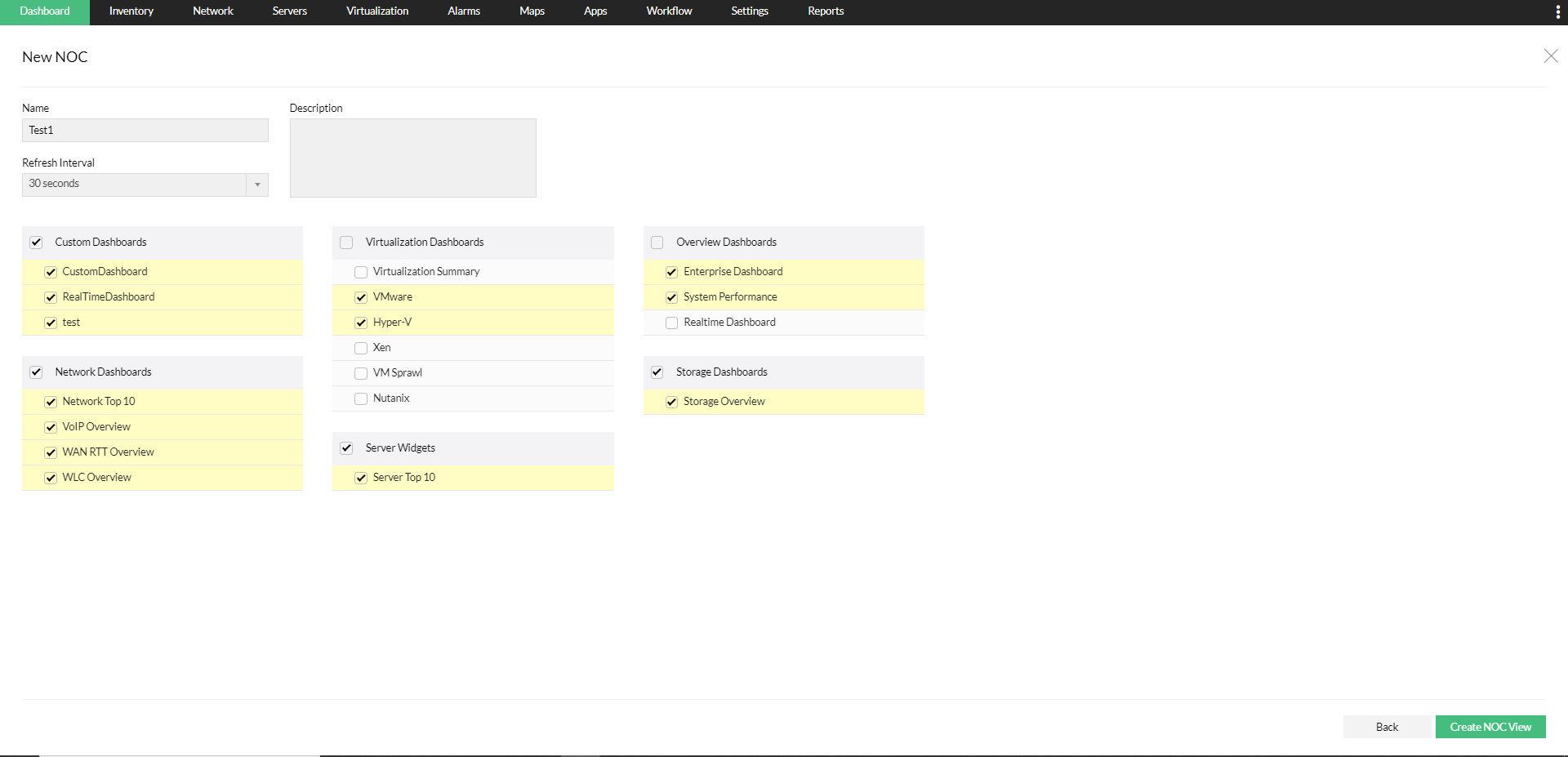

  2. Click Create NOC View. New NOC page opens.
  3. Name: Enter a unique NOC name.
  4. Refresh Interval: Select the interval required to switch over to the next dashboard.
  5. Description: Enter a brief description about this NOC view.
  6. Select the desired dashboards that you want to include in this NOC view.
  7. Click Create NOC View.
  8. A new NOC view has been added.

Viewing NOC

To view a NOC view, go to Dashboard page > NOC Views > Click on the name of the NOC that you want to view. That particular NOC view opens in a new window.

Editing NOC

To edit a NOC view follow the steps given below:

  1. Go to Dashboard > NOC Views on the top right > Click on the edit icon against the NOC name that you want to edit.
  2. Make the necessary changes.
  3. Click Edit NOC View to effect the changes.

Day/Night view

To switch between the Day/Night views in NOC window:

  1. Go to Dashboard > NOC Views > Click on the name of the NOC view that you want to view. That particular NOC view opens in a new window.
  2. Click on the day/night icon in the top right to switch between Day and Night views.

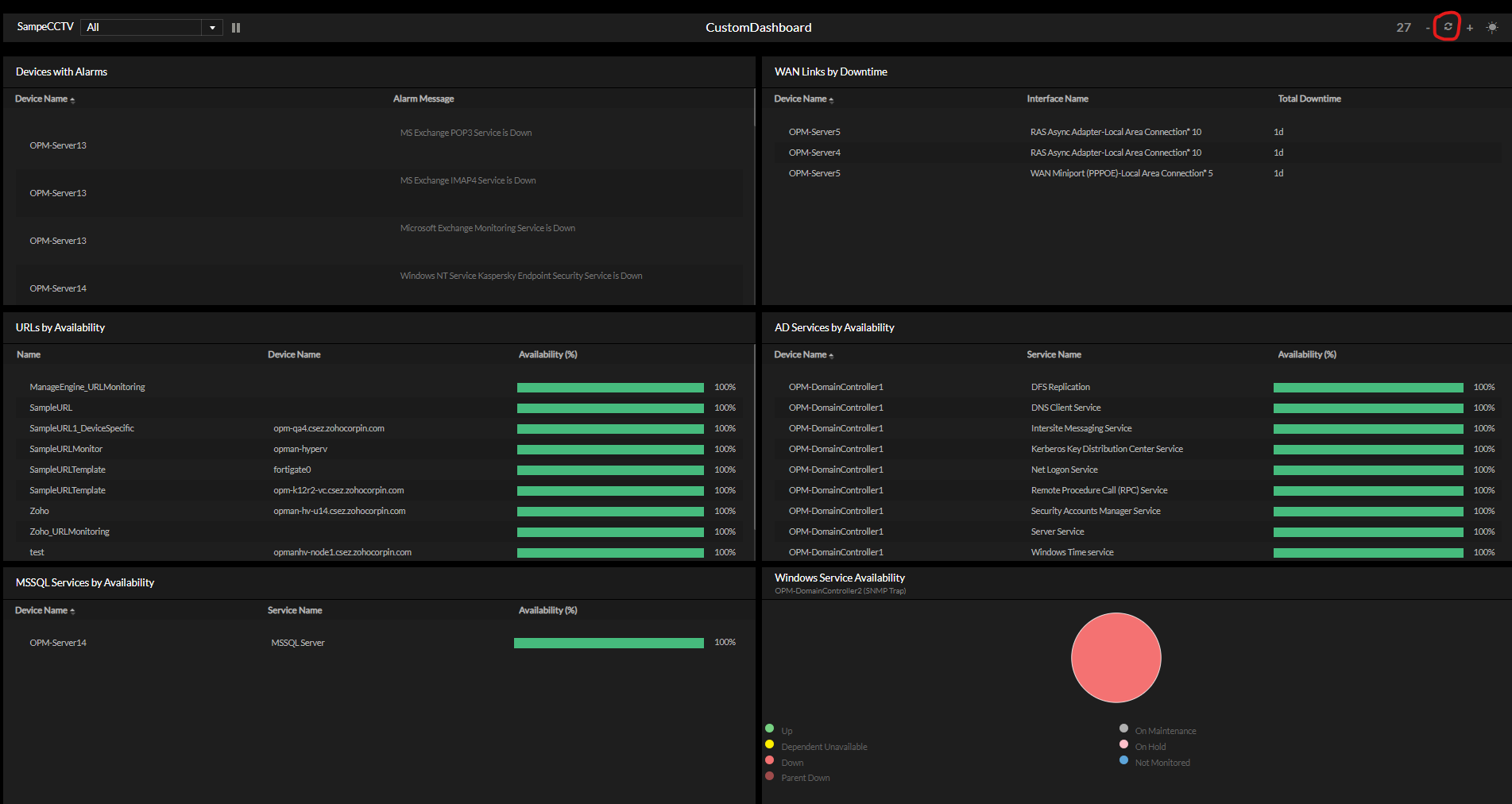

Resetting Refresh Interval

You can reset the refresh interval in the NOC window by clicking on the refresh interval icon on the top right. This also takes you back to the first page of the NOC window.

  1. Go to Dashboard > NOC Views > Click on the name of the NOC view that you want to view. That particular NOC view opens in a new window.
  2. Click on the Refresh Interval icon in the top right.



Reposition Widgets in NOC window

You can reposition widgets in the NOC window by means of a simple drag and drop. Click 'Save' after you have repositioned the widgets for the changes to take effect.

Embedding a NOC view

To embed a NOC view link, follow the steps below.

  1. Go to the Dashboard page and click NOC Views on the top right.
  2. Click the Embed icon present next to the NOC Name. The Embed link will be displayed.
  3. Click the link to copy it to your clipboard. The NOC Embed link is ready to be shared.
  4. Click the Regenerative Private link icon present towards the bottom of the Embed link box to generate a new embed link. This will deactivate the embedded link generated previously.

Note:

  • The NOC embed URL allows a viewer to modify or customize it as per his/her requirements. However, the change will not be saved on the server. If any new user accesses the same NOC view using the embed link, he/she will be loaded with the default version.
  • You can access the specific NOC view using the embedded URL without logging into OpManager.
