    Installation prerequisites

    Please ensure that the following criteria are met to allow smooth installation of the agent on the target machine.

    Supported operating systems

    Windows Server operating systems

    • Windows Server 2022
    • Windows Server 2019
    • Windows Server 2016
    • Windows Server 2012 R2
    • Windows Server 2012
    • Windows Server 2008 R2
    • Windows Server 2008

    Windows operating systems

    • Windows 11
    • Windows 10
    • Windows 8.1
    • Windows 8
    • Windows 7
    • Windows 7 (EOLed by Microsoft)
    • Windows Vista (EOLed by Microsoft)

    Ports that need to be open

    Agent to server communication

    Purpose

    1. Sending audit data from agent to server.

    2. Syncing agent running status with server.

    3. Pulling all configurations periodically (every 60 minutes) from server.

    Port to be opened Protocol Destination Direction

    The port used by ADAudit Plus needs to be opened.

    To find the port used by ADAudit Plus, log in to the ADAudit Plus console, navigate to the Admin tab → General Settings → Connection → NAT.

    • If you have not configured a NAT device between the ADAudit Plus agent and server, you can find the port number adjacent to the Central server field (by default, ADAudit Plus uses port number 8555 for agent to server communication).
    • If you have configured a NAT device between the ADAudit Plus agent and server, you can find the port number adjacent to the NAT Device field.
    HTTPS Monitored computers Outbound
    Server to agent communication

    Purpose

    1. Automatically installing, uninstalling, and upgrading agent via product.

    2. Syncing server configuration with agent when the agent has not communicated with the server for more than 2 hours. Communication between agent to server is checked once every 30 minutes.

    3. Immediately notifying the agent of the following actions: Global exclude configuration changes, event collection schedule time and run-now changes, product port and protocol changes, enable/disable of servers, and more.

    Note: Agent synchronizes server configurations by HTTPS communication, if HTTPS fails then the server attempts to sync all configurations with agent via RPC.

    Dynamic ports (49152- 65535) and 135 RPC Monitored computers Inbound

    Check if the ports used by ADAudit Plus are open on the client machine to allow data exchange.

    To check which ports are being used by ADAudit Plus, go to the Admin tab and choose Connection under General Settings. The corresponding port number (either HTTP or HTTPS) for ADAudit Plus can be found here.

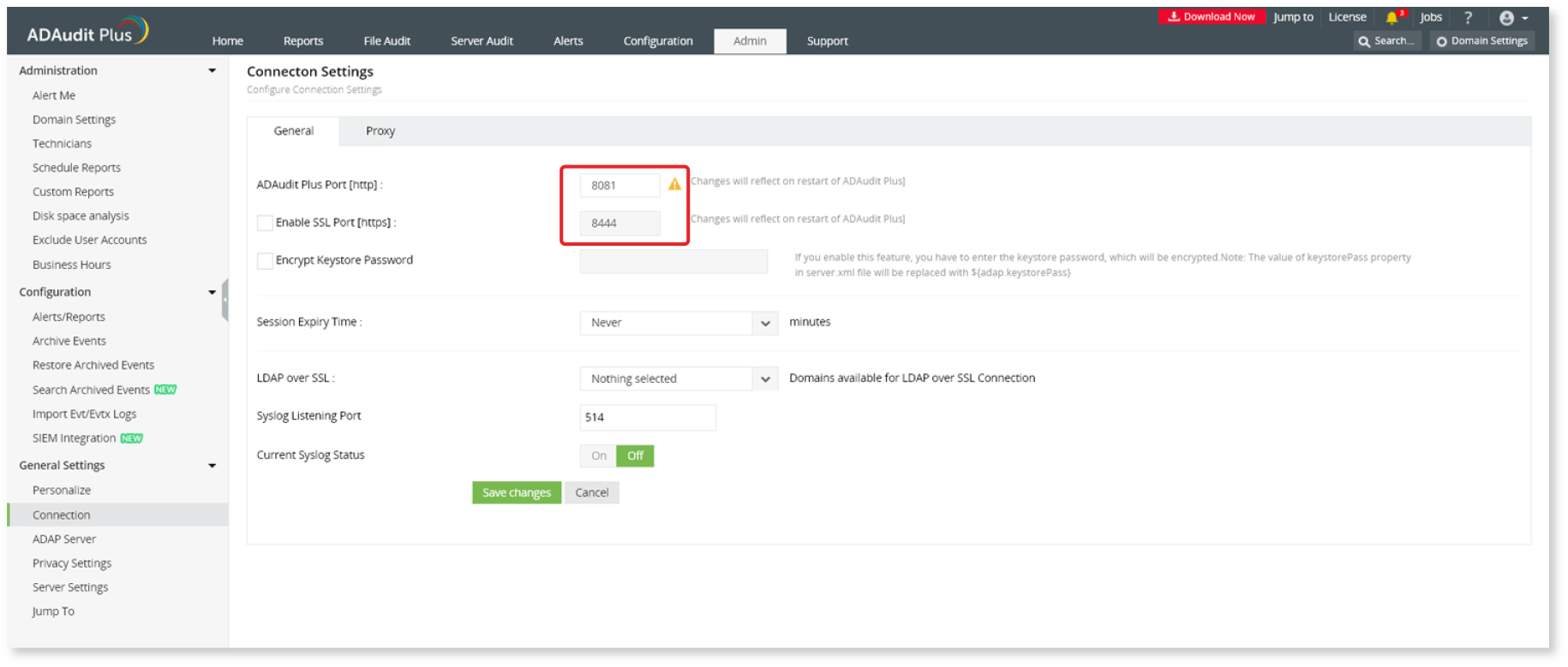

    General Settings under the Admin tab

    Privileges required

    Make sure that the ADAudit Plus service account (the ADAudit Plus service account is the AD account used while configuring a domain in ADAudit Plus) is a member of the Domain Admins group so that ADAudit Plus can perform the following actions automatically:

    1. Install, uninstall or update the agent
    2. Start or stop the agent
    3. Sync properties across the server and the agent

    If you do not wish to use Domain Admin credentials, you can still perform the above tasks manually.

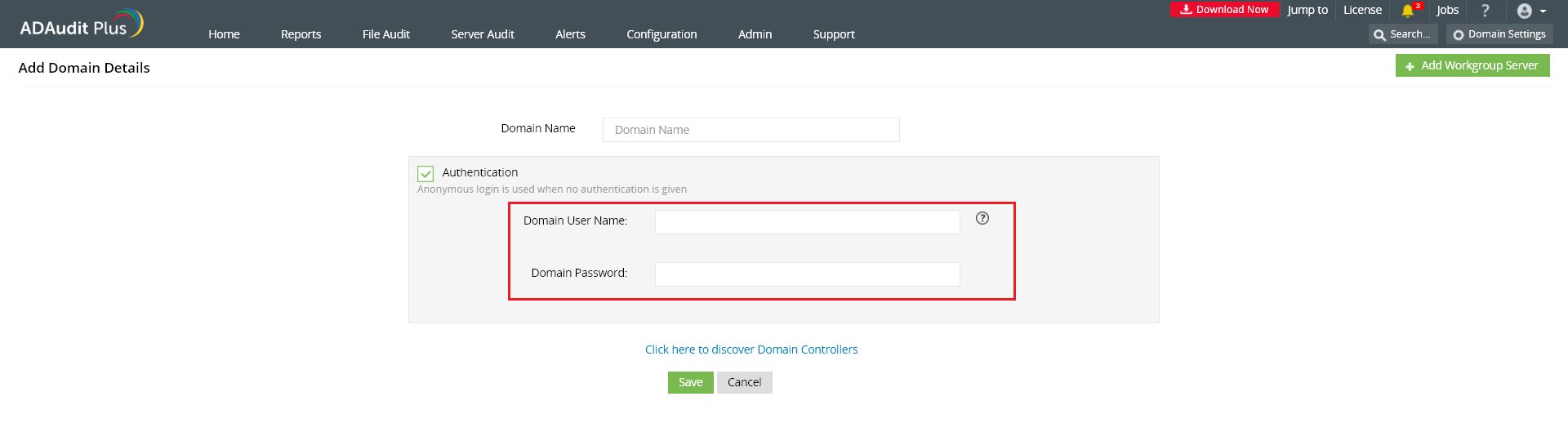

    ADAudit Plus service account configuration

    Disk space requirements

    Ensure there is a minimum of 2 GB of free disk space. This will allow the agent to save upto 2 GB of event data when it is unable to forward data to server. Event collection will stop once the 2 GB limit is reached. You can configure this setting in the product by navigating to Admin > Agent settings > Event Data Settings > Maximum size of EventData directory.

    Windows .NET Framework

    The installation requires Windows .NET Framework version 4.5 or higher on the client machine.

    By default, .NET Framework version 4.5 or higher is included with Windows Server 2012 or higher, as well as workstations running Windows 8 or higher. If you're running one of these operating systems, you can proceed with step 3: installing the agent.

    If you're running an older version of Windows, keep in mind that .NET Framework version 4.5 or higher can be installed on the following operating systems: Windows 7, Windows Vista, Windows Server 2008 R2 SP1, and Windows Server 2008 SP2.

    You can check the .NET Framework version installed on a computer by opening Command Prompt, navigating to \%windir%\Microsoft.NET\FrameWork, and then going to the directory with the latest version number. Once in the directory with the latest version number, run the command .\MSBuild.exe -version.

    Microsoft (R) Build Engine version 4.7.3056.0
    [Microsoft .NET Framework, version 4.0.30319.42000]
    Copyright (C) Microsoft Corporation. All rights reserved.

    4.7.3056.0

    The last line after the copyright information is the Windows .NET Framework version installed on the computer.

    Remcom.exe

    ADAudit Plus uses remcom.exe and remcomsvc.exe for installing and uninstalling agent. To ensure unhindered functioning of ADAudit Plus, you need to add the remcom.exe and remcom.svc.exe files to the exception list of your antivirus software in the ADAudit Plus server and the target computers in which the agent is to be installed.
