Configuring single sign-on to ADAudit Plus using OneLogin

Step 1: Configure ADAudit Plus in OneLogin

1. Log in to the OneLogin portal.
2. Click on the Apps tab, select Add Apps → SAML Test Connector (IdP).
3. Enter the Display Name, and upload the icon for the application. Click Save.
4. Under the Configuration tab, enter the values for ACS (Consumer) URL Validator and ACS (Consumer) URL.
   Note: To find the values for the ACS (Consumer) URL Validator and ACS (Consumer) URL, log in to the ADAudit Plus console, navigate to Admin → Administration → Logon Settings → Single Sign-On. Check the box next to Enable Single Sign-On, and select SAML Authentication → Identity Provider (IdP) → OneLogin. Copy the ACS/Recipient URL value, and paste it in these two fields.
5. Click More Actions in the top panel. Click SAML Metadata to download the metadata file, and click Save.

Step 2: Configure OneLogin in ADAudit Plus

1. Log in to the ADAudit Plus web console with admin credentials. Navigate to Admin → Administration → Logon Settings → Single Sign-On. Check the box next to Enable Single Sign-On, and select SAML Authentication.
2. Select OneLogin from the Identity Provider (IdP) drop-down. Under SAML Configuration Mode, select Upload Metadata File. Click Browse, and upload the metadata file obtained at the end of Step 1.



   Note: You can also configure SAML in Manual Configuration mode.

   1. Copy and paste the Issuer URL/Entity ID.
   2. Paste the IdP Login URL.
   3. Paste the IdP Logout URL.
   4. Paste the X.509 Certificate value from your identity provider.
3. If needed, enable Single Logout under Advanced Settings. Copy the SP Logout URL in ADAudit Plus, and paste it in the Single Logout URL field in OneLogin's Configuration page.

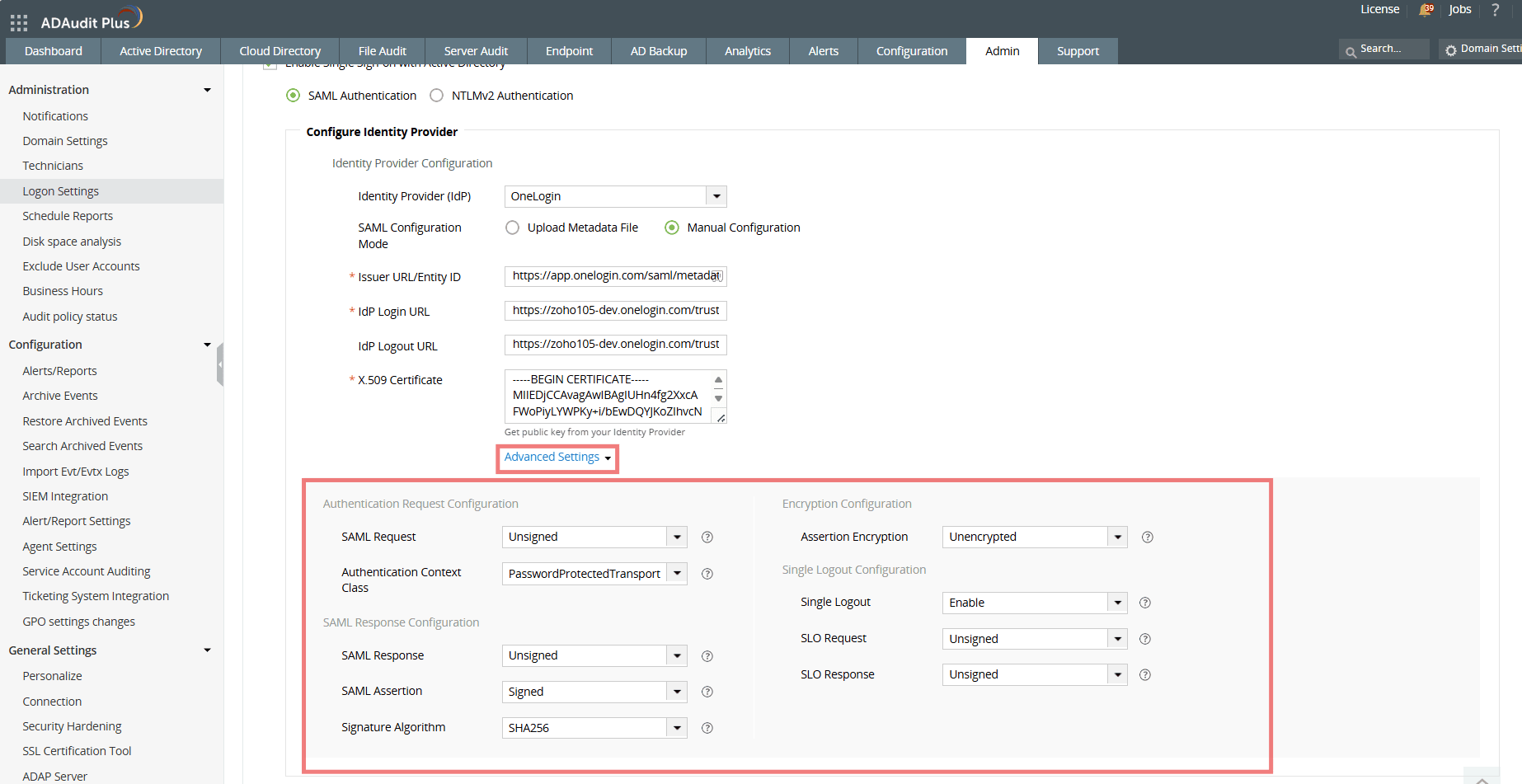

4. Advanced Settings configuration:
   Note: Ensure that the configuration settings selected here match those configured in your OneLogin identity provider.



   Authentication Request Configuration

   Setting	Description	Available values
   SAML Request	Defines whether the authentication request sent to OneLogin is digitally signed	Signed Unsigned
   Authentication Context Class	Specifies the method OneLogin should use to authenticate users	None Windows Authentication Kerberos PasswordProtectedTransport Password TLS Client Unspecified X.509 Certificate

   SAML Response Configuration

   Setting	Description	Available values
   SAML Response	Specifies whether the overall SAML response from OneLogin is signed	Signed Unsigned
   SAML Assertion	Specifies whether the SAML assertion inside the response is signed	Signed Unsigned
   Signature Algorithm	Defines the algorithm used for generating digital signatures in SAML responses	SHA1 SHA256 SHA384 SHA512

   Encryption Configuration

   Setting	Description	Available values
   Assertion Encryption	Determines whether the SAML assertions returned from OneLogin are encrypted	Encrypted Unencrypted
   Encryption Certificate	Certificate used for encrypting the assertion	Self-Signed CA Signed

5. If you want to mandate domain technicians to log into ADAudit Plus only through SAML authentication, check the Force SAML Login box in the bottom-right corner.
   Note: Once enabled, accessing ADAudit Plus' login page will redirect domain technicians to the single sign-on URL. However, administrators and technicians with ADAudit Plus authentication credentials can access the ADAudit Plus login page by using the /adminLogin tag after the login page URL.
6. Click Save.
