Linking EMC / Windows File Servers to the GPO



Linking Servers to the Group Policy Object in-order to apply desired Audit Policy:

The configured Group Policy object can be applied to all desired EMC / Windows File Servers by following the options provided below.

1. Option 1: Linking a Group Policy object to an OU containing desired servers.
2. Option 2: Add File Servers via 'Security Filtering' to a Domain linked GPO.

Option 1:  Linking a Group Policy object to an OU containing desired EMC / Windows File Servers.

1. From the Active Directory Users and Computers Console (ADUC) create a 'New Organizational Unit (OU)' in the default Domain.
2. Add all audit required File Servers to this Organizational Unit.
3. Now link the created Organizational Unit to a Group Policy object that has the audit policy Audit Object Access configured in it.

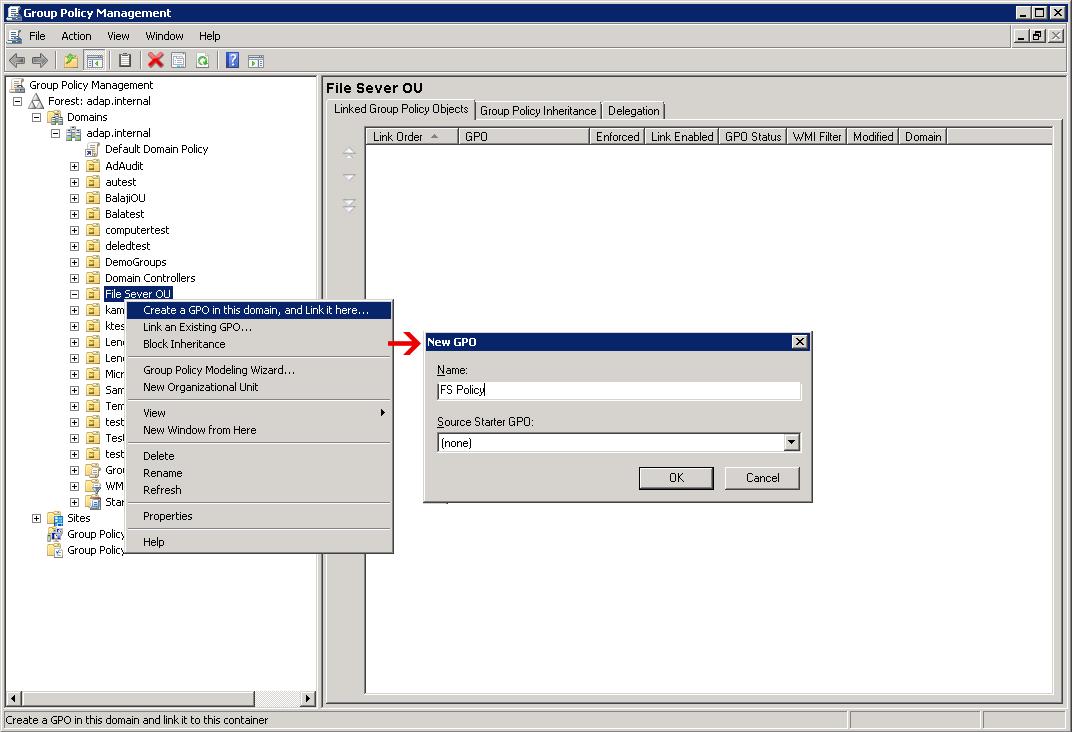

Fig: Linking a Group Policy object to an OU containing desired EMC / Windows File Servers



This scenario is applicable for organizations that maintain a separate OU for various Servers.



Option 2: Add EMC / Windows File Servers via 'Security Filtering' to a Domain linked GPO

1. Create a Group Policy Object for the 'Domain'.
2. Configure the audit policy 'Audit Object Access Success / Failure in it.

3. Add the "File Servers"(Computer Objects) that require audit into the Security Filtering settings of this Group Policy Object .

4. The Settings in the GPO will only be applied to the computers listed under Security Filtering settings of the GPMC.

Fig : Add EMC / Windows File Servers that require audit into the Security Filtering settings of Domain Group Policy Object
