Remote Control

Connection between viewer and agent in remote control

This document will explain the differences in the mode of connection between the agent and viewer in remote control.

Connection between viewer and agent via Gateway port

The remote communication between the agent and the remote control viewer happens via the gateway port (default port: 8443) as given in the below diagram. In this case, all the connections from initiating the remote session to communication between viewer and agents is through the gateway port.

Lync

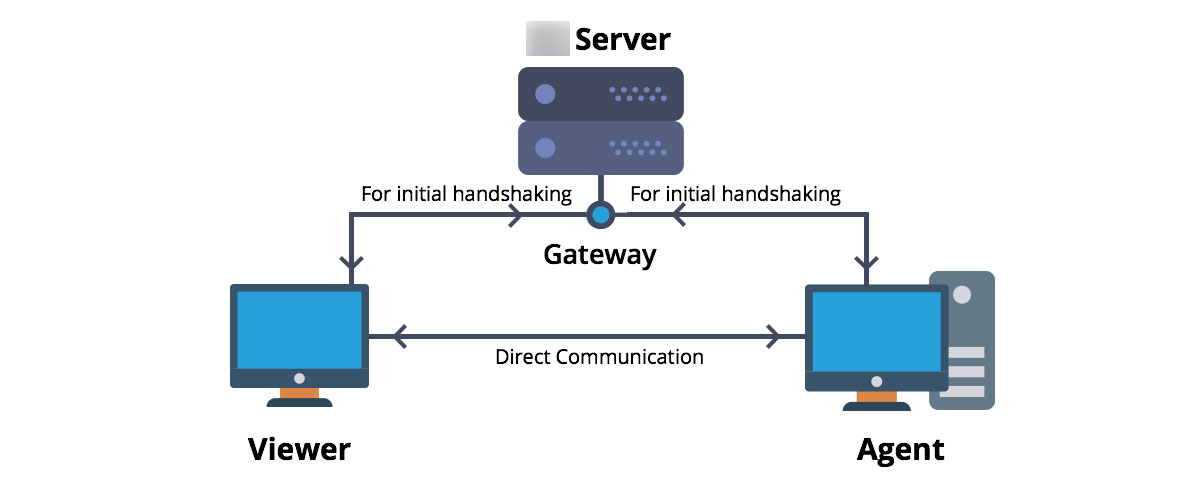

Direct connection between viewer and agent

In this direct connection, (applicable for Desktop Central version 10.0.186 and above) the initial handshaking between the agent and viewer happens via the Gateway port and the remaining communication happens directly as given in the below diagram. In order to enable direct connection, allow UDP communication in your network for gateway port (Default port: 8443). Also, ensure your agent and viewer machines have UDP communication enabled. Additionally, for voice and video call, the agent and the caller communicates using this direct connection. Direct connection is applicable only for Windows agents and HTML5 viewer.

Lync

Benifits of direct connection

  • Reduces the bandwidth consumption.
  • Less latency for remote connection.
  • Reduces CPU and memory usage in the server.
