Integrate with Analytics Plus

Advantages of Endpoint Central-Analytics Plus Integration

The Endpoint Central - Analytics Plus integration offers a variety of options to visualize and analyze endpoint monitoring data including AI-powered report generation, rich visual analysis, powerful data blending, accurate trend forecasting, dynamic data analysis, real-time collaboration, and secure sharing options. Analytics Plus helps you gain meaningful insights from your endpoint analytics that can help you better manage and secure your endpoint devices.

The data from the following modules will be synchronized by default on setting up this integration:

  • Custom groups
  • Antivirus
  • Computers
  • Technicians
  • Firewall
  • Patches
  • User accounts
  • Computer patch summary
  • Patch development status
  • Patch scan summary
  • Software details
  • Alerts
  • Software usage
  • Encryption
  • Certificate information
  • USB audit
  • Custom groups and associated computers
  • Technicians and associated computers
  • Applications and associated patches
  • Computer and software association

However, you can also choose to synchronize the data from the following modules:

  • Users
  • Groups
  • BIOS
  • CD ROM DRIVE
  • Monitor
  • Disk drives
  • Logical disk
  • Motherboard
  • Keyboard
  • Mouse
  • Network adapter
  • Physical memory
  • POTS modem
  • Processors
  • Serial port
  • Video controller
  • Trusted Platform Module
  • USB controller
  • Printers
  • Drivers
  • Share details
  • File details
  • User logon history
  • Scheduled tasks info
  • Software audit history
  • Hardware audit history
  • Computer and hardware mapping
  • Computer and group association
  • Custom groups and associated users

Prerequisites

  • Endpoint Central should be accessible from the server on which Analytics Plus is running. You can check this by launching the Analytics Plus web console (using a web browser) from the Endpoint Central server. You don't have to worry about accessibility if you're running both applications on the same server.
  • Endpoint Central and Analytics Plus should be running in the same time zone.
  • The user account used to connect must have admin privileges in Endpoint Central.

Integrating with Analytics Plus On-Premise

To integrate Endpoint Central and MangeEngine Analytics Plus, follow the steps given below:

  • Download and install Analytics Plus.
  • In your Analytics Plus instance, click Import your data from the home screen, and select the Endpoint Central tile.

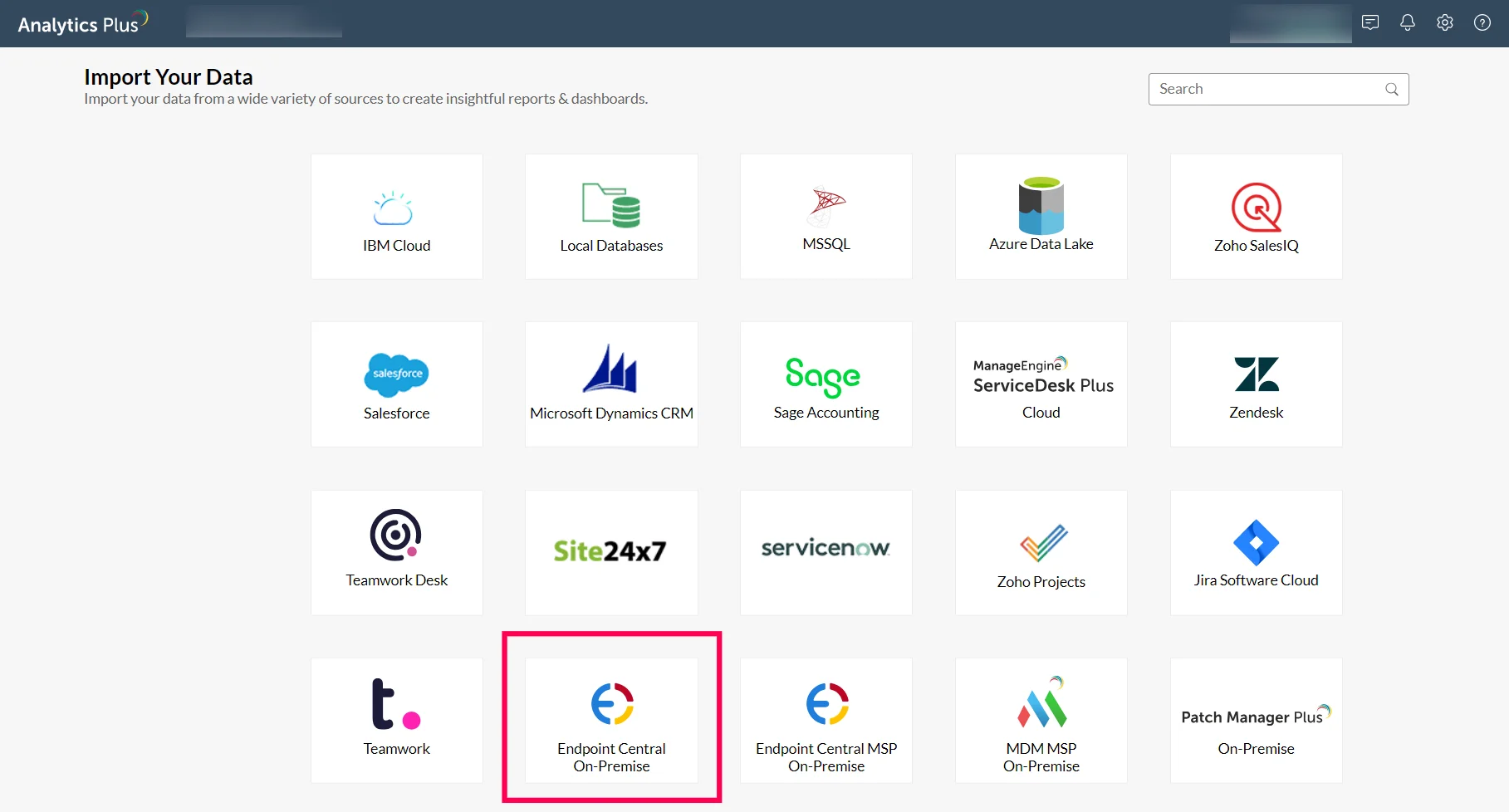

    Select Endpoint Central Source
  • Click Next in the intro page.

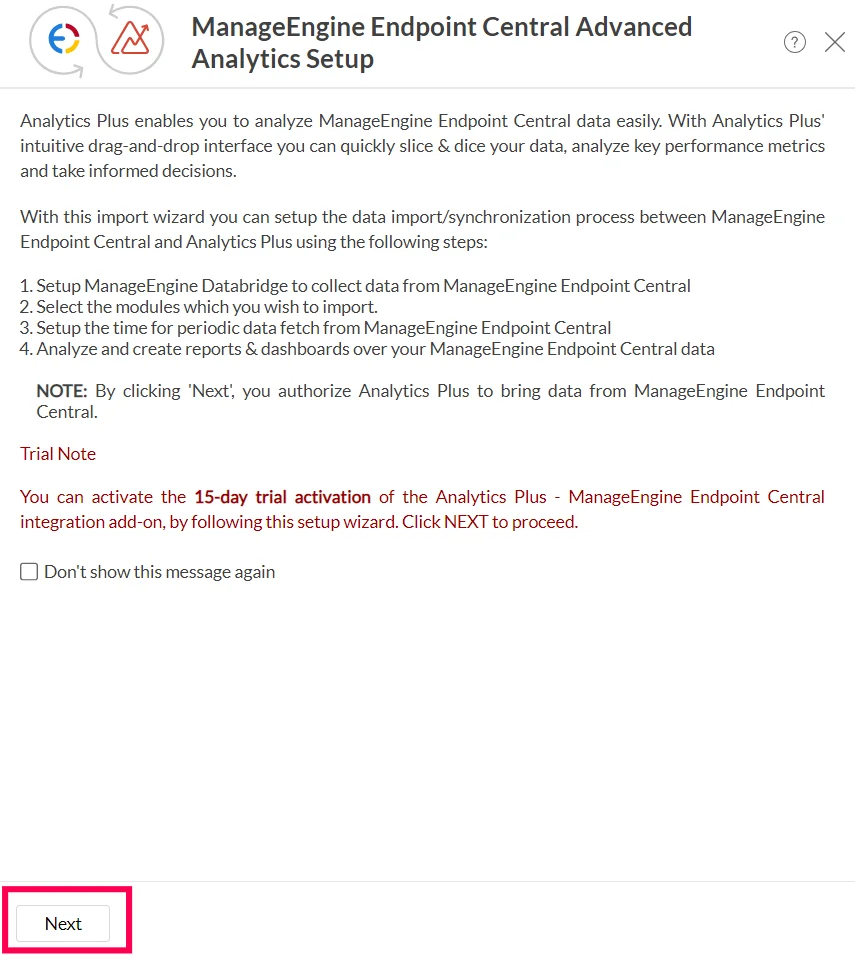

    Consent to Pull data from Endpoint Central for Analytics Plus
  • Enter the Endpoint Central server URL and API Key.

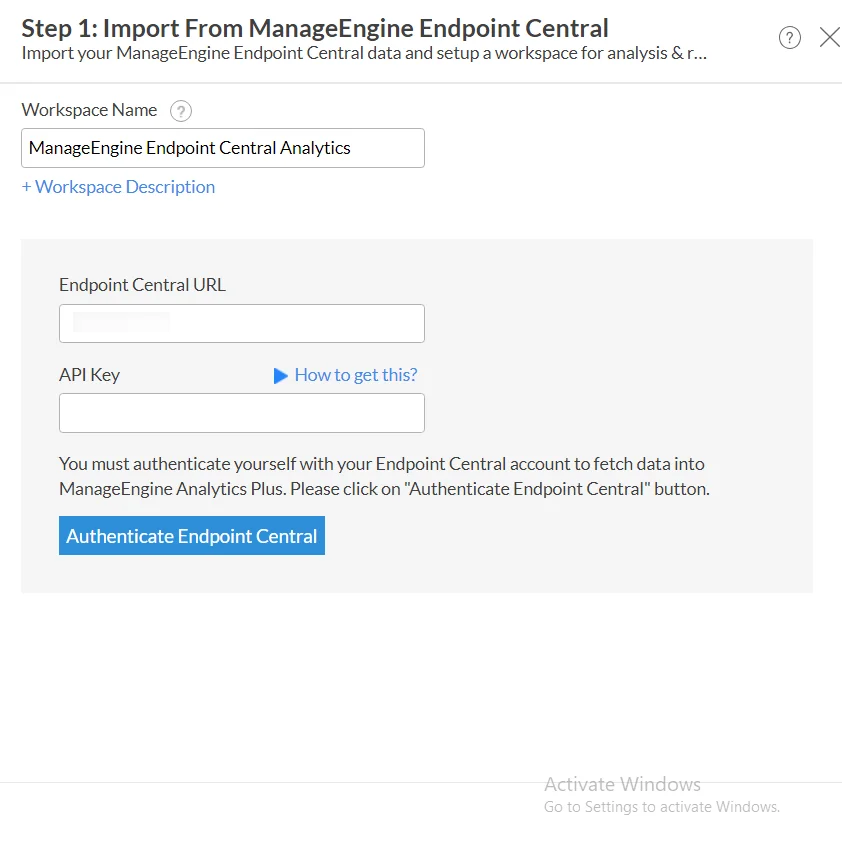

    UEMS Server details
  • To generate API Key, open your Endpoint Central console, and navigate to Admin -> API Key Management.

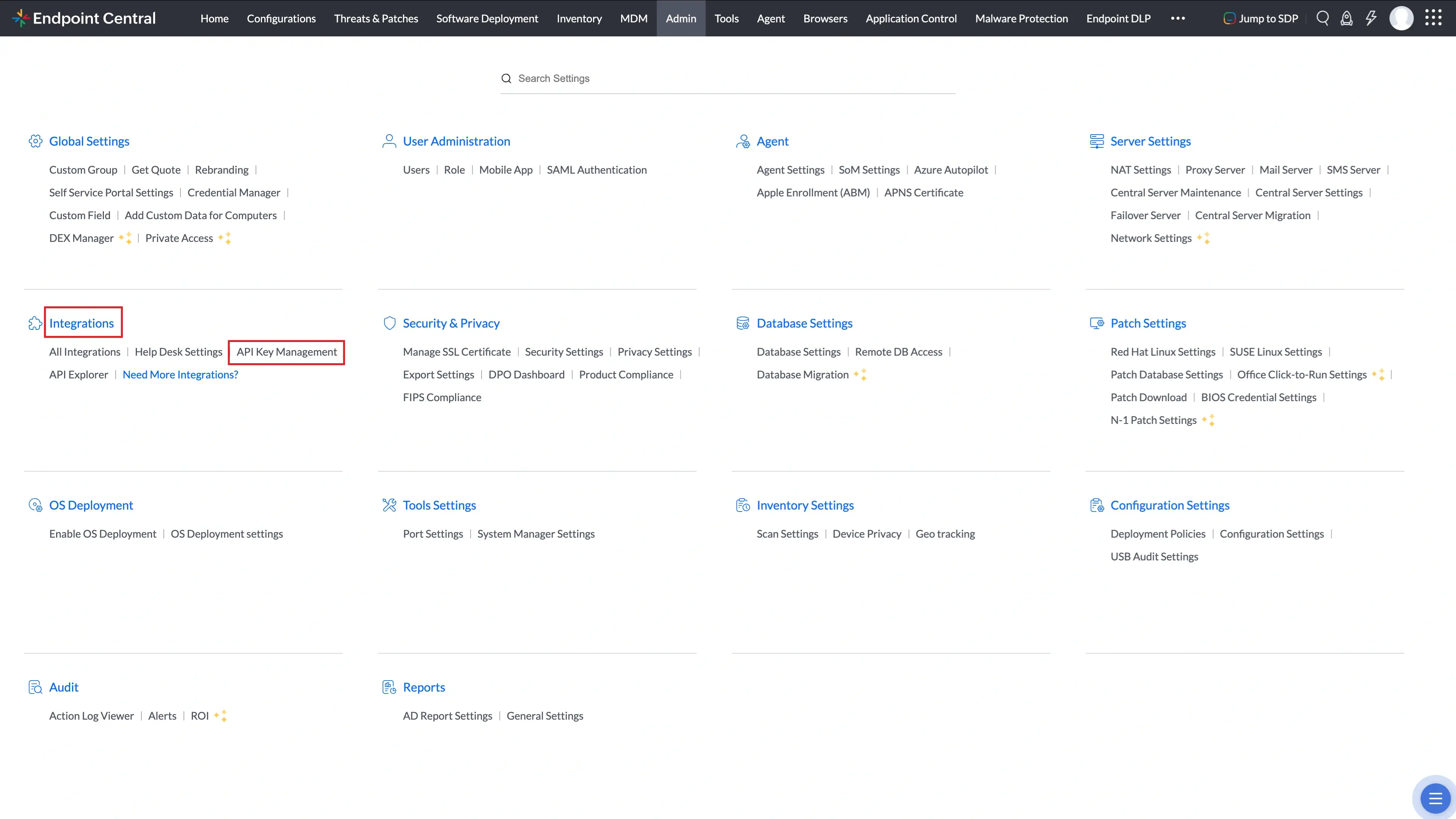

    Navigate to API Key Management

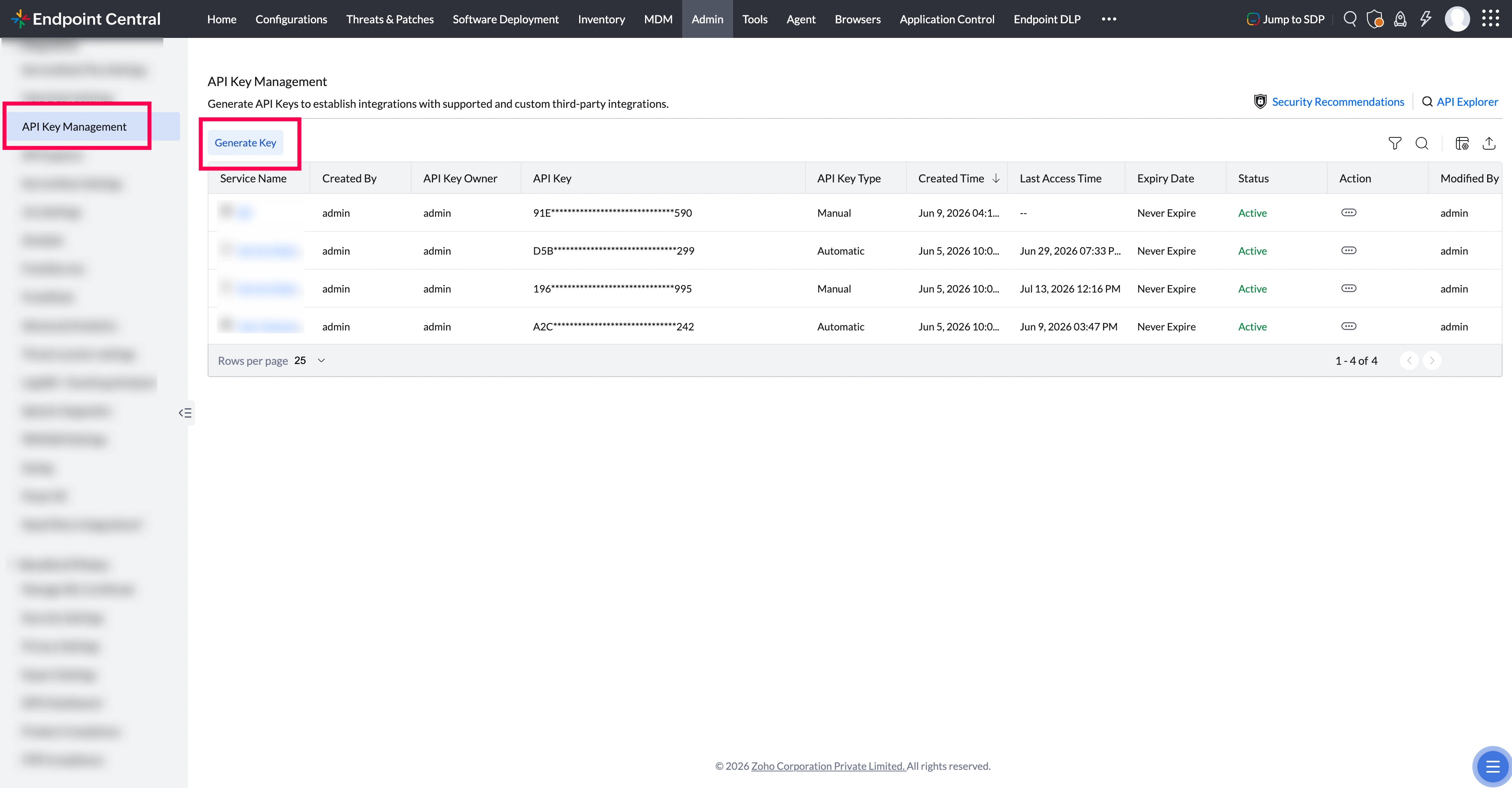

  • Click Generate Key.
    Click Generate Key
  • Select Analytics Plusfrom the drop-down.

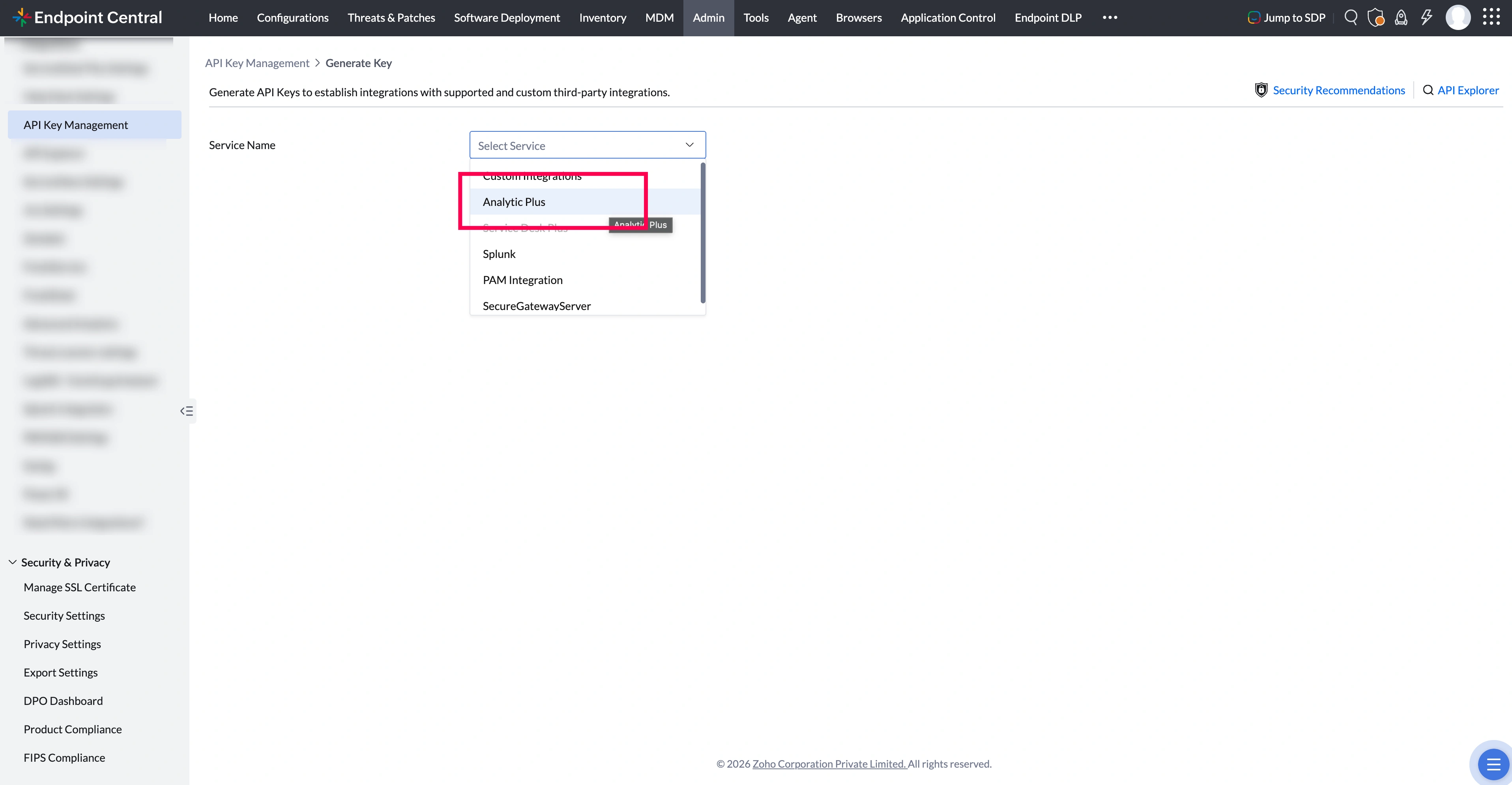

    Select Analytics Plus
  • Set necessary permissions and click Generate.

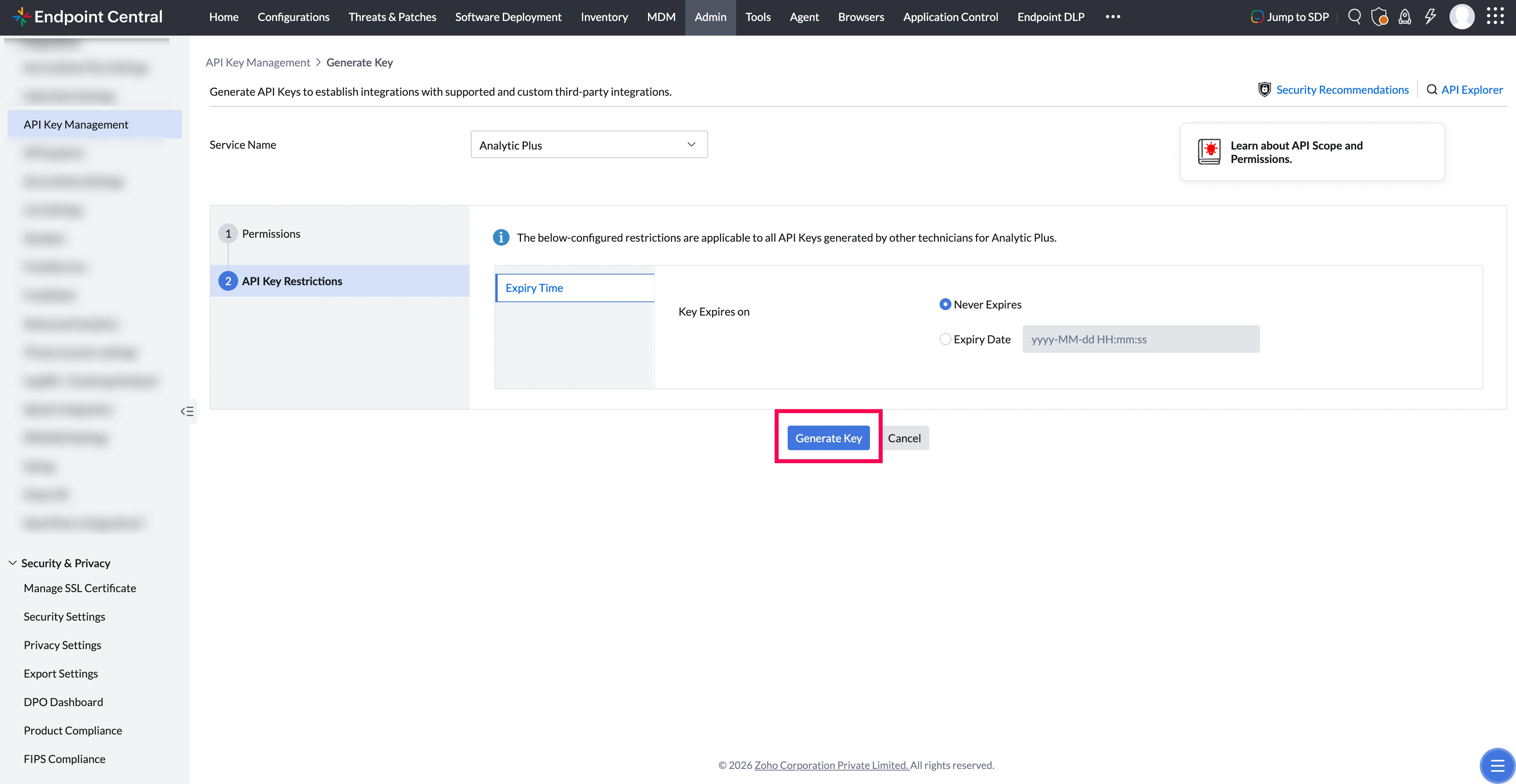

    Set API Key Permissions

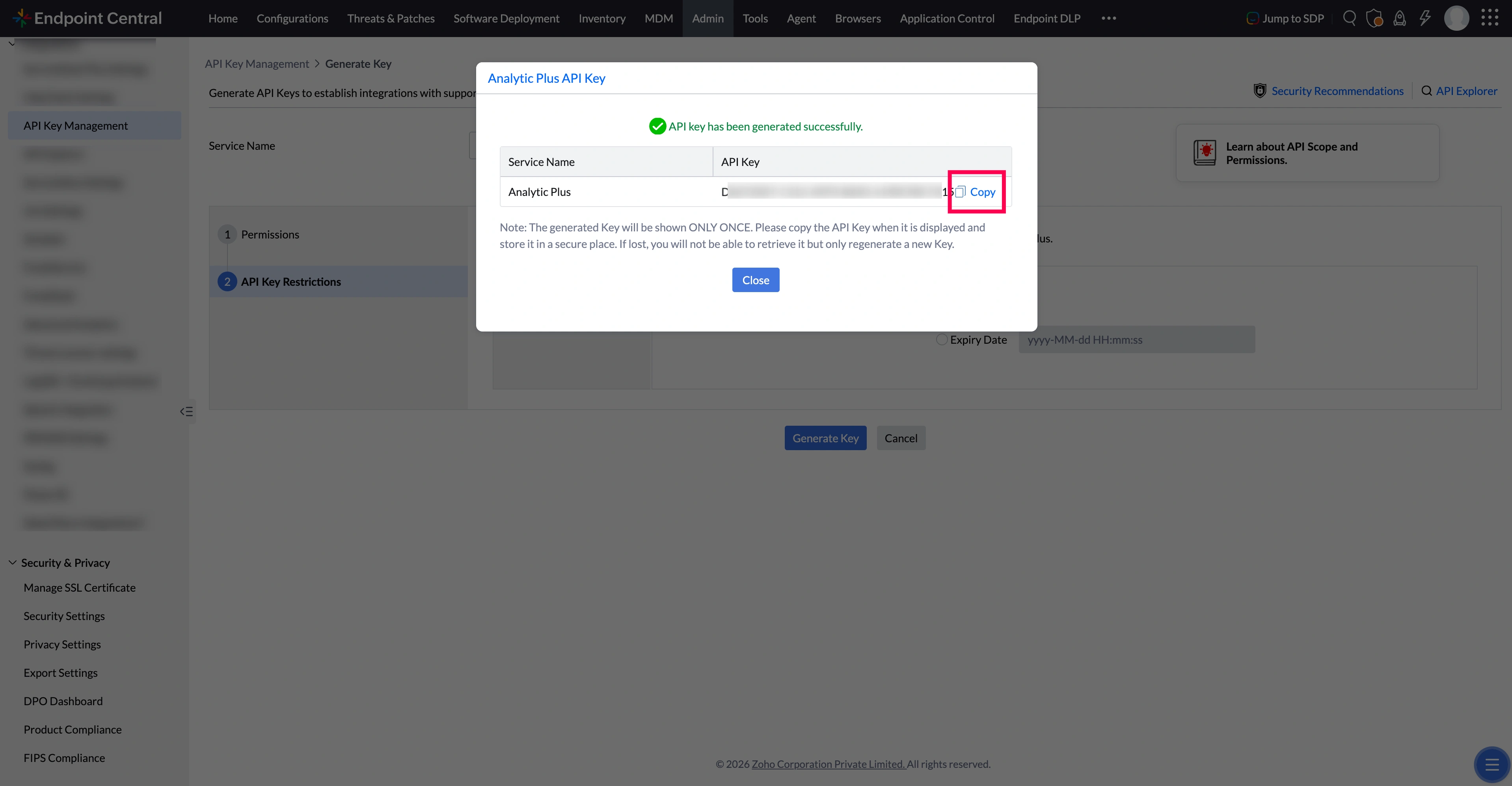

  • Copy the generated API key.
    Copy the API Key
  • Go back to your Analytics Plus console. Paste the API key and the Endpoint Central URL in the respective input fields. Endpoint Central URL is the web-address you use to access Endpoint Central. Click Authenticate Endpoint Central.

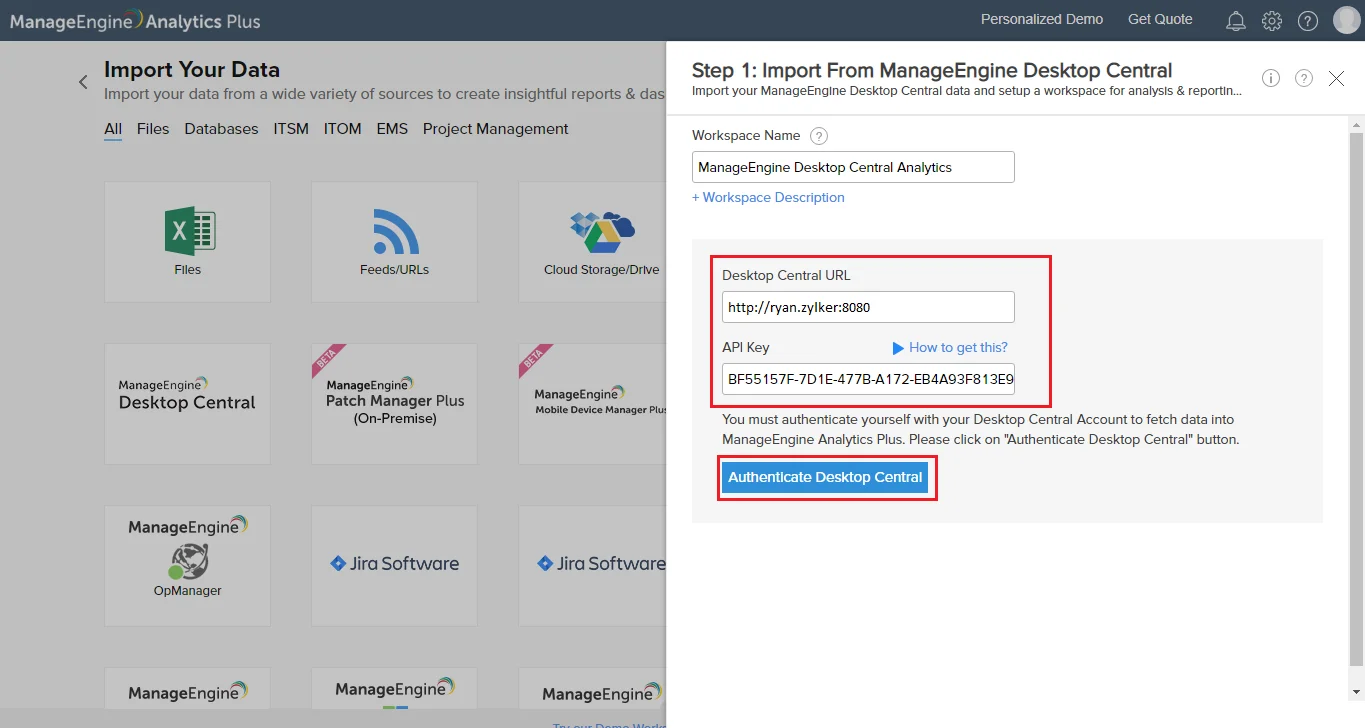

    Paste the API Key and Authenticate in Analytics Plus

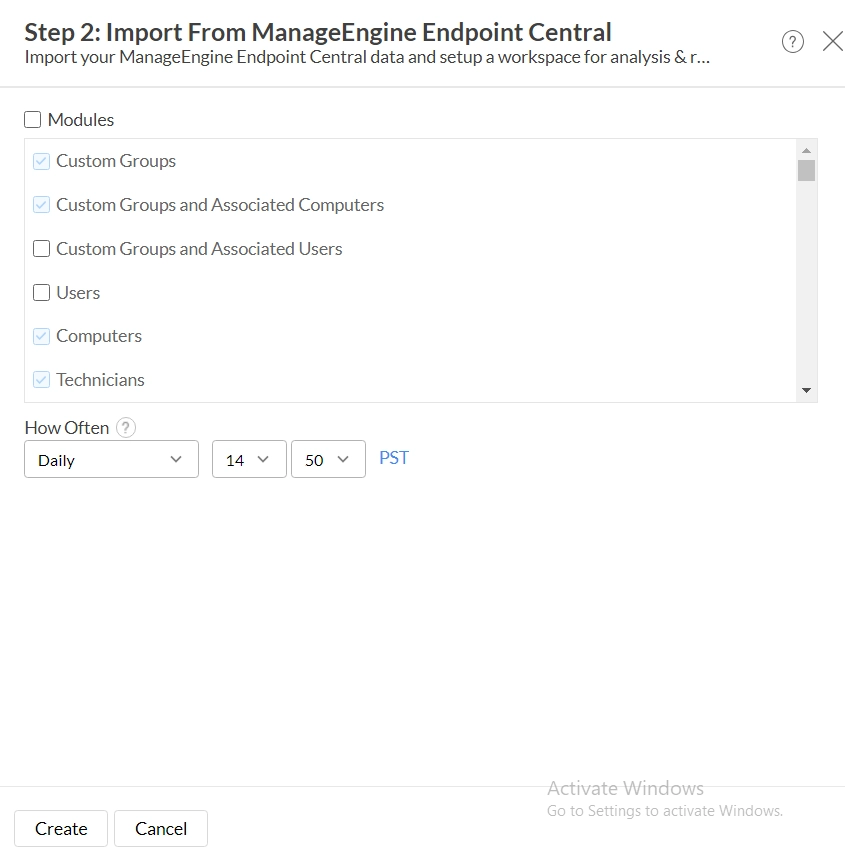

  • Choose the modules you wish to import and set up a synchronization interval. It is recommended to select all modules. Click Create to complete the set up.
    Select Modules and Sync Interval
  • A success message will be displayed. Click OK to view the out-of-the-box Endpoint Central analytics. Depending on the volume of data in Endpoint Central, it may take a few minutes to populate metrics in all the reports and dashboards.

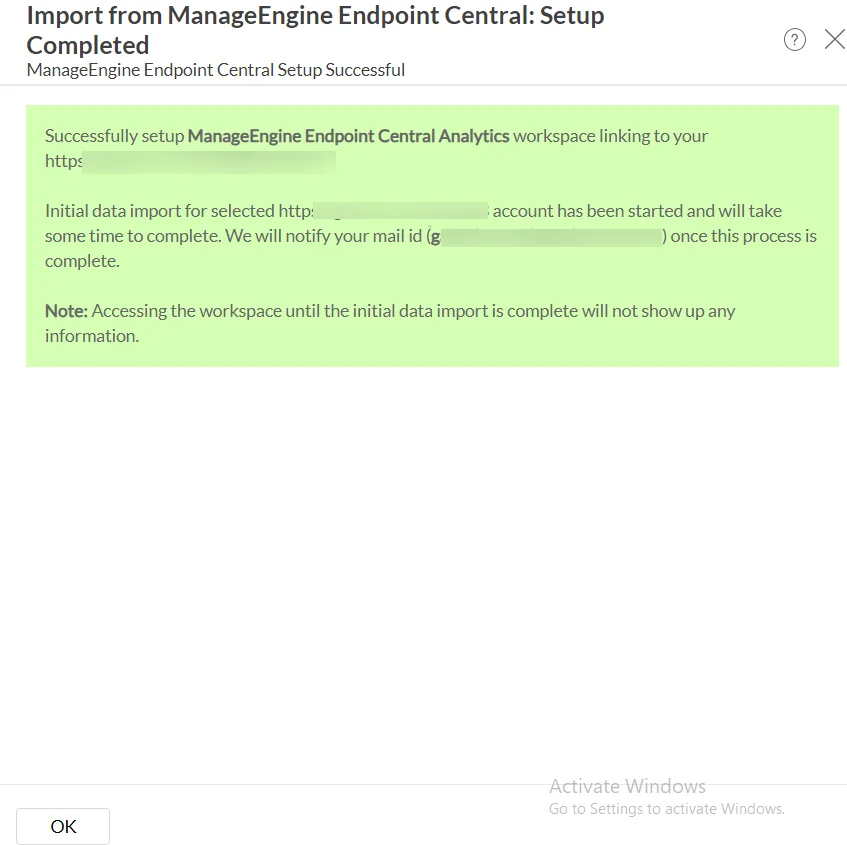

    Integration Success

You have successfully integrated Endpoint Central with Analytics Plus!

Integrating with Analytics Plus Cloud

For integrating Analytics Plus Cloud with Endpoint Central On-premise, an additional software component called the databridge is needed. Follow the steps below to facilitate the integration.

  • Login to the Analytics Plus console, navigate to Settings > Data Administration -> Databridge.
    Databridge settings in Analytics Plus
  • Click on Download Databridge and download the databridge with respect to your platform.
    Download Databridge
  • Copy and paste the installation key in the installation wizard.
  • Once the setup is complete, the databridge gets activated.
  • Now, in your Analytics Plus instance, click Import your data from the home screen, and select the ManageEngine Endpoint Central tile.
    Import your data and select ManageEngine Endpoint Central tile
  • Click Next in the intro page.
    Next in the intro page
  • The API key needs to be generated in Endpoint Central.
    Generate API key in Endpoint Central
  • To generate API Key, open your Endpoint Central console, and navigate to Admin -> API Key Management.
    Navigate to API Key Management
  • Click Generate Key.
    Click Generate Key
  • Select Analytics Plusfrom the drop-down.
    Select Analytics Plus
  • Set necessary permissions and click Generate.
    Set API Key Permissions
  • Copy the generated API key.
    Copy the API Key
  • Go back to your Analytics Plus console. Paste the API Key and the Endpoint Central URL in the respective input fields. Endpoint Central URL is the web-address you use to access Endpoint Central. Click Authenticate Endpoint Central.
    Authenticate Endpoint Central
  • Choose the modules you wish to import and set up a synchronization interval. It is recommended to select all modules. Click Create to complete the set up.
    Choose modules and create the setup
  • A success message will be displayed. Click OK to view the out-of-the-box Endpoint Central analytics. Depending on the volume of data in Endpoint Central, it may take a few minutes to populate metrics in all the reports and dashboards.
    Success message and Endpoint Central analytics

You have successfully integrated Endpoint Central with Analytics Plus Cloud!
