    Reports for Huawei Devices

    EventLog Analyzer supports Huawei firewall devices and provides out-of-the-box reports for the following categories of events:

    • Huawei Events: These reports provide valuable information on all events including important events such as logons, failed logons, policies added/deleted, users added/deleted etc., on Huawei devices.
    • Successful and Failed Logons: These reports provide information on source and user-based reports, and trend reports.
    • Firewall Allowed and Denied Traffic: The reports in this category provide insights on traffic based on the source, destination, protocol and port, and traffic trends.
    • Firewall Accounts Management: This category provides reports on users and groups added, deleted or modified.
    • Firewall Policy Management: This category of reports provide valuable information on policies added, deleted, modified, enabled or disabled.
    • Firewall IDS/IPS events: This category of reports provide useful insights on attacks based on the source and destination IP address. They also provide reports on attack trends.
    • Firewall Security Events: These reports provide information on application, email and web filters. They also provide reports on antivirus and DLP.
    • Successful and Failed VPN Logon Reports: This category of reports provide insights into VPN logons and logouts based on source, users and trend reports.
    • System Events: This category provides reports on power status, command executed, CPU status, clock update, interface status, temperature status and fan status.
    • Device Severity Reports: The reports in this category provide insights into emergency, alerts, critical, error, warning, notice, information and debug events.

    Managing Huawei reports dashboard

    Reports for Huawei Devices
    • Go to the Reports section and click on the Devices option in the drop down menu. Select Huawei from the displayed list of vendors.
    • Click Select Device and choose the Huawei devices for which you need reports. Click Add.
    • Reports for Huawei Devices

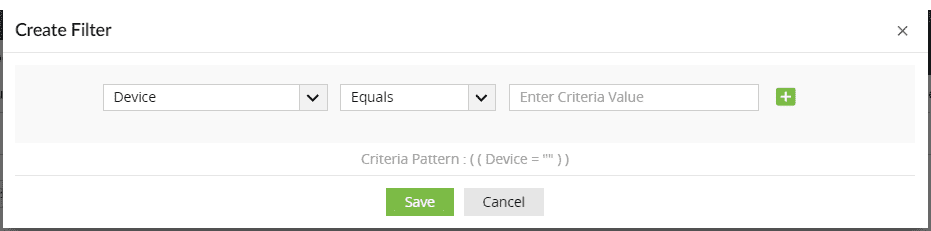

    • You can set filter criteria for events based on device, source, message and severity. Use logical operators as required.
    • Reports for Huawei Devices
    • Select the Period for which you want the data to be displayed and click Apply.
    • Reports for Huawei Devices
    • The graphs can be viewed in different formats.
    • Reports for Huawei Devices

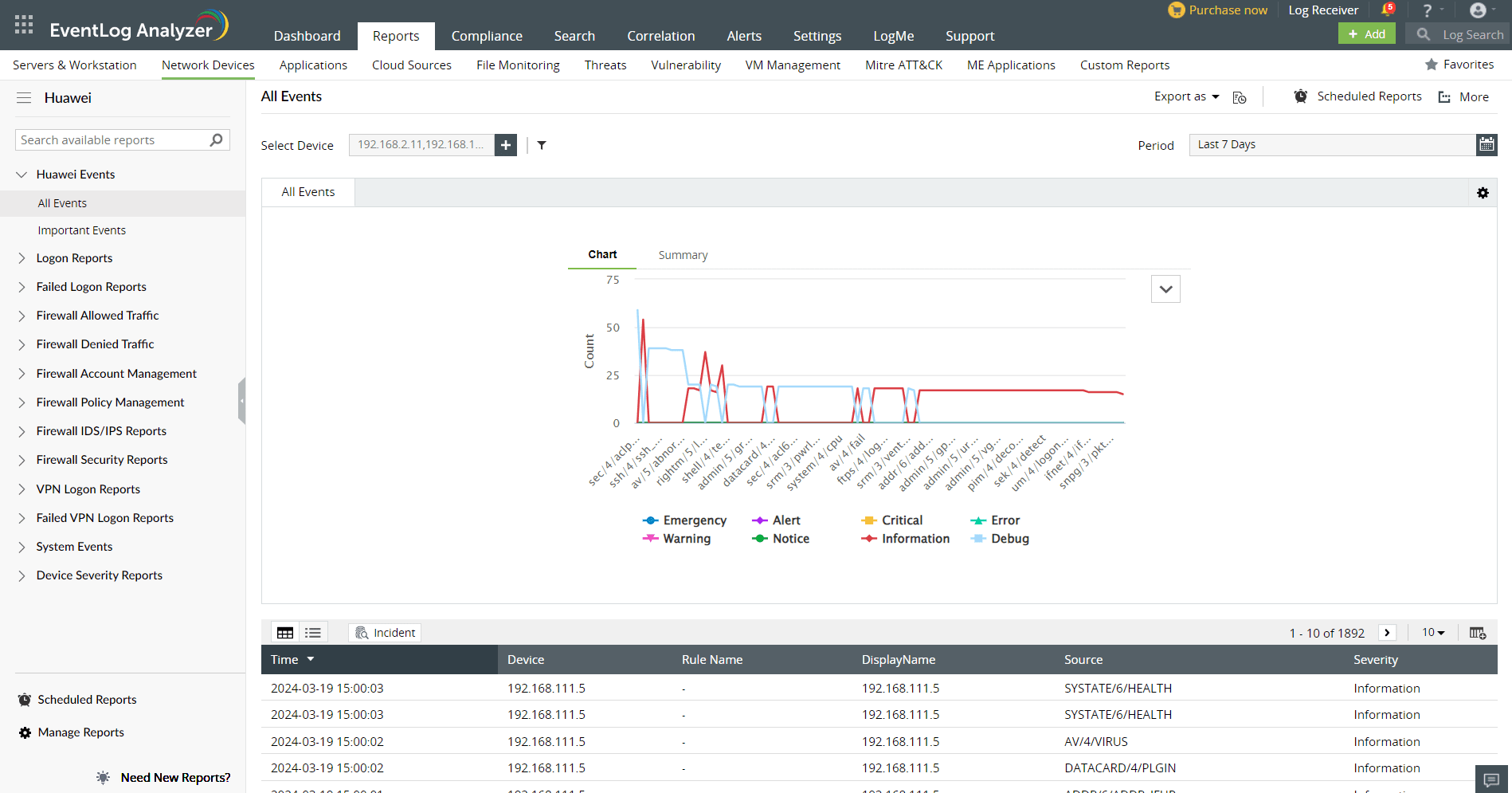

    • The All Events panel lists all the available out-of-the-box reports for Huawei. Select the report you want to view.
    • Reports for Huawei Devices
    • To export the report being viewed, click Export as and choose the format. Once done, you can download the report.
    • Reports for Huawei Devices

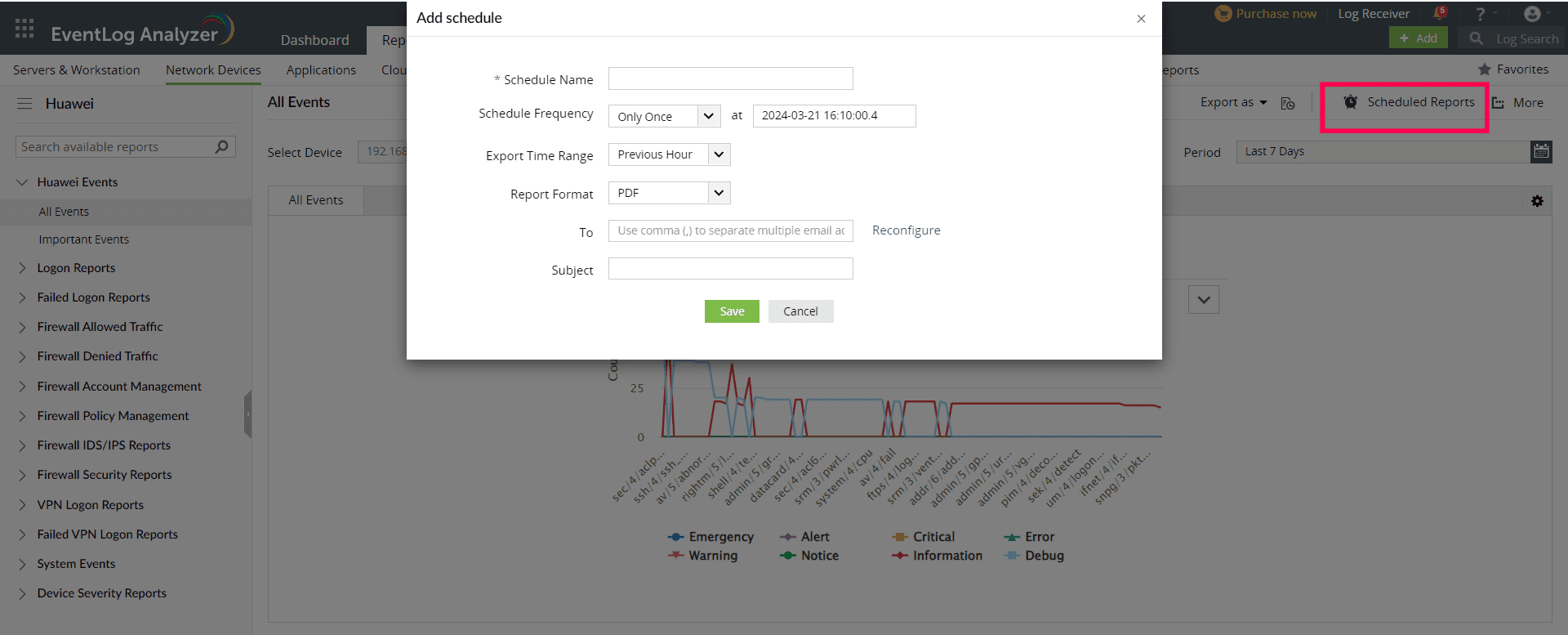

    • Click Schedule to have this report exported and emailed periodically.
    • Reports for Huawei Devices

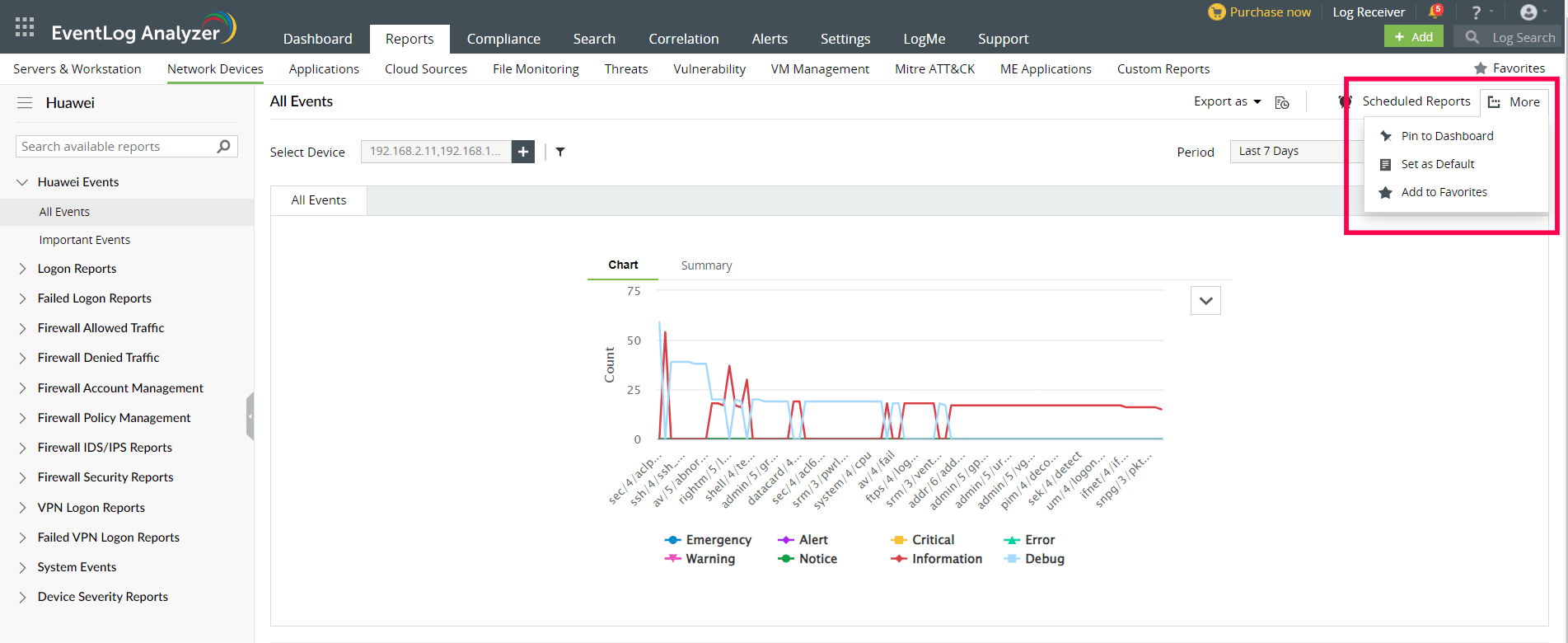

    • Click More for further customization options.
      1. Set as Default, to set this report as the default for Huawei reports.
      2. Add to Favorites, to mark this report as favorite.
      3. Pin to dashboard, to pin this report to the main dashboard in the Home page.
      Reports for Huawei Devices
