    Reports for Meraki Devices

    EventLog Analyzer supports analysis of Meraki Firewall log format and provides out-of-the-box reports for the following categories of events:

    • Meraki Events: The reports in this category provide information on all events including important events such as allowed traffic, denied connections, possible attacks etc., on Meraki devices.
    • Firewall Allowed and Denied Traffic: This category of reports provide valuable insights on traffic based on the source, destination, protocol, port, and traffic trends.
    • Logon Reports: These reports provide valuable information on user logons and its trends.
    • Firewall Website Traffic: This category provides reports on traffic based on the source, destination IP address, website, and traffic trends.
    • Firewall IDS/IPS Events: The reports in this category provide insights on possible attacks, and top attacks based on source and destination IP address. They also provide reports on attack trends.
    • Firewall Security Events: This category provides reports on web filtering.
    • Successful and Failed VPN Logon Reports: These reports give you valuable insights on VPN logouts and logons based on remote devices, users and trend reports.
    • Device Severity Reports: The reports in this category provide insights on , alerts, critical, error, warning, notice, information and debug events.

    Managing Meraki reports dashboard

    Reports for Meraki Devices

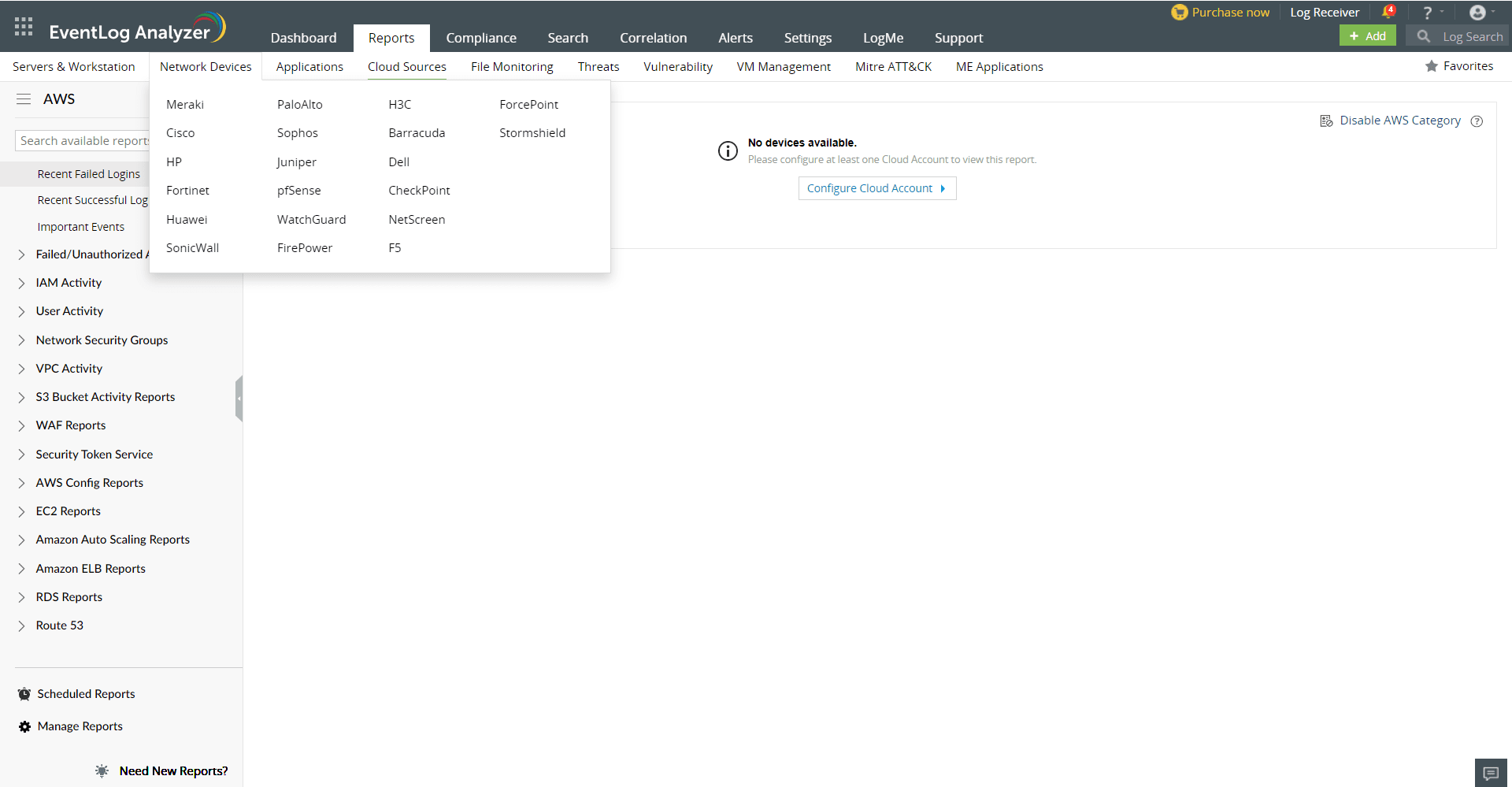

    • Go to the Reports section and click on the Devices option in the drop down menu. Select Meraki from the displayed list of vendors.
    • Click Select Device and choose the Meraki devices for which you need to generate the reports. Click Add.
    • Reports for Meraki Devices

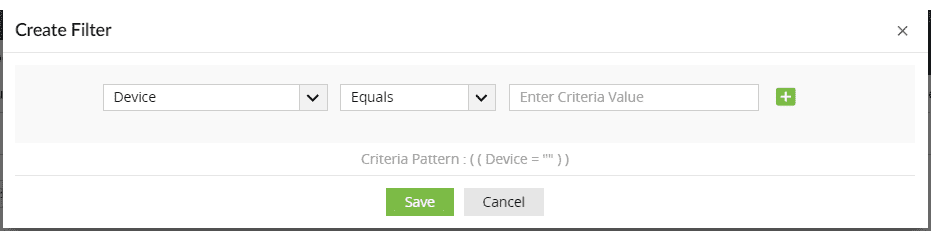

    • You can further generate reports based on source, message and severity. Use logical operators as required.
    • Reports for Meraki Devices
    • Select the Period for which you want the data to be displayed and click Apply.
    • Reports for Meraki Devices

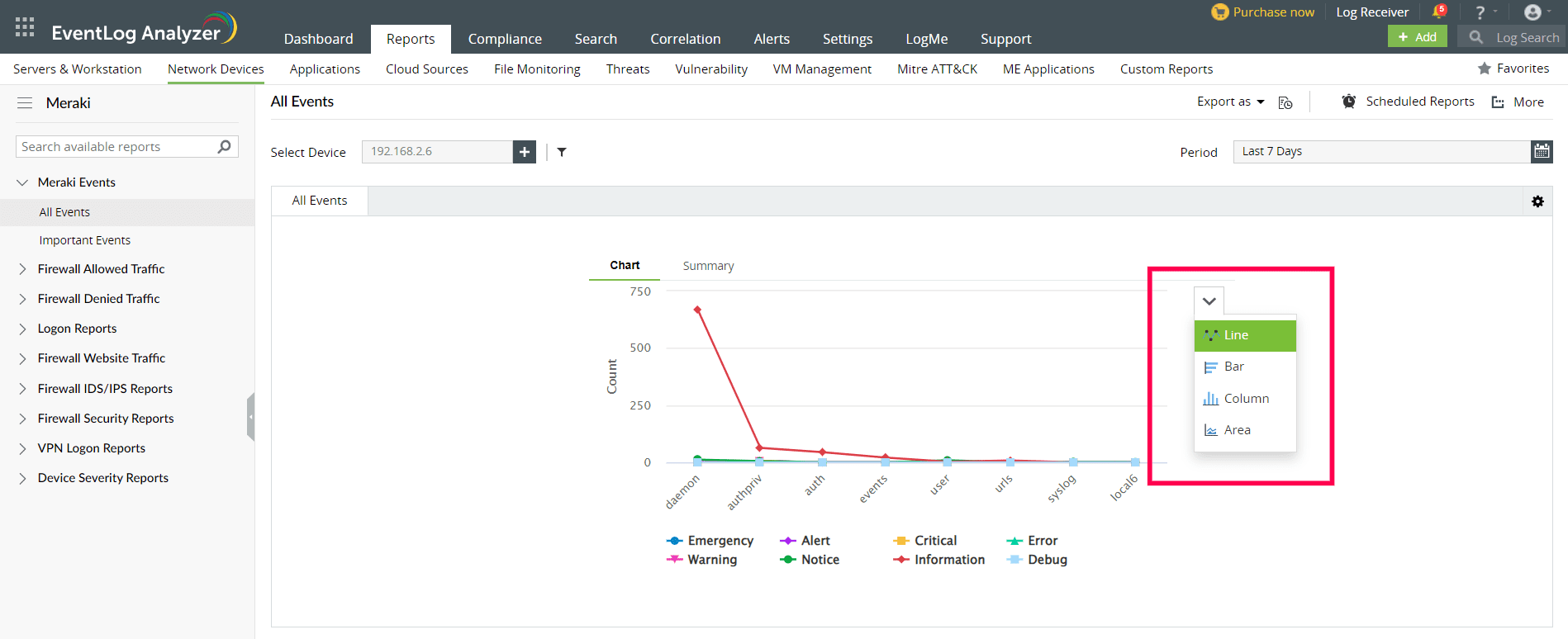

    • The graphs can be viewed in different formats.
    • Reports for Meraki Devices

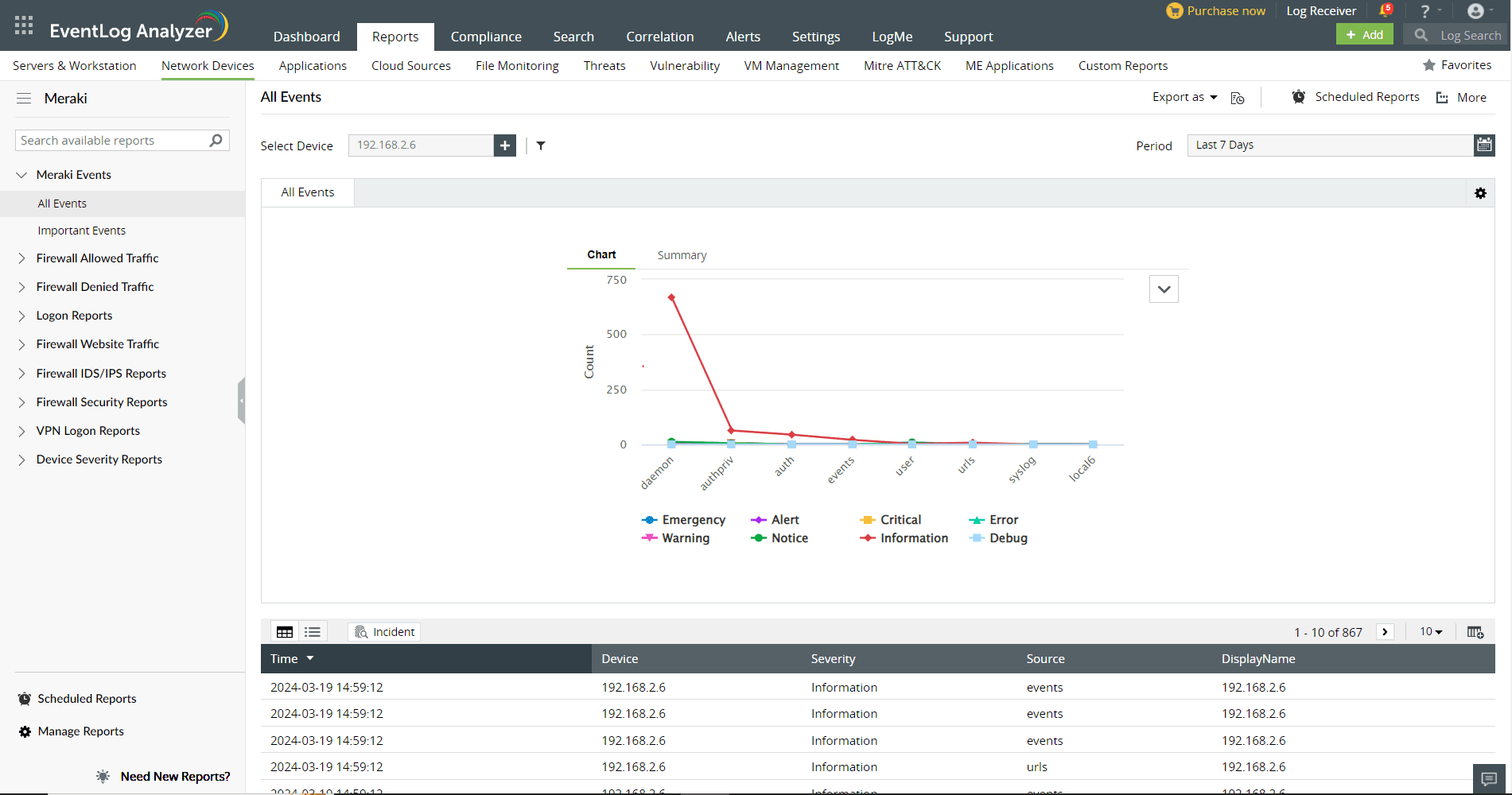

    • The All Events panel lists all the available out-of-the-box reports for Meraki. Select the report you want to view.
    • Reports for Meraki Devices

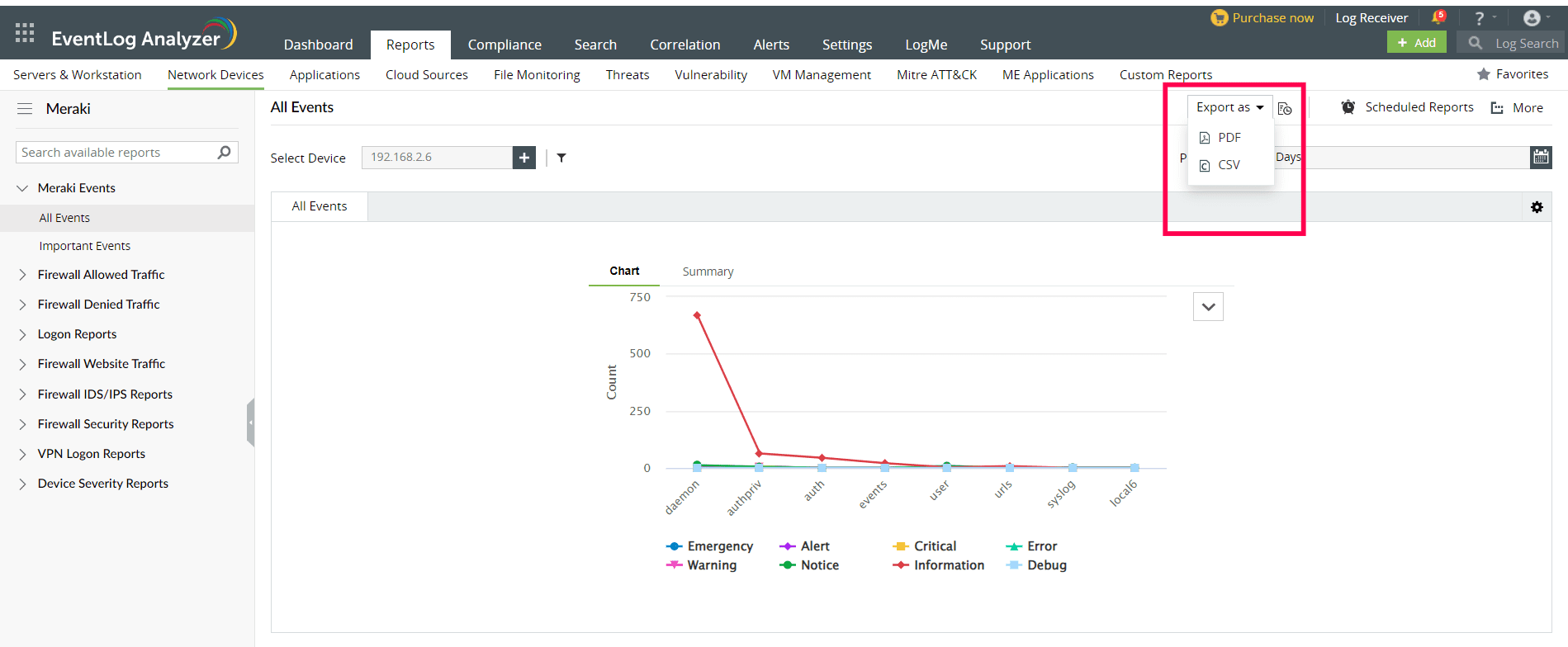

    • To quickly export the report being viewed, click Export as and choose the format. Once done, you can download the report.
    • Reports for Meraki Devices

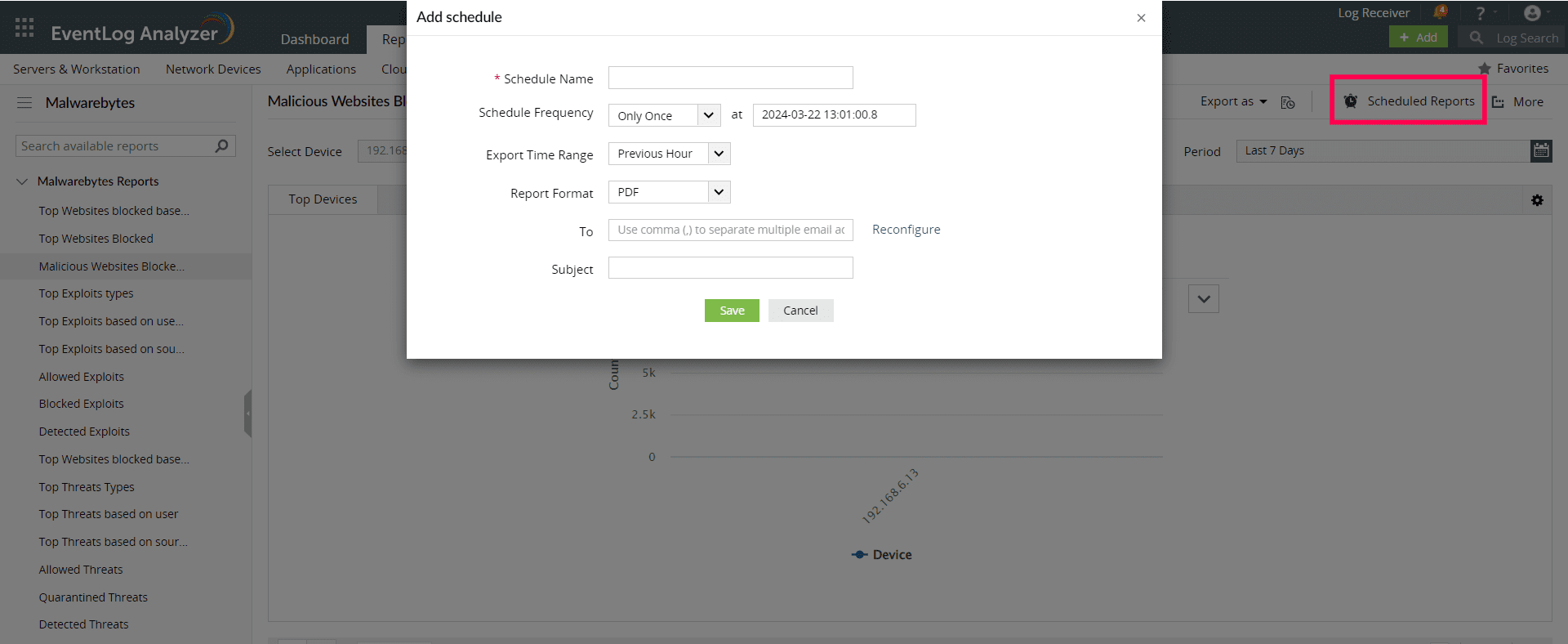

    • Click Schedule to have this report exported and emailed periodically.
    • Reports for Huawei Devices

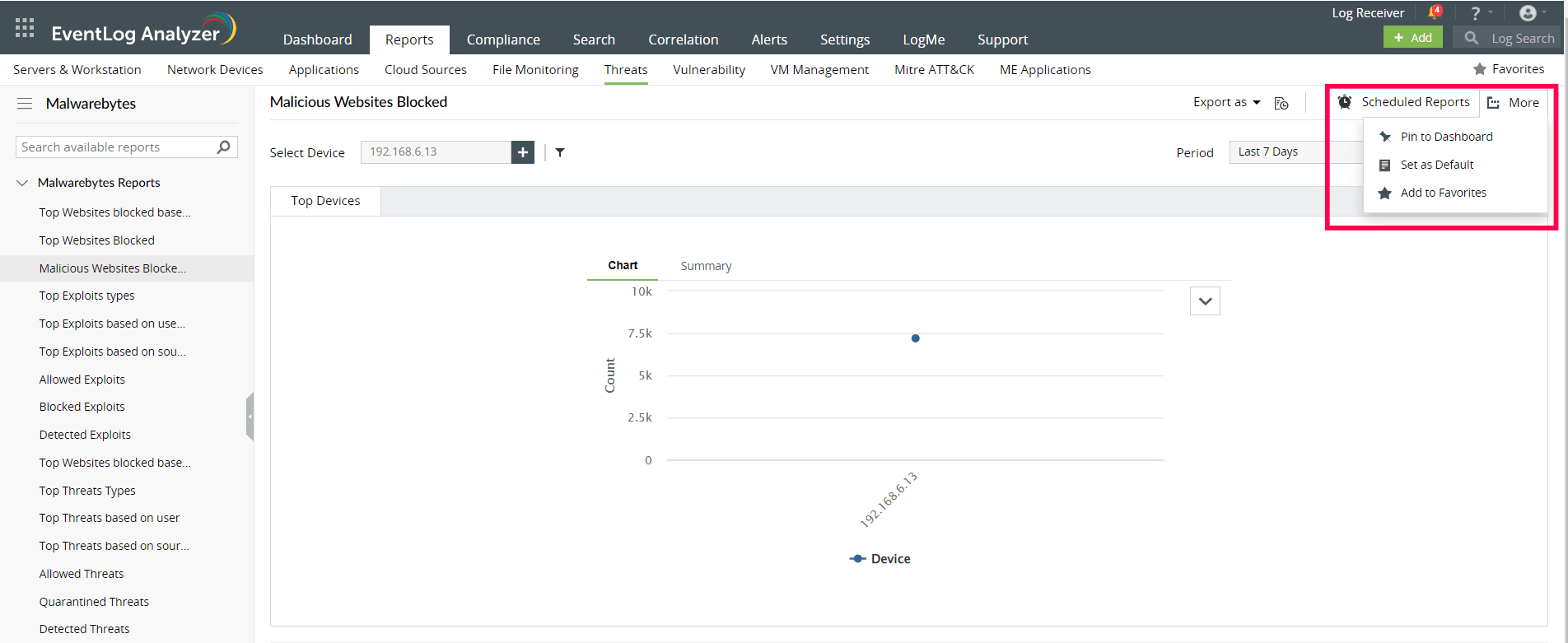

    • Click More for further customization options.
      1. Set as Default, to set this report as the default for Meraki reports.
      2. Add to Favorites, to mark this report as favorite.
      3. Pin to dashboard, to pin this report to the main dashboard in the Home page.
      Reports for Huawei Devices
