    Palo Alto reports

    EventLog Analyzer supports Palo Alto Firewall and provides out-of-the-box reports for the following categories of events:

    • Palo Alto Events: Provides information on all the events associated with Palo Alto devices.
    • Firewall Allowed and Denied Traffic: Provides insights on traffic based on source, destination, protocol and port, and also generates a report on traffic trends.
    • Firewall Website Traffic: Provides traffic reports based on source, destination, and website traffic trend.
    • Successful and Failed Logons: Provides source and user based reports, trend reports.
    • Firewall Accounts Management: Provides reports on administrator added, deleted or modified.
    • Firewall Policy Management: Provides information on policies added, deleted, or modified.
    • Firewall IDS/IPS Events: Provides insights on attacks based on source and destination IP address, also provides a report on attack trends.
    • System Events: Provides reports on configuration changes, clock update, system status, start and stop of services, features and license status.
    • Failed VPN Logon Reports: Monitors the VPN activities from Palo Alto logs and offers out-of-the-box reports for failed VPN logons.
    • Device Severity Reports: Provides reports on emergency, alerts, critical, error, warning, and notice events.

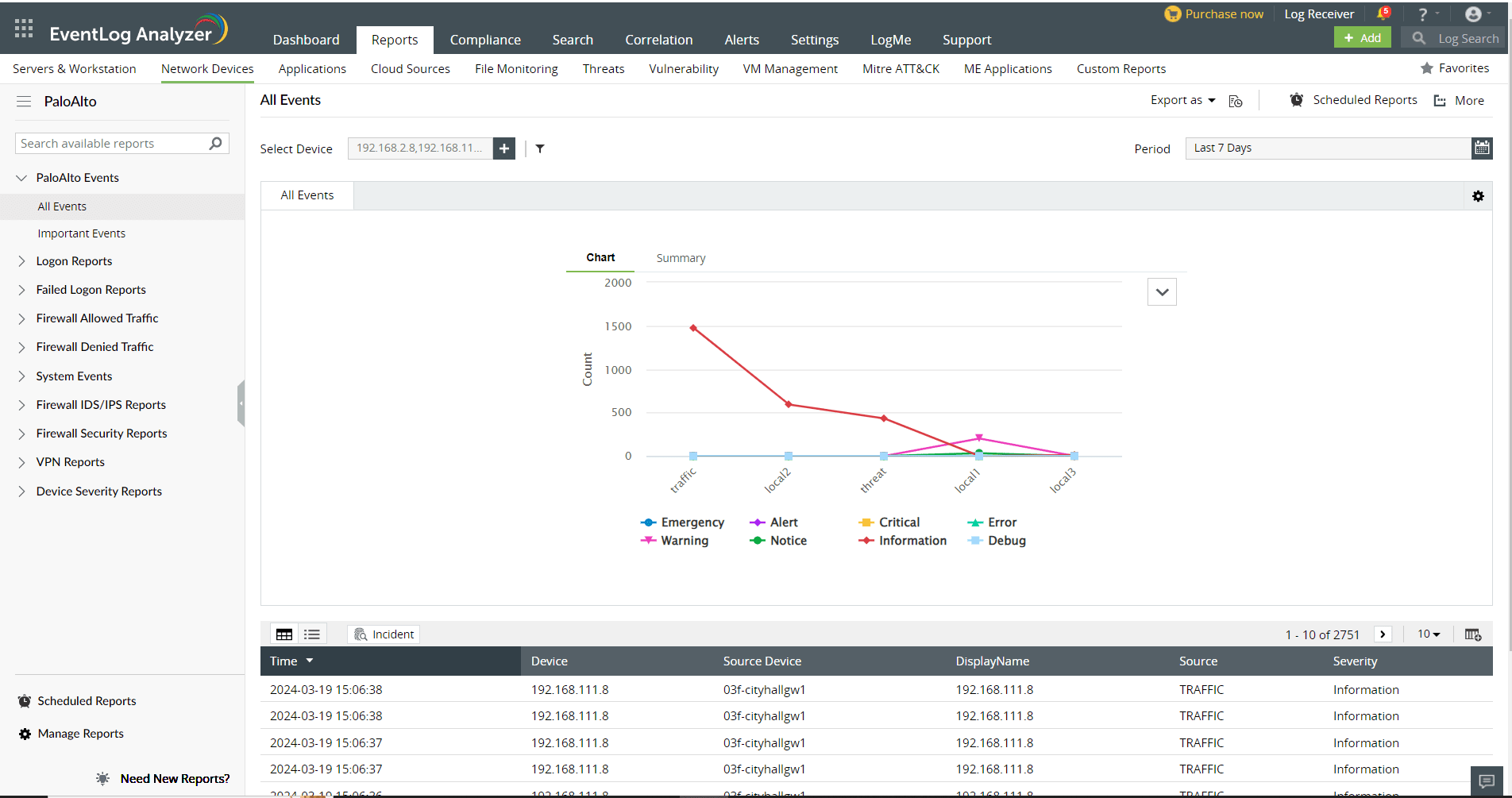

    Palo Alto Reports Dashboard

    Palo Alto reports
    • Go to the Reports section. Select Palo Alto from the displayed list of vendors.
    • In the left pane, all the available out-of-the-box reports for Palo Alto will be listed. Select the report you want to view.
    • To generate reports for a specific Palo Alto device, click Select Device drop down list on the right pane and choose the needed Palo Alto devices. Click Add.
    • Palo Alto reports
    • You can further generate repots based on Source, Severity and Device. Use logical operators as required.
    • Palo Alto reports
    • If you want to generate the reports for a specific time period, select the Period calendar option from the top right corner, specify the time period and then click Apply.
    • Palo Alto reports
    • To export a report, click Export as and choose the format. The solution allows you to export the reports in PDF and CSV formats.
    • Palo Alto reports

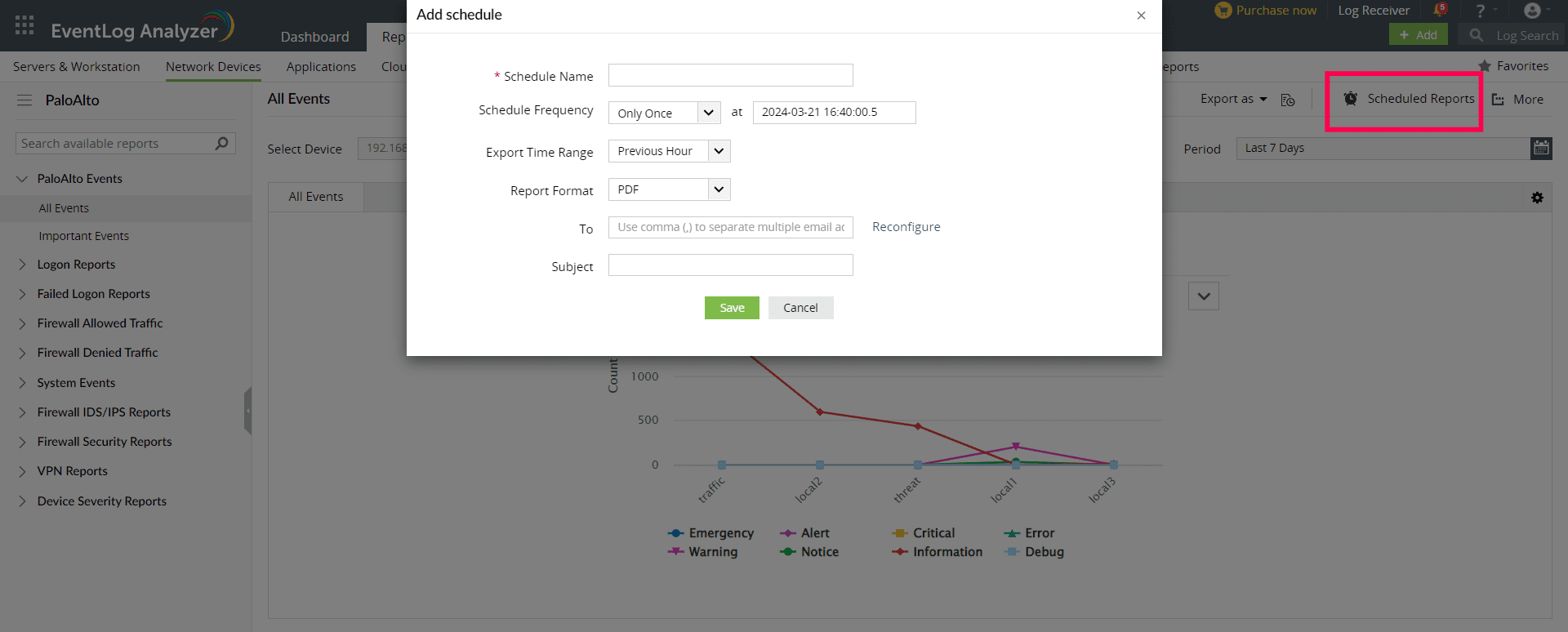

    • To generate and redistribute the reports over email at periodic time intervals, you can use the Schedule Reports option.
    • Palo Alto reports

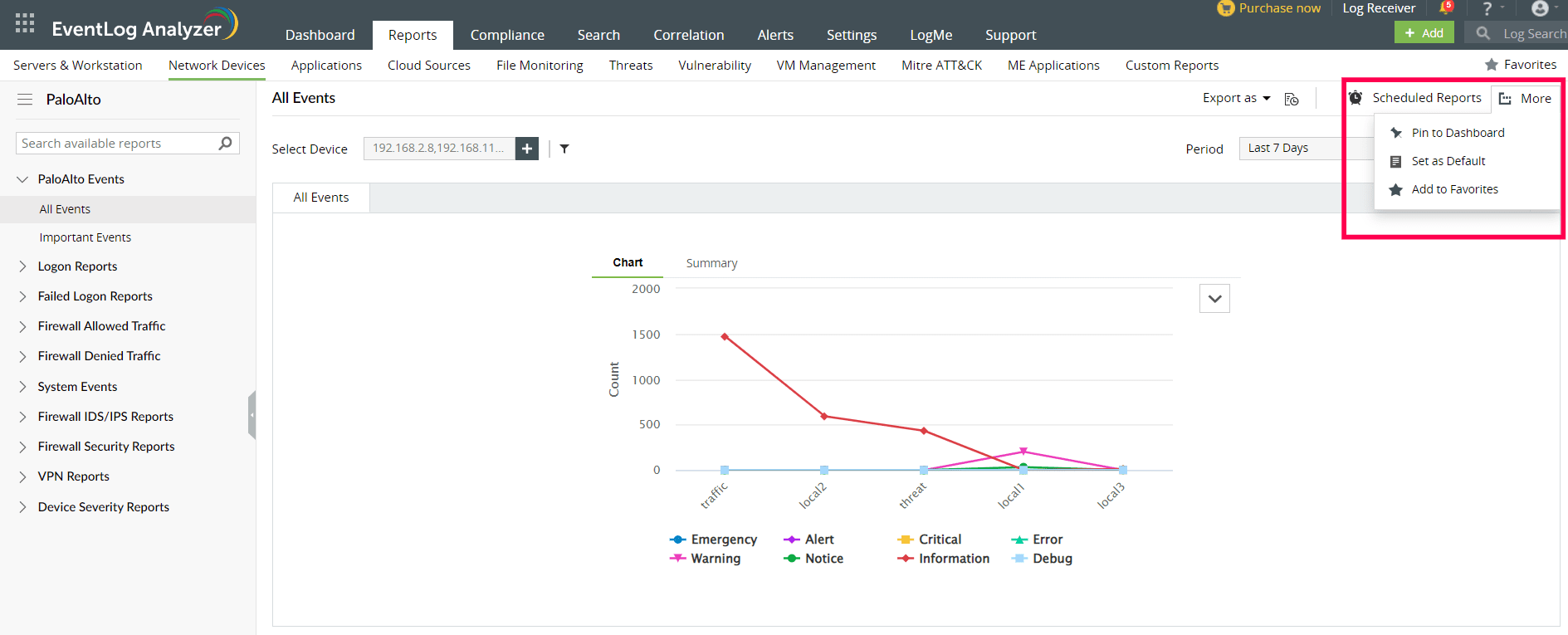

    • The More link at the top right corner provides you the below customization options:
      1. Set as Default: Allows you to set the selected report as the default report.
      2. Add to Favorites: Marks the selected report as favorite.
      3. Pin to dashboard: Pins the selected report to the dashboard in the Home page.
      Palo Alto reports
