SonicWall reports

EventLog Analyzer supports SonicWall Firewall and provides out-of-the-box reports for the following categories of events:

  • SonicWall Events: Provides information on all events on SonicWall devices.
  • Firewall Allowed and Denied Traffic: Provides insights on traffic based on source, destination, protocol and port, and also generates a report on traffic trends.
  • Firewall Website Traffic: Provides traffic reports based on source, destination, and website traffic trend.
  • Successful and Failed Logons: Provides source and user based reports, trend reports.
  • Firewall Accounts Management: Provides reports on administrator added, deleted or modified.
  • Firewall Policy Management: Provides information on policies added, deleted, or modified.
  • Firewall IDS/IPS Events: Provides insights on attacks based on source and destination IP address, also provides a report on attack trends.
  • System Events: Provides reports on configuration changes, clock update, system status, start and stop of services, features and license status.
  • Failed VPN Logon Reports: Monitors the VPN activities from SonicWall logs and offers out-of-the-box reports for failed VPN logons.
  • Device Severity Reports: Provides reports on emergency, alerts, critical, error, warning, and notice events.

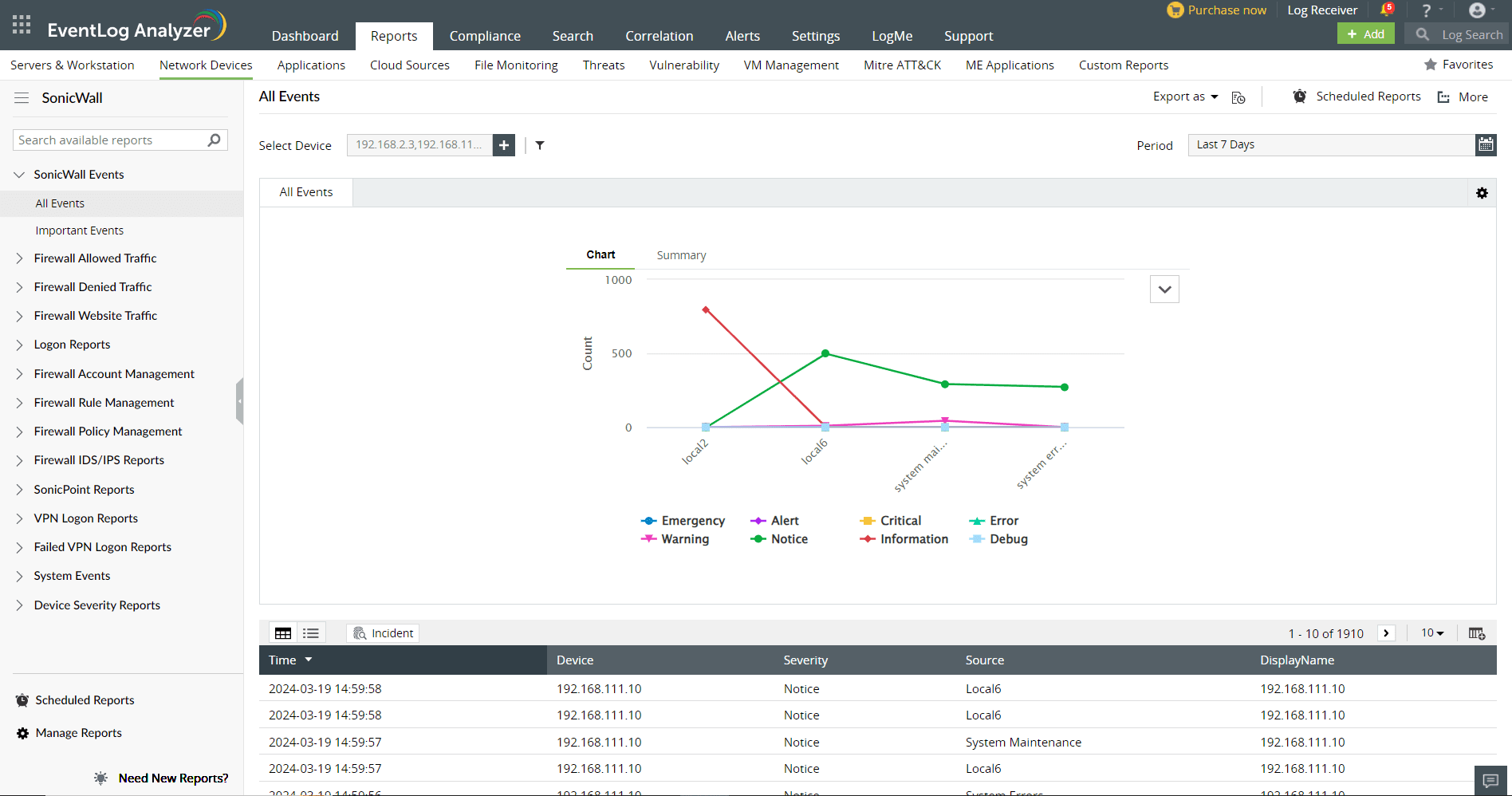

SonicWall Reports Dashboard

SonicWall reports
  • Go to the Reports section. Select SonicWall from the displayed list of vendors.
  • In the left pane, all the available out-of-the-box reports for SonicWall will be listed. Select the report you want to view.
  • To generate reports for a specific SonicWall device, click Select Device drop down list on the right pane and choose the needed SonicWall devices. Click Add.
  • SonicWall reports
  • You can further generate reports based on Source, Severity and Device. Use logical operators as required.
  • pfSense reports
  • If you want to generate the reports for a specific time period, select the Period calendar option from the top right corner, specify the time period and then click Apply.
  • SonicWall reports
  • To export a report, click Export as and choose the format. The solution allows you to export the reports in PDF and CSV formats.
  • SonicWall reports

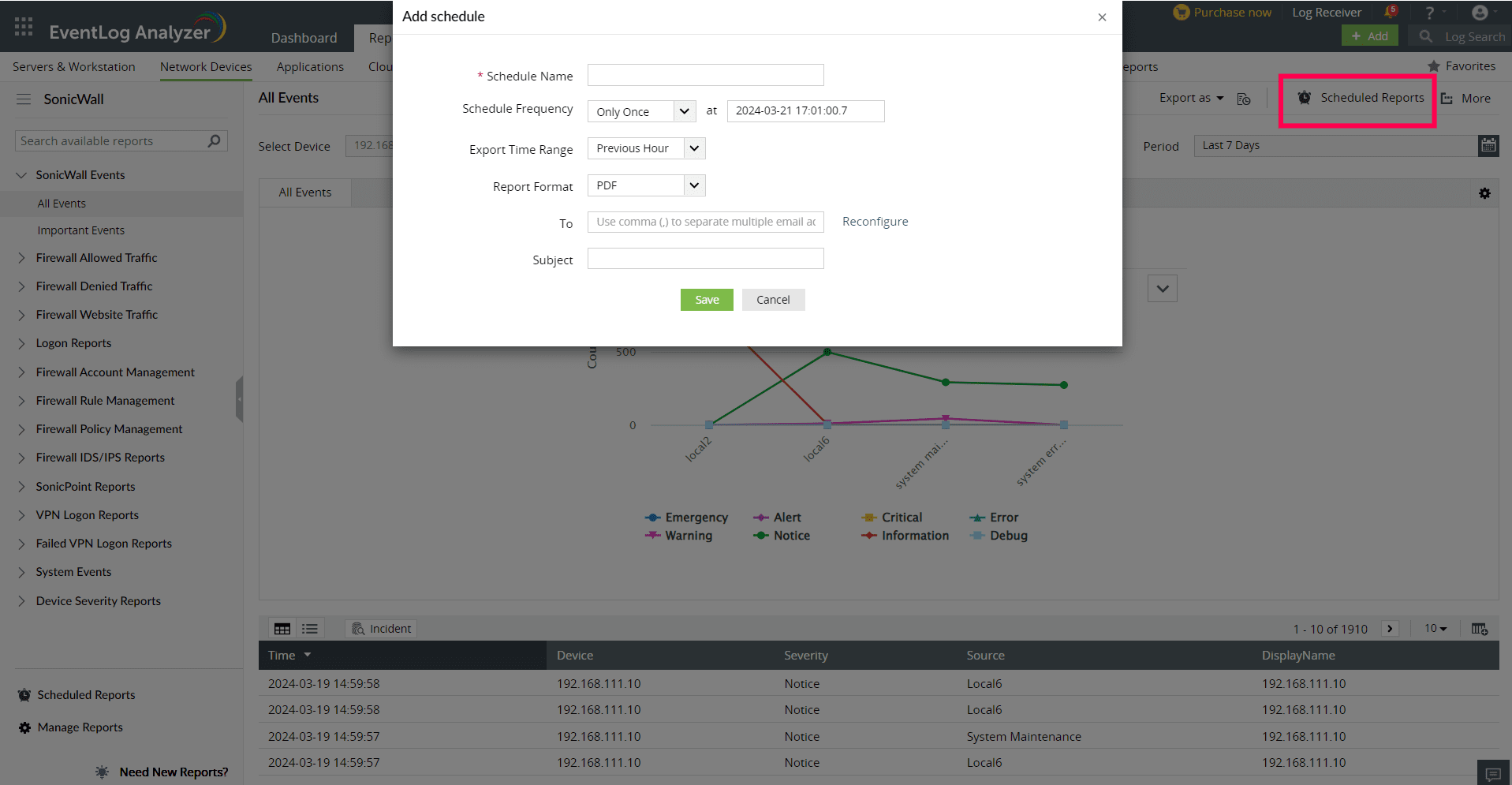

  • To generate and redistribute the reports over email at periodic time intervals, you can use the Schedule Reports option.
  • SonicWall reports

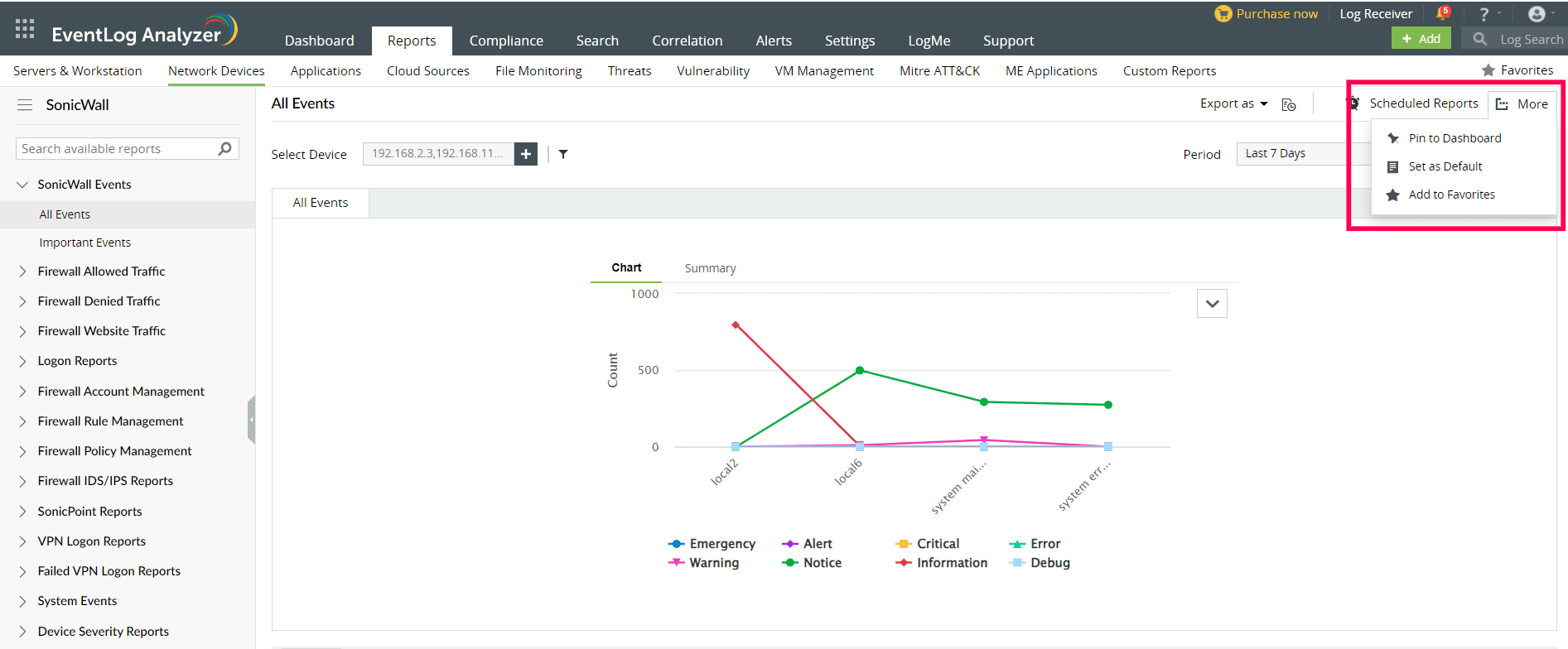

  • The More link at the top right corner provides you the below customization options:
    1. Set as Default: Allows you to set the selected report as the default report.
    2. Add to Favorites: Marks the selected report as favorite.
    3. Pin to dashboard: Pins the selected report to the dashboard in the Home page.
    SonicWall reports
