Secure Cloud Storage Options for Anytime, Anywhere Access to Passwords

In addition to the options to export passwords to a spreadsheet in plain-text or to an encrypted HTML file, Password Manager Pro provides cloud storage provisions to enable anytime, anywhere access to passwords in a secure way. This can be done by enabling auto-synchronization of the encrypted HTML file to the authorized users' mobile devices via Dropbox, Amazon S3, and Box accounts.Typical use case scenarios for this option include:

  • A managed service provider (MSP) using Password Manager Pro to store shared passwords of their clients and technicians; has no access to the application inside the client's network while visiting them.
  • Technicians working in DMZs with no access to the application's web UI.

To enable cloud storage option for users and set up synchronization for each option, refer to their respective sections given below:

Steps to Configure Dropbox Synchronization

To enable Dropbox sync for your users,

  • Go to Admin >> Integration >> Cloud Storage.

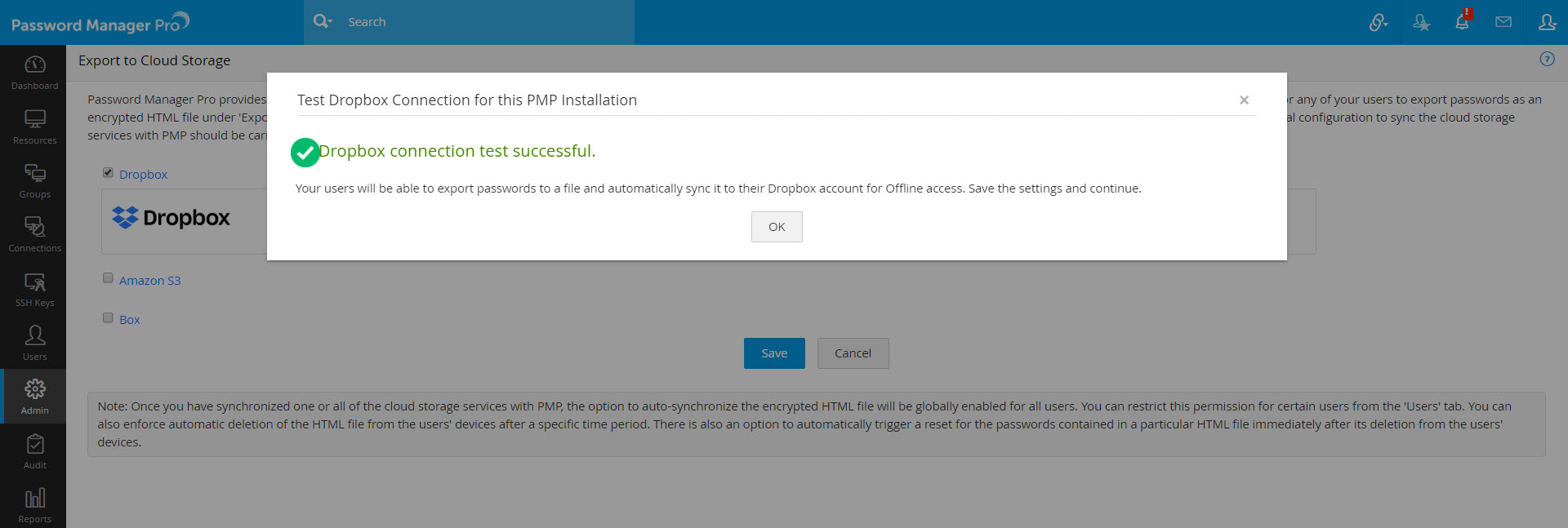

  • In the page that loads, select Dropbox. Then, click the link - Test Dropbox Connection for this PMP Installation. This basically checks the proxy settings (if applicable in your environment) and does the necessary background processes to try and connect to the Dropbox app named "ManageEngine Password Manager Pro" created by PMP for this purpose. A successful connection will enable users to upload the encrypted HTML file to their Dropbox account.
  • Then, click 'Save'. Dropbox synchronization will be enabled for users in your organization.

Steps to Export and Synchronize the Encrypted HTML file to Dropbox

If you're a user who wants to export and synchronize the encrypted HTML file to your Dropbox account (provided that you already have a Dropbox account. If not, create one to proceed with the following steps),

  • Go to Resources >> Export >> Sync with Dropbox for Mobile Access.

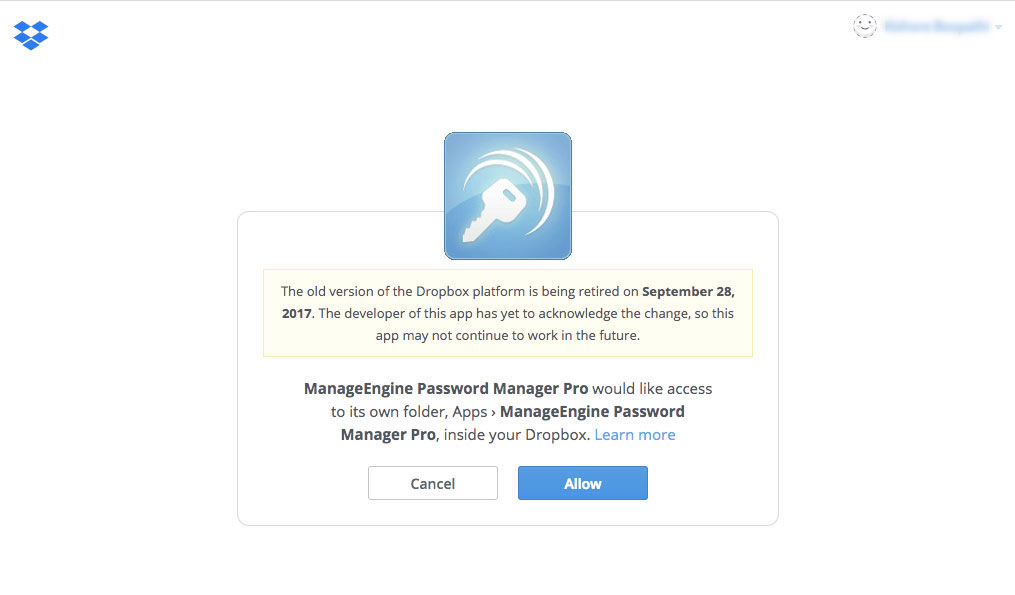

  • In the dialog box that opens, click 'Authorize'. A new window will open, asking you to log into Dropbox account. Once you log in, the page will display a request from Password Manager Pro to access its folder 'ManageEngine Password Manager Pro' inside your Dropbox account. Click 'Allow' to approve the request.
  • A Dropbox code will be displayed as shown in the image below. Copy the code and navigate back to Password Manager Pro's active session in the other browser tab. Paste the Dropbox code in the displayed text field and click 'Save'.
  • Now, click on 'Export' again and select 'Sync with Dropbox for Mobile Access'.
  • In the dialog box that opens, set a passphrase for that HTML file that you're about to export. The file will be encrypted using AES-256 bit algorithm with the passphrase you supply here. Then, enter your reason for export if mandated by your Password Manager Pro administrator.
  • Click 'Proceed'. Once the HTML file has been successfully synchronized, Password Manager Pro will shortly display a message at the bottom left corner of the UI. You can click on the message or directly access your Dropbox account to check if the file has been synchronized. In your Dropbox account, the encrypted HTML file will appear under a new folder created in the name of ManageEngine Password Manager Pro.

Steps to Configure Amazon S3 Synchronization

To enable Amazon S3 sync for your users,

  • Go to Admin >> Integration >> Cloud Storage.
  • In the page that loads, select Amazon S3 and click 'Save'. Amazon S3 synchronization will be enabled for users in your organization.

Steps to Export and Synchronize the Encrypted HTML file to Amazon S3

If you're a user who wants to export and synchronize the encrypted HTML file to your Amazon S3 account (provided that you already have an Amazon S3 account. If not, create one to proceed with the following steps),

  • Go to Resources >> Export >> Sync with Amazon S3 for Mobile Access.
  • In the dialog box that opens, you have to provide the following details: Access key ID, Secret access key, and Bucket Name.
  • Access key ID and Secret access key are user security credentials that are automatically assigned to you when your AWS administrator creates your user profile in your organization's AWS account. The credentials are usually sent via an email to your inbox. In case you do not have access to your Access key ID and Secret access key, contact your AWS administrator.
  • Bucket Name: Bucket Names are the names of the folder that you create in your Amazon S3 account. Here, provide the Bucket Name of an existing folder. This is where the encrypted HTML file will be stored upon synchronization.
  • After providing the required details, click 'Save'.
  • Now, click on 'Export' again and select 'Sync with Amazon S3 for Mobile Access'.
  • In the dialog box that opens, set a passphrase for that HTML file that you're about to export. The file will be encrypted using AES-256 bit algorithm with the passphrase you supply here. Then, enter your reason for export if mandated by your Password Manager Pro administrator.
  • Click 'Proceed'. Once the HTML file has been successfully synchronized, Password Manager Pro will shortly display a message at the bottom left corner of the UI. You can click on the message or directly access your Amazon S3 account to check if the file has been synchronized. In your Amazon S3 account, the encrypted HTML file will appear under the bucket that you have specified earlier.

Steps to Configure Box Synchronization

Synchronizing Box with Password Manager Pro first requires a Box account. If you do not own a Box account, go to Box.com and create one. Upon creating your account,

  • Go to Box Developers console and log in with your Box credentials. Once you log in, create a new 'Partner Integration' app.
  • Name the new app as Password Manager Pro or any other name as desired and click 'Create App'.
  • In the page that loads, provide your contact email and other basic details as required.
  • Then, navigate to the 'Configuration' tab of the created app. Under 'Authentication Method', ensure that 'Standard OAuth 2.0 (User Authentication)' is selected.
  • Next, copy the Client ID and Client Secret provided under 'OAuth 2.0 Credentials' section and keep them aside. You will be required to provide these credentials later in Password Manager Pro >> Admin >> Cloud Storage UI.

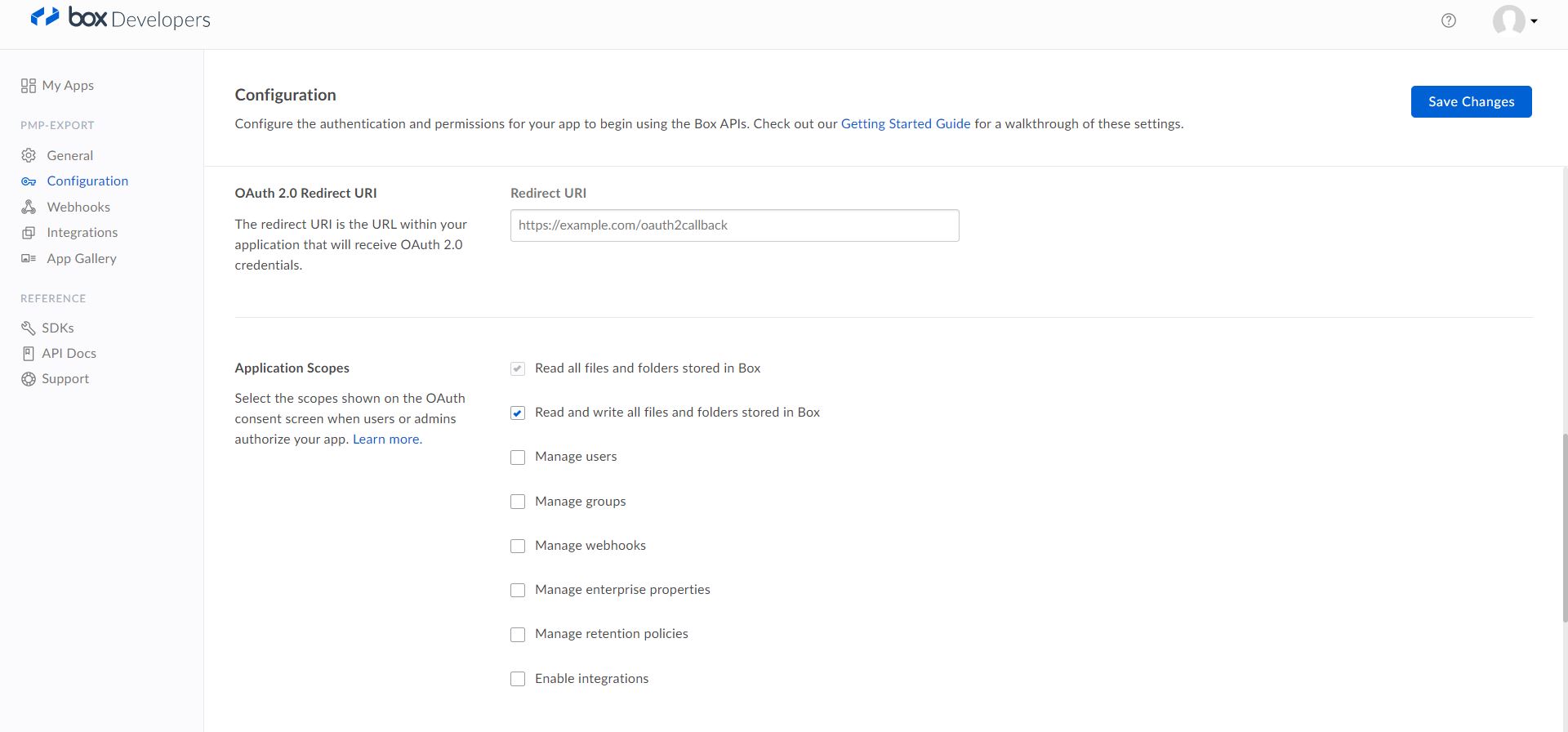

  • Next, under 'OAuth 2.0 Redirect URL' section, enter your Password Manager Pro's server URL. The format of the redirect URL should be - https://<Host-Name-of-PMP-Server OR IP address>:<port>/PassTrixMain.cc#/ExternalApp/code/
  • Note: If you have high availability configured for your Password Manager Pro installation, during circumstances when the primary server is down and the secondary server is running, you have to change the redirect URL in your Box configuration accordingly for the synchronization to work.

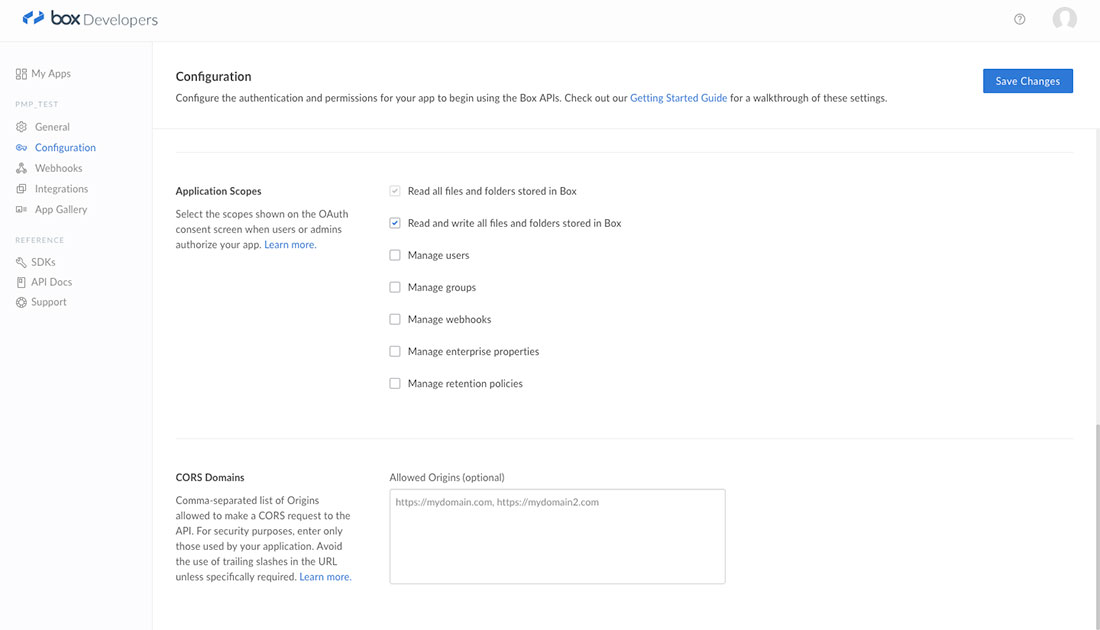

  • Finally, under 'Application Scopes' section, ensure that permission to 'Read and write all files and folders stored in Box' is checked.
  • Click 'Save Changes'.

Once you have carried out all the aforementioned steps in Box Developers console,

  • Navigate back to Password Manager Pro >> Admin >> Integration >> Cloud Storage.
  • Select Box and enter the copied Client ID and Client Secret. Click 'Save'. Box synchronization will be enabled for users in your organization.

Steps to Export and Synchronize the Encrypted HTML file to Box

If you're a user who wants to export and synchronize the encrypted HTML file to your Box account,

  • Go to Resources >> Export >> Sync with Box for Mobile Access.
  • In the dialog box that opens, click 'Authorize'. Box's login page will open in a new window. Log in with your Box credentials and in the page that loads, click 'Grant access to Box'. A message saying the authorization is successful will be displayed. Click 'OK'. You will then be automatically redirected back to Password Manager Pro's UI.
  • A message saying the authorization is successful will be displayed. Click 'OK'. You will then be automatically redirected back to Password Manager Pro's UI.
  • Now, navigate again to Resources >> Export and click on Sync with Box for Mobile Access.
  • In the dialog box that opens, set a passphrase for that HTML file that you're about to export. The file will be encrypted using AES-256 bit algorithm with the passphrase you supply here. Then, enter your reason for export if mandated by your Password Manager Pro administrator.
  • Click 'Proceed'. Once the HTML file has been successfully synchronized, Password Manager Pro will shortly display a message at the bottom left corner of the UI. You can click on the message or directly access your Box account to check if the file has been synchronized. In your Box account, the encrypted HTML file will appear under a new folder created in the name of Password Manager Pro.
