Adding Linux DNS-DHCP Servers

Process 1.A: Before Discovery (Prepare BIND for DDI Central)

These steps assume:

• BIND config directory: /etc/bind
• systemd service file: /lib/systemd/system/named.service
• Service name: named

Step 1: Set safe file permissions on /etc/bind

What it does

• Sets files to readable by everyone, writable only by owner (rw-r--r--).
• Ensures DDI Central (and BIND) can read configs during discovery.

Step 2: Set ownership to root:bind

What it does

• Makes root the owner of /etc/bind and bind the group.
• Ensures the BIND process (which normally runs as user/group bind) can read config files.

Step 3: Restart the named service

What it does

• Reloads the named daemon with the current config and permissions.

Step 4: Verify that named is running

What to look for

• Active: active (running)
• No obvious error messages about config or permissions.

Step 5: Replace /lib/systemd/system/named.service with the “Before” unit file

You paste in this content:

What this does

• Runs named as root (note User/Group are commented out).
• Uses /etc/bind/named.conf as the main config.
• Uses /usr/bin/named-checkconf to validate config before starting.
• Grants the capability to bind low ports (53) via CAP_NET_BIND_SERVICE.

Why before discovery

Running as root with standard paths keeps the environment simple so DDI Central can:

• Read all zone and view definitions.
• Discover the DNS topology without being blocked by permissions or custom paths.

After you save this unit file, you would normally run:

(Even though not listed explicitly here, daemon-reload is required after editing a unit.)

Process 1.B: Update Permissions on DHCP Configuration and Zone Files

BIND9 → DDI Central discovery: Secure transition with lower privileges

Before onboarding and discovering a BIND9-based DNS server into DDI Central, you must reconfigure it to run under a dedicated, low-privilege user (ddi) and grant only the minimum required capabilities. This is because running named as root is risky—it gives the DNS process unnecessary system-level privileges. In order to harden security, transitioning the ddi user ensures the DNS server operates with just enough permission to function, significantly reducing the attack surface.

For DDI Central to read, discover, and ingest your BIND9 configuration and zone files, they must be owned and accessible by the ddi user. Changing ownership (chown) and permissions (chmod) ensures proper access without exposing files to the wrong users.

• Ensure the `ddi` user owns the necessary files and directories:

  chown -R ddi:ddi /etc/named*

  or

  chown -R ddi:ddi /etc/bind/

  This makes sure the ddi user—and only that user—owns all of the BIND configuration and zone files.

  chmod -R 2770 /etc/named*

  or

  chmod -R 2770 /etc/bind/

  Now that ddi owns them, only ddi (read/write) and the root or members of the file’s group (read/write) can touch those files. Everyone else is denied access.

• Grant required capabilities to BIND binaries

  Linux privileges normally require you to run as root to open ports below 1024. To enable the `ddi` user to bind to privileged ports (TCP/UDP 53, 853, 443) without full root privileges, apply the following capabilities:

  /usr/sbin/setcap 'cap_net_bind_service=+ep' /usr/sbin/named
  /usr/sbin/setcap 'cap_net_bind_service=+ep' /usr/sbin/rndc

  It grants just the CAP_NET_BIND_SERVICE capability to those two binaries, so they can open low ports.

  Verify with:

  getcap /usr/sbin/named
  getcap /usr/sbin/rndc

  Both commands should show that cap_net_bind_service=ep is set. By using Linux’s cap_net_bind_service, the DNS server can still bind to critical ports (53 for DNS, 853 for DoT, 443 for DoH) without needing root. This is essential for secure environments where full root execution is discouraged or prohibited.

Step 3: Configure systemd to drop root and run `named` as `ddi` user

-Open and edit your BIND systemd service file—depending on your OS it’ll be named either:Depending on your OS and setup, open:

• /etc/systemd/system/bind9.service or
• /etc/systemd/system/named.service

Then under [Service] section make these changes:

[Service]

ExecStart=/usr/sbin/named -u ddi -c ${NAMEDCONF} $OPTIONS

TimeoutStartSec=30s

PrivateTmp=true

ProtectSystem=strict

ProtectHome=true

ReadWritePaths=/usr/local/bind9/var

AmbientCapabilities=CAP_NET_BIND_SERVICE

CapabilityBoundingSet=CAP_NET_BIND_SERVICE

NoNewPrivileges=true

Here,

• -u ddi tells named to switch to the ddi user after startup.
• ProtectSystem, ProtectHome, and NoNewPrivileges lock down the filesystem and prevent privilege escalation.
• AmbientCapabilities and CapabilityBoundingSet ensure only the bind-to-port capability is retained.

After saving the changes, reload systemd:

systemctl daemon-reload

Discover your newly hardened BIND9 in DDI Central

Once the above steps are complete and `named` is running as the `ddi` user with the proper security context, proceed to:

1. Open the DDICentral UI.
2. Go to Settings-> Add Server. Navigate to the Discovery section.
3. Kick off a new discovery job targeting your BIND9 server’s IP or hostname.
4. Confirm in DDI Central that your zone files and named configurations have been imported correctly—your server should now appear as an onboarded DNS instance, running under the secure, low-privilege ddi account.

Process 2.A: Server Onboarding & Discovery

Once the cluster is created, you'll be immediately directed to the Servers page to add your DNS and DHCP servers. If not, you can add servers by selecting the Settings menu from the menu bar along the left side of the screen. From the submenus that appear in parallel, choose Servers.

• On the Servers page, click the Add Server button on the top left corner.

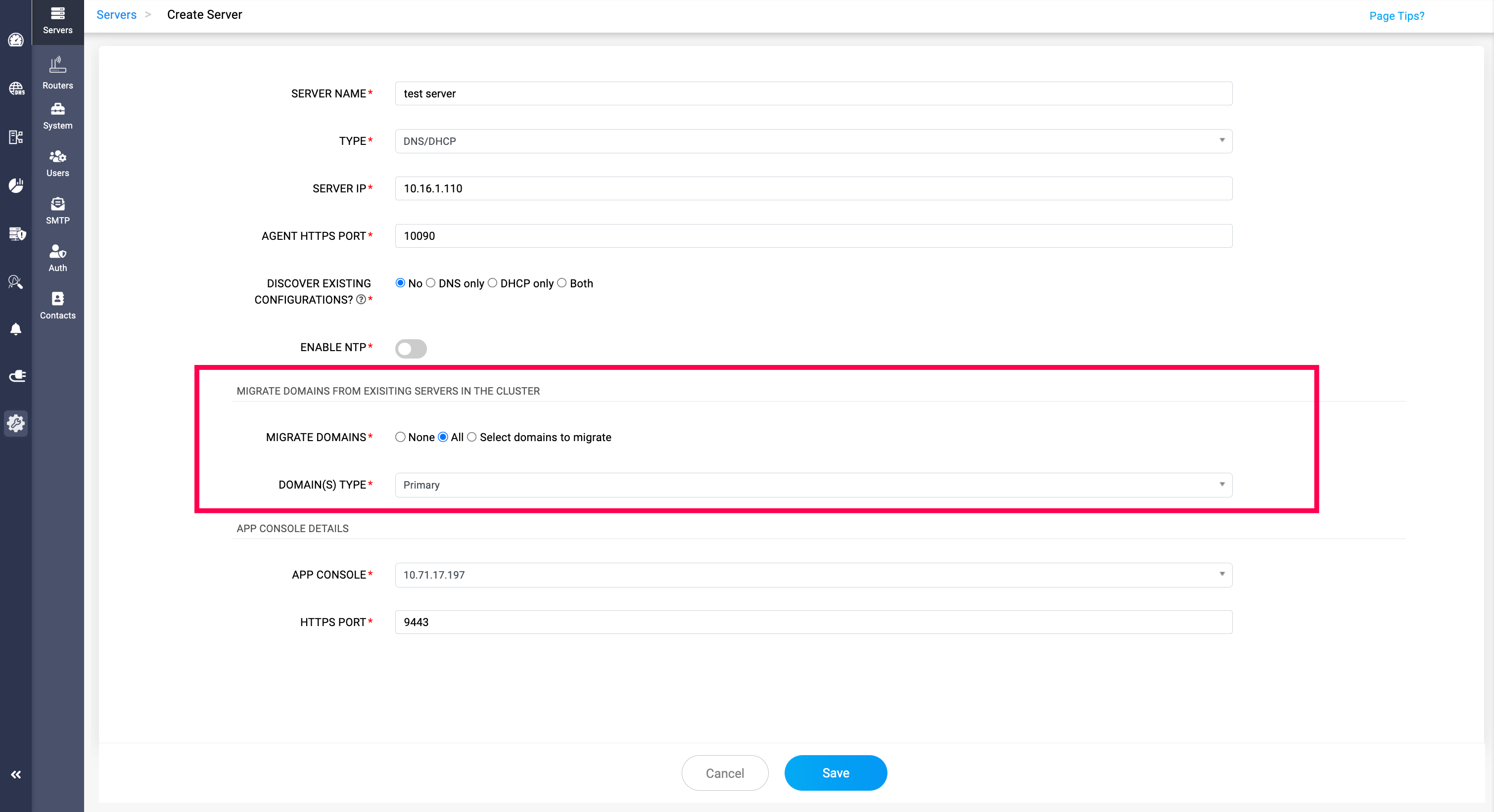

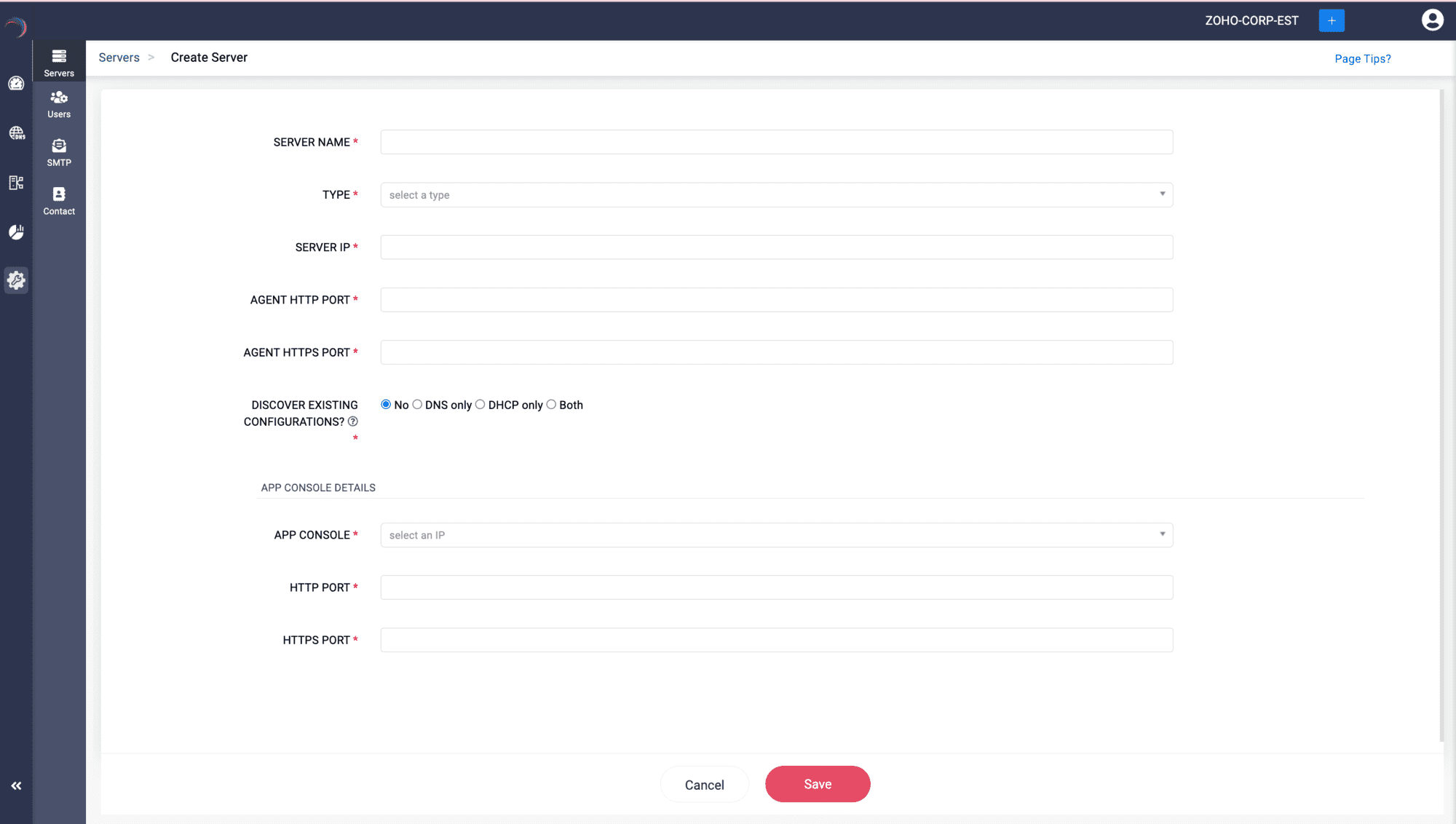

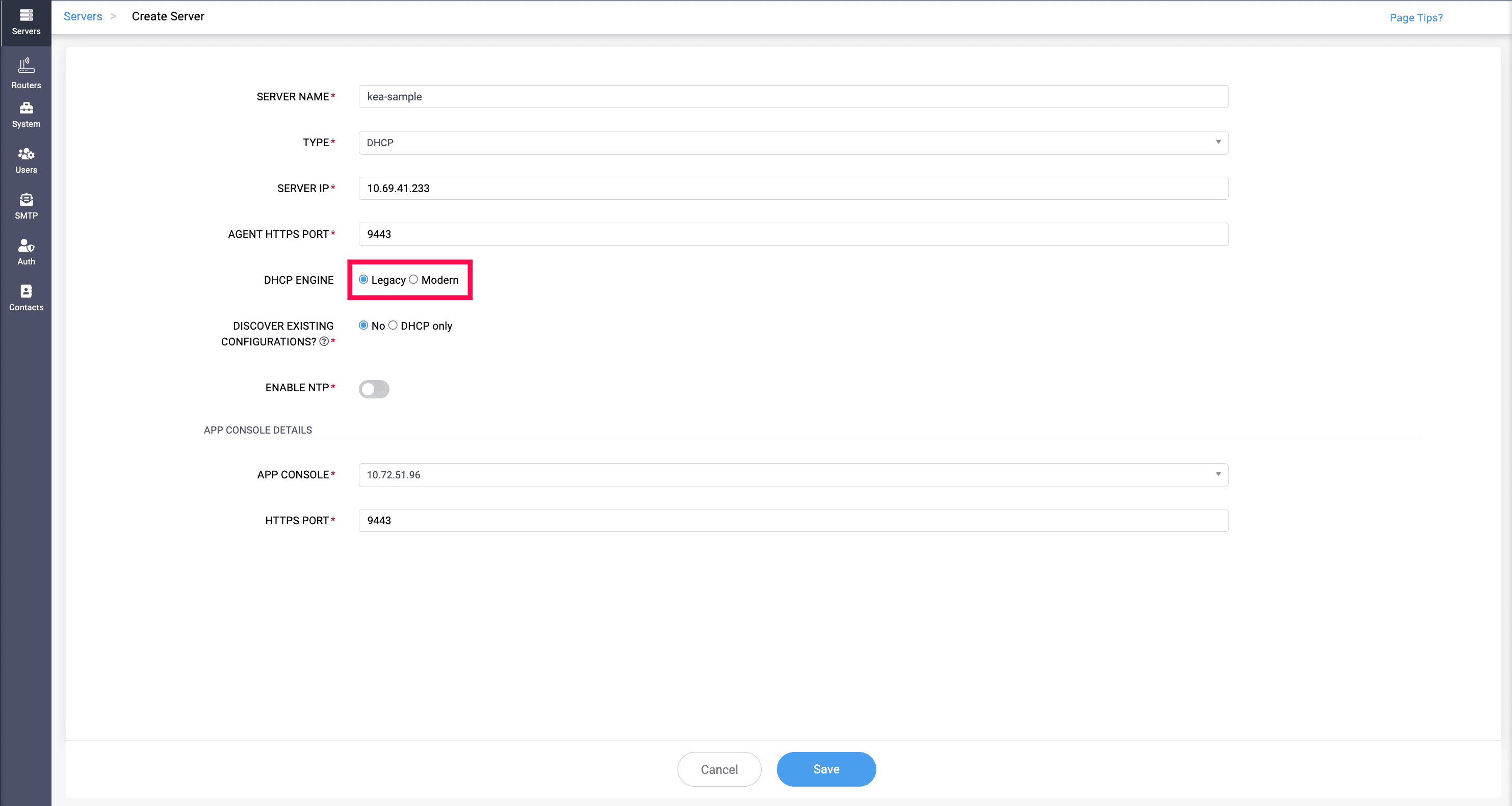

• The Create Server page appears on the screen. Here, you can add your DNS-DHCP servers either by discovering existing server configurations or by simply adding the server to the DDI Central console and configure it using the DDI Central user interface at later stages.

Enter the server details below:

Follow the steps below to onboard the target DNS/DHCP servers into DDI Central, either through Discovery or by bypassing Discovery.

1. Step 1 -> SERVER NAME: A required field where you assign a unique name to the server being configured or added for identification.

   Note: No two servers in the same or different clusters can have the same name.
2. Step 2 -> TYPE: Select the type of server being set up, such as DNS, DHCP, or both (server that is configured for both DNS and DHCP services).
3. Step 3 -> SERVER IP: Specify the IP address of the server being added.
4. Step 4 -> AGENT HTTP PORT: Specify the port number used by the DDI Node Agent installed in the server for HTTP connections.
5. Step 5 -> AGENT HTTPS PORT: Specify the port number used by the DDI Node Agent installed in the server for HTTPS connections.

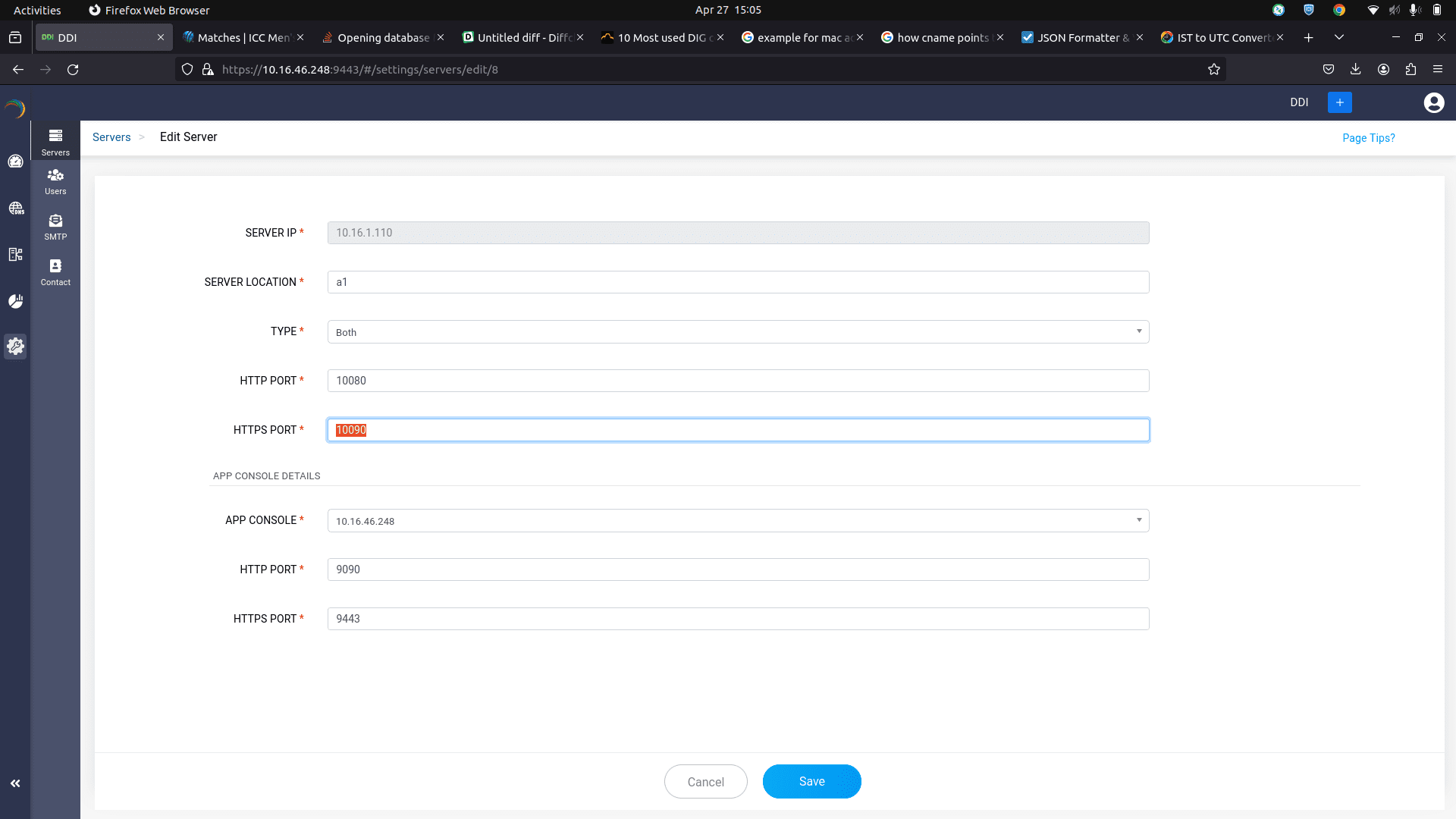

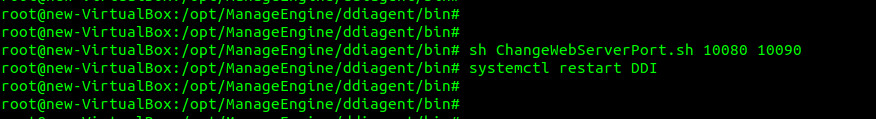

   Note: Admins can select and update the network port used by the Node Agent to enhance flexibility and ensure compliance with both internal networking policies and external regulations. It is important to update the Node agent port number modified via the command window in the DDI Central Console UI immediately to avoid downtime. Failure to do so can lead to communication disruptions between the App Console and the specific server.





6. Step 6 -> DISCOVER EXISTING CONFIGURATIONS?: You have two choices to make here; opt for Step 7 or Step 8 depending on your requirement.

7. Step 7 -> Adding and configuring servers using DDI Central without discovery

   Specify No if you just want to add and onboard a new server from the scratch. You can setup the required DNS, DHCP or IP address configurations to your server through the user-friendly DDI Central user interface later.

   This enables you any Linux server to DDI console and enable DDI Central to transform the ordinary Linux servers into DNS and DHCP servers.

   This is because DDI Central has DNS and DHCP software services bundled with the product and it gets deployed on your Linux servers while installing the product. Then you can start implementing, configuring, and managing DNS, DHCP and IPAM from scratch.

   For this, you'll have to choose No for Discover Existing Configurations? option.

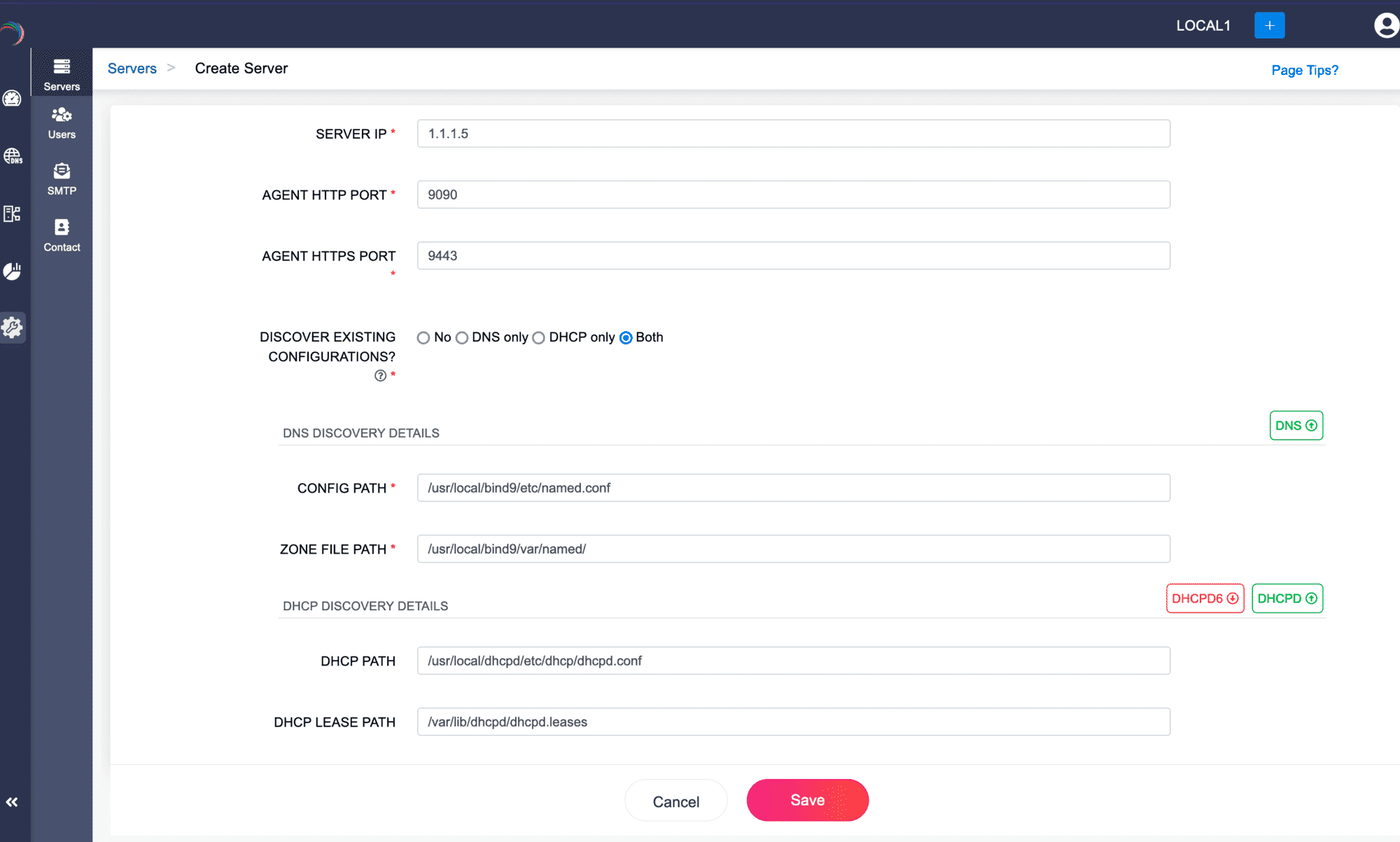

8. Step 8 -> Advanced DNS-DHCP-IP address discovery

   Choosing the path of discovering the existing configurations from the server.

   Choose any one of the three options: DNS, DHCP, Both, for the Discover Existing Configurations?.

   Choosing the option Bothdiscovers all the advanced configurations of DNS-DHCP services, all the DNS objects including the IP automated DNS zones controlled by DHCP events, the whole IP address plan and policies managed under the DHCP service and the whole IP address inventory

   Note: Selecting either DNS or DHCP will result in the discovery of only the DNS or DHCP configurations, respectively, from the server. When discovering a DNS server with DDNS-enabled domains, ensure that both DNS and DHCP servers are discovered at the same time for DDI Central to capture the combined configurations. Similarly, while discovering DHCP servers that provision IP addresses for dynamic domains, it is essential to discover the corresponding DNS servers as well.



   Provide the essential Config Path and the Zone File path (for the DNS service running in the server), while providing the Lease Path and the DHCP server path (for the DHCP service running in the server).

9. Step 9 -> App Console Details

   Enter the essential details of the main server running the Management UI Console. This step is mandatory, as it helps establish the connection between the to be onboarded DNS/DHCP server and the Main Console server.

   • APP CONSOLE: Enter the static IP address of the central server that hosts the DDI Central Management UI console.

     Note: It is crucial that this IP address remains constant to maintain consistent connection between the central DDI console server and the Node Agents installed in all your DNS and DHCP servers.
   • HTTP PORT: Specify the port number of the central DDI application console server for HTTP connections.
   • HTTPS PORT: Specify the port number of the central DDI application console server for HTTPS connections.

10. Step 10 -> Click Save to add the server into the ME DDI console.

    If you have chosen the discovery option as outlined in Step 7, ManageEngine DDI Central will begin to discover configurations from the designated paths for each service.

    Note: The discovery process takes a considerable amount of time depending on the volume of configurations in the servers. Wait until the whole process completes.

    After the discovery, once your servers are added into the DDI Central console you can further proceed modifying the discovered DNS-DHCP-IPAM configurations or quickly start setting up the DNS-DHCP-IPAM configurations for the new server through the user-friendly DDI Central user interface.

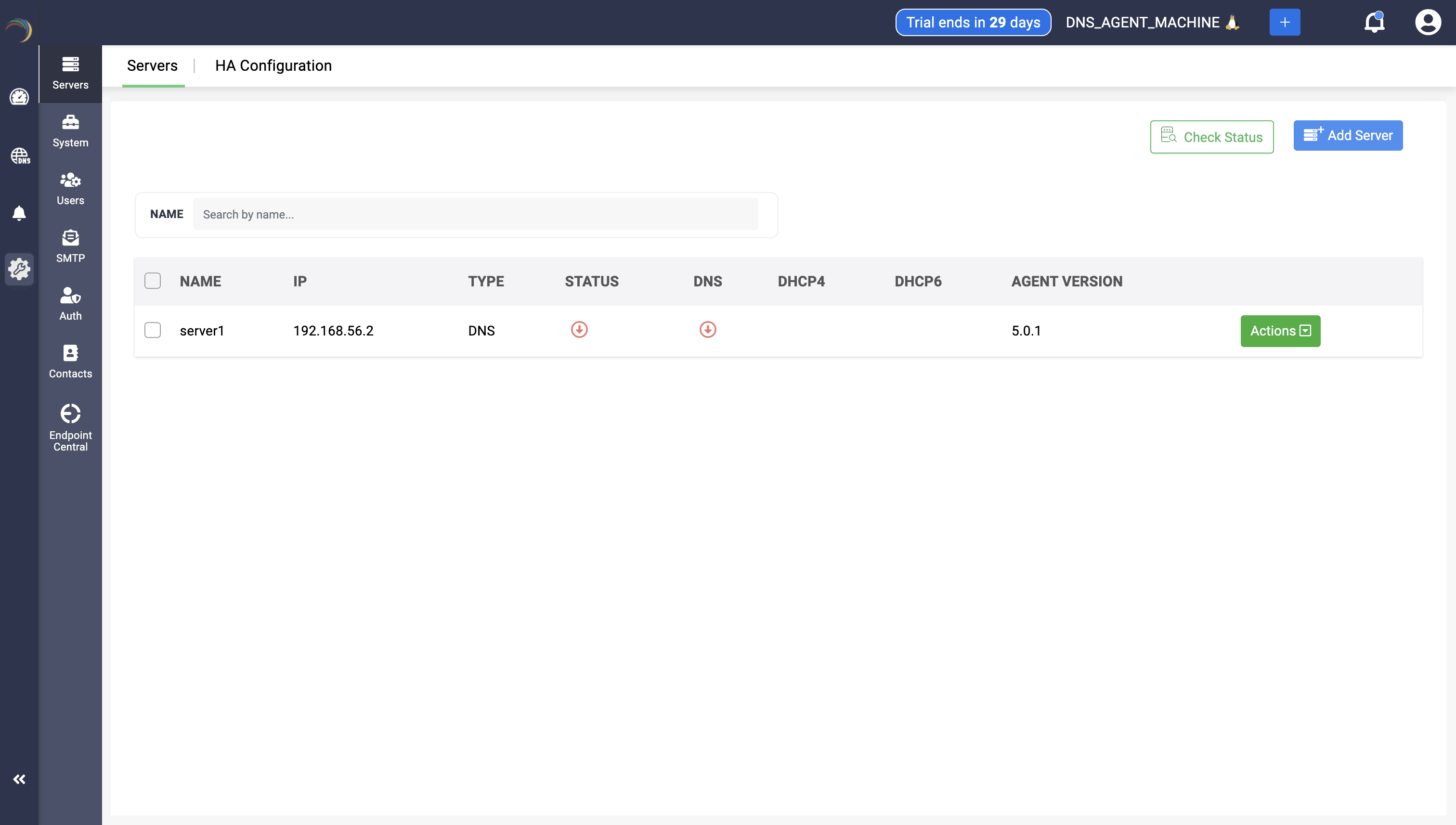

11. Step 11 -> You can access the added servers with all the configurations in place, listed under the Setting->Servers Page. Here you can perform general actions like editing the server configurations, deleting the server, monitoring the server(s) health stats.

Process 2.B: Discovering from Root Jail

Process 3.A: Harden & Handover management to DDI Central

Once DDI Central has successfully discovered and imported the DNS server, you tighten security and let BIND run as a dedicated, limited user (ddi).

Step 1: Restrict directory permissions for /etc/bind

What it does

• Sets rwxrws--- on folders/files:

  • Owner + group: full access
  • Others: no access
• The 2 (setgid bit) ensures new files inherit the directory’s group.

Why

• Only the ddi user (and its group) should see/edit DNS configs now.
• Prevents other local users from peeking into DNS config and zone files.

Step 2: Change ownership to ddi:ddi

What it does

• Gives the ddi user full ownership of /etc/bind.
• BIND will now run as ddi, and DDI Central can manage these files through that user.

Step 3: Replace /lib/systemd/system/named.service with the “After” unit file

Key Changes

• User=ddi / Group=ddi: named now runs as non-root.
• Pre-check uses /usr/local/bind9/bin/named-checkconf (custom BIND build).
• ExecStart=/usr/sbin/named -u ddi -c ...: explicitly tells BIND to drop privileges to ddi.
• ReadWritePaths=/usr/local/bind9/var: writable path is now under /usr/local/bind9/var, not /var/cache/bind.

Why

This is the hardened, production mode:

• If named is compromised, the attacker only gets ddi’s rights, not root.
• Write access is limited to the BIND data directory DDI Central expects.

Step 4: Reload systemd daemon

What it does

• Tells systemd to re-read all unit files (including the new named.service).

Step 5 & 6: Grant capabilities to named and rndc

What they do

• Give named and rndc the ability to bind to privileged ports (like 53) without being root.
• This is why it’s safe to run them as ddi.

Step 7: Check AppArmor status

What it does

• Shows if AppArmor (Linux MAC framework) is active and enforcing profiles.

Step 8 & 9: Disable and tear down AppArmor

What they do

• disable stops AppArmor from starting on boot.
• aa-teardown unloads current profiles from memory.

Why

In some environments, the default AppArmor profile for BIND conflicts with:

• custom paths (/usr/local/bind9),
• running as ddi,
• or DDI Central’s way of managing files.

Disabling removes that restriction.

Obviously, from a security perspective, you’d do this only if AppArmor is actually blocking named, and you don’t have a tailored profile. But this is what the given runbook specifies.

Step 10 & 11: Restart and verify named

What to confirm

• Active: active (running)
• Main PID running as ddi:

You should see named owned by ddi, not root.

Process 3.C: Server Operations

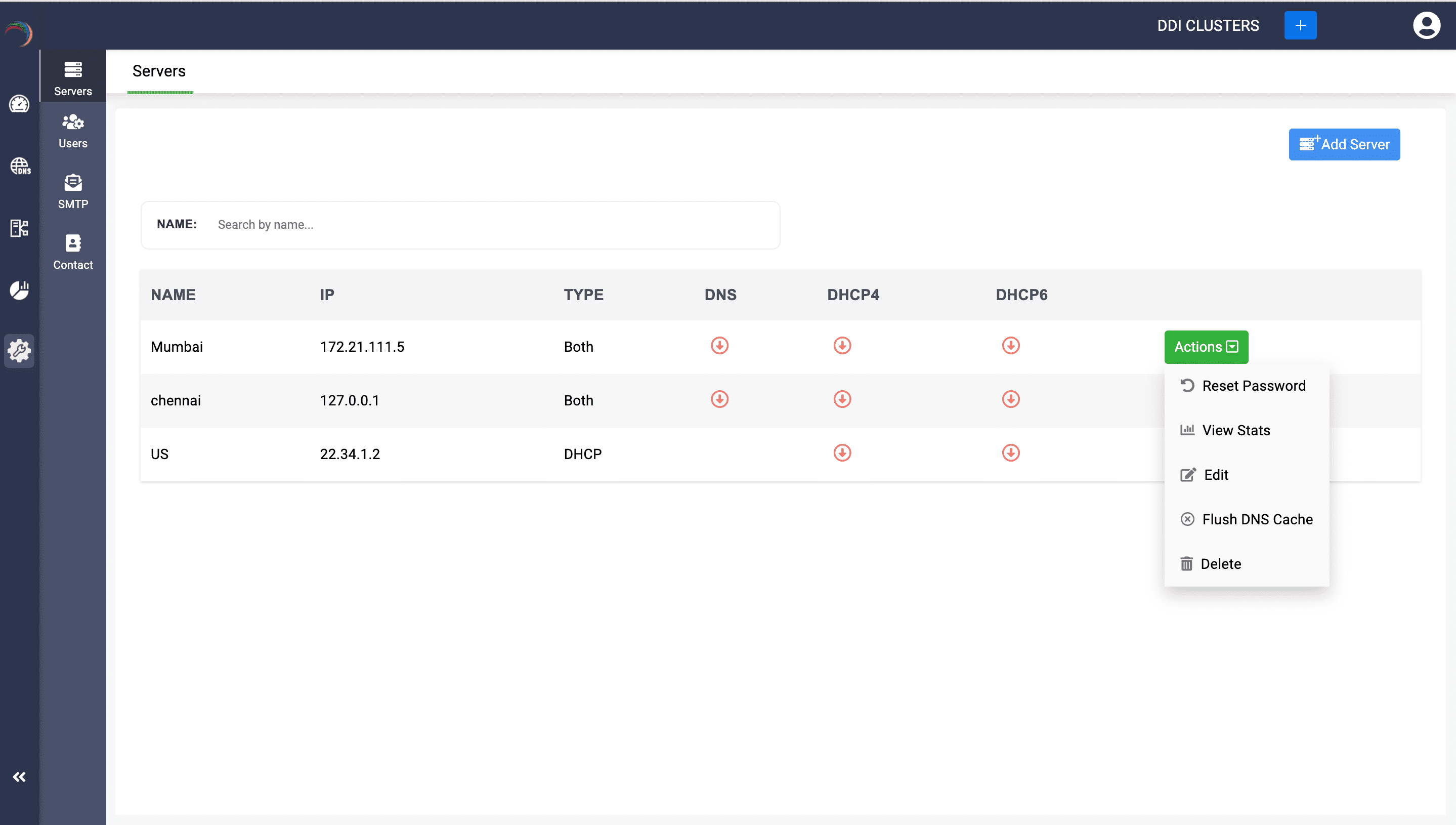

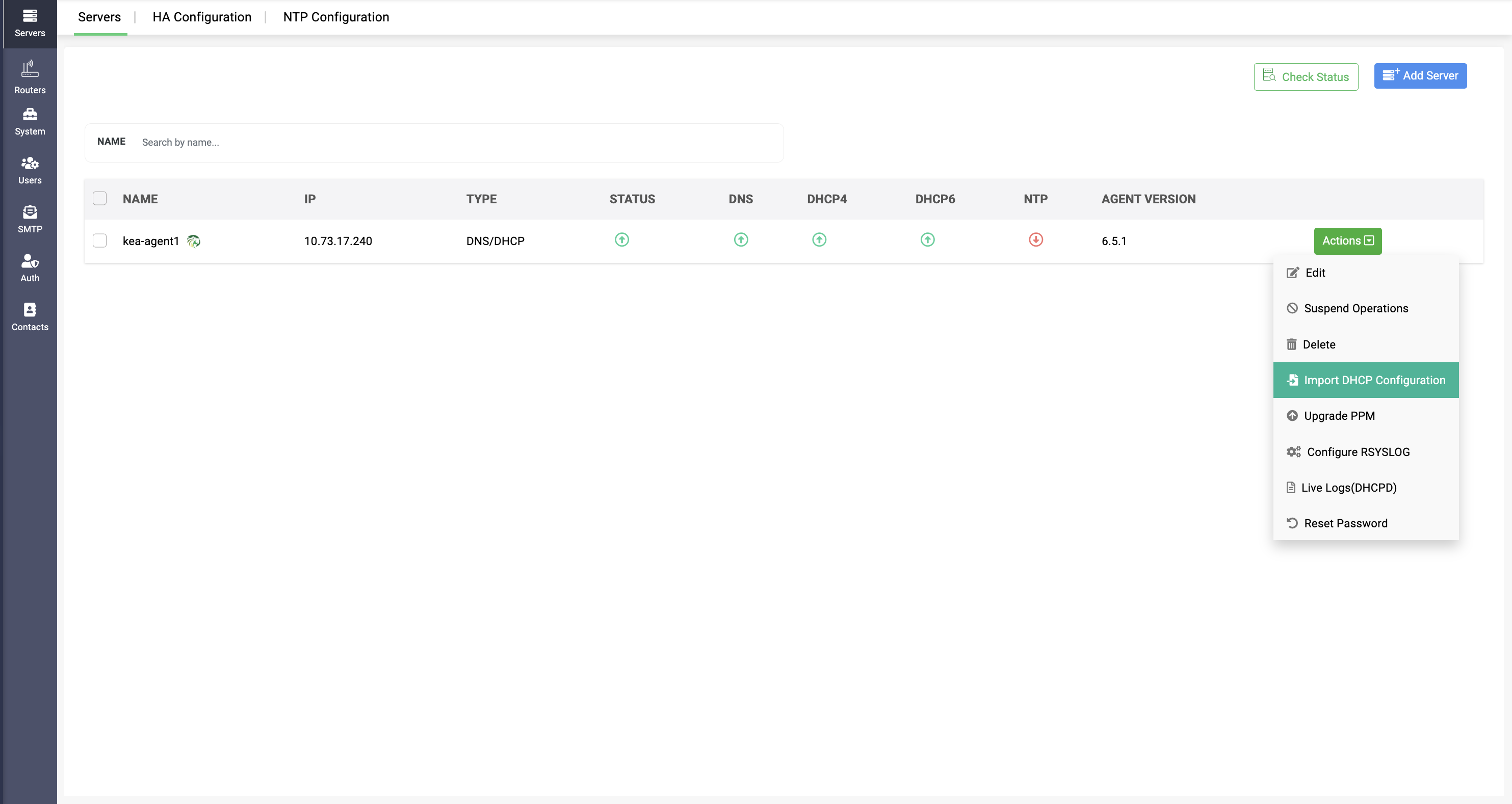

Once the servers running Linux DNS-DHCP services are onboarded, DDI Central enables you to perform the following actions:

1. Action 1 -> Flush DNS Cache: Hit the button "Flush DNS Cache" to refresh the DNS cache of the selected server to ensure that the DNS information hosted on the server is up-to-date.

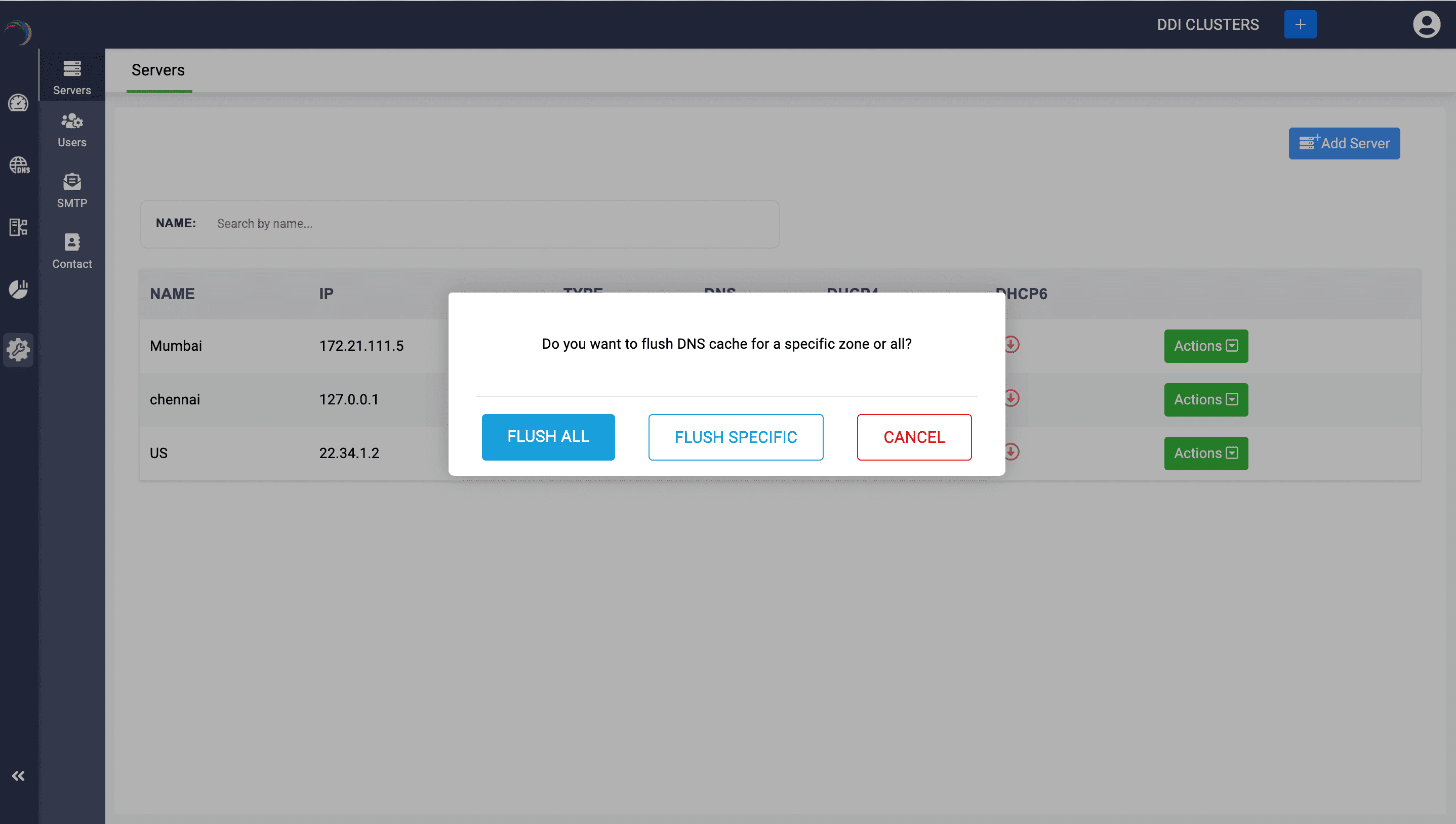

   A dialog box appears prompting you to specify the scope of the cache flush. If you want to flush the cache of all the zones on the server, click Flush All or if you just want to flush the cache of a specific zone on the server, click Flush Specific.

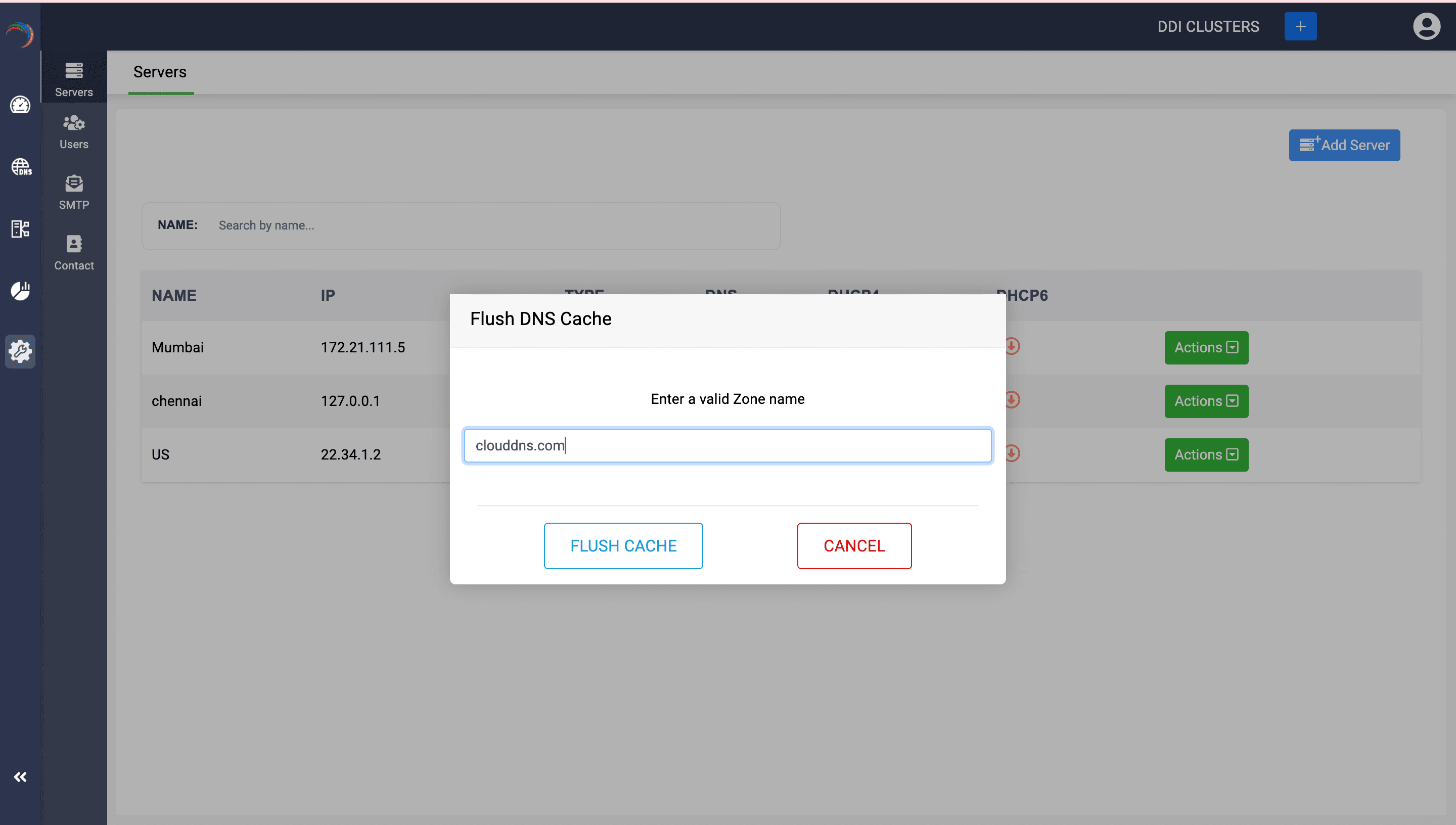

   Subsequently, specify the zone name and click Flush Cache.

   Note: Flush DNS Cache action is crucial for maintaining the reliability and speed of DNS resolutions of within your network.



2. Action 2 -> Reset Password: Enables network admins to improve security with enhanced controls over DDI Central's Node Agent authentication. This option allows admins to reset passwords to ensure secure transactions between DDI Central's Node Agent and DDI Central's App Console.

   Note:

   The Node Agent, installed on all DNS and DHCP servers in your network, securely communicates with the DDI Central App Console using encrypted authentication. Previously, in DDI Central password resets were automatic and did not require admin involvement. Now, admins can reset the Node Agent password to enhance security, especially if they suspect it has been intercepted or compromised.

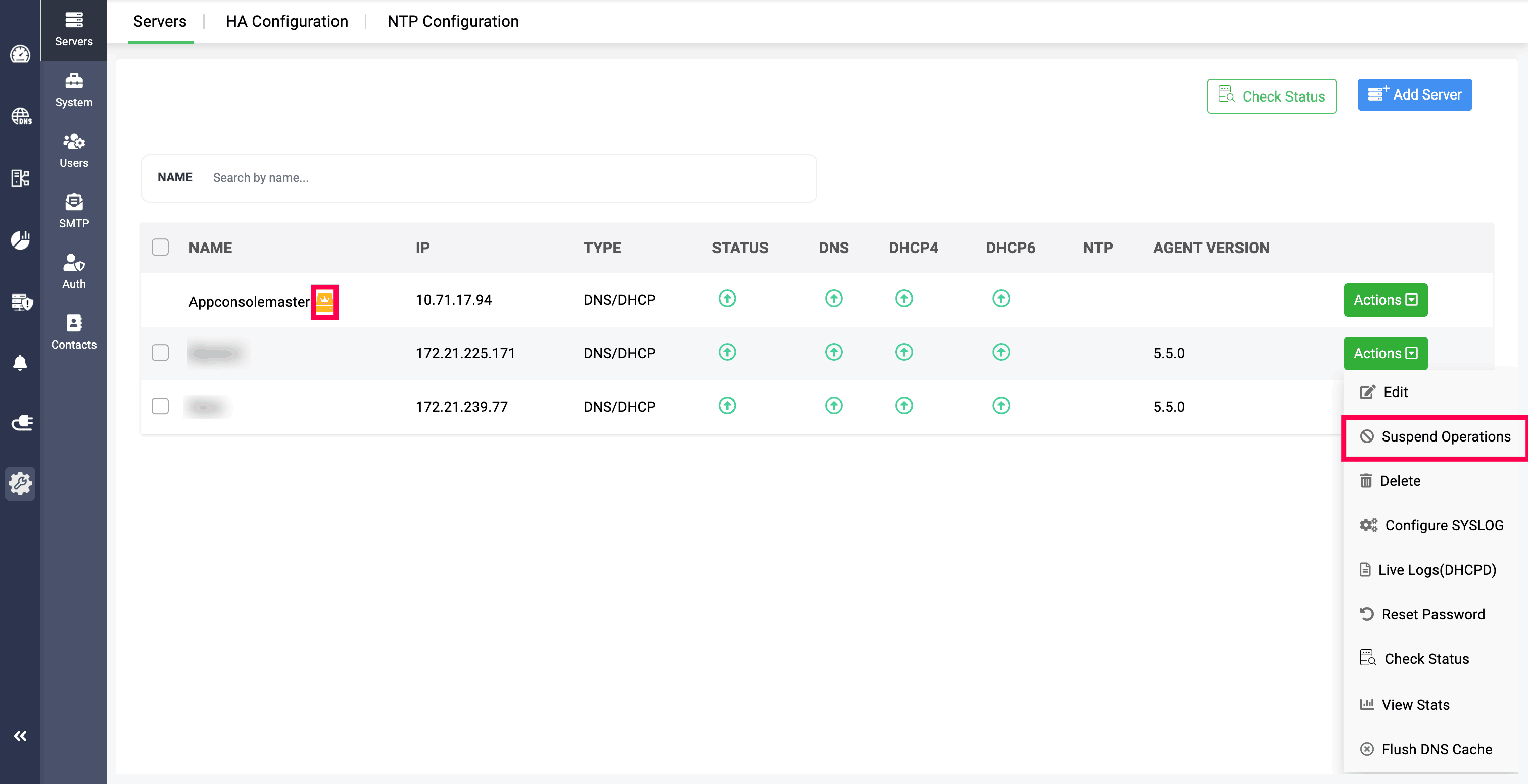

3. Action 3 -> Suspend Operations: Both DNS and DHCP servers within a cluster can be suspended from providing further updates to the app console UI, by going to Servers>Actions, and clicking on Suspend option in the dropdown menu.



   Note: The server on which the appconsole is running can't be suspended, and that server will be marked with a yellow crown icon.



   After selecting yes to suspend the selected server, the server will be marked Unmanaged in the status section.

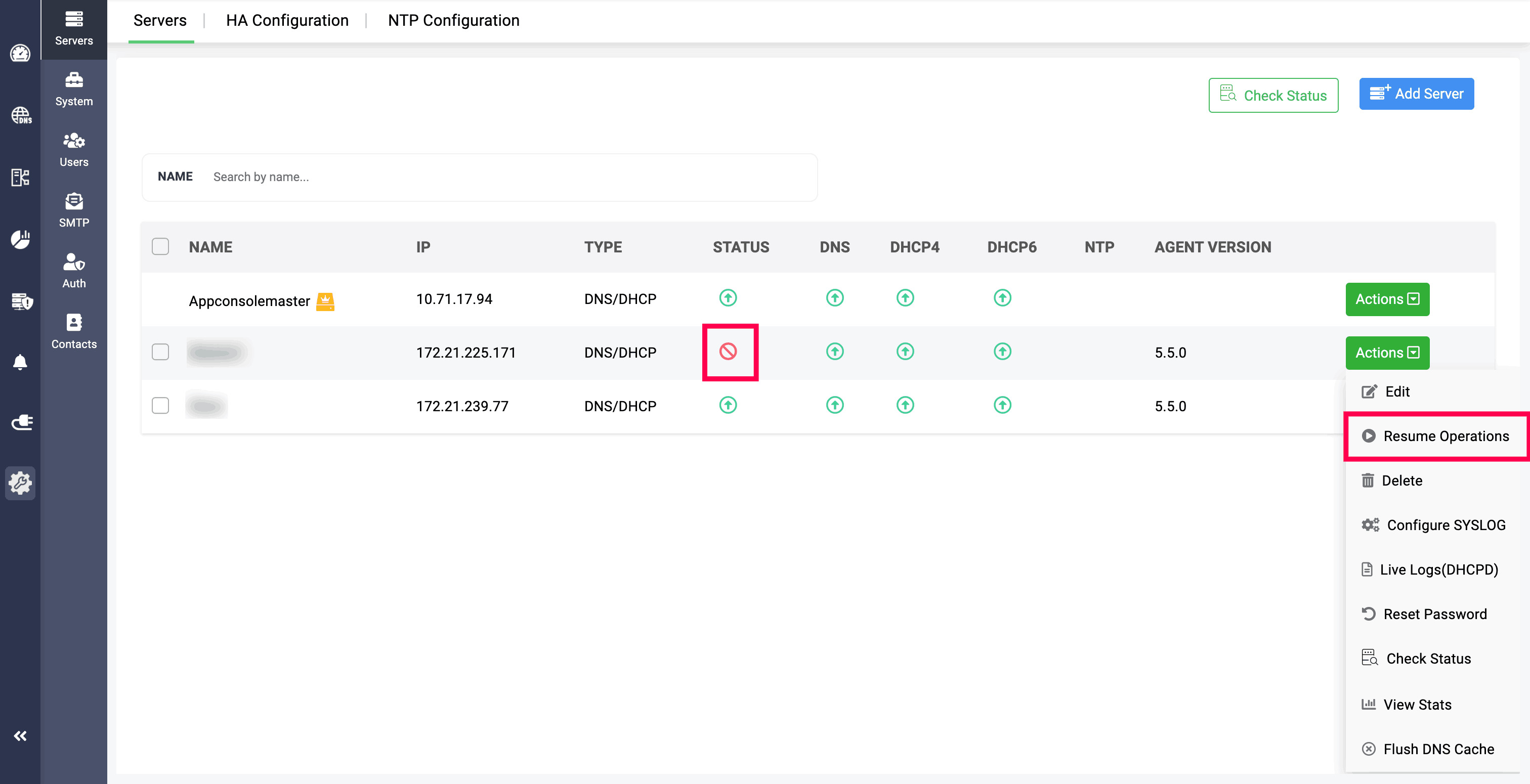

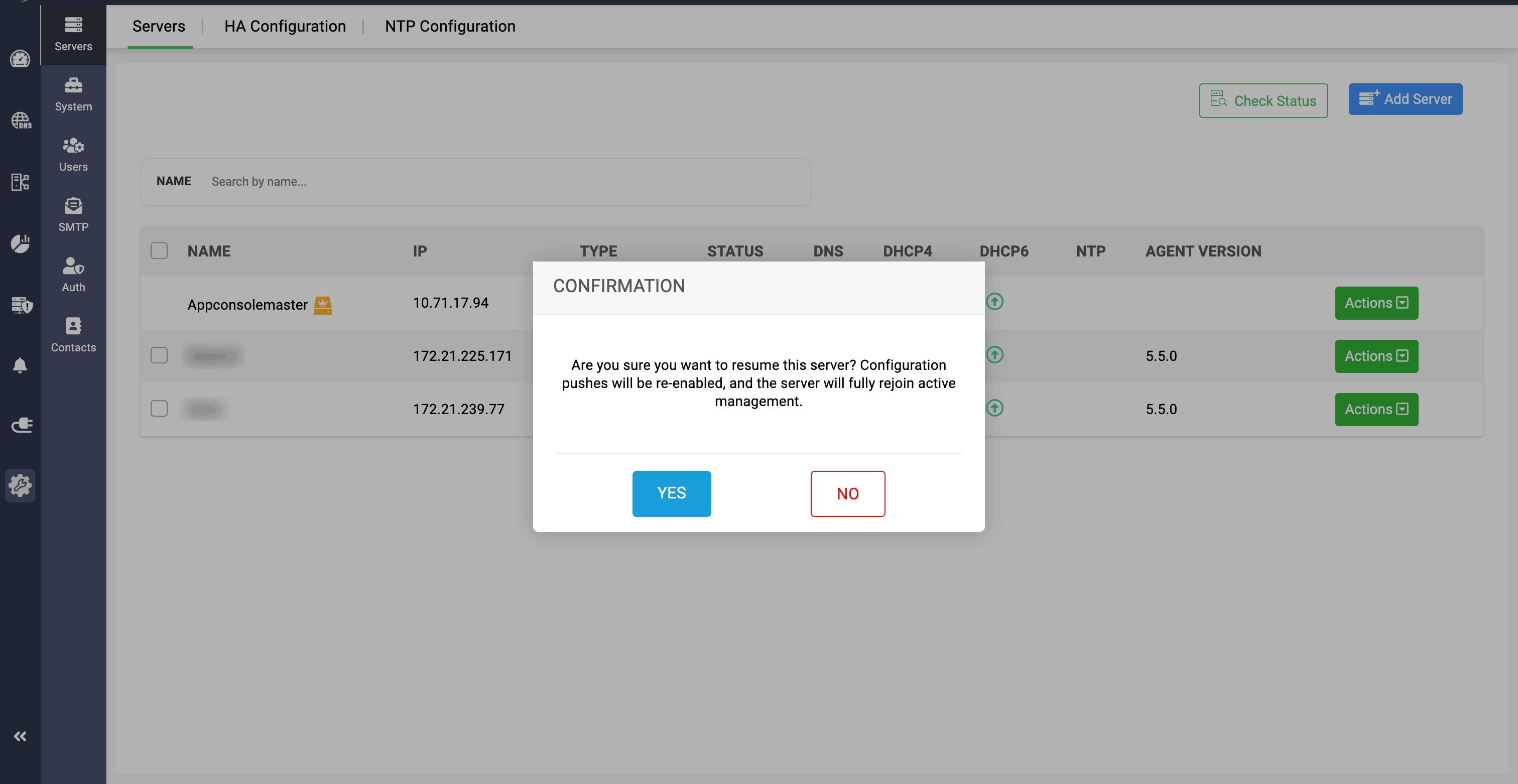

   When the admin wants to change the state back to Manage, the suspended servers can also be resumed to reflect their updates in app console UI, by clicking on the Resume Operations option.





4. Action 4 -> Upgrade PPM:

   (UI-based PPM upgrade for Linux Discovery Node Agent): The Upgrade PPM option is available starting DDI Central v6.1. When you click Upgrade PPM, DDI Central triggers an in-app upgrade of the onboarded Linux Discovery Node Agent to the latest supported build—so you don’t have to update the agent manually on the Linux server.



   Prerequisites:

   • Management UI Console must be v6.1 (upgrade the console first to use this action).
   • Discovery Node Agent build must be v5.6.0 or later.
   • If you are on older versions, follow the sequential upgrade path using the Service Pack table after checking your current build number.

5. Action 5 -> Agent Version:You can now view the node agent version installed on each server under the Agent Version column in the table.



6. Action 6 -> Check Status: DDI Central enables users to update the status of their servers and associated services by clicking the Check Status button after selecting the desired server. This action refreshes and displays the current status of both the server and the services it hosts. Users can select one or multiple servers to update their status simultaneously.

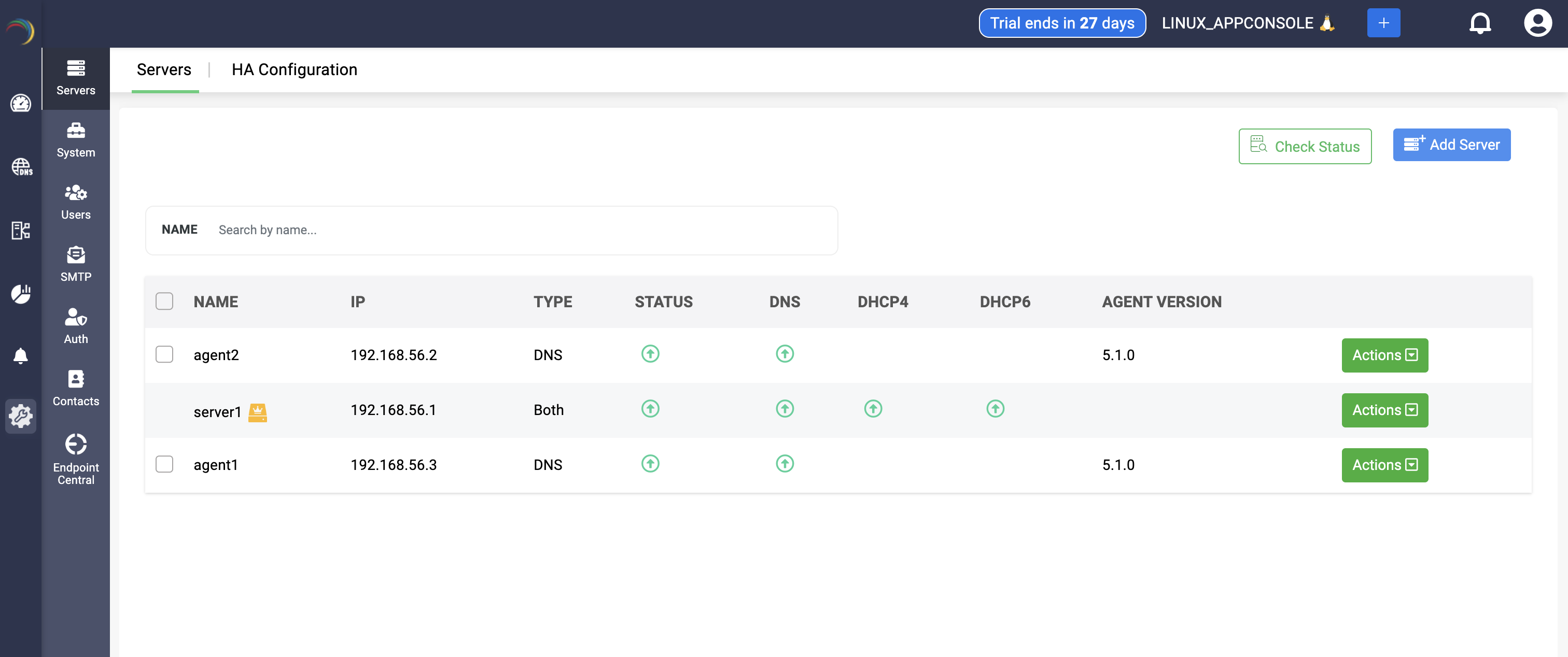

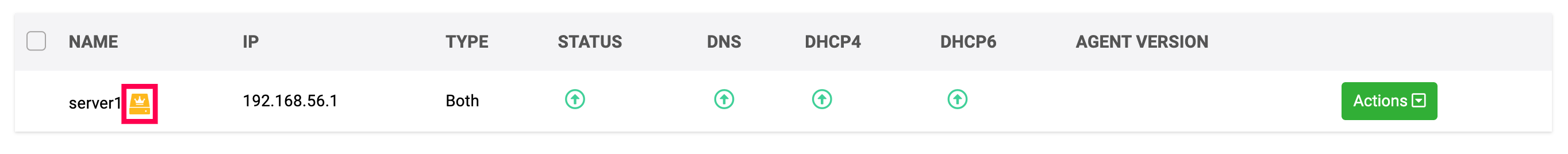

7. Action 7 -> Identifying the Main App Console Server

   Note: The server running the DDI Central application aka the Management UI Console.bin, identified by a yellow icon, cannot be selected when using the Check Status option.
