How to check the Office 365 archive mailbox size

When a mailbox has in-place archive enabled, it helps users by moving older, less frequently accessed mail to this secondary, dedicated mailbox to free up space in their primary mailbox. This action ensures the users' day-to-day email experience remains fast and functional and won't exceed their primary mailbox storage quota.

As these archives grow, they consume valuable storage. Over-quota archives can prevent items from being moved or retained, potentially impacting compliance and eDiscovery efforts. Manually checking the size of each archive mailbox is incredibly inefficient, particularly in large organizations. This article reveals how you can check the Office 365 (now Microsoft 365) archive mailbox size across your environment using Exchange Online admin center, PowerShell, and ManageEngine M365 Manager Plus, a dedicated Microsoft 365 administration tool.

Method 1: How to check the archive mailbox size using the Exchange admin center

Prerequisites

You need to be assigned the Exchange Administrator role for the account you use to sign in to the Exchange admin center (EAC).

Steps

1. Log in to the Exchange admin center and navigate to Recipients > Mailboxes.
2. Click the filter button and select Archived from the drop-down menu. You can now view a list of all archive enabled mailboxes.
3. Select a mailbox, navigate to the Others tab and click Manage mailbox archive.

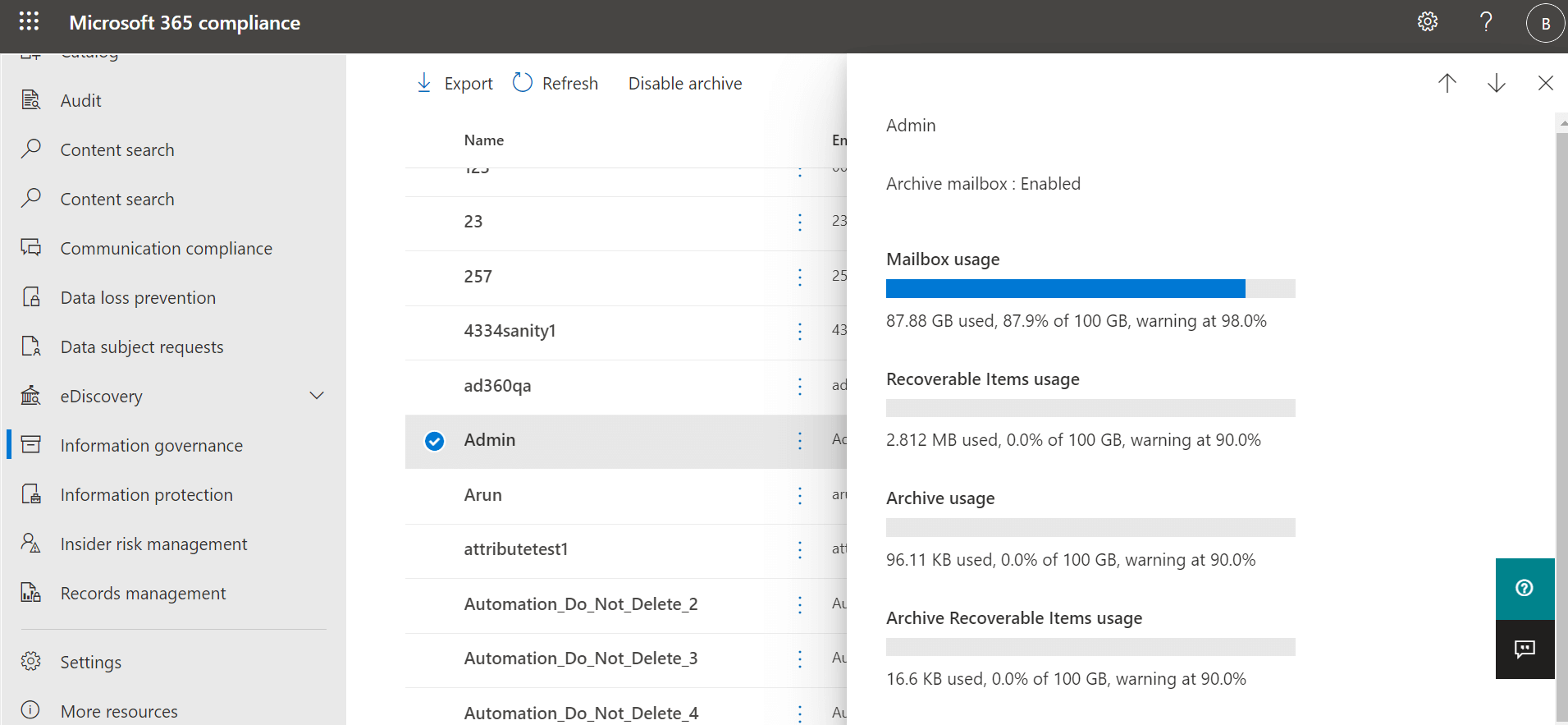

4. You can view the Archive usage for that specific mailbox, which shows the space used, the maximum archive size, and the warning quota.

Limitation to consider

The EAC only allows you to check the archive size of one mailbox at a time. You can export a list of all archive-enabled mailboxes, but there is no built-in report in the EAC to view or export a list of all archive mailbox sizes at once.

You will have to use Exchange Online PowerShell or a third-party Microsoft 365 administration tool like M365 Manager Plus to export the list of all Microsoft 365 archive mailbox sizes.

Method 2: How to get an archive mailbox size report using Exchange Online PowerShell (Get-EXOMailboxStatistics)

Prerequisites

Before using Exchange Online PowerShell, please verify that:

1. The Exchange Administrator role is applied to the account you use to sign in to Exchange Online PowerShell.
2. You are connected to the Exchange Online PowerShell module.
   1. To check if the Exchange Online PowerShell module is installed, use this script.
      Copy

                                              Get-Module -ListAvailable ExchangeOnlineManagement


   2. If it does not return a value, you will have to install the module. To install the Exchange Online PowerShell module, execute this script.
      Copy

                                              Install-Module ExchangeOnlineManagement -Scope CurrentUser


   3. To connect to Exchange Online PowerShell, run this script.
      Copy

                                              Connect-ExchangeOnline


Using Get-MailboxStatistics to obtain the Microsoft 365 archive mailbox size

The Get-MailboxStatistics cmdlet can be used in combination with the Get-Mailbox cmdlet to retrieve the size and item count for all archive mailboxes.

Use this syntax to retrieve a list of all active archive mailboxes and their sizes:

Get-Mailbox -ResultSize Unlimited -Archive |
Get-MailboxStatistics |
Select-Object DisplayName, ItemCount, TotalItemSize |
Export-Csv -Path "C:\Reports\ArchiveMailboxSizes-$(Get-Date -Format yyyyMMdd HHmmss).csv" -NoTypeInformation -Encoding UTF8


Using the new Get-EXOMailbox cmdlet per Microsoft's recommendation

Microsoft recommends using Get-EXOMailbox instead of Get-Mailbox in Exchange Online. The EXO cmdlets are optimized for the cloud service, provide better throttling management, and will continue to be updated, whereas the older cmdlets are maintained mainly for backward compatibility.

Use this syntax to retrieve the archive mailbox sizes in your Exchange Online environment using the modern cmdlet:

Get-EXOMailbox -ResultSize Unlimited -Properties ArchiveStatus |
Where-Object {$_.ArchiveStatus -eq "Active"} |
Get-EXOMailboxStatistics -Archive |
Select-Object DisplayName, ItemCount, TotalItemSize |
Export-Csv -Path "C:\Reports\ArchiveMailboxSizes-$(Get-Date -Format yyyyMMdd-HHmmss).csv" -NoTypeInformation -Encoding UTF8


Supported parameters

The following table contains some parameters that can be used with these cmdlets to provide details on your archive mailboxes.

An example use case: Find Microsoft 365 archive mailboxes close to being full

Scenario: An IT administrator needs to find all archive mailboxes that are larger than 80GB to see who might be approaching the standard 100GB quota.

This is the cmdlet you should run to generate this report:

Get-EXOMailbox -ResultSize Unlimited -Properties ArchiveStatus |
Where-Object {$_.ArchiveStatus -eq "Active"} |
Get-EXOMailboxStatistics -Archive |
Where-Object { $_.TotalItemSize -ge "80GB" } |
Select-Object DisplayName, ItemCount, TotalItemSize |
Export-Csv -Path "C:\Reports\LargeArchiveMailboxes.csv" -NoTypeInformation -Encoding UTF8


Method 3: How to get the Microsoft 365 archive mailbox size report in M365 Manager Plus

Steps

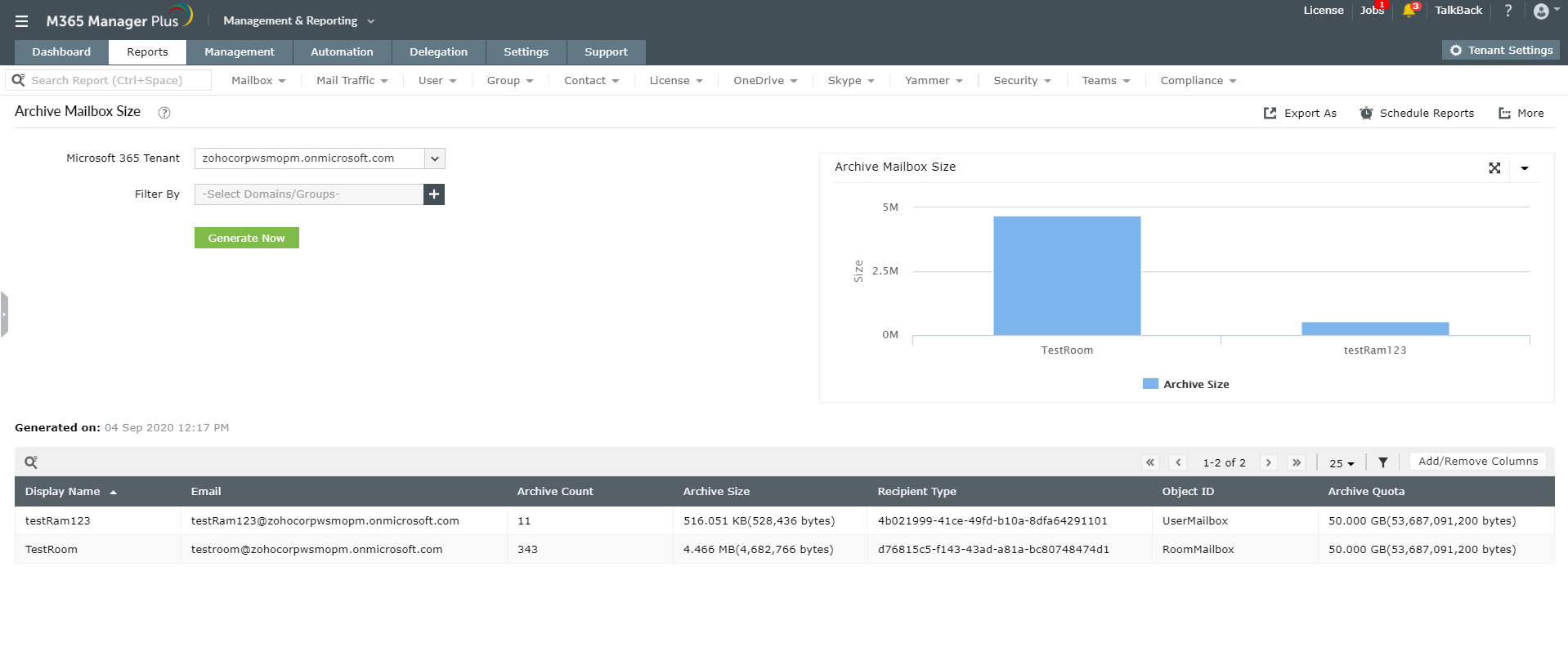

1. Log in to M365 Manager Plus and click the Reports tab.
2. Navigate to Exchange Online > Mailbox Reports and select the Archive Mailbox Sizes report.

Note: You can click Export As and select your desired file format (CSV, XLSX, PDF, or HTML) to export the list of Microsoft 365 archive mailbox sizes.

Track Microsoft 365 mailbox archive size and more of Exchange Online

The mailbox management capabilities in M365 Manager Plus help you view, monitor, and control archive mailboxes across your Microsoft 365 environment. This solution simplifies storage audits, highlights large mailboxes, and provides proactive alerts.

Important tips

Frequently asked questions

Get-EXOMailbox -ResultSize Unlimited -Properties ArchiveStatus |
Where-Object {$_.ArchiveStatus -eq "Active"} |
Get-EXOMailboxStatistics -Archive |
Select-Object DisplayName, ItemCount, TotalItemSize |
Export-Csv -Path "C:\Reports\ArchiveMailboxSizes-$(Get-Date -Format yyyyMMdd-HHmmss).csv" -NoTypeInformation -Encoding UTF8
