The msDS-SupportedEncryptionTypes attribute is a writable bitmask field on user, computer, and trust objects in Active Directory (AD) that tells the Kerberos Key Distribution Center (KDC) which encryption algorithms it may use when issuing service tickets for that account. Each bit in the integer value corresponds to a specific encryption type, from the deprecated DES family through RC4 and the current AES standards.
This article covers what msDS-SupportedEncryptionTypes is, how its bitmask values work, and how to manage it using three approaches: Active Directory Users and Computers (ADUC), PowerShell, and ManageEngine ADManager Plus.
| LDAP display name | msDS-SupportedEncryptionTypes |
| CN | ms-DS-Supported-Encryption-Types |
| Syntax | Enumeration (32-bit unsigned integer bitmask, attributeSyntax: 2.5.5.9, omSyntax: 2) |
| OM-Syntax | 2 |
| Attribute ID (OID) | 1.2.840.113556.1.4.1963 |
| System ID GUID | 20119867-1d04-4ab7-9371-cfc3d5df0afd |
| Single- or multi-valued | Single-valued |
| Indexed | No |
| In Global Catalog | No |
| Replicated | Yes. Within the domain. |
| System-Only (writable) | False. Writable by administrators and by the computer account itself. |
| Visible in ADUC UI | No. Requires the Attribute Editor tab (Advanced Features enabled). |
| Applies to | User, Trusted-Domain classes (computer accounts via Security-Principal) |
| First implemented | Windows Server 2008 (schema version 44) |
| Source schema | Microsoft core AD schema |
| Microsoft reference | Win32 ADSchema · MS-ADA2 · MS-KILE bit flags |
Note: When msDS-SupportedEncryptionTypes is unset (null) or set to 0, the KDC falls back to the domain-wide default. Before the November 2022 security update (CVE-2022-37966), that default was RC4. After the update, the default on a patched DC is an RC4 service ticket with AES256 session keys, controlled by the DefaultDomainSupportedEncTypes registry value on each DC. Setting the attribute explicitly on each account removes the ambiguity entirely.
The attribute value is a sum of one or more of the following flags:
| Hex | Decimal | Encryption type |
|---|---|---|
| 0x01 | 1 | DES_CBC_CRC |
| 0x02 | 2 | DES_CBC_MD5 |
| 0x04 | 4 | RC4_HMAC_MD5 |
| 0x08 | 8 | AES128_CTS_HMAC_SHA1_96 |
| 0x10 | 16 | AES256_CTS_HMAC_SHA1_96 |
| 0x20 | 32 | AES256_CTS_HMAC_SHA1_96_SK (enforce AES session keys) |
Common combined values administrators set in practice:
| Hex | Decimal | Encryption type |
|---|---|---|
| 0x00 | 0 | Unset—KDC falls back to domain default (see Note below) |
| 0x08 | 8 | AES128 only |
| 0x10 | 16 | AES256 only |
| 0x18 | 24 | AES128 + AES256 (recommended hardened baseline) |
| 0x1C | 28 | RC4 + AES128 + AES256 (common transitional value) |
| 0x1F | 31 | DES + RC4 + AES128 + AES256 (legacy; not recommended) |
| 0x38 | 56 | AES128 + AES256 + AES256-SK (enforce AES session keys; post-Nov 2022 hardening) |
msDS-SupportedEncryptionTypes was introduced in Windows Server 2008 alongside native AES support in the Kerberos implementation. Before 2008, AD had no per-account mechanism to advertise encryption capabilities. The KDC inferred supported types from the domain functional level and the account's password-key material. The attribute gave administrators an explicit, per-account control plane for negotiating encryption without relying on domain-wide policy.
The KDC consults msDS-SupportedEncryptionTypes specifically when issuing a service ticket (TGS-REQ). It selects the strongest encryption type that appears in both the client's requested types and the target account's attribute. If the intersection is empty, the KDC returns KDC_ERR_ETYPE_NOTSUPP and the client cannot authenticate to that service. The attribute has no effect on TGT encryption, which is determined by the KRBTGT account's key material and the domain functional level.
Common reasons administrators read or set this attribute:
Note: Setting msDS-SupportedEncryptionTypes on a user account without an SPN has no effect on Kerberos ticket encryption. The KDC only reads this attribute on the target of a service ticket request (the account that owns the SPN). Non-SPN user accounts are never the target of a TGS-REQ, so their attribute value is never consulted. If you find non-SPN accounts with this attribute set, it was likely set by a bulk script that did not filter by SPN and is safe to clear.
msDS-SupportedEncryptionTypes is not exposed in the standard user or computer properties tabs. You read and set it through the Attribute Editor, which requires Advanced Features to be enabled. The integer value you enter must be the decimal sum of the bit flags you want to enable.
Note: ADUC accepts the raw decimal integer. You must calculate the sum of the bit flags you want before entering the value. Use the bit flag table above as a reference. Entering an invalid value (for example, a value with unsupported bits set) will be silently stored but may be ignored by the KDC.
PowerShell provides two approaches: the -KerberosEncryptionType parameter on Set-ADUser and Set-ADComputer, which accepts human-readable type names and handles the bitmask calculation automatically, and direct attribute manipulation via -Replace with an integer value for when you need precise bitmask control.
Get-ADUser -Identity svc-webapp -Properties 'msDS-SupportedEncryptionTypes' |
Select-Object SamAccountName, 'msDS-SupportedEncryptionTypes'
Returns the current bitmask value for the specified user account. A null or missing value means the attribute is unset (effectively 0).
Set-ADUser -Identity svc-webapp -KerberosEncryptionType AES128, AES256
Sets msDS-SupportedEncryptionTypes to 24 (0x18) on the user account, enabling AES128 and AES256 and disabling RC4 and DES. Use this for service accounts with SPNs in modern environments.
Set-ADComputer -Identity WEB01 -KerberosEncryptionType AES128, AES256
Sets the encryption type bitmask to 24 on the specified computer account. Computer accounts can also update this attribute themselves when processing Group Policy.
Set-ADUser -Identity svc-legacy -KerberosEncryptionType RC4, AES128, AES256
Sets msDS-SupportedEncryptionTypes to 28 (0x1C). Use this temporarily for accounts that serve clients incapable of AES, while you work toward full AES migration.
Set-ADUser -Identity svc-webapp -KerberosEncryptionType None
Clears msDS-SupportedEncryptionTypes to 0, reverting the account to the domain default behavior. After the November 2022 update the default is controlled by the DefaultDomainSupportedEncTypes registry value on each DC.
Set-ADUser -Identity svc-webapp -Replace @{'msDS-SupportedEncryptionTypes' = 56}
Sets the attribute to 56 (0x38 = AES128 + AES256 + AES256-SK) using the raw LDAP attribute name and an integer value. Use -Replace for values not expressible via -KerberosEncryptionType, such as enabling the AES session key enforcement bit (0x20).
Get-ADUser -Filter 'ServicePrincipalName -like "*"' `
-Properties msDS-SupportedEncryptionTypes, ServicePrincipalName |
Where-Object { $_.msDS-SupportedEncryptionTypes -band 4 } |
Select-Object SamAccountName, msDS-SupportedEncryptionTypes, ServicePrincipalName |
Export-Csv .\rc4-spn-accounts.csv -NoTypeInformation
Uses a bitwise AND (-band 4) to find all user accounts with SPNs where the RC4 bit (0x04) is set, and exports the results to CSV for remediation planning.
Get-ADUser -Filter 'ServicePrincipalName -like "*"' `
-Properties msDS-SupportedEncryptionTypes |
Set-ADUser -KerberosEncryptionType AES128, AES256
Sets msDS-SupportedEncryptionTypes to 24 on every user account that has at least one SPN registered. Review the account list before running in production.
Get-ADComputer -Filter * `
-SearchBase 'OU=Servers,DC=contoso,DC=com' `
-Properties msDS-SupportedEncryptionTypes |
Set-ADComputer -KerberosEncryptionType AES128, AES256
Sets AES128 + AES256 on all computer accounts in the specified OU. Computer accounts with existing custom values will have them overwritten.
Get-ADUser -Filter * -Properties msDS-SupportedEncryptionTypes, PasswordLastSet, ServicePrincipalName |
Select-Object SamAccountName, PasswordLastSet, msDS-SupportedEncryptionTypes,
@{N='HasSPN'; E={ $_.ServicePrincipalName.Count -gt 0 }} |
Export-Csv .\encryption-type-audit.csv -NoTypeInformation
Exports a per-account inventory of encryption type configuration, including whether each account has an SPN. Use this as a baseline audit before enforcing AES-only policies.

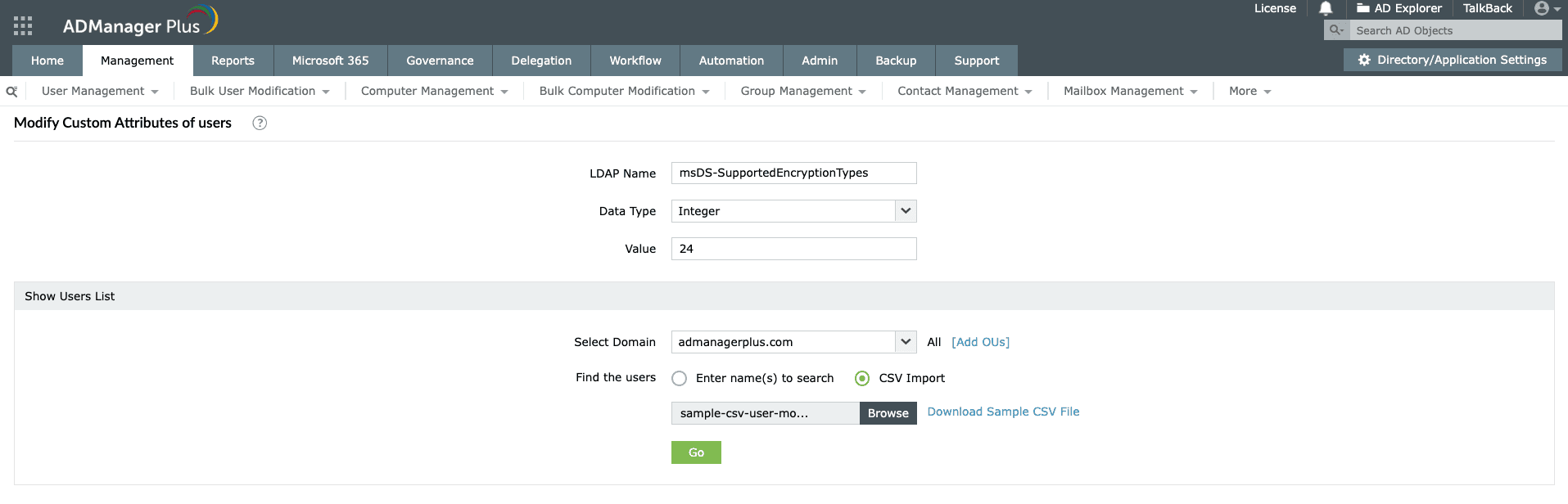

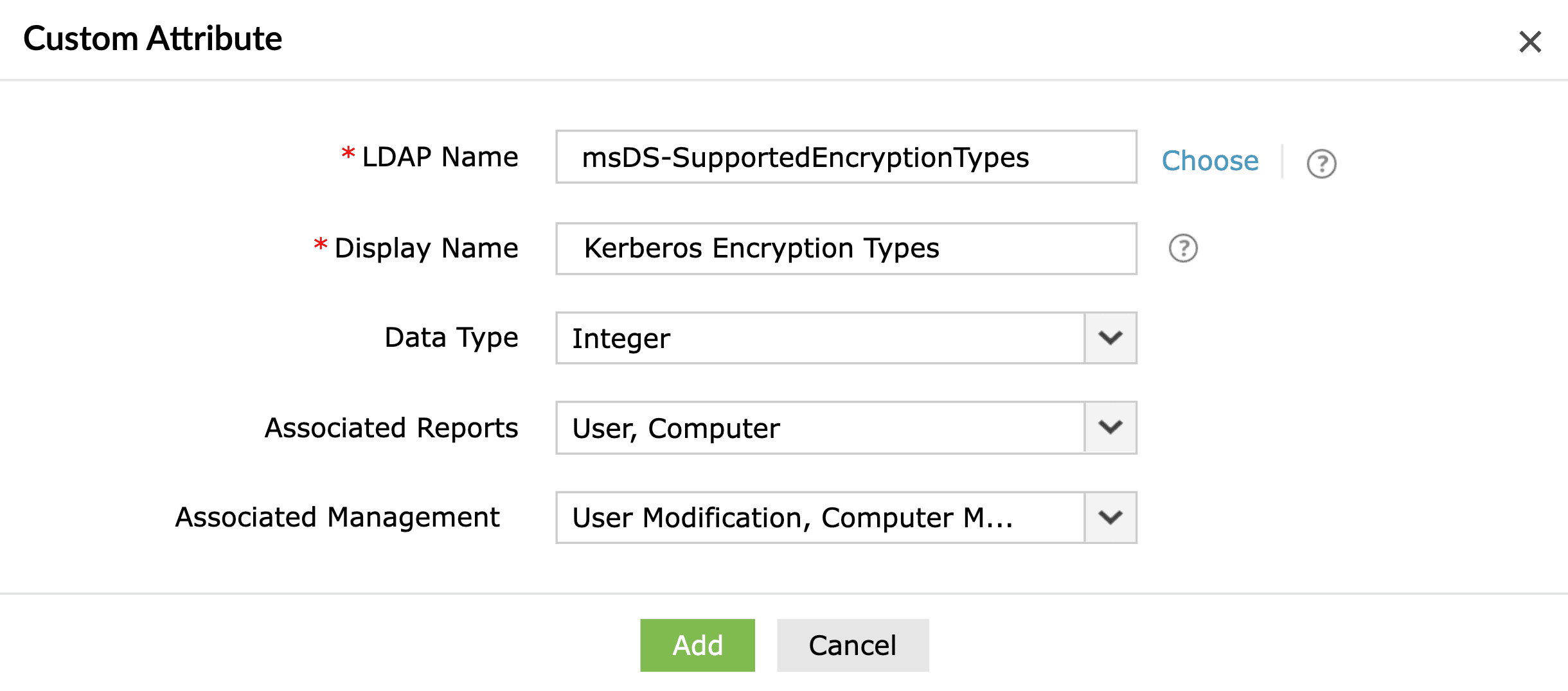

ADManager Plus surfaces msDS-SupportedEncryptionTypes through custom attribute configuration and reporting, giving you a centralized view across all accounts without running individual PowerShell queries. For service account encryption type enforcement, ADManager Plus also supports bulk modification via CSV and templates.
To allow a security team member to view and update encryption type settings for service accounts without broader AD write access, use help desk delegation:
By default, msDS-SupportedEncryptionTypes is readable by all authenticated domain users, consistent with the general AD read model. Write access requires Domain Admin rights or delegated write permission on the attribute. Computer accounts are an exception: they hold write access to their own msDS-SupportedEncryptionTypes by default, which allows them to update the attribute automatically when Group Policy is applied.
The client or the service host does not support AES. Check the operating system version on the client and the service host. Windows XP and Server 2003 do not support AES. Temporarily add RC4 back to the account's bitmask to restore connectivity, then migrate the legacy system or decommission it before removing RC4 again.
A GPO setting (Network security: Configure encryption types allowed for Kerberos) is overriding the manually set value. The computer account updates the attribute to match its GPO-configured encryption types when it processes policy. Either align the PowerShell value with the GPO or manage the attribute exclusively through the GPO to avoid the conflict.
Check two things: first, whether the account's password was set before 2008. Passwords set before Windows Server 2008 do not have AES key material. Reset the service account's password after changing the attribute to generate AES keys. Second, check the DC patch level. On unpatched DCs the November 2022 behavior change is not present and the KDC may still issue RC4 tickets under certain conditions.
The attribute is unset on that account. A null value means the KDC will use its domain default (post-November 2022 update: an RC4 service ticket with AES256 session keys, if DefaultDomainSupportedEncTypes is not configured on the DC). Set the attribute explicitly to remove reliance on DC-level defaults.
This is by design and is not a problem. The KDC ignores msDS-SupportedEncryptionTypes on the KRBTGT account entirely. TGT encryption is determined by the KRBTGT account's key material and the domain functional level, not by this attribute. Do not attempt to set a non-zero value on KRBTGT for this purpose.
Check for accounts with the USE_DES_KEY_ONLY flag set in userAccountControl, or accounts with msDS-SupportedEncryptionTypes set to a DES-only value. DES was removed from Windows Server 2025. Run Get-ADUser -Filter 'UserAccountControl -band 2097152' to find all accounts with the DES-key-only flag, and update both userAccountControl and msDS-SupportedEncryptionTypes before promoting Server 2025 DCs.
ADManager Plus gives you centralized control over Kerberos encryption type configuration, service account reporting, and bulk remediation for RC4 deprecation, without requiring Domain Admin rights for every task. You can view, set, and audit msDS-SupportedEncryptionTypes values across your entire user and computer base from a single web-based console.
For service accounts with SPNs: 24 (0x18), which enables AES128 and AES256 and disables RC4 and DES.
For environments that need to enforce AES session keys alongside any remaining RC4 service tickets: 56 (0x38).
For user accounts without SPNs, the attribute has no effect on Kerberos and can be left unset.
No. The KDC only reads msDS-SupportedEncryptionTypes on the target account of a TGS-REQ, which is the account that owns the SPN the client is requesting a service ticket for. Accounts without SPNs are never the target of a TGS-REQ, so the attribute has no effect on their Kerberos ticket encryption.
Before the November 2022 security update, the KDC assumed RC4 for backward compatibility. After the update, the KDC uses the value of the DefaultDomainSupportedEncTypes registry key on the DC if it is set, or defaults to an RC4 service ticket with AES256 session keys if it is not. Explicitly setting the attribute on all accounts removes this dependency on DC-level defaults and patch state.
The KDC intentionally ignores this attribute on the KRBTGT account. TGT encryption is determined by the KRBTGT account's embedded key material and the domain functional level, not the attribute. This is by design and is not a misconfiguration.
No. msDS-SupportedEncryptionTypes is a single value that applies to all SPNs registered on the account. If different encryption requirements are needed for different services, those services should use separate accounts, each with its own attribute configuration.
No. This is an on-premises AD DS attribute and is not synchronized to Microsoft Entra ID by Microsoft Entra Connect. Kerberos encryption type configuration in Entra ID is managed separately through the Entra Kerberos infrastructure and Entra ID settings.
The SK suffix stands for "Session Key." Enabling this bit (value 32) instructs the KDC to issue AES256 session keys even in cases where the service ticket itself is still RC4-encrypted. This is a transitional control introduced to allow organizations to harden session key encryption without immediately eliminating all RC4 service ticket issuance. It was particularly relevant post-November 2022 update.
