    Reports for Fortinet Devices

    EventLog Analyzer supports Fortinet firewalls and provides out-of-the-box reports for the following categories of events:

    • Fortinet Events: These reports provide valuable information on all events including important events such as logons, failed logons, possible attacks, users added/deleted etc., on Fortinet devices.
    • Firewall Allowed and Denied Traffic: The reports in this category provide insights on traffic based on the source, destination, protocol and port, and traffic trends.
    • Successful and Failed Logons: These reports provide information on source, user-based, and trends reports.
    • Firewall IDS/IPS Events: The reports in this category provide insights on possible attacks, and attacks based on the source and destination IP address. They also provide reports on attack trends.
    • Firewall Security Events: These reports provide valuable information on applications, email and web filters. They also provide reports on antivirus and DLP.
    • Firewall Accounts Management: This category provides reports on administrators and users added, deleted or modified.
    • Firewall Policy Management: The reports in this category provide useful information on policies added, deleted or modified.
    • Successful and Failed VPN Logon Reports: These reports provide insights on VPN logons and logouts based on success, failure, remote devices, users and trends.
    • System Events: These reports provide valuable information on configuration changes, license expiration, power restores and failures, system shutdowns and reboots and failed commands.
    • Device Severity Reports: The reports in this category provide insights into emergency, alerts, critical, error, warning, notice, information and debug events.
    • VPN lP Assigned Reports: These reports provide information on private IP assigned, IP assigned users, remote IP and VPN IP assigned.

    Managing Fortinet reports dashboard

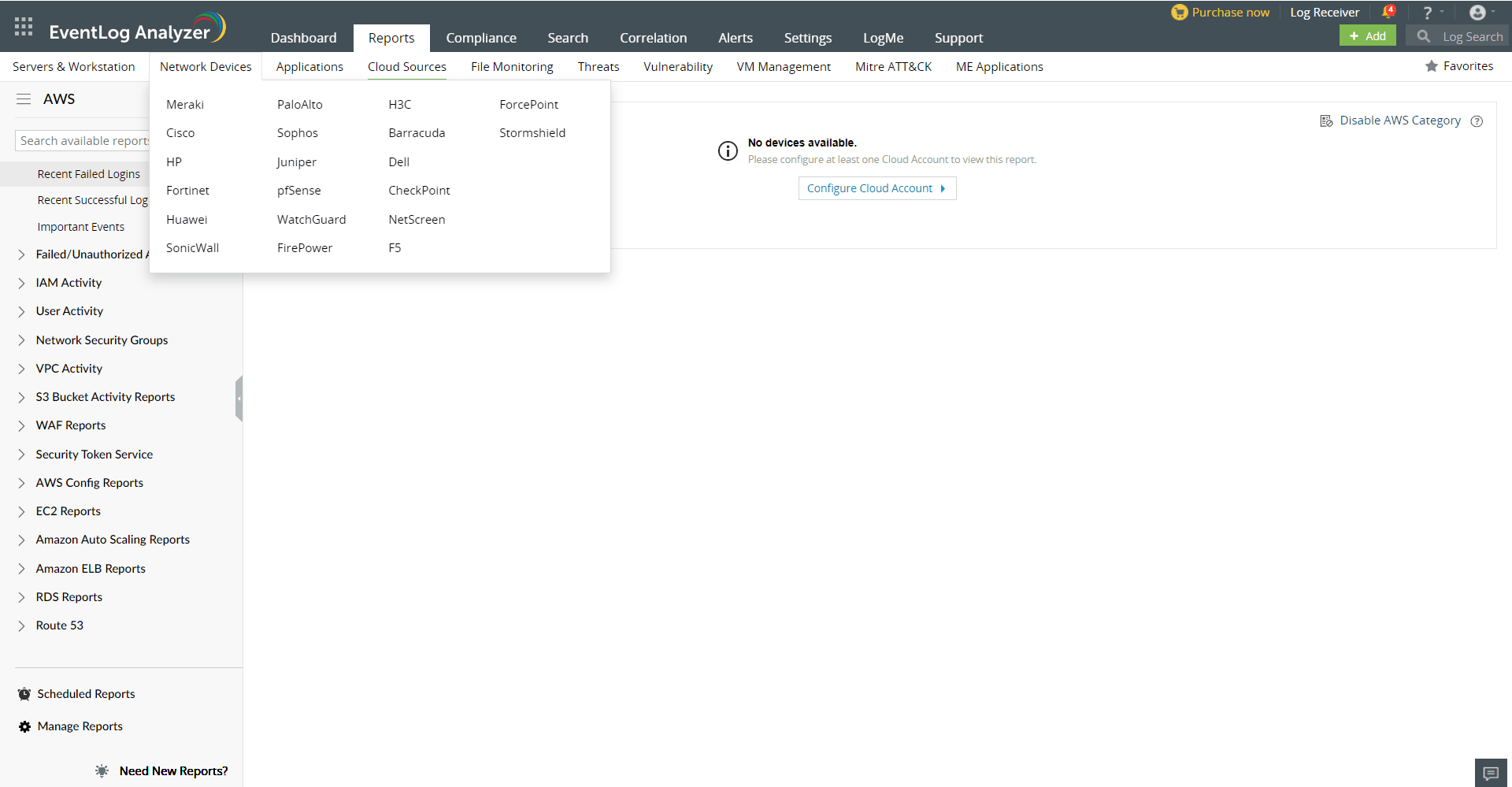

    • Go to the Reports section and click on the Devices option in the drop down menu. Select Fortinet from the displayed list of vendors.
    • Reports for Fortinet Devices

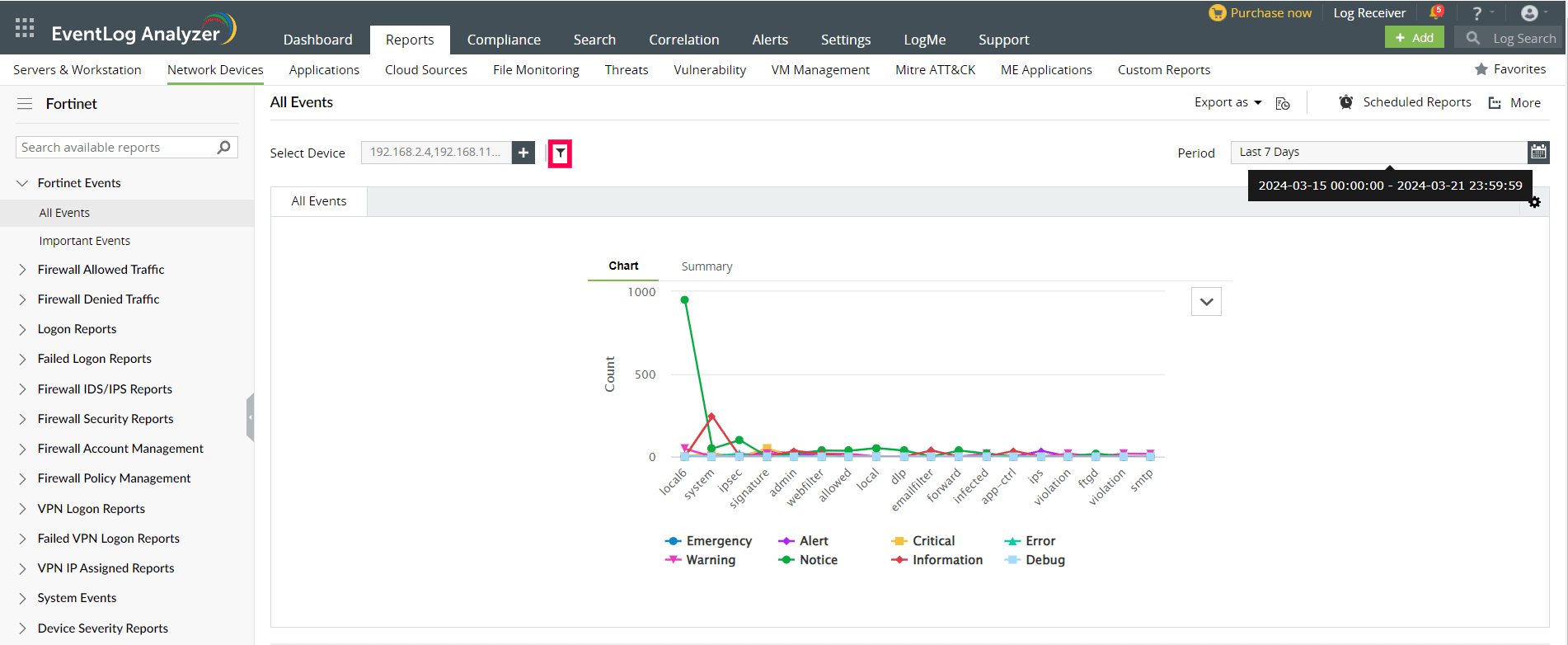

    • Click Select Device and choose the Fortinet devices for which you need the reports. Click Add.
    • Reports for Fortinet Devices

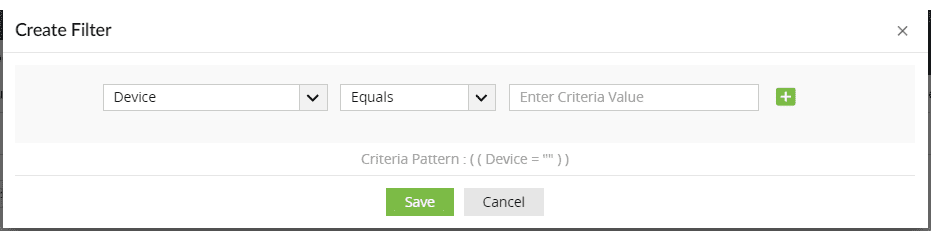

    • You can set filter criteria for events based on device, source, message and severity. Use logical operators as required.
    • Reports for Fortinet Devices

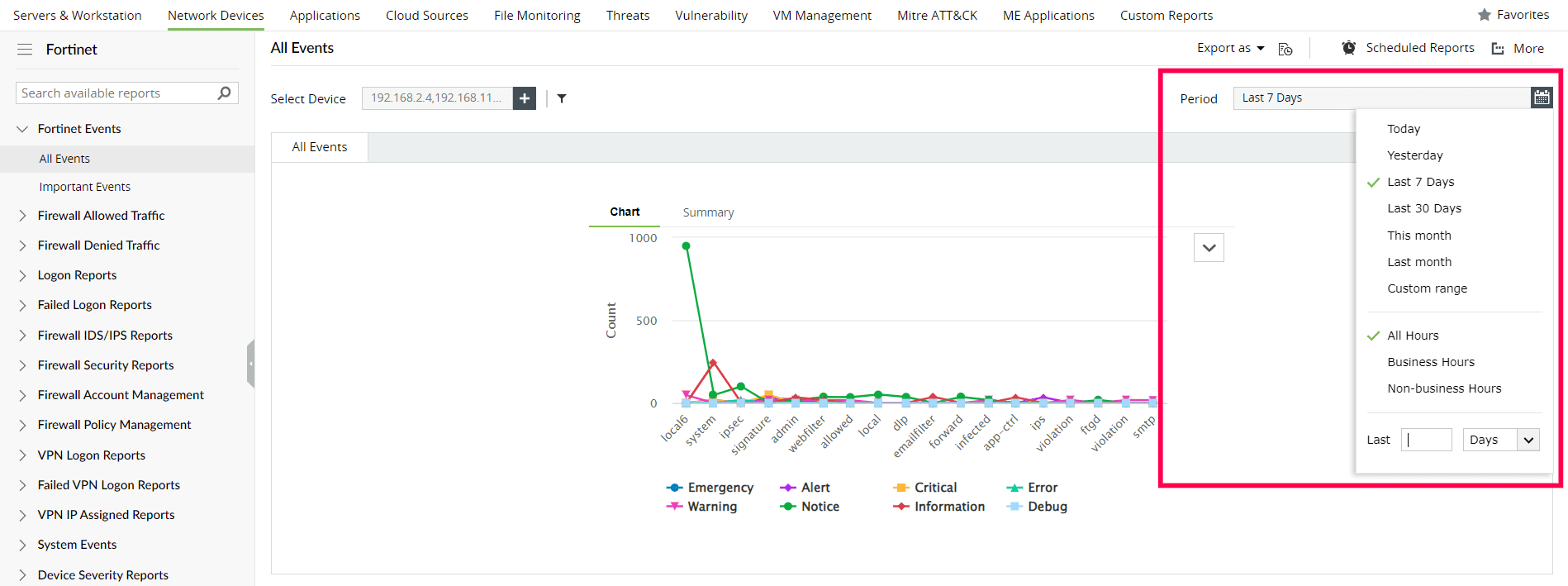

    • Select the Period for which you want the data to be displayed and click Apply.
    • Reports for Fortinet Devices

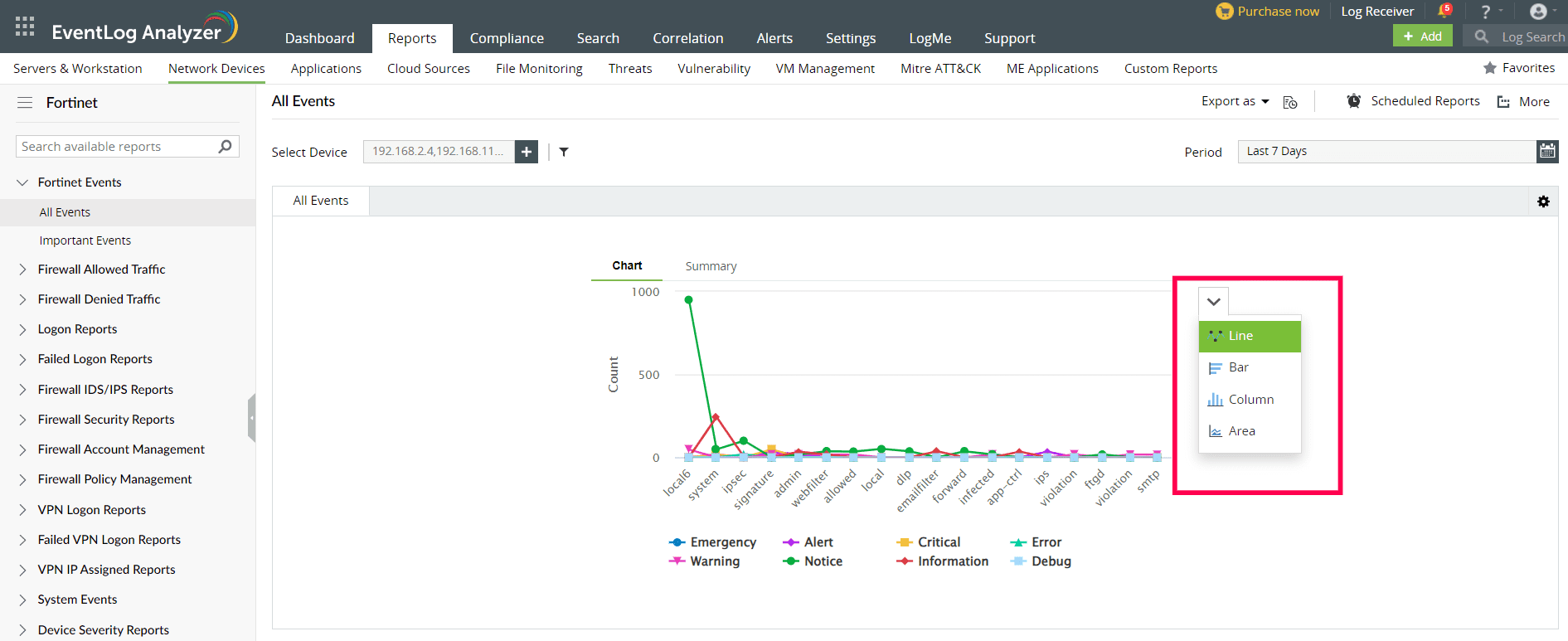

    • The graphs can be viewed in different formats.
    • Reports for Fortinet Devices

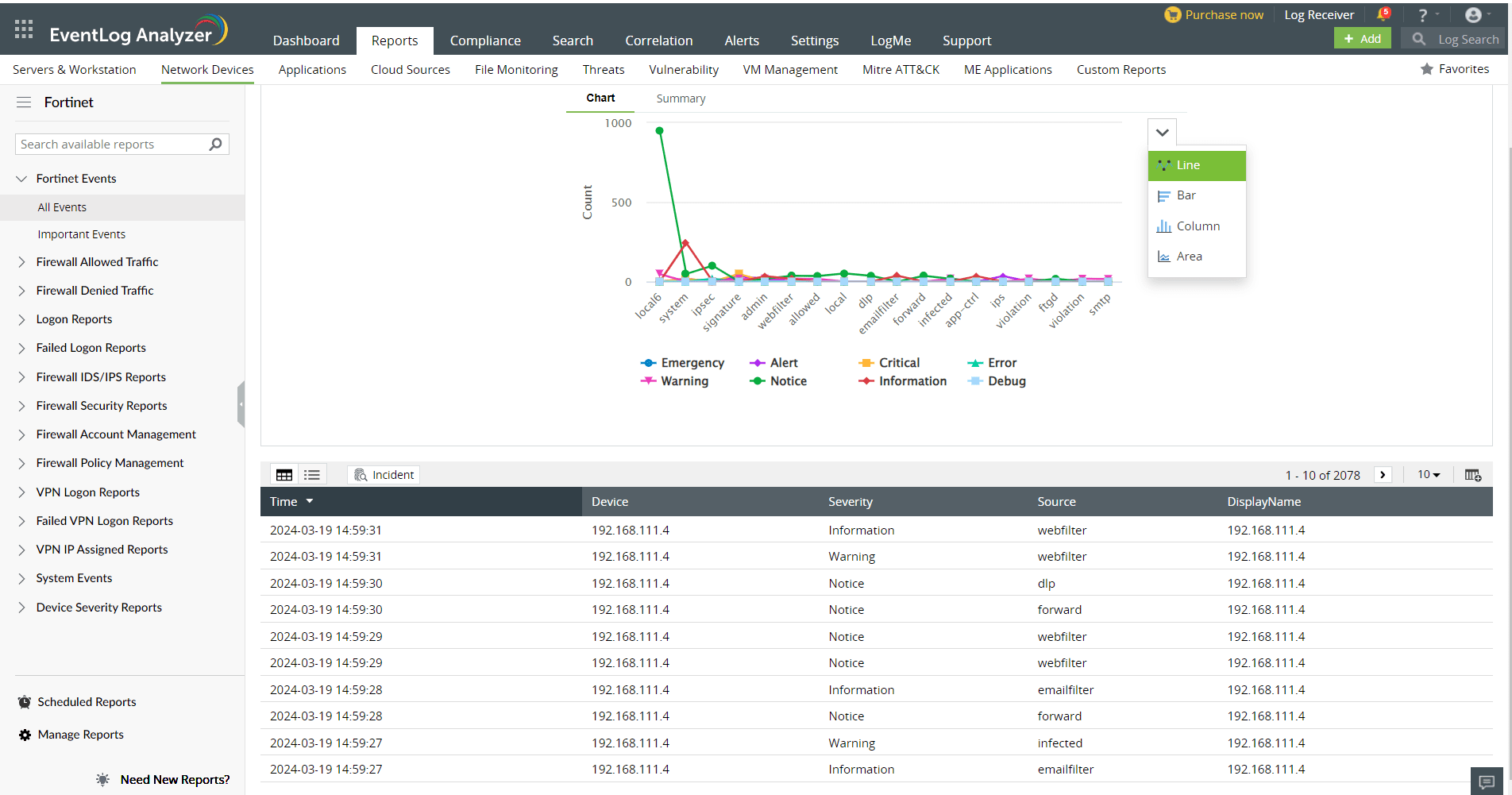

    • The All Events panel lists all the available out-of-the-box reports for Fortinet. Select the report you want to view.
    • Reports for Fortinet Devices

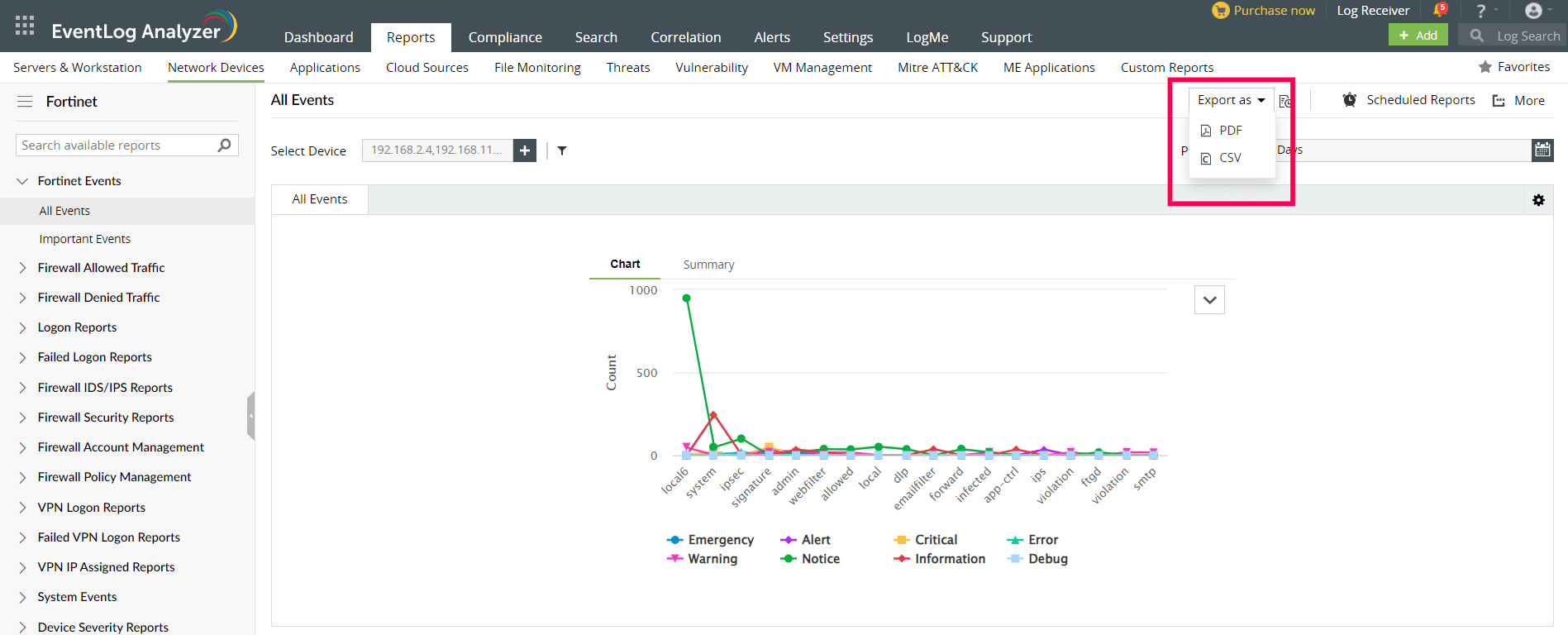

    • To export the report being viewed, click Export as and choose the format. Once done, you can download the report.
    • Reports for Fortinet Devices
    • Click Schedule to have this report exported and emailed periodically.
    • Reports for Fortinet Devices

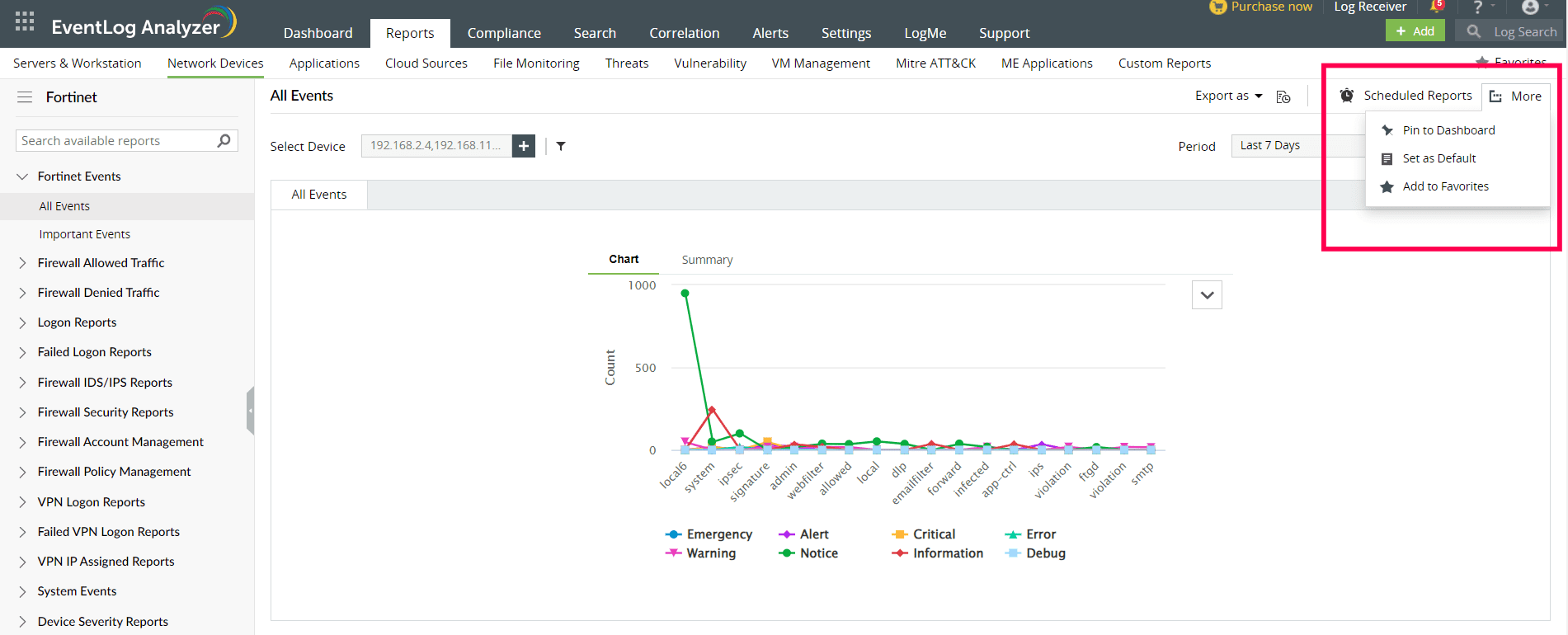

    • Click More for further customization options.
      1. Set as Default, to set this report as the default for Fortinet reports.
      2. Add to Favorites, to mark this report as favorite.
      3. Pin to dashboard, to pin this report to the main dashboard in the Home page.
