Panorama9
Enhance IT operations with Panorama9 and ADSelfService Plus
Panorama9 is remote monitoring and management (RMM) software that provides IT administrators with tools to oversee and control their networks from the cloud. Integrating ADSelfService Plus with Panorama9 provides secure, single-click SSO access, advanced authentication options, and passwordless login, enhancing security and ease of access for IT teams.
Enable one-click access to Panorama9 through SSO
Provide users with instant, secure login to Panorama9, minimizing login delays and improving operational efficiency.
Enhanced security with MFA
Secure access with advanced options like FIDO2 and biometrics to ensure only authorized personnel can log in.
Passwordless authentication for streamlined access
Simplify login by allowing password-free access, reducing password management challenges and enhancing user experience.
Configuring SAML SSO for Panorama9
These steps will guide you through setting up the single sign-on functionality between ADSelfService Plus and Panorama9.
Prerequisite
- Log in to ADSelfService Plus as an administrator.
- Navigate to Configuration → Self-Service → Password Sync/Single Sign On → Add Application, and select Panorama9 from the applications displayed. Note:You can also find Panorama9 application that you need from the search bar located in the left pane or the alphabet wise navigation option in the right pane.

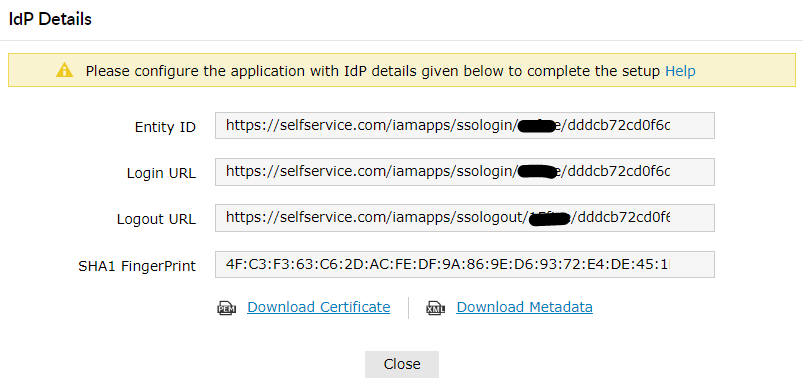

- Click IdP details in the top-right corner of the screen.
- In the pop-up that appears, copy the Login URL and SHA1 FingerPrint.
Panaroma9 (Service Provider) configuration steps
- Open a new tab and login to Panorama9 portal with an administrator’s credentials.

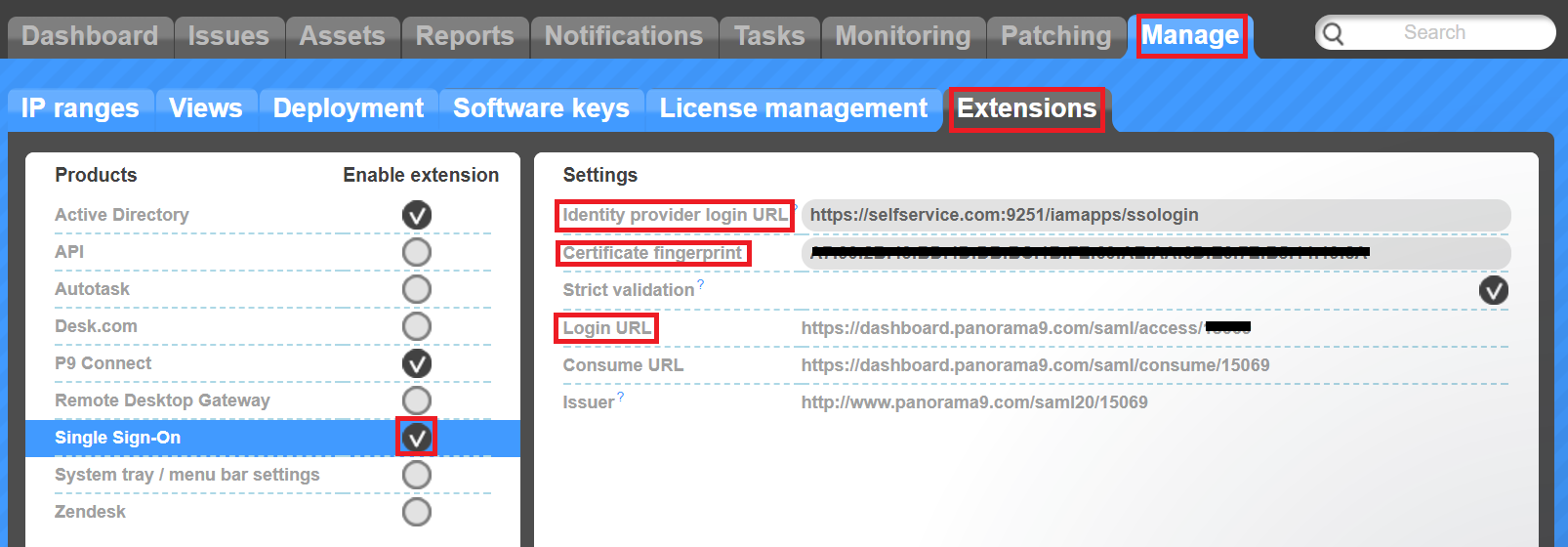

- Navigate to Manage → Extensions.
- Select Single Sign-On from the left pane.
- Click on the Edit icon in the topright corner of the screen.
- In the Identity provider Login URL field, enter the Login URL copied in Step 4 of Prerequisite. Note: The login URL must be in the format https://domainname.com/*
- In the Certificate fingerprint field, enter the SHA1 FingerPrint copied in Step 4 of Prerequisite.
- Copy the value in the Login URL field.
- Click on the Save button in the bottom of the screen.
ADSelfService Plus (Identity Provider) configuration steps
- Now, switch to ADSelfService Plus’ Panaroma9 configuration page.
- Enter the Application Name and Description.
- In the Assign Policies field, select the policies for which SSO need to be enabled. Note: ADSelfService Plus allows you to create OU and group-based policies for your AD domains. To create a policy, go to Configuration → Self-Service → Policy Configuration → Add New Policy.
- Select Enable Single Sign-On.
- Enter the Domain Name of your Panorama9 account. For example, if you use johndoe@thinktodaytech.com to log in to Panorama9, then thinktodaytech.com is the domain name.
- In the SAML Redirect URL field, enter the value you copied in Step 7 of Panaroma9 configuration.
- In the Name ID Format field, choose the format for the user login attribute value specific to the application. Note: Use Unspecified as the default option if you are unsure about the format of the login attribute value used by the application.
- Click Add Application.
