Import data from HSQL

Data stored in HSQL local database can be easily imported into Analytics Plus for advanced reporting and analysis.

Data Import: Data from your database will be imported and stored in Analytics Plus. Periodic schedules can be set up to fetch the latest data automatically from the local database.

Live Connect: In this mode, data will not be imported and stored in Analytics Plus. Instead, Analytics Plus will display live data from your database when reports and dashboards are launched. The report loading time will directly depend on the response and performance of HSQL. Live connections offer the convenience of real-time updates.

Data import

  1. How do I install Zoho Databridge?

  2. How do I import data from the HSQL database using ManageEngine Databridge?

  3. How long does it take for the HSQL data to be imported?

  4. How can I edit the Import setup?

  5. How can I schedule import from HSQL database?

  6. Will I be notified of import failures?

  7. Import from HSQL database that is hosted in the cloud has failed. How to solve this?

  8. Can I import data from HSQL database into an existing Analytics Plus workspace?

  9. Can I import data from HSQL database into an existing table in Analytics Plus?

  10. I have synced data from HSQL database into a table. Can I change the data source of this table?

  11. Can I import data from HSQL databases that are hosted in various networks/private clouds?

  12. Will foreign keys defined between my tables in HSQL database be linked in Analytics Plus as well?

  13. Can I change the data type of the columns imported into Analytics Plus?

  14. Can I import tables from the same database into multiple workspaces in Analytics Plus?

  15. How do I remove the import setup?

Live connect

  1. How do I configure Live Connect for the HSQL database?

  2. Can I change the data type of the columns in Live Connect?

  3. How is Live connect different from Data import method?

  4. How do I edit the live connection setup?

  5. What is a mismatch and how do I resolve it?

  6. Can I store a cache of my data points in Analytics Plus to get quick access to my views?

  7. Can I connect Views created in the HSQL database (apart from Tables) to Analytics Plus?

  8. I got an alert message "This view cannot be accessed due to some changes made in the table" while accessing my tables/reports in Analytics Plus. What should I do?

  9. Can I blend data from different sources into the workspace in which a live connection is configured?

  10. How do I remove the Setup?

Data import

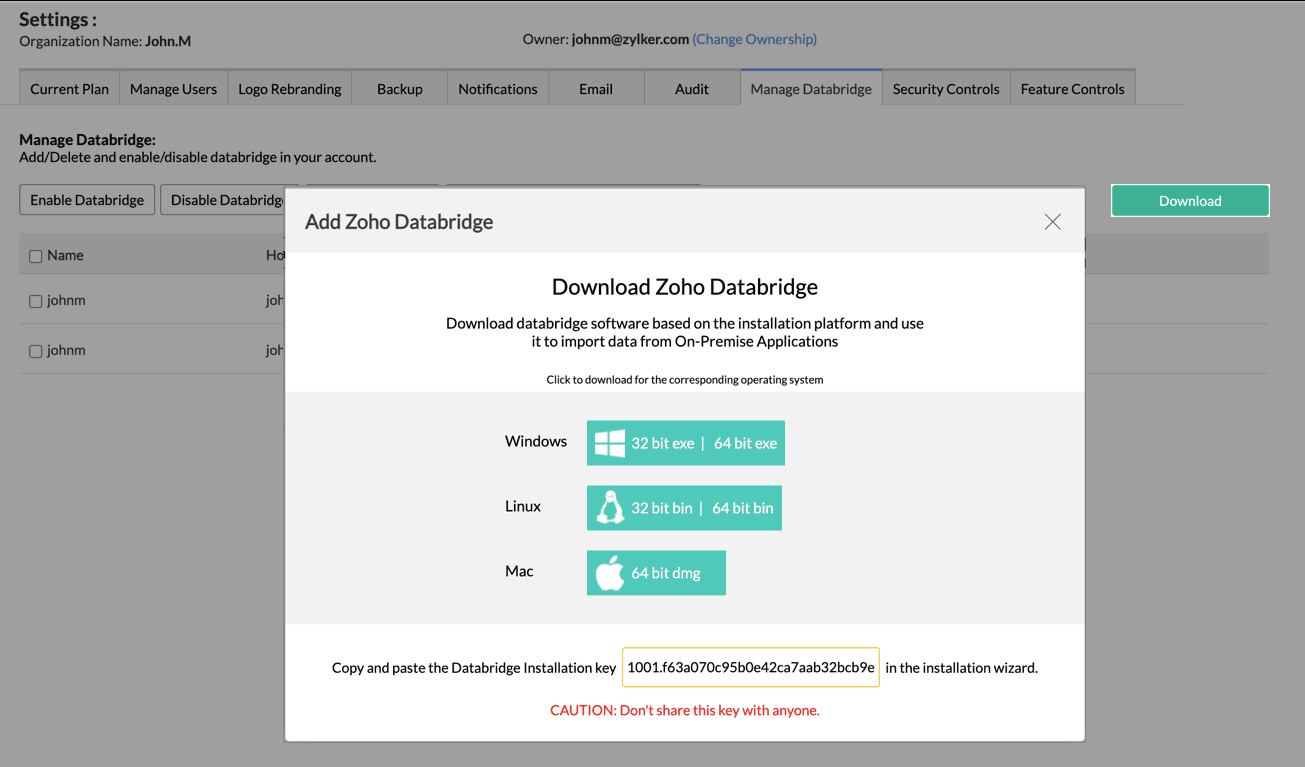

1. How do I install ManageEngine Databridge?



2. How do I import data from the HSQL database using ManageEngine Databridge?

To import data from the local HSQL database, it is mandatory to install the databridge. Refer to the previous question to know how to install.

3. How long does it take for the data to be imported into Analytics Plus?

Import will take from a few minutes to hours depending on the volume of the data. Please note that if you access the Workspace before the initial fetch, it will not display any data.

4. How can I edit the Import setup?

You can edit the import setup anytime needed by following the steps below.

  1. Open the workspace.

  2. Click the Data Sources tab from the left bar.

  3. All data sources for this workspace will be listed. Click the HSQL data source that you want to edit.

  4. The Data Sources page will open. Click the Edit Connection link.

  5. Modify the settings as needed and click Save. The connection details will be saved.

5. How can I schedule Import from HSQL database?

Analytics Plus allows you to schedule the import anytime. You can schedule the import for an existing table by following the steps below.

  1. Open the workspace.

  2. Click the Data Sources tab from the left bar.

  3. All data sources for this workspace will be listed. Click the HSQL data source for which you want to schedule the import.

  4. The Data Sources page will open. Click the Sync Settings link.

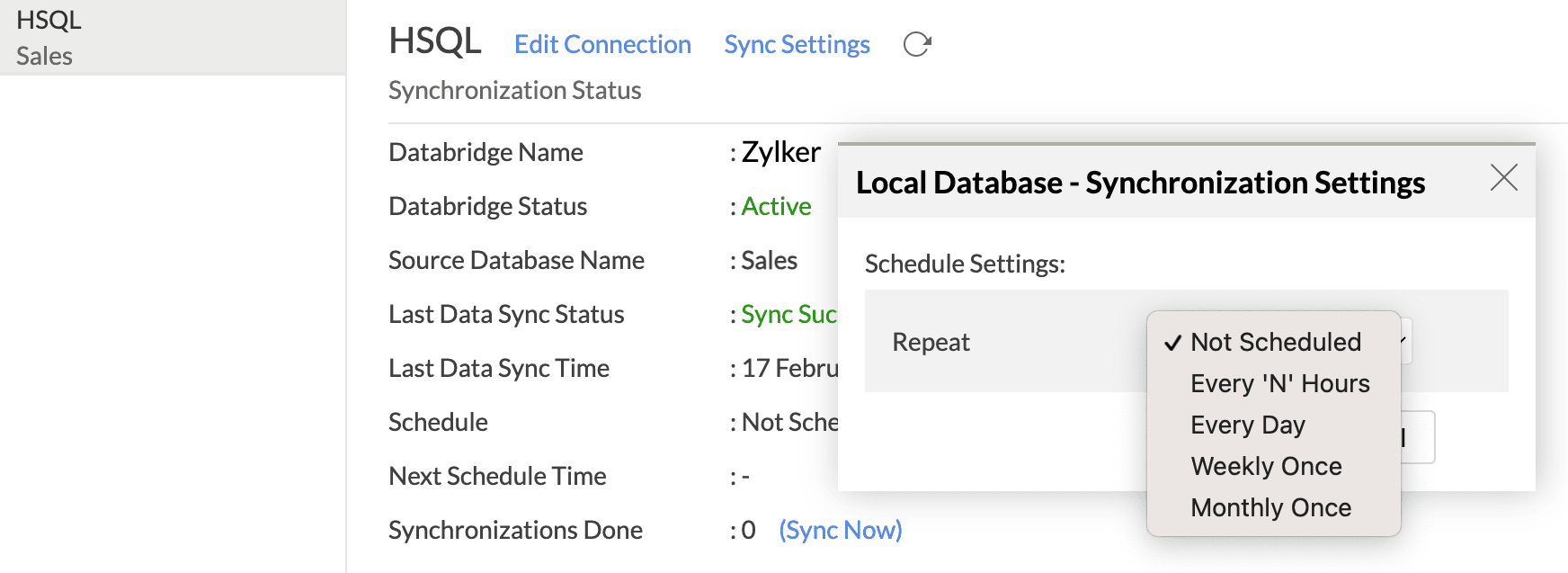

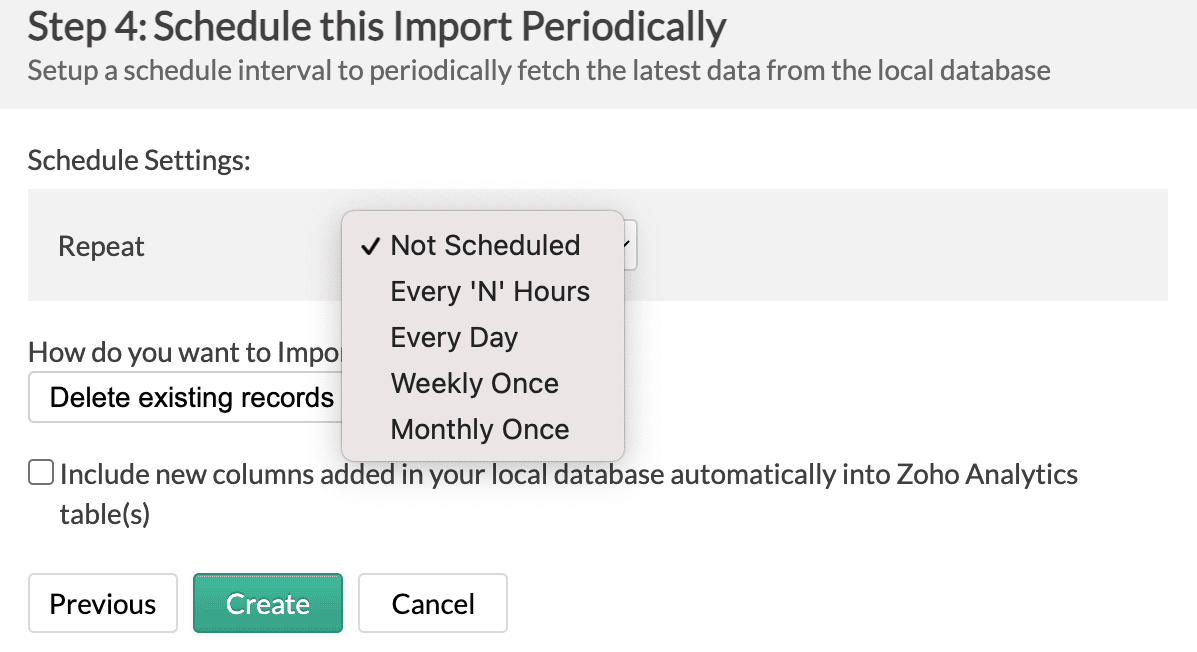

  5. The Local Database - Synchronization Settings dialog will open.

     6. Select the schedule interval you need in the Repeat drop-down. Supported intervals are:

  • Not Scheduled.

  • Every 'N' hour.

  • Every day.

  • Weekly once.

  • Monthly once.

  7. Select when the data needs to be imported in Perform every option.

  8. In the Notify me after every Sync Failure(s) option, set the number of consecutive import failure after which you need to be notified.

9. Click Save. The data for your HSQL database will be imported into Analytics Plus in the set interval.

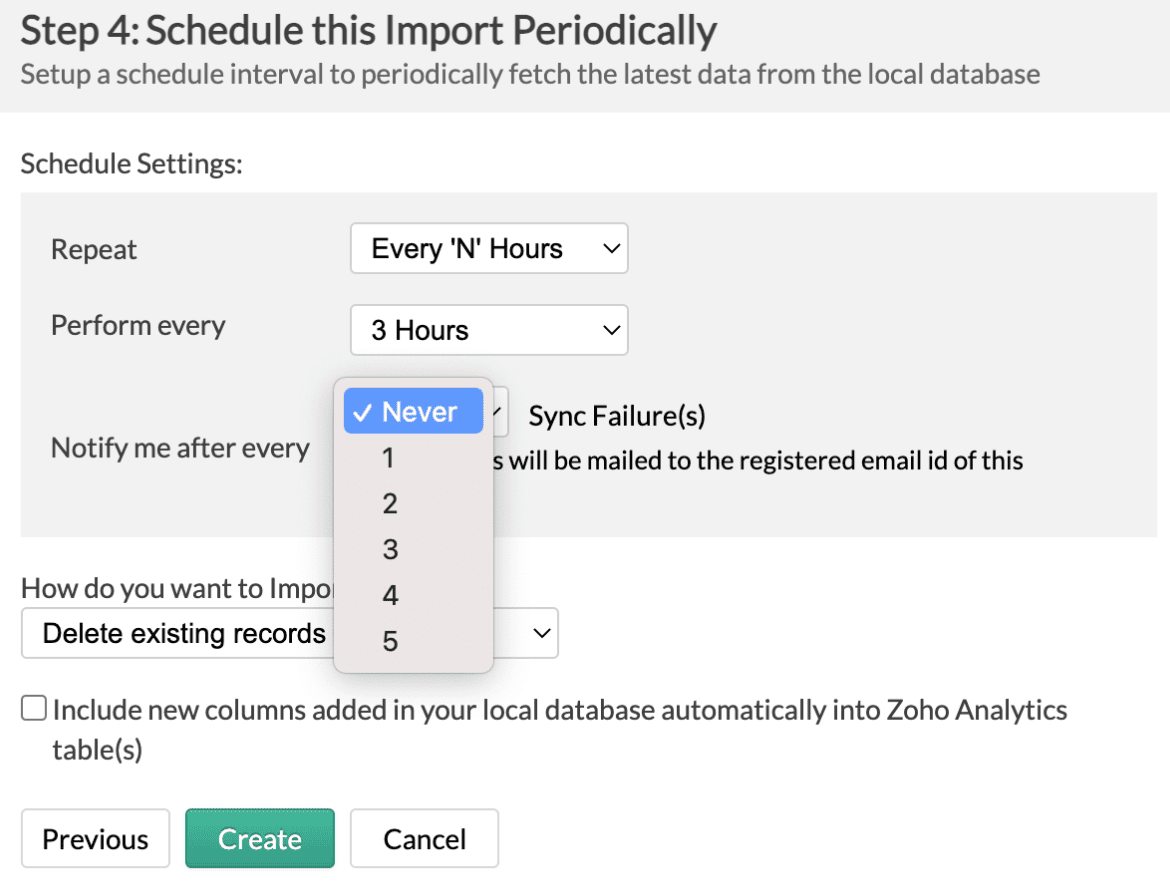

You can also schedule the import while initial import using the Schedule Setting option in Step 4 of the Import Wizard.

6. Will I be notified of import failures?

Yes, you can be notified after consecutive import failures, in case it occurs. To get notified of import failures, you need to set the number of consecutive import failures after which you need to be notified in the Notify me after every Sync Failure(s) option of the schedule import.

7. Import from HSQL database that is hosted in the cloud fails. How to solve this?

Import from the database may fail when the Databridge does not have the privilege to access the data. In case your database security system only allows access from restricted IP Addresses, then it will blacklist the server/machine where Databridge is installed. Ensure that you have whitelisted the IP Address of the machine/ server where the Databridge is installed.

8. Can I import data from HSQL database into an existing Analytics Plus Workspace?

Yes, you can import your data from HSQL into an existing Workspace.

Follow the below steps to import data into an existing workspace:

  1. Open the Workspace into which you wish to import the data.

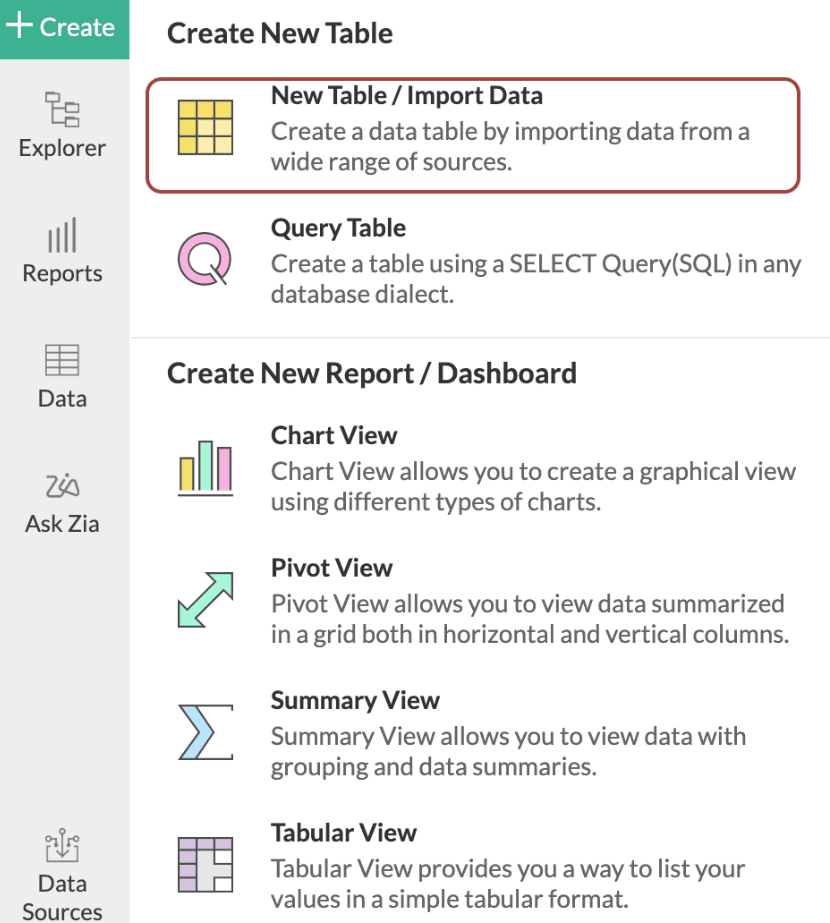

  2. Click Create > New Table / Import Data.

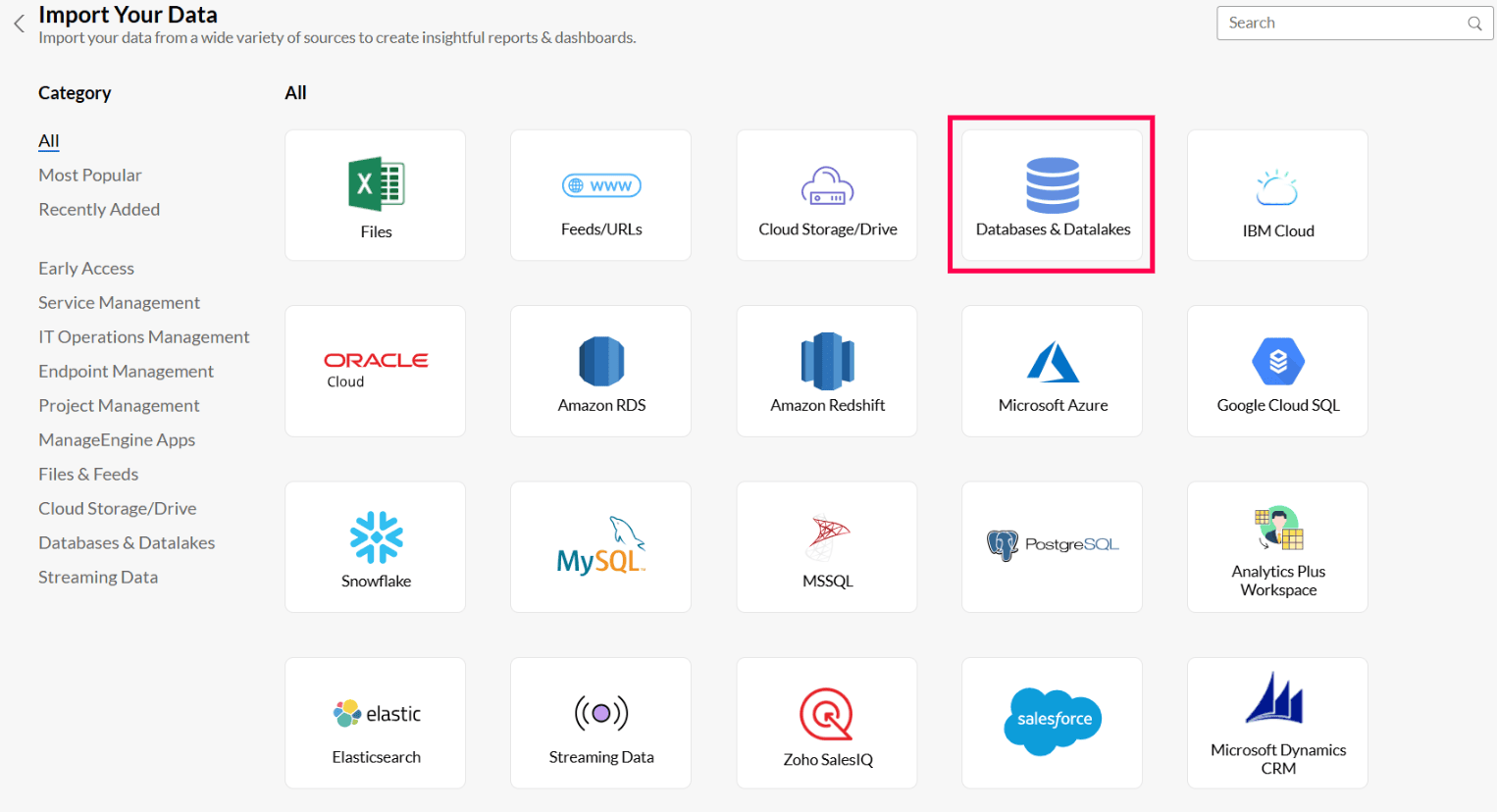

3. The Import Your Data section will open. Click the Databases & Datalakes tab.

9. Can I import data from HSQL database into an existing table in Analytics Plus?

Yes, you can import data into an existing table if you are importing from the same source database as the imported table. To do this:

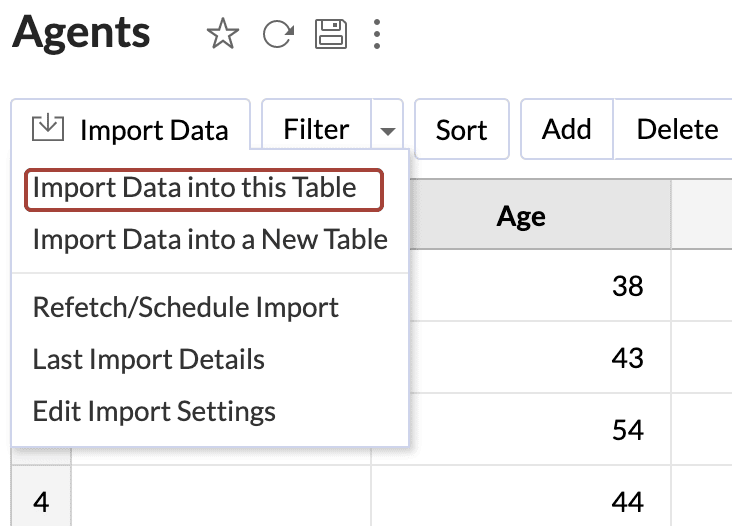

1. From the required table, click Import Data > Import into this Table.

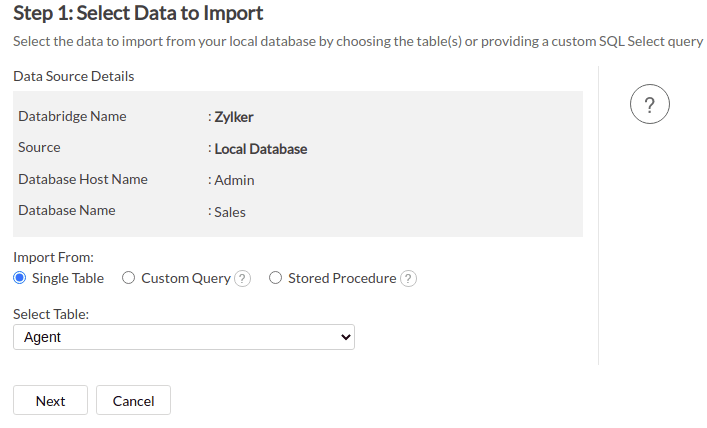

2. The Select Data to Import tab of the Import wizard will open.

3. You can choose to import from a different table using the Select Table option or import using the Custom Query.

10. I have synced data from database into a table. Can I change the data source of this table?

Yes, you can change the data source of a table, into which the HSQL database has been synced. To do this:

  1. Open the workspace.

  2. Click the Data Sources tab from the left bar.

  3. All data sources for this workspace will be listed. Click the data source you want to edit.

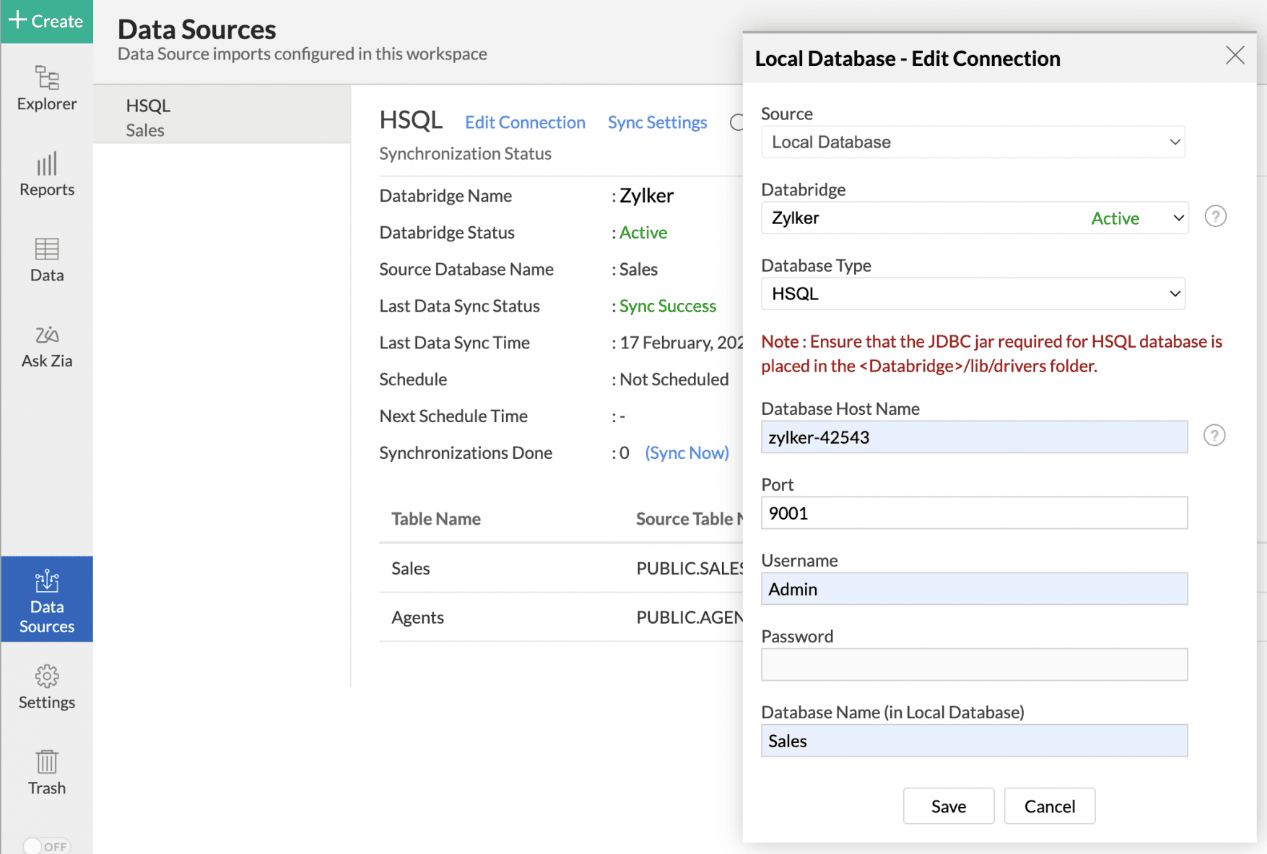

  4. The Data Sources page will open. Click the Edit Connection link.

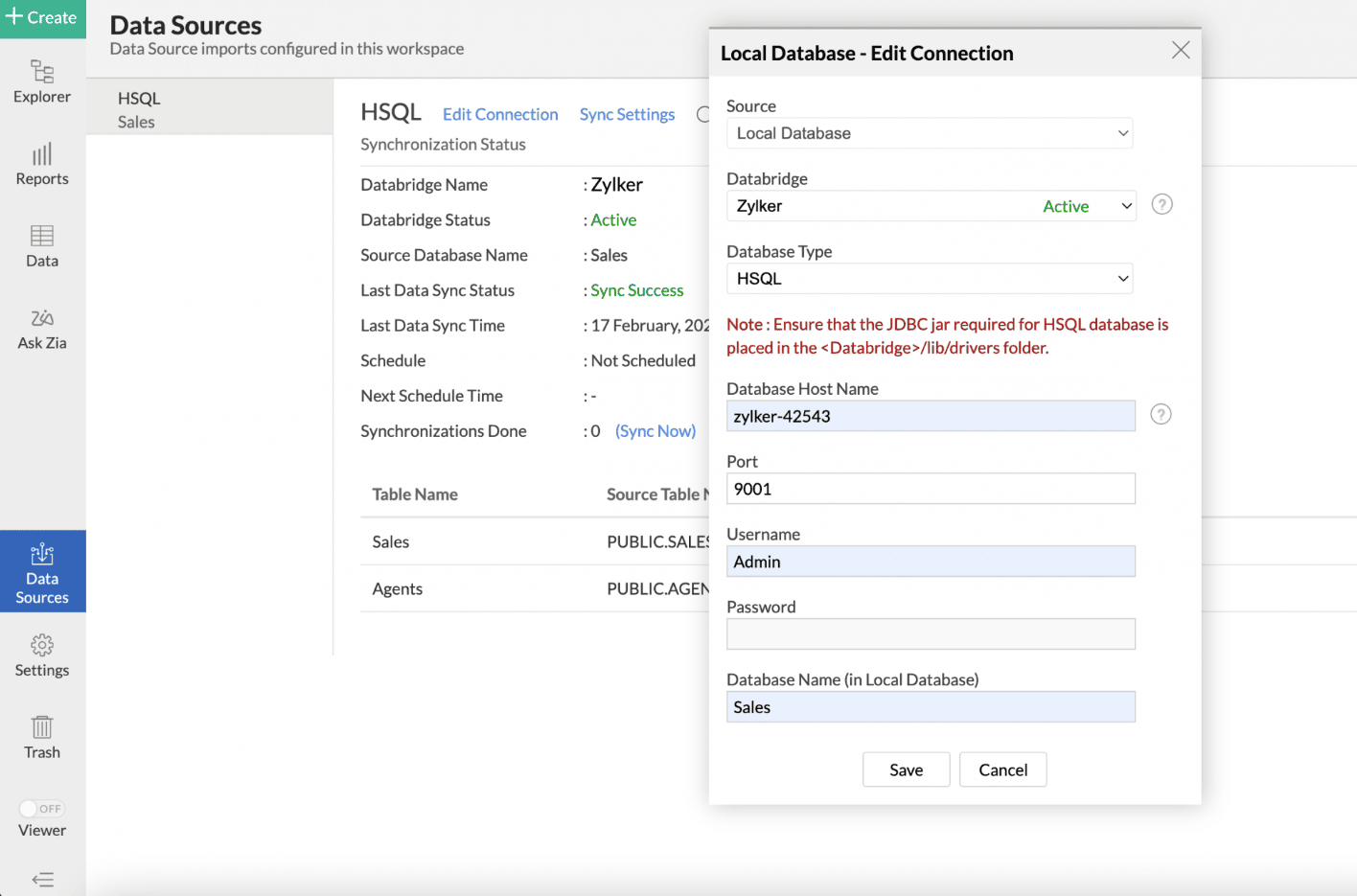

  5. In the Local Database - Edit Connection dialog that opens, modify the data source. You can also change the Databridge that fetches the data.

  6. Click Save to implement the changes made.

11. Can I import data from the HSQL which are hosted in various networks/private cloud?

Yes, you can import from various databases that are hosted in different networks by installing multiple Databridges. You need to install various Databridges for each network. To link all the Databridge installations to your account, use the same installation key available in the Download dialog.

Note:

  • Single Databridge installation can import data from various data sources available in the same network.

  • You can install only one Databridge per machine.

12. Will foreign keys defined between my tables in HSQL database be linked in Analytics Plus as well?

Yes. In case you have linked two or more tables in your database using foreign keys, they will be linked automatically using a Look-up column in Analytics Plus as well. You can also create lookup columns manually using the Lookup feature available in Analytics Plus. Learn more.

13. Can I change the data type of the columns imported in Analytics Plus?

Yes, you can change the data type of the columns imported into Analytics Plus. However, it is necessary that the data type of your column is compatible with the data type of the column in your HSQL database for successful data synchronizations. It is always recommended that you change the data type in both your HSQL database as well as your Analytics Plus Workspace.

14. Can I import tables from the same database into multiple workspaces in Analytics Plus?

Yes, you can import tables from the same database source to multiple workspaces in Analytics Plus. Read more about import.

15. How do I remove the import setup?

You can remove the import setup by following the steps below.

  1. Open the workspace.

  2. Click the Data Sources tab from the left bar.

  3. All data sources for this workspace will be listed. Click the data source you want to remove.

  4. In the Data Sources tab that opens, click the Settings icon.

  5. Please note that this only removes the connection. You can still continue accessing the workspace in Analytics Plus.

Live Connect

1. How do I configure Live Connect for the HSQL database?

2. Can I change the data type of the columns in Live Connect?

No, Analytics Plus does not allow you to change the data type of the column. However, if the data type is changed in the source database, then Analytics Plus will list the data type change in the mismatch section.

3. How is Live connect different from Data import method?

Data Import

Live Connect

In this method, data will be imported and stored in Analytics Plus.

In this method,data will be fetched live using appropriate reporting queries whenever you create or access a report in Analytics Plus.

Filtered data set can be imported from using customized queries.

Custom Query feature is not available in live connect. However, you can create Views in the source database and connect the same to Analytics Plus.

Data from different sources can be imported into the same workspace and can be combined for analysis.

Cannot import data from any other data source into the same workspace in which Live Connect is setup.

Changes made to the columns, such as addition/deletion, will be synchronized automatically.

Any changes, such as column addition/deletion/renaming, will not be reflected. You will have to manually map the data using the Sync Design option.

When importing multiple tables, the foreign keys defined between the tables in the database database will not be linked in Analytics Plus. However, you can manually link the tables in Analytics Plus using the Lookup column feature.

Lookup relationship will be automatically created for tables that are linked via foreign keys in the database database. You can also manually link the tables in Analytics Plus using Lookup column feature.

Users can create query tables.

Users cannot create query tables.

Report loading time will be fast as the data is stored in Analytics Plus.

Report loading time directly depends on the server response time and the amount of data in database.

4. How do I edit the live connection setup?

Analytics Plus allows you to incorporate any changes made in the source database. To modify the settings, Access the Data Sources tab from the side navigation pane.

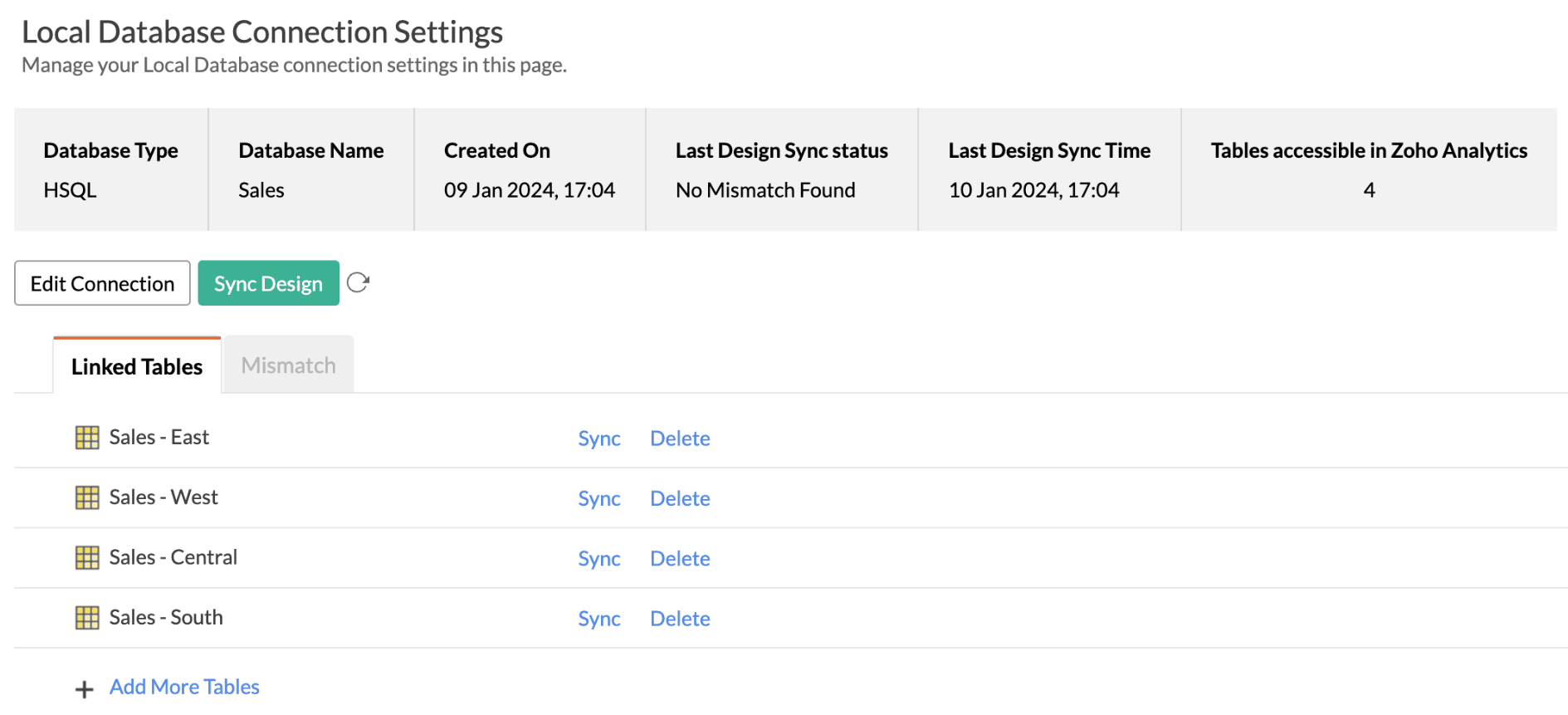

The Local Database Connection settings page will display the connection details,

  • Edit Connection: This option helps you modify the connection settings.

  • Sync Design: Analytics Plus allows you to sync any changes made in the source database. This can be done at two levels:

    Click Sync Design to include the recent changes made to the data.
    Click the Sync option adjacent to the table name to include the changes made to the table.

  • Add Table: Click Add more tables to include the new tables added to the source database.

  • Delete Table: Click Delete to remove the live connect for a table.

5. What is a mismatch?

  • A mismatch occurs when, tables, columns in Amazon Lightsail (the source database) are deleted or renamed.

  • The data type of the columns is changed in Amazon Lightsail, but the changes are not synced in Analytics Plus.

While using the Live Connect option, it is necessary that the table names, column names, and data type of the columns are the same in both the source database and Analytics Plus. If they are not the same, they will be listed as a mismatch in the Mismatch tab.

6. Can I store a cache of my data points in Analytics Plus to get quick access to my views?

Analytics Plus allows you to create a cache for the reports in your live connect database to reduce the query fetching time.

To enable cache for your Live Connect workspace, please follow the below steps:

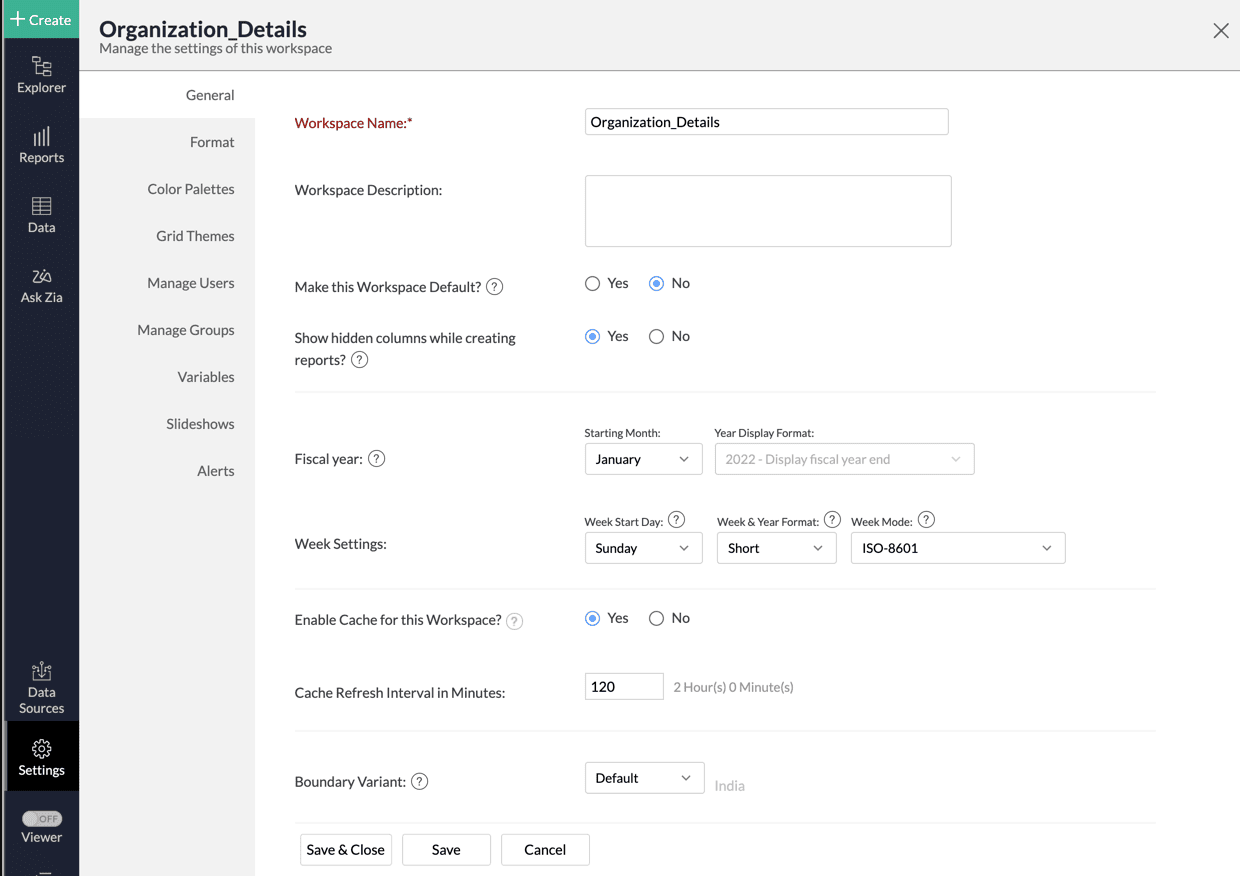

  1. From the Workspace Explorer, click the Settings tab from the side menubar.

  2. In the General - Workspace Settings page that opens, choose Yes for Enable Cache for this Workspace.

  3. In the Cache Refresh Interval in Minutes field, specify the duration to refresh the report.

  4. Click Save & Close.

7. Can I connect Views created in the HSQL database (apart from Tables) to Analytics Plus?

Yes, you can connect with both Views and Tables created in the HSQL database to Analytics Plus.

8. I got an alert message "This view cannot be accessed due to some changes made in the table" while accessing my tables/reports in Analytics Plus. What should I do?

This alert message will be displayed when Analytics Plus is not able to access the information from the database. This could be because the tables/columns that you are accessing in Analytics Plus are deleted or renamed in the HSQL database.

In this case, it is recommended that you remap the table/column.

9. Can I blend data from different sources into the workspace in which a live connection is configured?

Currently, Analytics Plus does not allow you to import data from other databases or applications or create query tables in the workspace in which Live Connect is configured.
If you wish to create query tables, you can create the required query as a view in the data source and connect it to Analytics Plus.

10. How do I remove the Setup?

To delete the workspace,

  1. Log in to Analytics Plus

  2. Click the More Actions icon that appears on mouse hover adjacent to the workspace name that you want to delete.

  3. Click the Delete Workspace option.
