Cisco Duo - Block IP

Entities: User, IP Log type: Cisco Duo

In this page

Playbook Description

This playbook investigates and blocks suspicious IP addresses by analyzing user behavior, checking IP reputation, and taking appropriate actions to mitigate potential security risks.

MITRE D3FEND mapping

Tactics Techniques Sub-techniques
Isolate (D3 - Isolate) D3 - NI Network Traffic Filtering (D3 - NTF)

Playbook input type

Alert

Prerequisites

  • Cisco Duo configuration - Need to connect Cisco Duo using HMAC connection with Integration and secret key.

Dependencies

Extensions - Cisco Duo

  • ciscoduo_updatePolicy
  • ciscoduo_createPolicy
  • ciscoduo_retrievePolicies
  • ciscoduo_retrievePolicyById

Utility functions:

  • utility_extractFieldFromList
  • utility_appendValues
  • utility_filterAndMatchEvents

Connections

Cisco Duo connection - Need to connect Cisco Duo using Integration Key, Secret Key and API Hostname.

Sub playbooks

  • Cisco Duo - Add user to group

Execution workflow

Investigation:

  • Executes the "Cisco Duo - Add user to group" sub-playbook.

Decision logic:

  • Proceeds to remediation based on the following conditions:
    • Related investigation findings are present.
  • If no malicious indicators are confirmed, the playbook ends with no further actions.

Remediation:

  • Retrieves all policies.
  • Checks if the block IP policy already exists.
  • Checks whether policy exists.
  • Builds the policy section.
  • Creates the block IP policy.
Execution Workflow

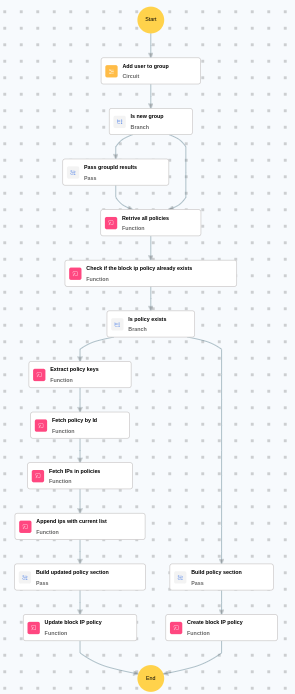

Figure: Execution workflow of the playbook

Post execution procedure

  • Review the blocked IP address to ensure no legitimate traffic was affected.
  • Verify that the block IP policy was successfully created or updated in Cisco Duo.
  • Monitor for any bypass attempts from alternate IP addresses by the same threat actor.
  • Review the IP block policy periodically and remove entries that are no longer relevant.
  • Investigate the source of the blocked IP for additional threat intelligence.
