Simple Network Management Protocol (SNMP) is an application–layer protocol defined by the Internet Architecture Board (IAB) in RFC1157 for exchanging management information between network devices. It is a part of Transmission Control Protocol⁄Internet Protocol (TCP⁄IP) protocol suite.
SNMP is one of the widely accepted network protocols that manages and monitors network elements. Most of the professional–grade network elements come with bundled SNMP agent. These agents have to be enabled and configured to communicate with the network monitoring tools or network management system (NMS).
This tutorial is an effort to explain in brief about

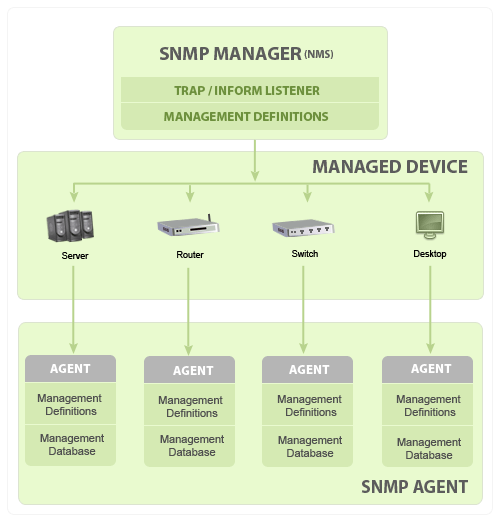

A manager or management system is a separate entity that is responsible to communicate with the SNMP agent implemented network devices. This is typically a computer that is used to run one or more network management systems.
A managed device or the network element is a part of the network that requires some form of monitoring and management e.g. routers, switches, servers, workstations, printers, UPSs, etc...
The agent is a program that is packaged within the network element. Enabling the agent allows it to collect the management information database from the device locally and makes it available to the SNMP manager, when it is queried for. These agents could be standard (e.g. Net-SNMP) or specific to a vendor (e.g. HP insight agent)
Every SNMP agent maintains an information database describing the managed device parameters. The SNMP manager uses this database to request the agent for specific information and further translates the information as needed for the Network Management System (NMS). This commonly shared database between the Agent and the Manager is called Management Information Base (MIB).
Typically these MIB contains standard set of statistical and control values defined for hardware nodes on a network. SNMP also allows the extension of these standard values with values specific to a particular agent through the use of private MIBs.
In short, MIB files are the set of questions that a SNMP Manager can ask the agent. Agent collects these data locally and stores it, as defined in the MIB. So, the SNMP Manager should be aware of these standard and private questions for every type of agent.
ManageEngine's Suite of Free Tools includes a SNMP MIB Browser which helps to Load/unload MIBs and fetch MIB data of SNMP(v1, v2c, v3) agents. SNMP MIB Browser is a complete tool for monitoring SNMP enabled devices and servers. You can load, view multiple MIB modules and perform GET, GETNEXT and SET SNMP operations. This SNMP monitoring software is easy to use and allows you to view, configure and parse SNMP traps. You can also perform SNMP operations from Windows and Linux devices.
Management Information Base (MIB) is a collection of Information for managing network element. The MIBs comprises of managed objects identified by the name Object Identifier (Object ID or OID).
Each Identifier is unique and denotes specific characteristics of a managed device. When queried for, the return value of each identifier could be different e.g. Text, Number, Counter, etc...
There are two types of Managed Object or Object ID: Scalar and Tabular. They could be better understandable with an example
Scalar: Device’s vendor name, the result can be only one. (As definition says: "Scalar Object define a single object instance")
Tabular: CPU utilization of a Quad Processor, this would give me a result for each CPU separately, means there will be 4 results for that particular Object ID. (As definition says: "Tabular object defines multiple related object instance that are grouped together in MIB tables")
Every Object ID is organized hierarchically in MIB. The MIB hierarchy can be represented in a tree structure with individual variable identifier.
A typical object ID will be a dotted list of integers. For example, the OID in RFC1213 for "sysDescr" is .184.108.40.206.220.127.116.11
The simplicity in information exchange has made the SNMP as widely accepted protocol. The main reason being concise set of commands, here are they listed below:

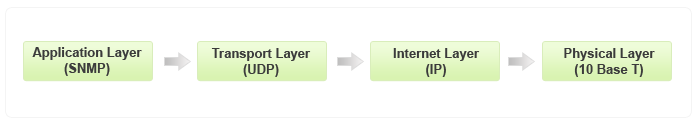

Being the part of TCP⁄ IP protocol suite, the SNMP messages are wrapped as User Datagram Protocol (UDP) and intern wrapped and transmitted in the Internet Protocol. The following diagram will illustrate the four–layer model developed by Department of Defense (DoD).
Since the inception SNMP, has gone through significant upgrades. However SNMP Protocol v1 and v2c are the most implemented versions of SNMP. Support to SNMP Protocol v3 has recently started catching up as it is more secured when compare to its older versions, but still it has not reached considerable market share.
This is the first version of SNMP protocol, which is defined in RFCs 1155 and 1157
This is the revised protocol, which includes enhancements of SNMPv1 in the areas of protocol packet types, transport mappings, MIB structure elements but using the existing SNMPv1 administration structure ("community based" and hence SNMPv2c). It is defined in RFC 1901, RFC 1905, RFC 1906, RFC 2578.
SNMPv3 defines the secure version of the SNMP. SNMPv3 protocol also facilitates remote network monitoring configuration of the SNMP entities. It is defined by RFC 1905, RFC 1906, RFC 3411, RFC 3412, RFC 3414, RFC 3415.
Though each version had matured towards rich functionalities, additional emphasis was given to the security aspect on each upgrade. Here is a small clip on each editions security aspect.
|SNMP v1||Community–based security|
|SNMP v2c||Community–based security|
|SNMP v2u||User–based security|
|SNMP v2||Party–based security|
|SNMP v3||User–based security|
Yes, SNMP is still in use as it's a common protocol used by any network device or component, and major network vendors still support it.
Using SNMP, you can:
SNMP uses UDP (User Diagram Protocol). UDP is a Transport layer protocol that is majorly used in time-sensitive communications such as voice, video etc., where latency is not tolerated so as to tolerate some packet loss.
