This section provides information on how to install Network Configuration Manager solution in your system. This section also deals with the system requirements for Network Configuration Manager, how to install the solution, how to start and shutdown the product, the ports occupied by Network Configuration Manager and licensing information.
There is no prerequisite software installation required to use Network Configuration Manager. The standard system (hardware and software) requirements as mentioned below plus an external mail server (SMTP server) are essential for the functioning of Network Configuration Manager server, to send various notifications to users.
Following table provides the minimum hardware and software configuration required by Network Configuration Manager.
Up to 50 Devices
From 50 to 200 Devices
From 200 to 500 Devices
From 500 to 2000 Devices
From 2000 to 5000 Devices
HTML client requires one of the following browsers** to be installed in the system:
** Network Configuration Manager is optimized for 1024 x 768 resolution and above.
SNMP v1/v2/v3, Telnet, SSH v1/v2, and TFTP
Components of Network Configuration Manager
The ManageEngine Network Configuration Manager consists of the following components:
The Network Configuration Manager server consisting of server and database
Built-in TFTP server running on port 69
Built-in syslog server running on port 514
JRE 1.8.181 bundled with Network Configuration Manager
PostgreSQL 10.12 bundled with Network Configuration Manager
Editions & scalability:
Network Configuration Manager comes in two editions:
- Free edition : 2 devices, free forever
- Professional edition: unlimited devices, paid version.
Download and execute ManageEngine_NetworkConfigurationManager.exe. The installation wizard will guide you through the installation process
Choose an installation directory - by default, it will be installed in C:/ManageEngine/NCM; Henceforth, this installation directory path shall be referred as "NCM_Home".
While installing Network Configuration Manager, you have the option to install Network Configuration Manager as a service. Just uncheck the checkbox, in case, you do not wish to install it as service
In the final step, you will see two check-boxes - one for viewing ReadMe file and the other one for starting the server immediately after installation; if you choose to start the server immediately, it will get started in the background. As unpacking of jars will be done during the first startup, it will take sometime to fully start.
Download ManageEngine_NetworkConfigurationManager_64bit.bin for Linux.
Login as root user.
Assign executable permission using command chmod a+x <file-name>
Follow the instructions as they appear on the screen
Network Configuration Manager is installed in your machine in the desired location. Henceforth, this installation directory path shall be referred as "NCM_Home".

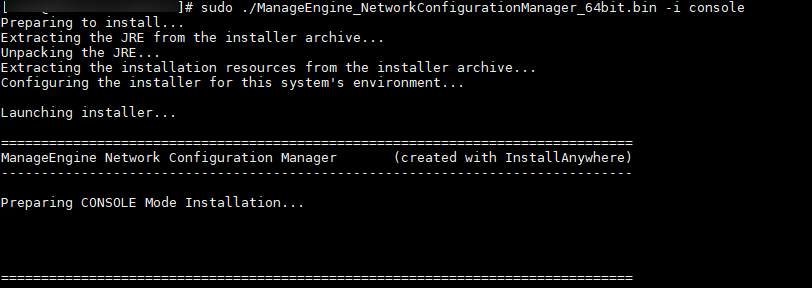

Step 1: Execute ManageEngine_NetworkConfigurationManager_64bit.bin with administrator privileges (sudo) and -i console option.
Step 2: Go through the license agreement and enter 'Y' to proceed.
Step 3: You can register for technical support by providing the required details (Name, E-mail ID, Phone, Company Name).
Step 4: Select your location.
Step 5: Choose the installation directory.
Step 6: Configure the web server port.

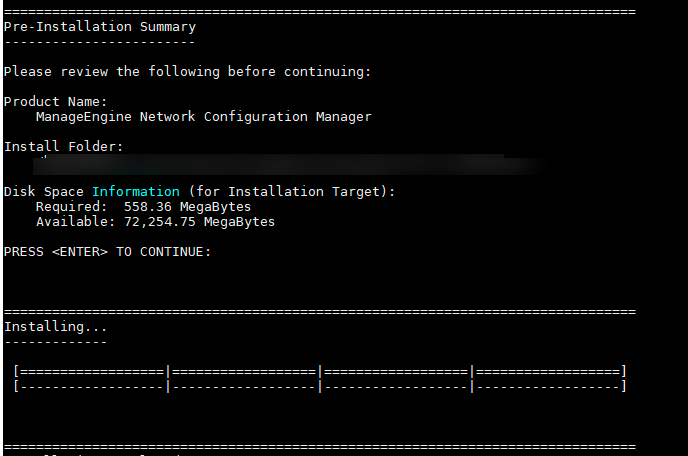

Step 7: Verify the installation details and press 'Enter' to complete the installation.
Click on Start > Programs > ManageEngine Network Configuration Manager to start the server.
Alternatively you can navigate to the <NCM_Home>\bin folder and invoke the run.bat file.
Navigate to the <NCM Home>/bin directory and execute the run.sh file.
When the server is started, a command prompt window opens up showing startup information on several modules of Network Configuration Manager. Once all the modules have been successfully created, the following message is displayed:
Please connect your client at http://localhost:8080
where 8080 is replaced by the port you have specified as the web server port during installation.
Starting as Service :
If you have chosen the Start as Service option during installation, Network Configuration Manager will run as a service on Windows.
Login as root user.
Navigate to the <NCM_Home>\bin directory.
Execute the linkAsService.sh file
This starts Network Configuration Manager as a service on Linux.
Network Configuration Manager uses the following three ports:
TFTP port : 69
SSHD Port : 22 [for binding SCP server]
Syslog Server : 514
PostgreSQL port : 13310 [configurable through <deviceexpert_home>/conf/database_params.conf file]
Web client port : 8080 [configurable through <deviceexpert_home>/conf/server.xml]
To check if the ports required by Network Configuration Manager are free:
The ports mentioned above should be free while starting the server. It is quite possible that any of the above ports might already be in use and as a result, Network Configuration Manager server would not start.
In Windows, you can invoke the 'Port Check' option through Start >> Programs >> Network Configuration Manager >> Port Check (or) Right click the Network Configuration Manager tray icon and 'Port Check' option. A prompt will open and it will provide the status of the required ports.>
In Linux, to invoke the 'port check' option, navigate to
Network Configuration Manager supports PostgreSQL, MySQL and MSSQL databases as backend. PostgreSQL database is bundled with the product and by default, it is configured to run with PostgreSQL. In case, you wish to use MSSQL databases, follow the steps detailed below:
MSSQL backend is supported from Network Configuration Manager version 5500 only. Earlier versions do not have provision to run with MSSQL
At present, data migration from MySQL to MSSQL is not supported. You need to start afresh only. That means, if you already using MySQL and wish to switch to MSSQL, the current configurations, settings and other data cannot be migrated to MSSQL
Steps to Change to MSSQL
Stop Network Configuration Manager Server, if running.
Open a console and navigate to <deviceexpert_home>/bin directory (as root user).
In Windows, execute the batch file "ChangeDB.bat". In Linux, execute the script "sh ChangeDB.sh".

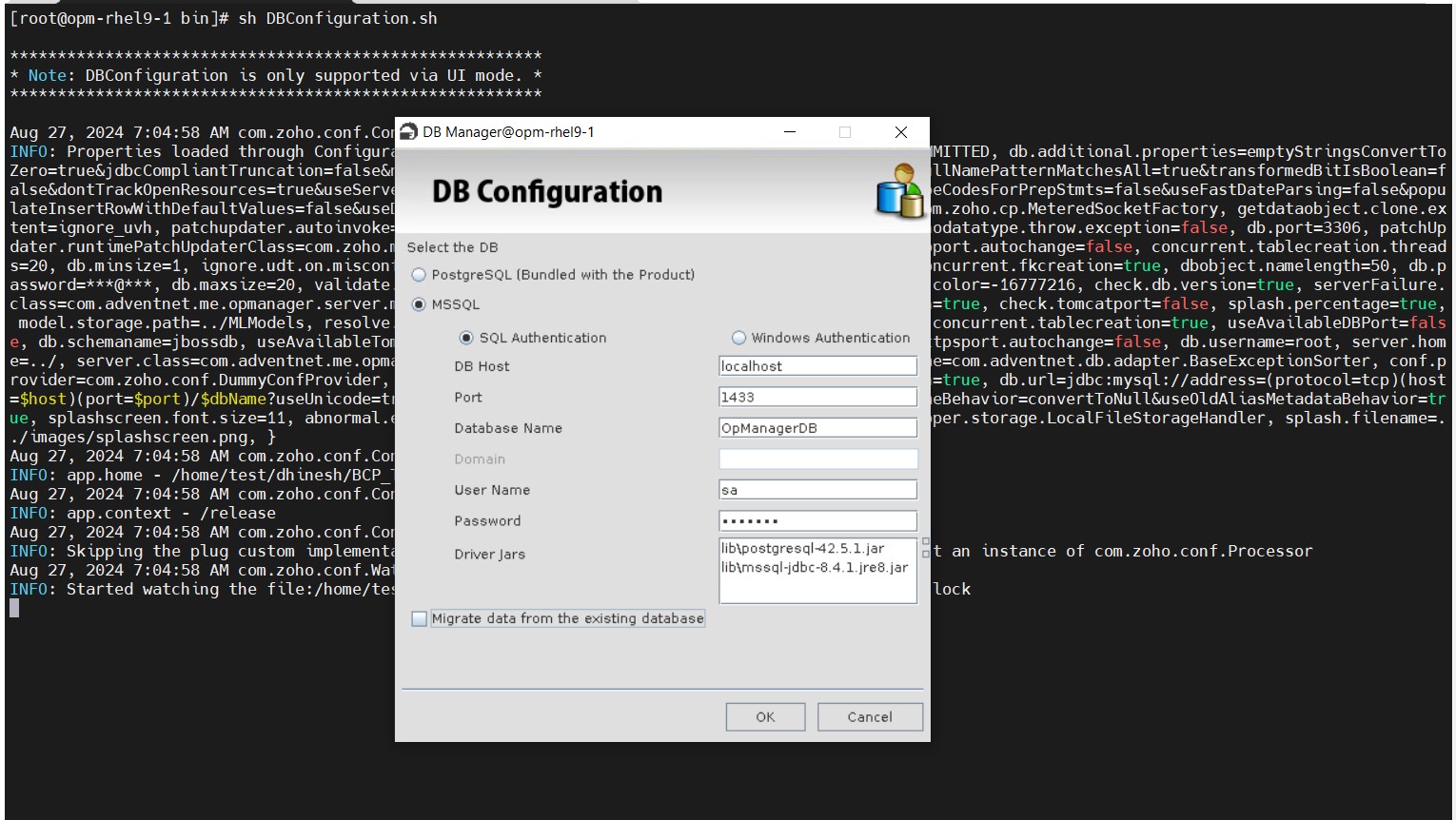

The DB Configuration window pops up. Select MSSQL option. Configure the following information:
DB Host: The name or the IP address of the machine where MSSQL is installed.
Port: The port number in which Network Configuration Manager must connect with the database. Default is 1433.
User Name and Password: The user name and password with which Network Configuration Manager needs to connect to the database.
Start Network Configuration Manager. It will run with MSSQL.
If you want to move the Network Configuration Manager installed in one machine to another or to a different location within the same machine, follow the procedure detailed below:
Do not remove existing installation of Network Configuration Manager until the new installation works fine. This is to ensure backup, to overcome disasters/data corruption during the movement.
If you are using MySQL as backend database
Stop Network Configuration Manager server / service, if running
If you have installed Network Configuration Manager to run as a startup service, remove it as service before proceeding further. See the table below for the procedure to remove it as service.
Take a zip of the entire Network Configuration Manager installation folder; move the zip to a different machine or to a different location in the same machine as required
Then, install it to run as service.
Installing as Startup Service in Windows
Installing as Startup Service in Linux
In this option, you will not be able to uninstall the program through windows Add/Remove programs console. If you want to uninstall anytime, just delete the entire installation folder.
You need not reapply the license after moving the installation
There are three license types:
Evaluation download is valid for 30 days and supports unlimited devices during the time period. After 30 days, one can manage up to 2 devices.
Free Edition - licensed software allows you to manage up to 2 devices. To get a free license for additional 2 devices, please fill the form in this link - https://www.manageengine.com/network-configuration-manager/download-free.html
Professional Edition - need to buy license based on the number of devices to be supported
For more information and to get license, contact email@example.com
Acknowledgement: This product includes software developed by SSHTools (http://www.sshtools.com/).
