Practical use cases & troubleshooting with APM Insight

Table of contents

• How to use this guide
• Real-world scenario 1: "My application is slow"
• Real-world scenario 2: Diagnosing slow or failing transactions
• Real-world scenario 3: When queries kill performance
• Real-world scenario 4: Diagnosing external bottlenecks
• Alerts and proactive monitoring
• Using Milestones to track performance changes
• When to escalate or optimize further
• Common troubleshooting mistakes to avoid
• In this series

How to use this guide

This document is designed to help you troubleshoot real-world application performance issues using APM Insight.

Instead of listing features, each section is built around common symptoms you might encounter in production—slow pages, failing transactions, database delays, or external service bottlenecks—and walks you through how to diagnose and resolve them using APM Insight.

When to use each section

Real-world scenario 1: "My application is slow"

Symptoms

• Pages are loading slowly
• API response times are higher than usual
• Users report degraded experiences or timeouts
• No obvious errors, but the application "feels slow."

How APM Insight helps

APM Insight gives you an immediate, high-level view of application health using:

• Apdex scores to measure user satisfaction
• Response time trends to detect performance degradation
• Component-level breakdowns to isolate where time is being spent

Step-by-step diagnosis

Step 1: Assess overall application health

Start with the Overview page of the APM Insight monitor.

Check the Apdex score:

• A sudden drop indicates user impact.
• A consistently low score points to systemic performance issues.

Step 2: Identify response time spikes

Look for spikes in response time graphs.

• Correlate spikes with traffic patterns or deployment times.
• Focus on periods where response time increased without a traffic surge.

Step 3: Use "Response time broken by components"

This view breaks down each request into three categories, showing where time is actually spent:

What to look for:

• App code spike → Inefficient code or slow method execution
• DB component spike → Slow or expensive database queries
• Other components spike → External services or APIs causing delays

At this stage, you'll know where the problem lies—even before drilling deeper.

Real-world scenario 2: Diagnosing slow or failing transactions

Example scenario

A critical transaction like Login, Checkout, or Payment Processing is:

• Taking too long to complete
• Failing intermittently
• Timing out during peak usage

How APM Insight helps

APM Insight lets you:

• Identify the slowest transactions
• Analyze transaction behavior over time
• Drill down into method-level execution traces

Step-by-step diagnosis

Step 1: Identify top slow transactions

1. Navigate to the Transactions tab
2. Sort transactions by response time

3. Identify transactions with:

   • High average response time
   • Frequent spikes
   • Low Apdex contribution

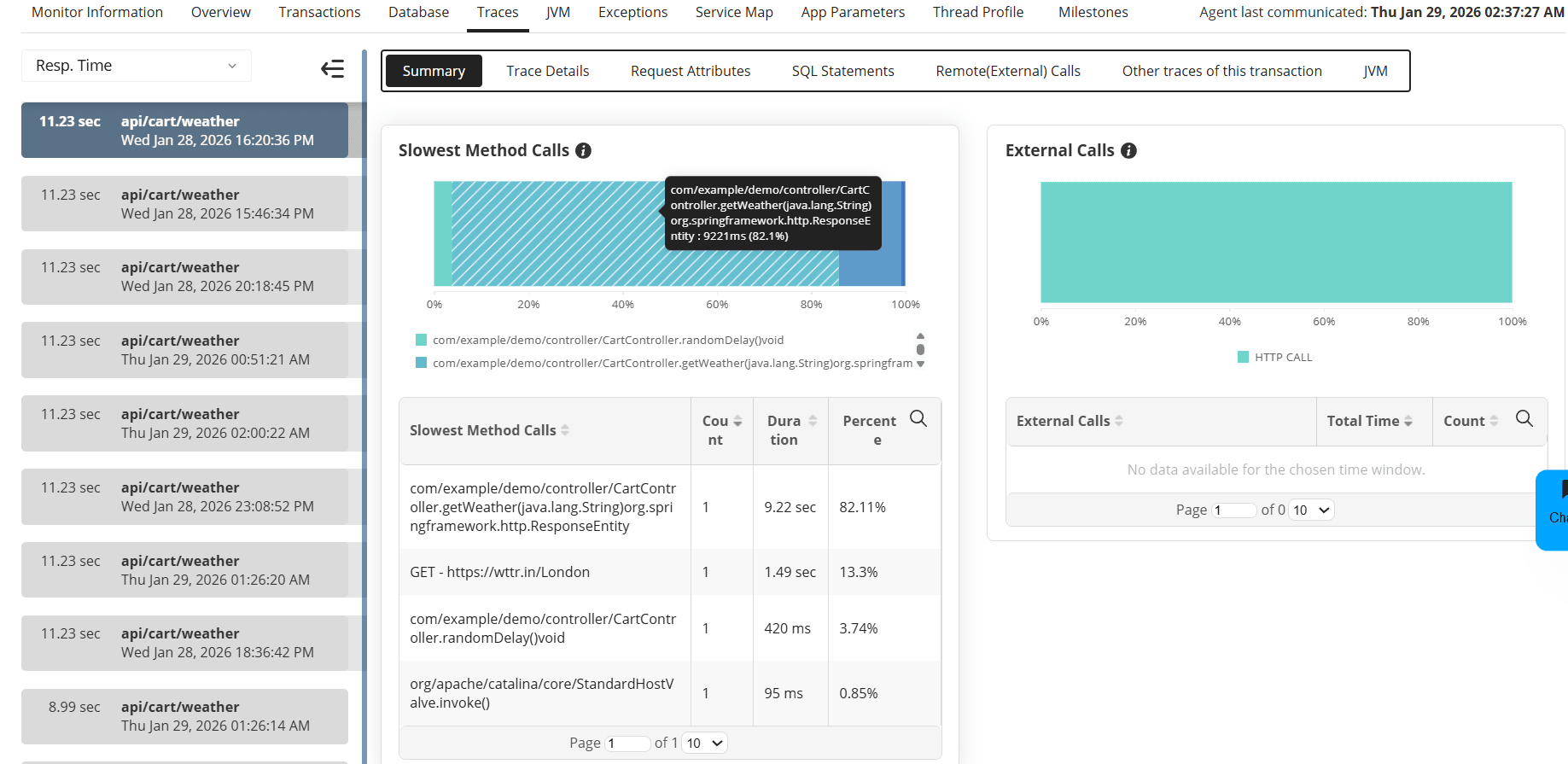

Step 2: Analyze transaction traces

Select a slow transaction and open Available Traces:

• Overall Summary shows where time is spent
• Stack Trace reveals slow or repeated method calls
• Executed Queries highlights slow database operations

Step 3: Handle failed transactions

If the transaction fails:

• Review the error or exception details
• Use the stack trace to identify:
  • Unhandled exceptions
  • Timeout issues
  • Dependency failures

These insights can be directly shared with development teams for faster resolution.

Real-world scenario 3: When queries kill performance

Symptoms

• Application slows down under load
• DB response time dominates overall transaction time
• Performance issues worsen with increased traffic

How APM Insight helps

APM Insight correlates database performance directly with application transactions, helping you:

• Identify expensive queries
• Understand query frequency vs execution time
• See how queries impact end-user experience

Step-by-step diagnosis

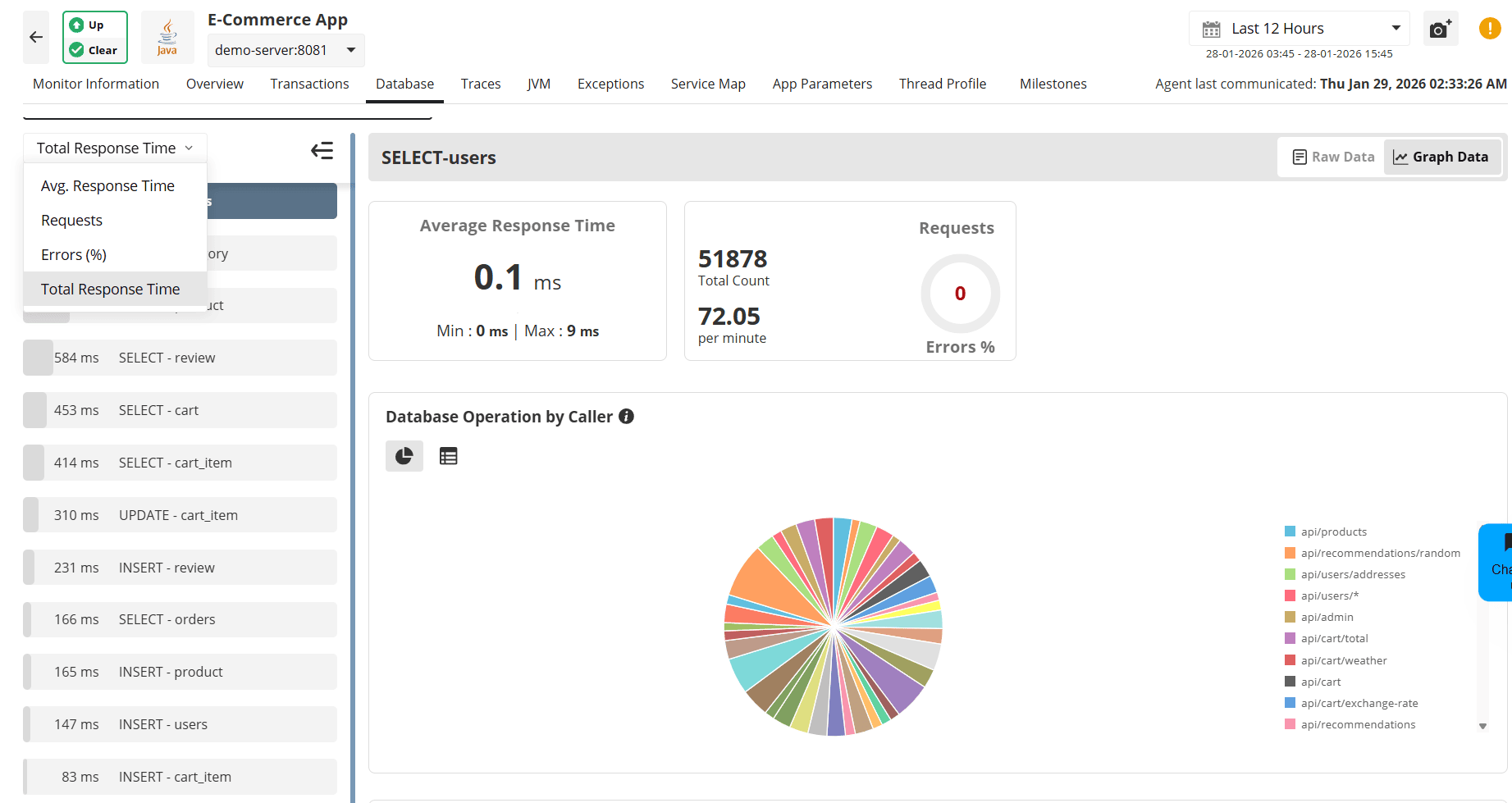

Step 1: Identify expensive queries

1. Go to the Database tab

2. Sort queries by:

   • Average Response Time
   • Requests
   • Errors (%)
   • Total Response Time



Step 2: Analyze query behavior

Determine whether:

• A single query is slow due to missing indexes
• Multiple fast queries are executed excessively
• Query patterns change under peak load

Step 3: Optimize using insights

Use this data to:

• Add or optimize indexes
• Reduce unnecessary query calls
• Refactor inefficient query logic

Real-world scenario 4: Diagnosing external bottlenecks

Symptoms

• Performance issues appear only for certain workflows
• Slowness occurs when calling third-party APIs
• Application performance varies based on dependency health

How APM Insight helps

APM Insight visualizes service dependencies using the Service Map, making it easy to identify external bottlenecks.

Step-by-step diagnosis

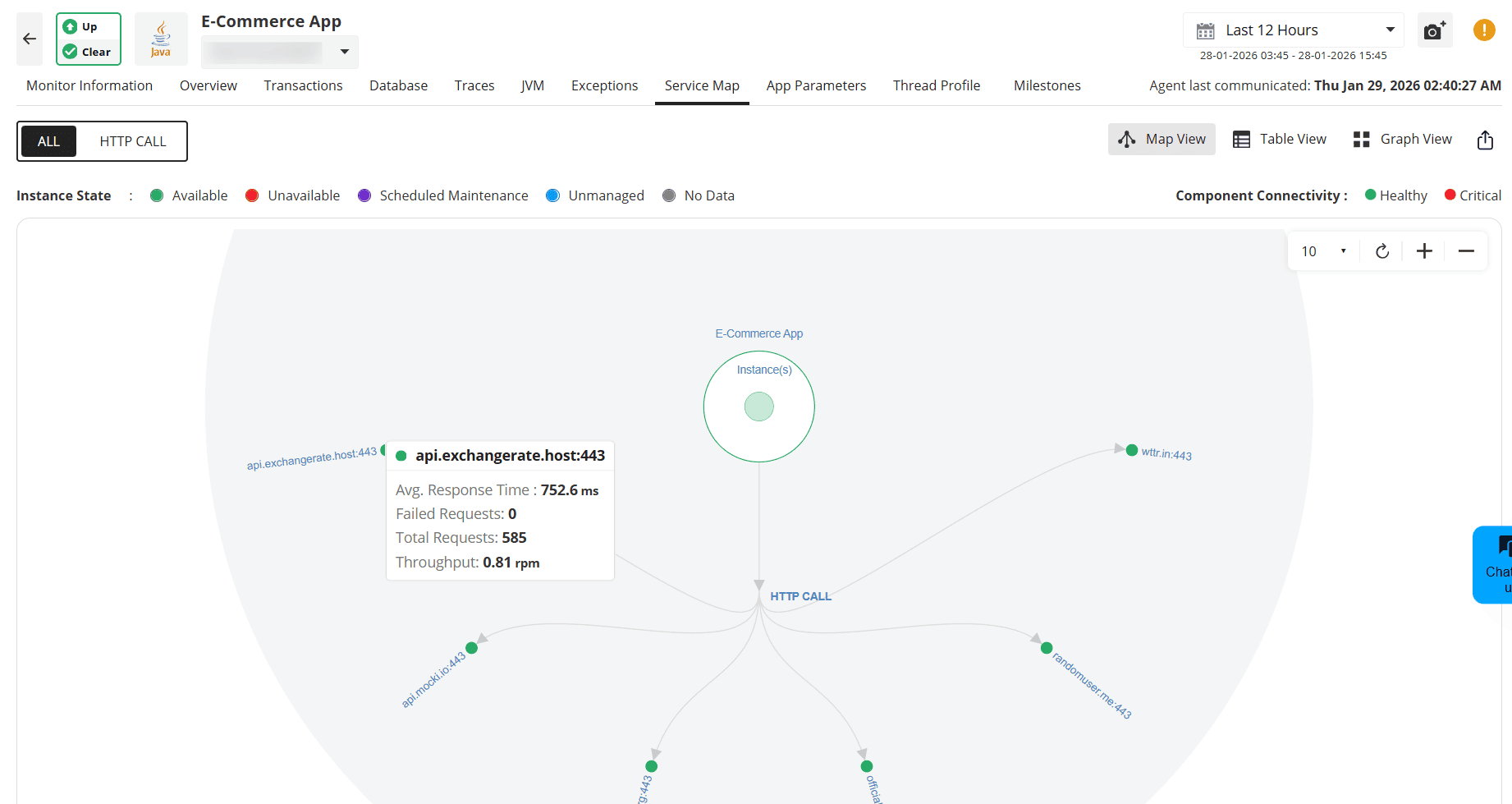

Step 1: Review the service map

• Understand upstream and downstream dependencies
• Identify services with high response times or error rates

Step 2: Drill down into problematic services

Select a service to view detailed metrics.

Check whether delays originate from:

• Network latency
• Third-party API response times
• Internal service dependencies

This visibility helps teams distinguish between internal issues and third-party failures.

Alerts and proactive monitoring

APM Insight alerting enables early detection of performance issues so teams can act before users are impacted. Alerts should be aligned to business-critical transactions and configured to trigger only on sustained, actionable conditions.

Alerting approach

Use a tiered alerting model to balance visibility and noise:

To avoid alert fatigue, configure alerts to trigger on sustained violations, not short-lived spikes. This ensures alerts reflect real issues rather than transient fluctuations.

What to alert on

Focus alerts on metrics that directly affect user experience and reliability:

• Transaction response time
• Apdex score
• Error rate and exception frequency
• Traffic anomalies (sudden drops or spikes)
• Resource saturation (CPU, memory, JVM health for Java applications)

Alerts should be defined per transaction where possible, especially for revenue-generating or SLA-bound flows.

Default alerts

APM Insight monitors key indicators out of the box, including:

• Apdex score degradation
• Response time spikes

Configuring custom alerts

You can create alerts for:

• Specific transactions
• Response time thresholds
• Error rates or exception frequency

Default alerts (Already active):

APM Insight monitors these out of the box:

• Apdex score drops below 0.7 (user frustration threshold)
• Response time exceeds 3 seconds for more than 5 minutes

Custom alerts you should configure:

For e-commerce:

• Checkout transaction > 4 seconds → Critical
• Payment API response time > 2 seconds → Warning

For SaaS applications:

• Login transaction > 2 seconds → Warning
• API error rate > 1% → Critical

For financial services:

• Transaction processing > 1 second → Warning
• Any database timeout → Critical

Alert hygiene and maintenance

• Review alert thresholds monthly
• Adjust thresholds as performance improves or workloads change
• Use maintenance windows during deployments
• Disable or tune alerts that do not result in clear action

Goal: Every alert should be meaningful, actionable, and tied to business impact.

Using Milestones to Track Performance Changes

Beyond alerts, milestones help you proactively track performance trends and validate whether your optimization efforts actually worked.

When to Create Milestones

Before and After Deployments

• Create a milestone before releasing new code
• Compare post-deployment performance to detect regressions
• Confirm that optimizations improved key metrics

During Performance Investigations

• Mark, when the issue first appeared
• Track improvements as fixes are applied
• Identify which changes delivered the biggest gains

For Periodic Performance Reviews

• Create monthly milestones to track long-term trends
• Compare peak traffic periods (for example, Black Friday or tax season)
• Detect gradual performance degradation early

Quick Milestone Workflow

Scenario: Validating a Database Optimization

Step 1: Create a "Before" milestone

• Navigate to the Milestone tab
• Click Create Milestone
• Name it clearly (for example, "Before index addition — Customer table")

Step 2: Implement the optimization

• Add database indexes or make query changes

Step 3: Wait 24—48 hours

• Allow enough time for representative production data

Step 4: Create an "After" milestone

• Name it "After index addition — Customer table."

Step 5: Compare results

• Response time: —45%
• Apdex score: 0.68 → 0.87
• Error rate: No increase

Result: Clear, measurable evidence that the optimization was successful. The milestone comparison can be shared with stakeholders to demonstrate impact.

When to escalate or optimize further

Share insights with development teams

Transaction traces and query data provide concrete evidence of:

• Slow methods
• Inefficient queries
• Problematic dependencies

Use custom instrumentation

For uninstrumented or business-critical code paths:

• Add custom instrumentation
• Gain visibility into specific methods or workflows

This ensures no blind spots in performance monitoring.

Common troubleshooting mistakes to avoid

❌ Don't:

• Jump to conclusions before checking the component breakdown
• Assume database issues without verifying query execution times
• Ignore external service delays when response times vary
• Wait for multiple user complaints before investigating

✅ Do:

• Start with the Apdex score for overall health assessment
• Check the Service Map to understand dependencies
• Use traces to verify assumptions about slow code
• Set up alerts to catch issues proactively
