EventLog Analyzer - Troubleshooting Tips

General

  • Where do I find the log files to send to EventLog Analyzer Support?

    For Build 8010 onwards

    The log files are located in the <EventLogAnalyzer_Home>logs directory. Typically when you run into a problem, you will be asked to send the serverout.txt file from this directory to EventLog Analyzer Support.

    For Build 8000 or earlier

    The log files are located in the <EventLogAnalyzer_Home>server/default/log directory. Typically when you run into a problem, you will be asked to send the serverout.txt file from this directory to EventLog Analyzer Support.

  • I find that EventLog Analyzer keeps crashing or all of a sudden stops collecting logs. What could be the reason?

    The inbuilt PostgreSQL/MySQL database of EventLog Analyzer could get corrupted if other processes are accessing these directories at the same time. So exclude ManageEngine installation folder from

    • Anti-virus scans
    • Automatic backup softwares
    • Snapshots in case of VMware installation

    Ensure that no snap shots are taken if the product is running on a VM.

  • How to create SIF (Support Information File) and send it to ManageEngine when you are not able to perform the same from the Web client?

    The SIF will help us to analyze the issue you have come across and propose a solution for the same.

    If you are unable to create a SIF from the Web client UI,

    For Build 8010 onwards

    You can zip the files under 'logs' folder, located in C:/ManageEngine/Eventlog/logs (default path) and upload the zip file to the following ftp link: http://bonitas.zohocorp.com/upload/index.jsp?to=eventloganalyzer-support@manageengine.com

    For Build 8000 or earlier

    You can zip the files under 'log' folder, located in C:/ManageEngineEventlog/server/default/log (default path) and upload the zip file to the following ftp link: http://bonitas.zohocorp.com/upload/index.jsp?to=eventloganalyzer-support@manageengine.com

  • How to register dll when message files for event sources are unavailable?

    To register dll, follow the procedure given in the link below: http://ss64.com/nt/regsvr32.html

  • What should I do if the network driver is missing?

    For Windows builds 32bit and 64bit:

    • Install WinPcap v4.1.3 network driver.
    • Restart EventLogAnalyzer service to view logs in real-time.
  • How to register/unregister bundled postgres as a service?

    Why register/unregister bundled postgres as a service?

    Depending on your environment, you may occasionally experience challenges with starting EventLog Analyzer due to a Postgres database startup failure. To avoid this, it is advisable that you register the database first, making it run in the background irrespective of the product's start up or shutdown.

    How to register/unregister bundled postgres as a service?

    To register bundled postgres as a service:

    For Build 12440 onwards

    • Execute the following command in the Elevated Command Prompt Window within "<EventLog Analyzer Home>bin" directory.
    • register_pgdbservice.bat "<Specify the name of the DB Service to be registered>"

    • Stop the EventLog Analyzer service/server and start it after the registered DB service is started.

    For Build 12440 or earlier

    • Copy register_pgdbservice.bat from "<EventLog Analyzer Home\tools\postgres\bin" and paste it in "<EventLog Analyzer Home\bin" directory
    • Execute the following command in the Elevated Command Prompt Window within <EventLog Analyzer Home>bin directory.
    • register_pgdbservice.bat "<Specify the name of the DB Service to be registered>"

    • Stop the EventLog Analyzer service/server and start it after the registered DB service is started.

    Should you no longer wish to be in charge of the database, you may opt to unregister, which will cause the product to start and stop the database, along with its own start and stop.

    To unregister the bundled postgres service:

    For Build 12440 onwards

    • Execute the following command in the Elevated Command Prompt Window within the <EventLog Analyzer Home>bin directory.
    • unregister_pgdbservice.bat "<Specify the name of the DB Service to be unregistered>"

    For Build 12440 or earlier

    • Copy unregister_pgdbservice.bat from "<EventLog Analyzer Home\tools\postgres\bin" and paste it in "<EventLog Analyzer Home\bin"
    • Execute the following command in the Elevated Command Prompt Window within the <EventLog Analyzer Home>bin directory.

    unregister_pgdbservice.bat "<Specify the name of the DB Service to be unregistered>"

    • Install WinPcap v4.1.3 network driver.
    • Restart EventLogAnalyzer service to view logs in real-time.

Installation

  • EventLog Analyzer displays "Enter a proper ManageEngine license file" during installation

    This can happen under two instances:

    • Case 1: Your system date is set to a future or past date. In this case, uninstall EventLog Analyzer, reset the system date to the current date and time, and re-install EventLog Analyzer.
    • Case 2: You may have provided an incorrect or corrupted license file. Verify that you have applied the license file obtained from ZOHO Corp. If neither is the reason, or you are still getting this error, contact licensing@manageengine.com
  • Binding EventLog Analyzer server (IP binding) to a specific interface.

    For Build 8010 onwards

    To bind EventLog Analyzer server to a specific interface, follow the procedure given below:

    For Eventlog Analyzer running as application:

    • Shutdown EventLog Analyzer
    • Open the run.bat file which is under <EventLog Analyzer Home>bin directory and go to "RESTART Command block", uncomment the below RESTART command line and replace <ip-address> with the IP address to which you want to bind the application, comment the existing RESTART command line and save the file.
      Copy to Clipboard

      rem %JAVA% %JAVA_OPTS% -cp "%CLASS_PATH%" com.adventnet.mfw.Starter %SAFE_START% -c default -b <ip-address>

      to

      Copy to Clipboard

      %JAVA% %JAVA_OPTS% -cp "%CLASS_PATH%" com.adventnet.mfw.Starter %SAFE_START% -c default -b <ip-address>

      Copy to Clipboard

      %JAVA% %JAVA_OPTS% -cp "%CLASS_PATH%" com.adventnet.mfw.Starter %SAFE_START%

      to

      Copy to Clipboard

      rem %JAVA% %JAVA_OPTS% -cp "%CLASS_PATH%" com.adventnet.mfw.Starter %SAFE_START%

    • Open setcommonenv.bat file which is under <EventLog Analyzer Home>bin directory and go to "JAVA_OPTS Setting command Block", uncomment the below JAVA_OPTS setting command line and replace <ip-address> with the IP address to which you want to bind the application and comment the existing JAVA_OPTS setting command.
      Copy to Clipboard

      rem set JAVA_OPTS=-Djava.library.path=..lib;..libnative -DpdfReport=false -Duser.country=US -Duser.language=en -DminDiskSpace=5 -Xms128m -Xmx512m -Dspecific.bind.address=<ip-address>

      to

      Copy to Clipboard

      set JAVA_OPTS=-Djava.library.path=..lib;..libnative -DpdfReport=false -Duser.country=US -Duser.language=en -DminDiskSpace=5 -Xms128m -Xmx512m -Dspecific.bind.address=<ip-address>

      Copy to Clipboard

      set JAVA_OPTS=-Djava.library.path=..lib;..libnative -DpdfReport=false -Duser.country=US -Duser.language=en -DminDiskSpace=5 -Xms256m -Xmx1024m

      to

      Copy to Clipboard

      rem set JAVA_OPTS=-Djava.library.path=..lib;..libnative -DpdfReport=false -Duser.country=US -Duser.language=en -DminDiskSpace=5 -Xms256m -Xmx1024m

    • Save the file
    • Open the database_param.conf file which is under <EventLog Analyzer Home>conf directory and replace localdevice in url tag with the <binding IP address> to which you want to bind the application and save the file.
      Copy to Clipboard

      url=jdbc:postgresql://localdevice:33336/eventlog?stringtype=unspecified

      to

      url=jdbc:postgresql://<binding IP address>:33336/eventlog?stringtype=unspecified

    • Open the postgresql.conf file which is under <EventLog Analyzer Home>pgsqldata directory and uncomment the line '#listen_addresses = 'localdevice'' in the CONNECTIONS AND AUTHENTICATION section and replace the 'localdevice' with the '<binding IP address>' to which you want to bind the application and save the file.
      Copy to Clipboard

      #------------------------------------------------------------------------------
      # CONNECTIONS AND AUTHENTICATION
      #------------------------------------------------------------------------------

      # - Connection Settings -

      #listen_addresses = 'localdevice' # what IP address(es) to listen on;

      # comma-separated list of addresses;

      # defaults to 'localdevice'; use '*' for all

      # (change requires restart)

      to

      #------------------------------------------------------------------------------
      # CONNECTIONS AND AUTHENTICATION
      #------------------------------------------------------------------------------

      # - Connection Settings -

      listen_addresses = <binding IP address> # what IP address(es) to listen on;

      # comma-separated list of addresses;

      # defaults to 'localdevice'; use '*' for all

      # (change requires restart)

    • Open the pg_hba.conf file which is under <EventLog Analyzer Home>pgsqldata directory and add the line

    device all all <binding IP address in IPv4 format>/32 trust

    after the line

    device all all 127.0.0.1/32 trust

    and save the file.

    # TYPE DATABASE USER ADDRESS METHOD

    # IPv4 local connections:

    device all all 127.0.0.1/32 trust

    # IPv6 local connections:

    device all all ::1/128 trust

    to

    # TYPE DATABASE USER ADDRESS METHOD

    # IPv4 local connections:

    device all all 127.0.0.1/32 trust

    device all all <binding IP address in IPv4 format>/32 trust

    # IPv6 local connections:

    device all all ::1/128 trust

    • Restart EventLog Analyzer

    For Eventlog Analyzer running as service:

    Before proceeding further, stop the EventLog Analyzer service and make sure that 'SysEvtCol.exe','Postgres.exe' and 'java.exe' are not running.

    There are 7 files that must be modified for IP binding.

    Note: data-doc-rid="255l9469213c93f3f4d8cb899c7bf8471fb58">Before editing the files ensure that you have a backup copy of the files.

    Assume xxx.xxx.xxx.xxx is the IP address you wish to bind with EventLog Analyzer.

    File 1)

    <ELA home>\bin\setCommonEnv.bat

    • Search for line set JAVA_OPTS=-Djava.library.path=..\lib;..\lib\native -Duser.country=US -Duser.language=en -Xms256m -Xmx1024m
    • Append -Dspecific.bind.address= xxx.xxx.xxx.xxxto the line. It will now look as: set JAVA_OPTS=-Djava.library.path=..\lib;..\lib\native -Duser.country=US -Duser.language=en -Xms256m -Xmx1024m -Dspecific.bind.address= xxx.xxx.xxx.xxx

    File 2)

    <ELA home>\bin\runSEC.bat

    • Search for line "%SERVER_HOME%\bin\SysEvtCol.exe" -port 513 %syslogPort% -dbhome "%dbhome%" -ELAhome "%serverHome%" -loglevel 2 %RelayIP% %IPadd% %IgnoreHost% %IPadd% %*
    • Add -bindip xxx.xxx.xxx.xxx to the line, so that it looks like "%SERVER_HOME%\bin\SysEvtCol.exe" -bindip xxx.xxx.xxx.xxx -port 513 %syslogPort% -dbhome "%dbhome%" -ELAhome "%serverHome%" -loglevel 2 %RelayIP% %IPadd% %IgnoreHost% %IPadd% %*

    File 3)

    <ELA home>\server\conf\wrapper.conf

    • Search for line #wrapper.app.parameter.1=com.adventnet.mfw.Starter
    • Remove the # from the line, it should now look like wrapper.app.parameter.1=com.adventnet.mfw.Starter
    • The next line from current position should be #wrapper.app.parameter.2=-L../lib/AdventNetDeploymentSystem.jar . Add the following two lines after this line, one after the other.
      • wrapper.app.parameter.2=-b xxx.xxx.xxx.xxx
      • wrapper.app.parameter.3=-Dspecific.bind.address= xxx.xxx.xxx.xxx
    • The block should now look like this :-

    wrapper.app.parameter.1=com.adventnet.mfw.Starter

    #wrapper.app.parameter.2=-L../lib/AdventNetDeploymentSystem.jar

    wrapper.app.parameter.2=-b xxx.xxx.xxx.xxx

    wrapper.app.parameter.3=-Dspecific.bind.address= xxx.xxx.xxx.xxx

    File 4)

    <ELA home>\conf\server.xml

    Search for the following block:

    <Connector SSLEnabled="false" URIEncoding="UTF-8" acceptCount="100" address="0.0.0.0" clientAuth="false" compressableMimeType="text/html,text/xml" compression="force" compressionMinSize="1024" connectionTimeout="20000" disableUploadTimeout="true" enableLookups="false" maxSpareThreads="75" maxThreads="150" minSpareThreads="25" name="WebServer" noCompressionUserAgents="gozilla, traviata" port="8400" protocol="HTTP/1.1" scheme="http" secure="false"/>

    • Replace address="0.0.0.0" with address="xxx.xxx.xxx.xxx"
    • It should now look like the following

    <Connector SSLEnabled="false" URIEncoding="UTF-8" acceptCount="100" address="xxx.xxx.xxx.xxx" clientAuth="false" compressableMimeType="text/html,text/xml" compression="force" compressionMinSize="1024" connectionTimeout="20000" disableUploadTimeout="true" enableLookups="false" maxSpareThreads="75" maxThreads="150" minSpareThreads="25" name="WebServer" noCompressionUserAgents="gozilla, traviata" port="8400" protocol="HTTP/1.1" scheme="http" secure="false"/>

    File 5)

    <ELA home>\conf\database_params.conf

    • Search for the line url=jdbc:postgresql://127.0.0.1:33335/eventlog?stringtype=unspecified
    • Replace the 127.0.0.1 with your xxx.xxx.xxx.xxx, the line should now look like url=jdbc:postgresql://xxx.xxx.xxx.xxx:33335/eventlog?stringtype=unspecified

    File 6)

    <ELA home>\pgsql\data\postgresql.conf

    • Search for the line #listen_addresses = 'localhost'
    • Remove the # from the line.
    • Replace the 'localhost' with  'xxx.xxx.xxx.xxx', the line should now look like listen_addresses = 'xxx.xxx.xxx.xxx'

    File 7)

    <ELA home>\pgsql\data\pg_hba.conf

    Search for the following block

    IPv4 local connections:

          host all all 127.0.0.1/32 trust

    We need to replicate the  host all all 127.0.0.1/32 trust line with the new IP address in place of 127.0.0.1 and add it after that line. For replication, please copy this line itself and paste it in next line and then edit out the IP address.

    It should look like this

    IPv4 local connections:

    host all all 127.0.0.1/32 trust

    host all all xxx.xxx.xxx.xxx/32 trust

    Start EventLog Analyzer and check <ELA home>\logs\wrapper.log for the current status.

  • Troubleshooting PPM backup and failure cases

    Note: Backup will be done only for the instances with PGSQL or MSSQL database. PPM backup feature is not available for MySQL database.

    • If the database size exceeds 10GB, the auto-backup won't work and the user will be notified to backup manually before proceeding with the upgrade.
    • For PGSQL database, backup will be done only if there is enough free space available in the EventLog Analyzer installed drive. Incase of MSSQL database, the backed up data will be stored in the default backup folder configured for MSSQL. The availability of free space will be checked before backup operation and if enough space is not available, the user will be notified. Users can either clear-up enough space for auto-backup or they can proceed to back up manually.
    • For PGSQL database, only two PPM backups will be maintained and older backups will be deleted upon rotation.
    • For MSSQL database, backups won't be deleted automatically. Users will have to manually clear them.
    • Incase of upgrade failure, the backups can be used to restore the last known working state of the instance. Please contact support for the restoration process.
  • EventLog Analyzer displays "java.lang.Error: Probable fatal error: No fonts found"

    ELA employs the Dejavu-seriff font, which is preinstalled on Windows OS, when exporting reports. However, this font is not preinstalled for some Linux distributions. An error occurs in these cases.

    In such cases, install the font manually based on the distribution. The command required is listed below:

    • Case 1 : RHEL/CentOS
    • Copy to Clipboard

      sudo yum install fontconfig dejavu-sans-fonts dejavu-serif-fonts

    • Case 2 : Ubuntu/Debian
    • Copy to Clipboard

      sudo apt install fonts-dejavu fontconfig

    • Case 3 : SLES
    • Copy to Clipboard

      sudo zypper install dejavu-fonts fontconfig

Startup and Shut Down

  • MySQL-related errors on Windows machines

    Probable cause: An instance of MySQL is already running on this machine.

    Solution: Shut down all instances of MySQL and then start the EventLog Analyzer server.

    Probable cause: Port 33335 is not free

    Solution: Kill the other application running on port 33335. If you cannot free this port, then change the MySQL port used in EventLog Analyzer.

  • EventLog Analyzer displays "Port 8400 needed by EventLog Analyzer is being used by another application. Please free the port and restart EventLog Analyzer" when trying to start the server

    Probable cause: The default web server port used by EventLog Analyzer is not free.

    Solution: Kill the other application running on port 8400. Carry out the following steps.

    • Stop the EventLog Analyzer service
    • Open wrapper.conf which is available under <EventLog Analyzer Home>server/conf folder.
    • Append the below line under # Java Additional Parameters section,

    wrapper.java.additional.21=-Djava.net.preferIPv4Stack=true

    Before adding:

    wrapper.java.additional.20=-Dorg.tanukisoftware.wrapper.WrapperManager.mbean=false

    After adding:

    wrapper.java.additional.20=-Dorg.tanukisoftware.wrapper.WrapperManager.mbean=false
    wrapper.java.additional.21=-Djava.net.preferIPv4Stack=true

    • Start EventLog Analyzer service

    If you cannot free this port, then change the web server port used in EventLog Analyzer.

  • EventLog Analyzer displays "Can't Bind to Port <Port Number>" when logging into the UI.

    Probable cause:The syslog listener port of EventLog Analyzer is not free. Solution:

    • Check for the process that is occupying the syslog listener port, using netstat -anp -pudp . And if possible, try to free up this port.
    • If you have started the server in UNIX machines, please ensure that you start the server as a root user.
    • or, configure EventLog Analyzer to listen to a different syslog listener port and ensure that all your configured devices send their syslog to the newly configured syslog listener port of EventLog Analyzer
  • Start up and shut down batch files not working on Distributed Edition when taking backup.

    Probable cause: Path names given incorrectly.

    Solution:

    • Download the "Automated.zip" and extract the files "startELAservice.bat"and "stopELAservice.bat" to <ELA home>//bin/ folder.
    • Create a Windows schedule as per your requirement and ensure that the path should be <ELA Home>//bin folder.
    • If you would like to have the files to a different folder, you need to edit the downloaded files and give the absolute path as below: < eg. is the application is installed on e:\ >
      • e:\ManageEngine\EventLog\bin\wrapper.exe -p ..\server\conf\wrapper.conf  ---> to stop the EventLog Analyzer service.
      • e:\ManageEngine\EventLog\bin\wrapper.exe -t ..\server\conf\wrapper.conf  ---> to start the EventLog Analyzer service.

    Note:The script will work only if the application is started as a service.

  • EventLog Analyzer displays "Couldn't start elasticsearch at port 9300".

    Probable cause: requiretty is not disabled

    Solution: To disable requiretty, please replace requiretty with !requiretty in the etc/sudoers file.

    Note:Elasticsearch uses multiple thread pools for different types of operations. It is important for new threads to be created whenever necessary. Please make sure that the number of threads that an elasticsearch user can create is at least 4096 by setting ulimit -u 4096 as root before starting Elasticsearch or by adding elasticsearch - nproc 4096 in /etc/security/limits.conf.

Configuration

  • While adding device for monitoring, the 'Verify Login' action throws RPC server unavailable error

    The probable reason and the remedial action is: Probable cause: The device machine RPC (Remote Procedure Call) port is blocked by any other Firewall. Solution: Unblock the RPC ports in the Firewall.

  • While adding device for monitoring, the 'Verify Login' action throws 'Access Denied' error.

    The probable reasons and the remedial actions are:

    Probable cause: The device machine is not reachable from EventLog Analyzer machine.

    Solution: Check the network connectivity between device machine and EventLog Analyzer machine, by using PING command.

    Probable cause: The device machine running a System Firewall and REMOTEADMIN service is disabled.

    Solution: Check whether System Firewall is running in the device. If System Firewall is running, execute the following command in the command prompt window of the device machine:
    netsh firewall set service type=REMOTEADMIN mode=ENABLE profile=all

  • When WBEM test is carried out. it fails and shows error message with code 80041010 in Windows Server 2003.

    The probable reasons and the remedial actions are:

    Probable cause: By default, WMI component is not installed in Windows 2003 Server

    Solution: Win32_Product class is not installed by default on Windows Server 2003. To add the class, follow the procedure given below:

    1. In Add or Remove Programs, click Add/Remove Windows Components.

    2. In the Windows Components Wizard, select Management and Monitoring Tools, then click Details.

    3. In the Management and Monitoring Tools dialog box, select WMI Windows Installer Provider and then click OK.

    4. Click Next.

  • How to enable Object Access logging in Linux OS?

    The probable reasons and the remedial actions are:

    Probable cause: The object access log is not enabled in Linux OS.

    Solution: Steps to enable object access in Linux OS, is given below:

    In the file /etc/xinted.d/wu-ftpd, edit the server arguments as mentioned below:

    server_args = -i -o -L

  • What are commands to start and stop Syslog Deamon in Solaris 10?

    The probable reasons and the remedial actions are:

    Probable cause: Unable to start or stop Syslog Daemon in Solaris 10

    Solution: In Solaris 10, the commands to stop and start the syslogd daemon are:

    # svcadm disable svc:/system/system-log:default

    # svcadm enable svc:/system/system-log:default

    In Solaris 10, to restart the syslogd daemon and force it to reread /etc/syslog.conf:

    # svcadm refresh svc:/system/system-log:default

    (or)

    # svcadm -v restart svc:/system/system-log:default

  • While configuring incident management, I am facing SSL Connection error.

    This error can occur if the ticketing tool server's HTTPS certificate is not included in EventLog Analyzer's JRE certificate store. To import the certificate to EventLog Analyzer's JRE certificate store, follow the steps below:


    1. Place the server's certificate in your browser's certificate store by allowing trust when your browser throws up the error saying that the certificate is not trusted.
    2. Export the certificate as a binary DER file from your browser.
    3. For Firefox, you can do this by following the steps below:
      • Click the lock symbol next to the URL and click More Information.
      • Select the Security tab, click View certificate, and click the Details tab.
      • Select the certificate and click Export. Select a location in your local machine and save the certificate.
    4. For IE, Internet Options > Content > Certificates > Personal > Export
    5. For Chrome, Settings > Show Advanced Settings > Manage Certificates

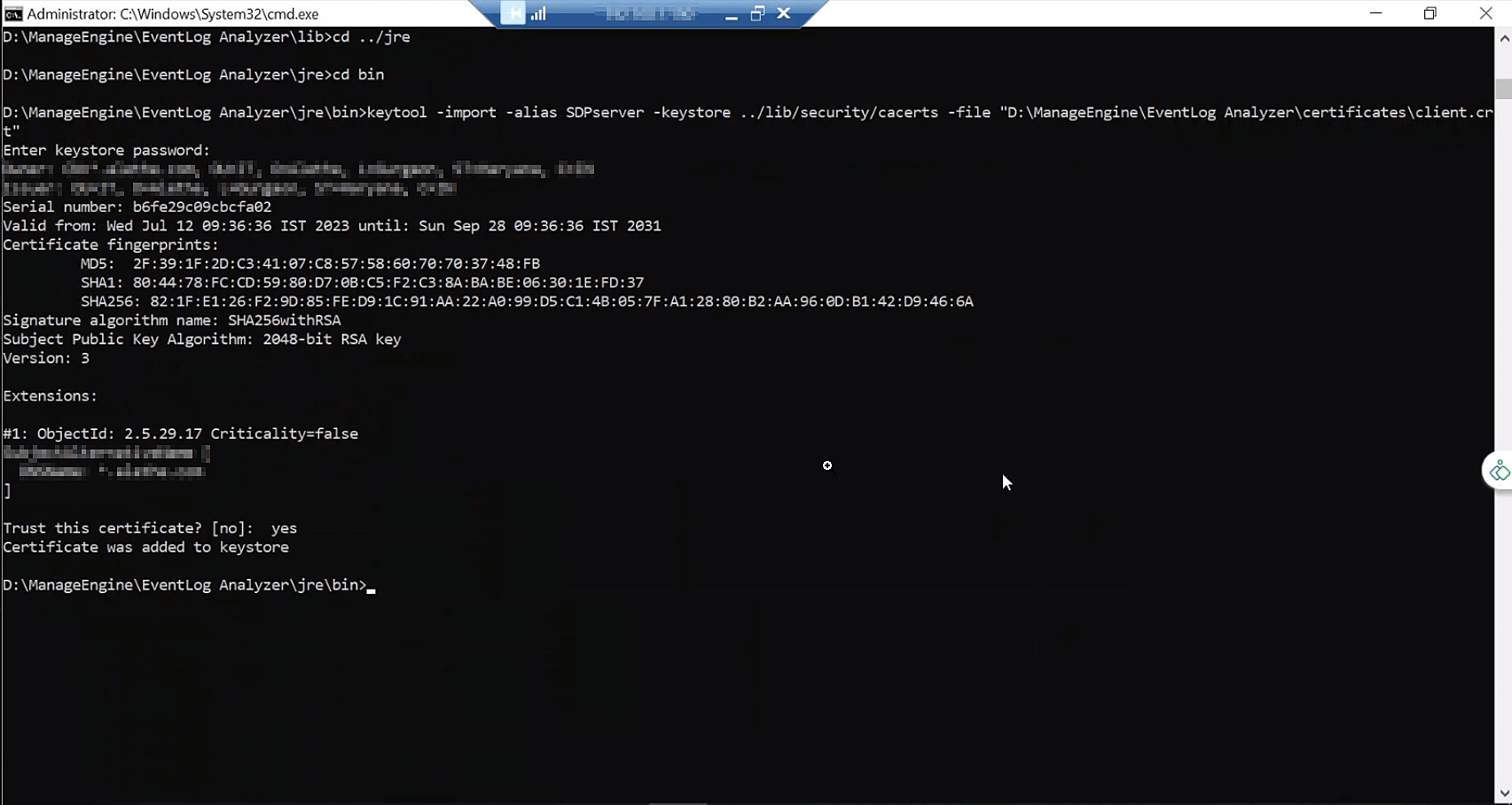

    6. Use the keytool utility to import the certificate into EventLog Analyzer's JRE certificate store. The command should be executed from <Eventlog Analyzer Home>/jre/bin.
    7. Copy to Clipboard

      keytool -import -alias ticketingtool -keystore <Eventlog Analzyer Home>/jre/lib/security/cacerts -file path-to-certificate-file

      While configuring incident management, I am facing SSL Connection error
    8. Enter the keystore password. Note that the default password is changeit.
  • While configuring EventLog Analyzer with JIRA On-Premise, the 'Test and Save' action throws Captcha Verification failed error.

    If you are facing problems while configuring EventLog Analyzer with JIRA On-Premise even after entering the valid credentials, please follow the steps below:

    1. Go to the ticketing tool instance and try logging in to your account.
    2. Enter the valid credentials and complete the captcha verification.
    3. You can now try configuring EventLog Analyzer with JIRA On-Premise again. The Test and Save action will complete successfully without any errors.

    Help link: https://developer.atlassian.com/cloud/jira/software/basic-auth-for-rest-apis/#captcha

    Steps to edit maximum attempts or disable captcha:

    1. Login to your JIRA On-Premise account.
    2. In the top right corner, select Administration and go to System > General Configuration > Edit Settings.
    3. Go to the Maximum Authentication Attempts Allowed field and enter the desired value. When you exceed this limit, you have to login to your JIRA On-Premise account with captcha verification again. Otherwise, you won't be able to configure EventLog Analyzer with JIRA On-Premise even with valid credentials.
    4. If you leave this field blank, captcha will be disabled. You can attempt to integrate EventLog Analyzer with JIRA On-Premise even after multiple authentication failures.

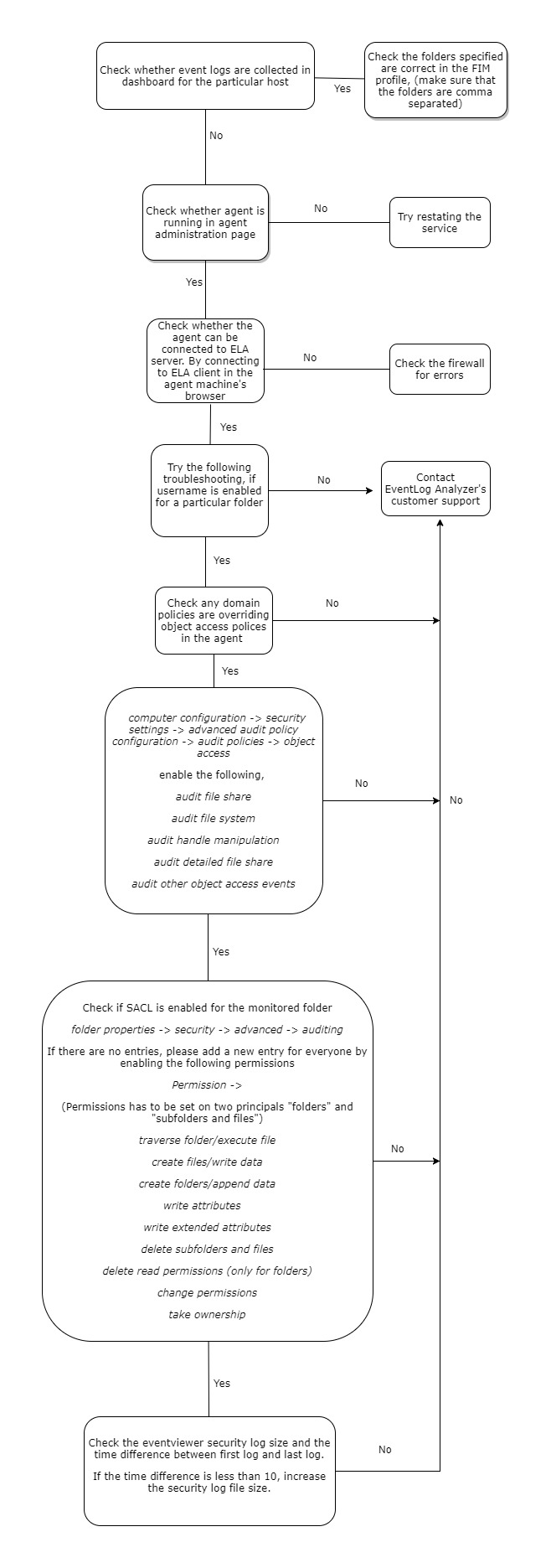

  • File Integrity Monitoring (FIM) troubleshooting

    Try the following troubleshooting, if username is enabled for a particular folder.

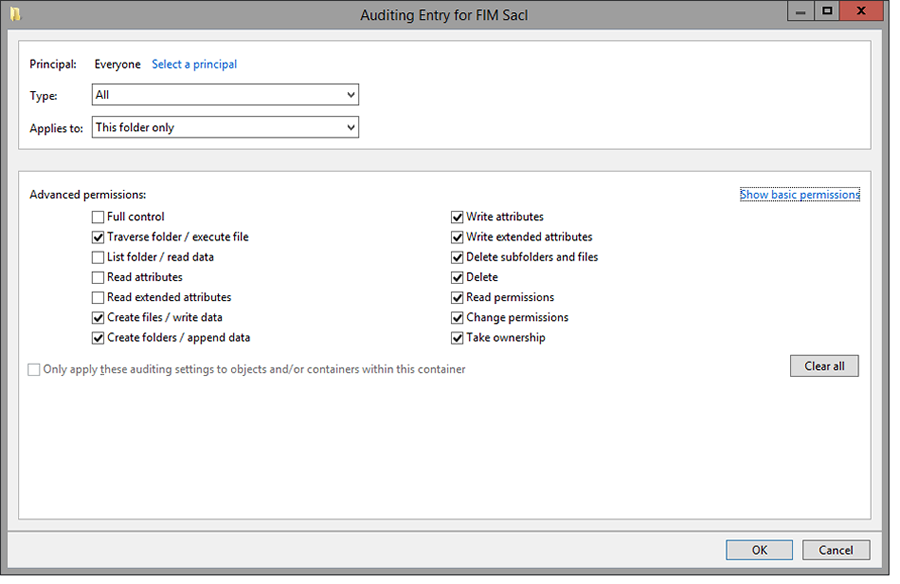

    Note: The following GUI is for the SACL entry in folder properties.

  • Port management error codes

    The following are some of the common errors, its causes and the possible solution to resolve the condition. Feel free to contact our support team for any information.

    Port already used by some other application

    Cause: Cannot use the specified port because it is already used by some other application.

    Solution: This can be solved either by changing the port in the specified application or by using a new port.

    If you use a new port, make sure to change the ports in the forwarding device either manually or using auto log forwarding configuration.

    TLS not configured

    Cause: HTTPS not configured to support TLS encrypted logs.

    Solution: Configure the server to use either a self-signed certificate or a valid PFX certificate.

    For more details visit Connection settings.

    PFX not configured

    Cause: HTTPS is configured, but the type of certificate is not supported.

    Solution 1: If no valid certificate is used, it's recommended to use SelfSignedCertificate.

    To find the type of certificate used,

    • Open Conf/Server.xml file check for connector tag.
    • Check the extention for the attribute keystoreFile.

    Solution 2: If valid KeyStore certificate is used, execute the following command in the <EventLog Analyzer home>/jre/bin terminal.

    keytool -importkeystore -srckeystore <certificate path> -destkeystore server.pfx -deststoretype PKCS12 -deststorepass <password> -srcalias tomcat -destalias tomcat

    For more details visit Connection settings.

    External error

    Cause: Unknown external issue.

    Solution: please contact EventLog Analyzer Technical Support

  • The event source file(s) configuration throws the "Unable to discover files" error.

    Possible remedial actions include:

    • Check the credentials of the machine.
    • Check the connectivity of the device.
    • Ensure that the remote registry service is not disabled.
    • The user should have admin privileges.
    • The open keys and keys with sub-keys cannot be deleted.
  • How to change PostgreSQL superuser password

    Execute the changeDBPassword.bat/sh file located in <EventLog Analyzer Home>/bin.

    Windows:

    • changeDBPassword.bat -U postgres -p <old_password> -P <new_password>

    Linux:

    • changeDBPassword.sh -U postgres -p <old_password> -P <new_password>
  • Handling duplicated Windows devices

    Problem statement:

    Some Windows devices appear duplicated due to a user interface issue identified as ELA 12260.

    Action taken:

    Local collector association:

    Duplicated devices with the oldest log collection timestamps will be deleted if they are linked to a local collector.

    Remote collector association with shorter last message time:

    Duplicated devices with the oldest log collection timestamps will be disabled if:

    They are linked to a remote collector.

    The difference between the current date and the last message time is less than the retention period.

    Remote collector association with longer last message time:

    Duplicated devices with the oldest log collection timestamps will be deleted if:

    They are associated with a remote collector.

    The difference between the current date and the last message time exceeds the retention period.

    Profile remapping:

    If any of the deleted or disabled devices were previously configured under the following profiles: Application, Import, Alert, Report, Log Collection Filter, Syslog Forwarder, Agent, they will be remapped to ensure continued functionality.

    Action required by the customer:

    Device reconfiguration:

    For configurations pertaining to device groups, log collection failure alerts, compliance and custom log parser, please reconfigure the respective device. The erroneous device may have been mistakenly configured due to the UI issue mentioned above.

Error statuses in File Integrity Monitoring (FIM).

  • Permission denied

    Causes

    • Credentials may be incorrect.
    • Credentials with insufficient privileges.
    • There might be a temp folder available with insufficient privileges for the user.
    • The user does not have privileges for agent folder.

    Solutions

    • Credentials can be checked by accessing the SSH terminal.
    • Credentials with the privilege to start, stop, and restart the audit daemon, and also transfer files to the Linux device are necessary.
    • Setting Privilege for temp if available.
      Copy to Clipboard

      setfacl -R -m u:<username>:rwx /opt/ManageEngine/temp

    • Setting Privileges for the agent folder.
      Copy to Clipboard

      setfacl -R -m u:<username>:rwx /opt/ManageEngine/EventLogAnalyzer_Agent

      For CentOS/RHEL v8 and later/Ubuntu/openSUSE/Debian/Fedora:
      Copy to Clipboard

      setfacl -m u:<username>:w /etc/audit/plugins.d/elafim.conf

      For CentOS/RHEL v6 to v7.9:
      Copy to Clipboard

      setfacl -m u:<username>:w /etc/audisp/plugins.d/elafim.conf

  • Audit service unavailable

    Cause

    • The audit daemon service is not present in the selected Linux device.

    Solution

    • The audit daemon package must be installed along with Audisp.
  • Access restriction from SELinux

    Cause

    • SELinux hinders the running of the audit process.

    Solutions

    • SELinux's presence could be checked using getenforce command.
    • Configure SELinux in permissive mode. After changing it to the permissive mode, navigate to Manage Agent page and click on Reinstall to reinstall the agent.
  • Agent upgrade failure

    Causes

    • No connectivity with the agent during product upgrade.
    • Incorrect credentials.

    Solutions

    • Manually install the agent by navigating to the Manage Agent page.
    • To install agent:

      Windows device: Run the EventLogAgent.msi.

      Linux device: Execute chmod +x EventLogAgent.bin, then run EventLogAgent.bin.

  • Agent Installation Failed

    Causes

      • Machine may be in the offline mode.
      • Machine may not exist.
      • Network path may not be reachable.

    Solutions

      • To confirm if the device exists, it could be pinged.
      • Manually install the agent by navigating to the Manage Agent page.
  • Agent Installation on Incompatible Platform

    Causes

    • The agent is installed on a host which has neither a Linux nor a Windows OS.
    Solutions
    • Supported Linux distributions are CentOS, Debian, Fedora, openSUSE, Red Hat, and Ubuntu.
    • Windows versions greater than 5.2 (Windows Server 2003) are supported.
  • ACL Package is not installed

    Cause:

    The acl package is not present in the selected Linux device.

    Solution:

    The acl package must be installed.

  • Agent could not be connected using SSH

    Causes:
    • Due to the missing SSH Algorithm.
    • Insufficient privileges for the "/opt/ManageEngine"
    Solutions:
    • Ensure that any of the SSH Algorithms are present in the "/etc/ssh/sshd_config" file.
    • Setting privilege for the " /opt/ManageEngine "

Auto Log Forwarding

  • Permission Denied

    Causes:

    Insufficient privileges for the rsyslog.conf or syslog.conf file.

    Solutions:

    Setting privilege for rsyslog.conf or syslog.conf file.

Log Collection and Reporting

  • I've added a device, but EventLog Analyzer is not collecting event logs from it

    Probable cause: The device machine is not reachable from the EventLog Analyzer server machine
    Solution: Check if the device machine responds to a ping command. If it does not, then the machine is not reachable. The device machine has to be reachable from the EventLog Analyzer server in order to collect event logs.
    Probable cause: You do not have administrative rights on the device machine
    Solution: Edit the device's details, and enter the Administrator login credentials of the device machine. Click Verify Login to see if the login was successful.

    Error Code 0x251C

    Probable cause: The device was added when importing application logs associated with it. In this case, only the specified application logs are collected from the device, and the device type is listed as unknown.

    Solution:

    1. Click on the update icon next to the device name.
    2. Select the appropriate device type.
    3. Provide any other required information for the selected device type.
    4. Click on update.
  • I get an Access Denied error for a device when I click on "Verify Login" but I have given the correct login credentials

    Probable cause: There may be other reasons for the Access Denied error.
    Solution: Refer the Cause and Solution for the Error Code you got during Verify login.


     Error Code 00x80070005

    Scanning of the Windows workstation failed due to one of the following reasons:

    1. The login name and password provided for scanning is invalid in the workstation. Solution: Check if the login name and password are entered correctly.
    2. Remote DCOM option is disabled in the remote workstation Solution:
    3. Check if Remote DCOM is enabled in the remote workstation. If not enabled, then enable the same in the following way:

      1. Select Start > Run.
      2. Type dcomcnfg in the text box and click OK.
      3. Select theDefault Propertiestab.
      4. Select theEnable Distributed COMin this machine checkbox.
      5. Click OK.

      To enable DCOM on Windows XP devices:

      Select Start > Run

      1. Type dcomcnfg in the text box and clickOK
      2. Click on Component Services > Computers > My Computer
      3. Right-click and selectProperties
      4. Select the Default Propertiestab
      5. Select theEnable Distributed COM in this machine checkbox
      6. ClickOK
    4. User account is invalid in the target machine.

    Check if the user account is valid in the target machine by opening a command prompt and executing the following commands:

    Copy to Clipboard

    net use \<RemoteComputerName>C$ /u:<DomainNameUserName> "<password>"

    net use \<RemoteComputerName>ADMIN$ /u:<DomainNameUserName> "<password>"

    If these commands show any errors, the provided user account is not valid on the target machine.

    Error Code 0x80041003

    The user name provided for scanning does not have sufficient access privileges to perform the scanning operation. This user may not belong to the Administrator group for this device machine.

    Solution: Move the user to the Administrator Group of the workstation or scan the machine using an administrator (preferably a Domain Administrator) account.

    Error Code 0x800706ba

    A firewall is configured on the remote computer. Such exceptions mostly occur in Windows XP (SP 2), when the default Windows firewall is enabled.

    Solution:

    1. Disable the default Firewall in the Windows XP machine:
    2. SelectStart > Run

      Type Firewall.cpl and click OK

      In the General tab, click Off

      Click OK

    3.  If the firewall cannot be disabled, launch Remote Administration for administrators on the remote machine by executing the following command:
    Copy to Clipboard

    netsh firewall set service RemoteAdmin

    After scanning, you can disable Remote Administration using the following command:

    Copy to Clipboard

    netsh firewall set service RemoteAdmin disable

    Error Code 0x80040154
    1. WMI is not available in the remote windows workstation. This happens in Windows NT. Such error codes might also occur in higher versions of Windows if the WMI Components are not registered properly.
    2. Solution: Install WMI core in the remote workstation.

    3. WMI Components are not registered.
    4. Solution: Register the WMI DLL files by executing the following command in the command prompt: winmgmt /RegServer

    Error Code 0x80080005

    There is some internal execution failure in the WMI service (winmgmt.exe) running in the device machine. The last update of the WMI Repository in that workstation could have failed.

    Solution:

    Restart the WMI Service in the remote workstation:

    1. Select Start > Run
    2. Type Services.msc and click OK
    3. In the Services window that opens, select Windows Management Instrumentation service.
    4. Right-click and select Restart

    Error Code 1722, 1726, 1753, 1825

    Probable cause: The device machine RPC (Remote Procedure Call) port is blocked by another firewall.

    Solution: Unblock the RPC ports in the firewall.

    For any other error codes, refer the MSDN knowledge base.

  • I have added an Custom alert profile and enabled it. But the alert is not generated in EventLog Analyzer even though the event has occured in the device machine

    Probable cause: The alert criteria have not been defined properly

    Solution: Please ensure that the required fields in the Add Alert Profile screen have been given properly.Check if the e-mail address provided is correct. Ensure that the Mail server has been configured correctly.

  • When I create a Custom Report, I am not getting the report with the configured message in the Message Filter

    Probable cause: The message filters have not been defined properly
    Solution:When you are entering the string in the Message Filters for matching with the log message, ensure you copy/enter the exact string as shown in the Windows Event Viewer.
    e.g., Logon Name:John

  • MS SQL server for EventLog Analyzer stopped

    Probable cause: The transaction logs of MS SQL could be full
    Solution: If the EventLog Analyzer MS SQL database transaction logs are full, shrink the same with the procedure given below:

    • Stop the Eventlog Analyzer Server/Service (Check the Eventlog Analyzer server machine's Task Manager to ensure that the processes 'SysEvtCol.exe', 'Java.exe' are not running).
    • Connect MS SQL client (using Microsoft SQL Server Management Studio) and execute the below query:
      sp_dboption 'eventlog', 'trunc. log on chkpt.', 'true'
      To execute the query, select and highlight the above command and press F5 key.
    • After executing the above command, select and highlight the below command and press F5 key to execute it.
      DBCC SHRINKDATABASE (eventlog)
    • Note: This process will take some time, based on the EventLog Analyzer database size.
    • Start the Eventlog Analyzer.
  • I successfully configured Oracle device(s), still cannot view the data

    If Oracle device is Windows, open Event viewer in that machine and check for Oracle source logs under Application type. If Linux, check the appropriate log file to which you are writing Oracle logs. If the Oracle logs are available in the specified file, still EventLog Analyzer is not collecting the logs, contact EventLog Analyzer Support.

    The user name provided for scanning does not have sufficient access privileges to perform the scanning operation. Probably, this user does not belong to the Administrator group for this device machine

  • The Syslog host is not added automatically to EventLog Analyzer/the Syslog reception has suddenly stopped

    Check EventLog Analyzer's live Syslog Viewer for incoming Syslog packets.

    If you are able to view the logs, it means that the packets are reaching the machine, but not to EventLog Analyzer. You need to check your Windows firewall or Linux IP tables.

    If you are not able to view the logs in the Syslog viewer, then check if the EventLog Analyzer server is reachable. This can be done in the following ways:

    1. Ping the server.
    2. For TCP, you can try the command telnet <ela_server_name> <port_no> where 514 is the default TCP port.
    3. tcpdump
    4. Copy to Clipboard

      tcpdump -n dst <ela_server_name> and dst port <port_no>

    If reachable, it means there was some issue with the configuration. If not reachable, then you are facing a network issue.

EventLog Analyzer agent management

If you have trouble installing the agent using the EventLog Analyzer console, GPOs or software installation tools, you can try to install the agent manually. Here the the steps for manual agent installation.

  • Agents are not reachable from the EventLog Analyzer server

    If an agent is installed manually without credentials or if the agent credentials are updated incorrectly, it leads to the "Agent not reachable from server" status (see screenshot below).

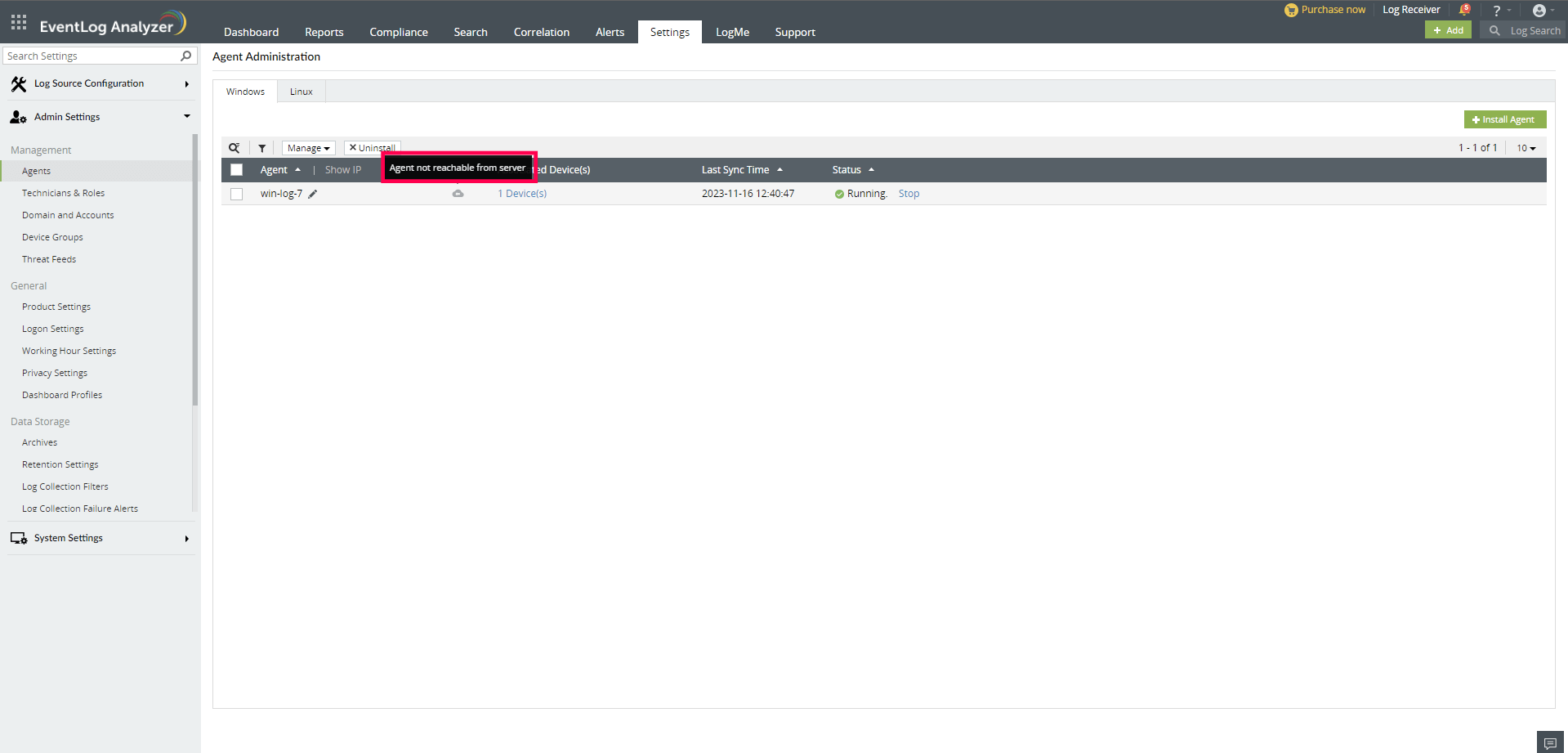

    Agents are not reachable from the EventLog Analyzer server

    In such a state, the following actions performed on the agent will not reflect immediately.

    1. Force restart agent
    2. Stopping agent
    3. Updating device IP and credentials
    4. Adding, deleting, enabling or disabling Device/LogCollection Filter/FIM
    5. Updating FIM template
    6. Updating monitoring interval

    Note: This icon does not hinder the log collection process, logs will be collected regardless of the presence of this icon.

    Furthermore, actions such as starting and uninstalling the agent must be manually executed, as they cannot be performed through the UI due to invalid credentials.

    If the cloud icon, indicating that the agent is unreachable from the server, is to be hidden or if real-time actions are required, please make sure to update the credentials accurately.

Performance

  • For troubleshooting, please follow the steps below:

    1. Check if other applications are blocking the CPU cycle for EventLog Analyzer.
    2. If a virtual machine is used, check for over provisioning or if snapshots are affecting the performance.
    3. If the log flow rate is high, please check our tuning guide.

Error messages while adding STIX/TAXII servers to EventLog Analyzer

While I was trying to add a STIX/TAXII server to EventLog Analyzer, I got the following error messages. What do they mean?

  • This feature has been disabled for Online Demo!

    This error message pops up when the feature you tried to use is not available in the online demo version of EventLog Analyzer. To try out that feature, download the free version of EventLog Analyzer.

  • Connection failed. Please try configuring proxy server.

    This error message can be caused because of different reasons. It might be due to network issues, proxy related issues, bad requests in the network, or if the URL is unable to locate a STIX/TAXII server.

  • Failed to connect to the URL.

    This error message denotes that the URL entered is malformed.

  • Authorization failed.

    This error message signifies that the credentials entered are wrong.

SSL Troubleshooting steps

  • Certificate name mismatch

    Description:

    This error occurs when the common name of the SSL Certificate doesn't exactly match the hostname of the server in which the EventLog Analyzer is installed.

    Solution:

    Please get a new SSL certificate for the current hostname of the server in which EventLog Analyzer is installed.

  • Invalid Certificate

    Description:

    This error occurs when the SSL certificate you have configured with EventLog Analyzer is invalid. A certificate can become invalid if it has expired or other reasons.

    Solution:

    Please configure EvnetLog analyzer to use a valid SSL certificate.

  • SMS Settings

    Troubleshooting SSLHandshakeException in SMS Server Settings.

    Description:

    This exception occurs when you configure a SMTP mail server or a web server with SSL in EventLog Analyzer, and the server uses a self-signed certificate. The Java Runtime Environment used in EventLog Analyzer will not trust self-signed certificates unless it is explicitly imported.

    Solution:
    You need to import the self-signed certificates used by the server in the JRE package used by EventLog Analyzer. Follow the steps given below:

    Step 1: Download the certificate

    For SMTP servers:

    Note:
    • To download the certificate used by SMTP server, you must have OpenSSL installed. You can download it from here.
    • Open the command prompt and change to the bin folder in the OpenSSL installed location.
    • Now run the following command,
    Copy to Clipboard

    openssl.exe s_client -connect SMTPServer: Portno -starttls smtp > certificatename.cer

    • For example, openssl.exe s_client -connect smtp.gmail.com:587 -starttls smtp > gmailcert.cer

    For Web Servers:

    • Open the web URL in a browser.
    • Click the padlock icon on the address bar.
    • Click More Information. This opens the Certificate Viewer window showing the certificate used by that web server.
    • Click View Certificate.
    • When the Certificate window showing Certificate Information Authority opens, click the Details tab.
    • Click Copy to File.
    • In the Certificate Export Wizard that opens, click Next.
    • Select the format as DRE encoded binary X.509 (.CER) and click Next.
    • Enter the path where you wish to save the file and click Finish.

    Step 2: Import the certificates in JRE package of EventLog Analyzer.

    • Open a command prompt and change to the \jre\bin folder. For example: C:\ManageEngine\EventLogAnalyzer\jre\bin.
    • Run the following command,
    • Copy to Clipboard

      Keytool -importcert -alias myprivateroot -keystore ..\lib\security\cacerts -file

    • For example: Keytool -importcert -alias myprivateroot -keystore ..\lib\security\cacerts -file C:\smtpcert.cer
    • Enter changeit when prompted for a password.
    • Enter y when prompted Yes or No.
    • Close the command prompt and restart EventLog Analyzer.

Threat Intelligence Troubleshooting Tips

  • IP Geolocation data store corruption

    This may happen when the product is shutdowns while the data store is updating and there is no backup available.

    Troubleshooting steps:

    • This is a rare scenario and it happens only when the product shuts down abruptly during the first ever download of IP geolocation data.

    • There is no need for a troubleshoot as EventLog Analyzer will automatically download the data in the next schedule. Please note that the IP geolocation data gets automatically updated daily at 21:00 hours.

  • IP Geolocation data update failure

    This occurs when there is no internet connection on EventLog Analyzer server or if the server is unreachable.

    Troubleshooting steps:

    • Make sure you have a working internet connection.

    • Whitelist the following in your firewall:

      1. https://creator.zoho.com/
      2. https://creatorapp.zohopublic.com/
  • Log360 Cloud threat feed server is unavailable

    This may happen when the product is unable to connect to the Log360 Cloud feeds server.

    Case 1: Access is Blocked under firewall

    Probable cause: The access to Log360 Cloud feeds server may be blocked under the firewall.

    Solution:

    1. Review the firewall settings and look for any rules that might block the access.
    2. If you find any blocking rules, create a new rule that allows the traffic to the Log360Cloud feeds server.
    3. Save the new rule and update the firewall with the new settings.

    Case 2: Unable to resolve DNS

    Probable cause: The machine could not resolve the domain using its DNS resolver.

    Solution:

    1. Check the DNS settings on the machine on which the product is running. Ensure that the DNS server settings are correct and that the machine is able to communicate with the DNS server.
    2. Try to resolve the domain name using a command line tool such as nslookup or dig to confirm that the DNS resolution is failing.
    3. Check if there are any firewalls or security settings that may be blocking DNS traffic.
    4. If using a proxy server resolves the DNS of the host involved, configure the proxy server in the product connection settings.

    If none of the above works and the issue persists, contact our Technical Support team.

  • License file not found

    If the license file cannot be accessed in the following page https://licensing.manageengine.com , kindly contact eventlog-support@manageengine.com

  • Update Access Key(Log360 Cloud Threat Analytics)

    This can happen if the access key gets invalidated.

    To regenerate the access key, please follow the below steps:

    1. Login to https://log360feeds.manageengine.com/
    2. Click on Regenerate Key.
    3. In the product, go to Settings > Admin Settings > Threat Feeds > Advanced Threat Analytics > Log360 Cloud Threat Analytics and add the new key.
  • VirusTotal API Quota Limit Exceeded

    This happens when you exceed one of your quotas (per minute, per day or per month). Daily quotas are reset every day at 00:00 UTC.

    Troubleshooting steps:

    • Sign in into VirusTotal Account.
    • Find your API quota under Profile → API Key → API Consumption for last 30 days (Check API limit for the day)
  • Internal Server Error

    There may be various reasons for receiving this error.

    • The request has been submitted to VirusTotal and there are server-side internal issues.
    • The request has been submitted to Log360 Cloud Threat Analytics, and there are server-side internal issues.

    Customers are advised to retry in a while, and if the same error is encountered, kindly contact " eventlog-support@manageengine.com "

  • Default Threat Sync Failure

    This occurs when EventLog Analyzer server faces network connectivity issues.

    Troubleshooting steps:

    Make sure you have a working internet connection.

    Whitelist the following in your firewall:

    • https://creator.zoho.com/
    • https://creatorapp.zohopublic.com/

Time zone

  • What to do if Daylight Savings Time(DST) is practiced in your region, but the product is not DST updated?

    This occurs, when the JRE present in the product is not updated of the changes.

    1. Download Java SE TZUpdater from the official Oracle site. link "https://www.oracle.com/java/technologies/javase-tzupdater-downloads.html"
    2. Take back up of <Eventlog Analyzer_HOME>\jre
    3. After downloading, extract and copy the file tzupdater.jar to <EventLog Analyzer HOME>\jre\bin
    4. Stop EventLog Analyzer Service.
    5. Open Command Prompt as Administrator, navigate to <EventLog Analyzer HOME>\jre\bin.
    6. Execute the following command
      "java -jar tzupdater.jar -l <please select the latest time zone updater link from https://data.iana.org/time-zones/releases/>"
      For example
      Copy to Clipboard
    7. Note:

      Incase customer environment is restricted from Online access follow 6.1 and 6.2.

      6.1: please select the latest time zone updater link from https://data.iana.org/time-zones/releases/ and download the latest timezone zip in tar.gz format.

      6.2 Execute the following command "java -jar tzupdater.jar -l file:downloaded_timezone_data_zip.tar.gz"

      For example

      Copy to Clipboard

      java -jar tzupdater.jar -l file:"C:/ManageEngine/EventLog/jre/tzdata2023c.tar.gz"

    8. Start EventLog Analyzer Service

Search Engine - Elasticsearch

  • Data path not accessible

    What is Elasticsearch data path?

    Elasticsearch writes the data you index to indices, and data streams to a data directory which is available in elasticsearch.yml. Search and indexing will not work if the data path is not accessible.

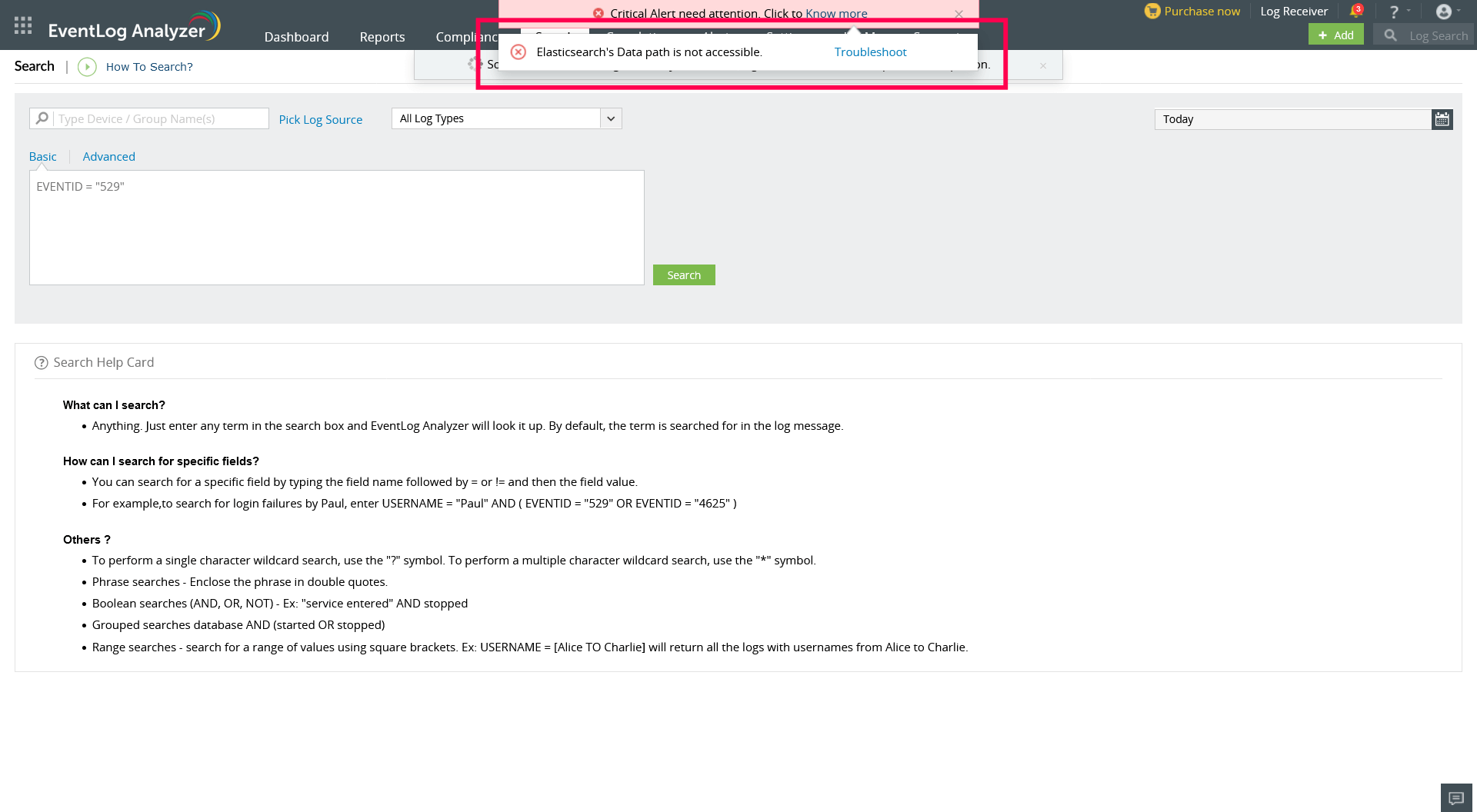

    If the data path is not accessible to write, the following notification will be shown.

    Search Engine - Elasticsearch

    Troubleshooting steps

    1. Open elasticsearch.yml file,search for path.data and find its value. elasticsearch.yml file can be found in <Installation Dir>/EventLog Analyzer/ES/config/elasticsearch.yml
    2. Make sure that both read and write permissions are enabled for the service account running EventLog Analyzer.
    3. If the path is a network location, then ensure connectivity and that the network path is accessible from the machine running EventLog Analyzer. Verify that there are no latency issues between the server and remote data path.

    If there is a need to change the data path of Elasticsearch, kindly follow this guide.

Copyright © 2020, ZOHO Corp. All Rights Reserved.

Get download link
