Distributed Asset Scan



    If you account has offices across the globe, then the ServiceDesk Plus - MSP server may not be able to access all the assets in sites. Hence, a Remote AE server is installed in each site which scans and maintains all the workstations, and user information of the respective sites. The data from the Remote AE Server is pushed to the ServiceDesk Plus - MSP Server either manually or by scheduling the data periodically.

    Since there is a constant need to update the users and workstation information in the ServiceDesk Plus - MSP Server, you can automate the process by specifying the central server details in the remote server thereby synchronizing the two servers.

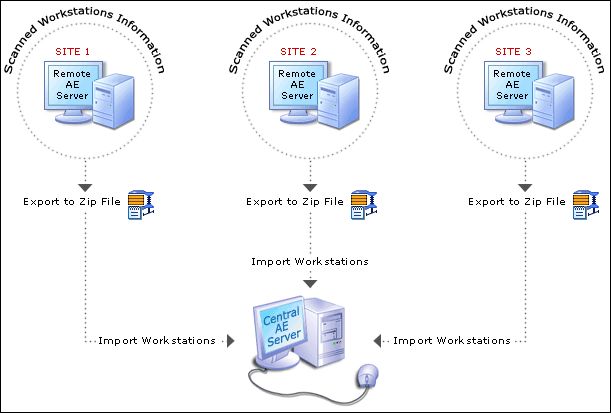

    distributed_assets





    Methods to perform Distributed Asset Scan



    Manual

    1. Extract the data in a zip format from the Remote AE server and export it to the SDP - MSP server.

    2. Import this zip file into the SDP - MSP Server.



    Auto Synchronization

    1. Configure the SDP - MSP Server details in Central Server Settings.

    2. Select Export and Push data to Central Server now button. The data is automatically pushed to the SDP - MSP server provided the server is reachable.





    Asset Scan in Remote AE Server

    The scanned information in the Remote AE Server can be updated periodically either manually or automatically to the SDP - MSP Server.



    Installing the Remote AE Server

    You can install AssetExplorer as a Remote Server by choosing the server type as Remote AE Server on starting the application for the first time. The application gets started as the Remote AE Server.



    choose-assetexplorer-server-type



    Accessing the Configuration

    1. Click the Admin tab in the header pane.

    2. Click Distributed Asset Scan distributed-assetscan-iconicon under Discovery block.



    Methods to export the data

    The data can be exported manually or pushed automatically in the SDP - MSP Server.



    Manual

    1. Click Export Data to export the asset data into a zip file.

    2. A confirmation message appears. Click OK to proceed.

    3. If the data has been generated successfully, an Export Data box pops up.

    4. Click on the link to download the zip.

    5. Send the zip file to the central server location through E-mail or through some storage device.

    Auto Synchronization

    If the central server is reachable, configure the details of the SDP - MSP Server by clicking on Central Server Settings.

    • Server Name: Enter the Server Name or IP Address of the SDP - MSP Server.

    • Server Port: The port where the SDP - MSP Server is installed.

    • Server Protocol: The protocol to connect the SDP - MSP server and the remote server. Say, Http, Https

    • Site: Site where the Remote AE Server is installed. The site specified must be configured in the SDP - MSP server so that the assets and users is associated to the appropriate site.

    • Username & Password: Credentials of the SDP - MSP Server.

    • Domain Name: Specify Domain Name if Active Directory authentication is enabled in SDP - MSP Server.

    The Central Server may be connected through a proxy server. In this case,

    • Enable Is connected through Proxy Server check box.

    • Proxy Server Name: The Server Name or IP Address of the Proxy server.

    • Proxy Server Port: The port of the proxy server.

    • Proxy Username & Password: Credentials of the Proxy Server.

    On configuring the Central Server Settings, you can export and push the data to central server automatically by clicking on Export and Push Data to Central Server Now button. The executed date, status of the operation and related comments is displayed in the List View.



    Schedule Pushing of data to SDP - MSP Server

    You can schedule to push the data from the remote AE server to the SDP - MSP Server at periodic intervals.

    1. Click Schedule to synchronize data with Central Server link.

    2. Select Enable radio button.

    3. Select the number of days after which the data should be pushed to the central server.

    4. Select the date from the calendar icon to start the process. Also select the Time in hours and minutes from the drop down.

    5. If there is a failure in pushing the data to the central server, you can send a Notify to the technician. Specify the email address in the text provided.



    Importing data into SDP - MSP Server

    Accessing the Configuration

    1. Click the Admin tab in the header pane.

    2. Click Distributed Asset Scan icon distributed-assetscan-icon under Discovery block.

    3. Click Browse and locate the zip file of the scanned assets.

    4. Select the Site of the remote server from the drop down.

    5. Click Import button to import the data. On importing the data successfully you get a success message.
