Install APM Insight Java Agent in Azure Web App

• Create a new directory under <APP_HOME>/WEB-INF/lib, say appmanager.
• Download latest the APM Insight java agent zip file (apminsight-javaagent.zip) here
• Extract the zip file to a appmanager directory to find agent jar and its configuration files.
• Open the apminsight.conf file in any text editor and include the following keys:
  license.key=[LICENSE KEY]
  apm.host=http://[HOST]:[PORT]

  Example:

  license.key=APMI_74447444b666d7ab5174cc3021a9b68dd4b3364d50f99c2969360810313e8fac
  apm.host=http://apm-prod-server:9090


  To learn more about the configurations, visit our Configuration Guide page.

• Bundle your application and deploy it in Azure WebApp service.

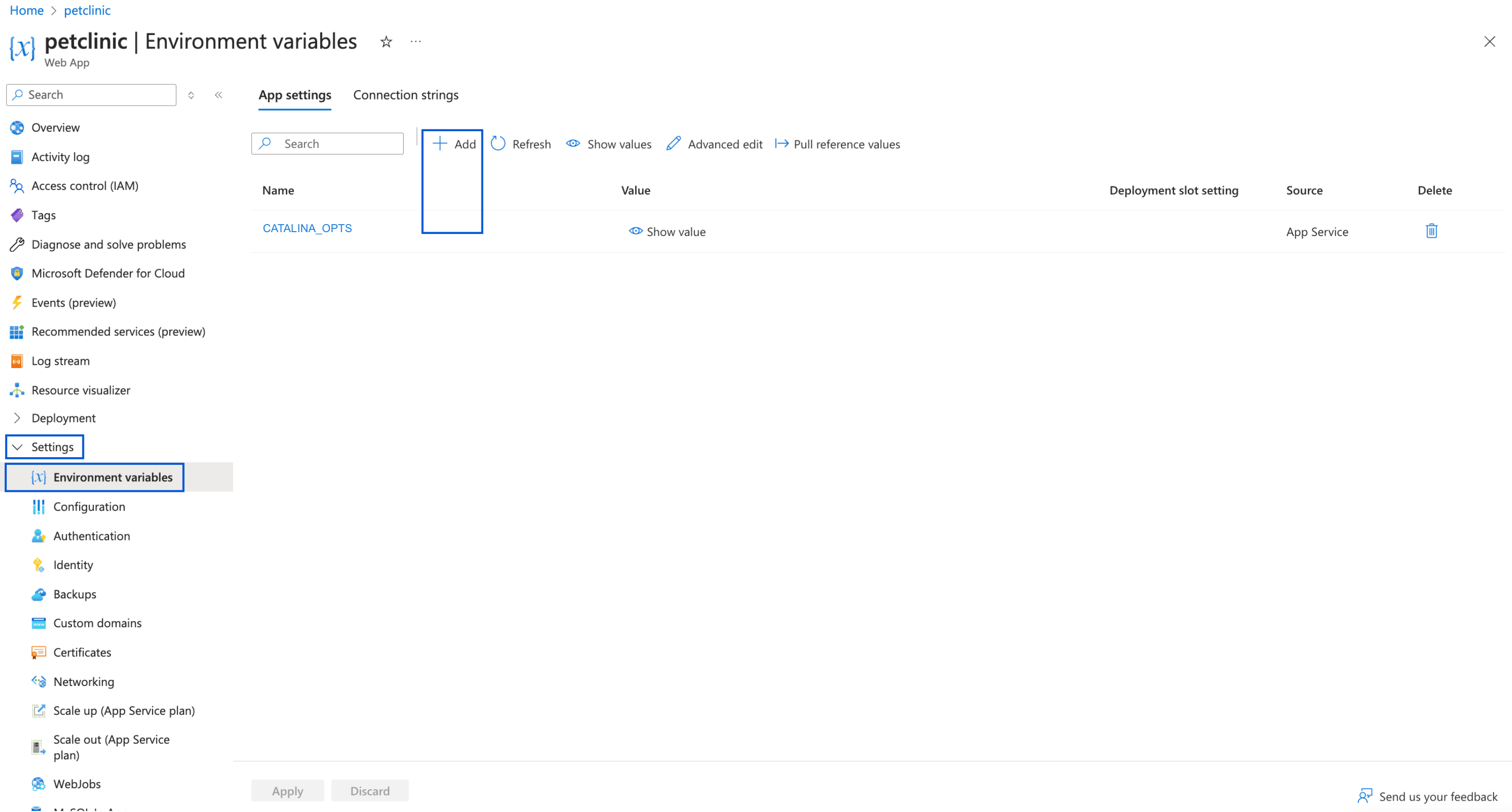

• Add the below JVM argument in App Settings under Settings of your WebApp. Refer to screenshot.
• If using Tomcat server, please add Key "CATALINA_OPTS" and value as

• If using Jetty server, please add Key "JAVA_OPTIONS" and value as

• Restart your Webapp once for changes to take effect.
