SNMP, known as Simple Network Management Protocol, was found to solve complex network environment with complex network devices. SNMP uses a standardized protocol for quering devices on the network, providing network admins vital information that they need to keep the network environment stable and away from downtime.
SNMP plays a key role in management of network devices hassle-free. If you are a large enterprise with approximately 10,000 devices in your network environment, you need to enable SNMP so that all the devices' information is known to network admins. In similar way, if your network environment also consists of Cisco devices in them, this page provides steps to enable SNMP in Cisco routers as well as enable SNMP in Cisco switches (Cisco router SNMP configuration/Cisco switch SNMP configuration).
You will be able to create the corresponding Configlet commands to configure Cisco routers or to configure Cisco switches using Network Configuration Manager. This will help you perform the same operation on multiple devices simultaneously.
If you don't have NCM installed, please click here to download and install the application and then enable SNMP in Cisco switch/router.
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#snmp-server community public RO
(Where "public" is the read community string.)
Router(config)#snmp-server community private RW
(Where "private" is the read-write community string)
Copy the running configuration into startup configuration using below command
Building configuration... [OK]

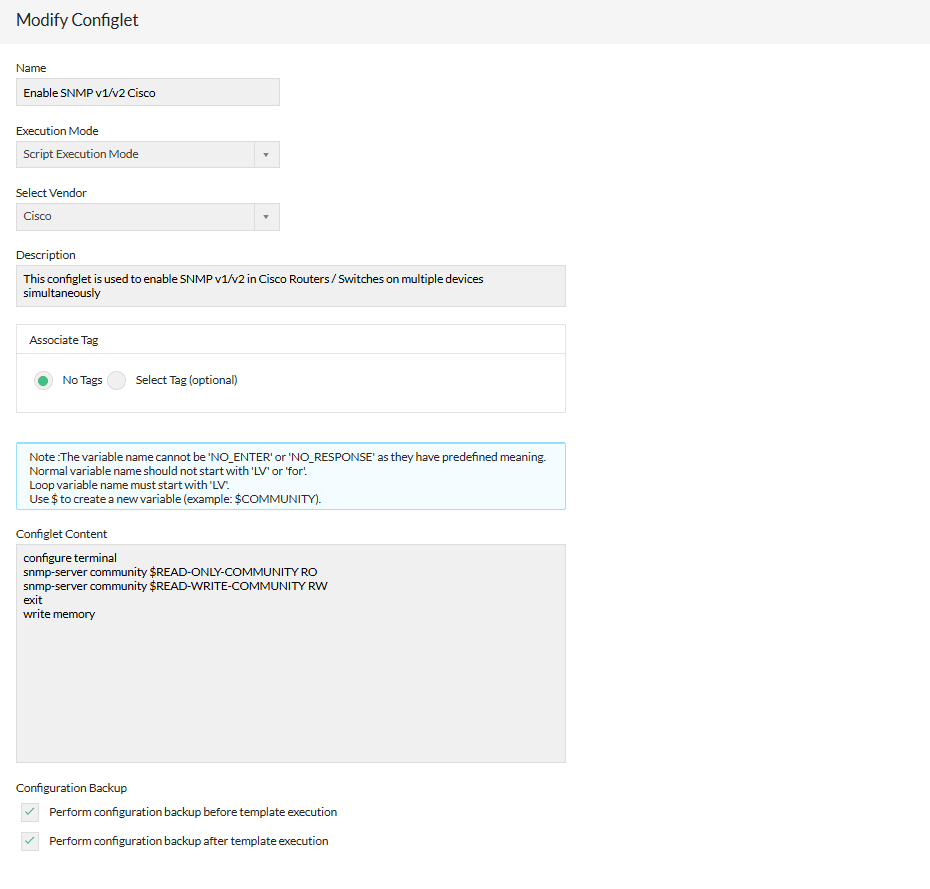

The corresponding configlet can be created in NCM application as shown in below screenshot.
Also you can click the below button to download the Configlet as XML and import it into NCM application using file import option.
|Configlet Name||Enable SNMP Cisco|
|Description||This configlet is used to enable SNMP in Cisco Routers / Switches on multiple devices simultaneously.|
|Execution Mode||Script Execution Mode|
SNMP can be enabled in Cisco switches by using automation templates called as Configlets. You can select script execution mode and enter device-specific commands and execute it. This will instantly enable SNMP on Cisco switch.
There are certain device-specific commands that need to be executed to configure SNMP in Cisco switches. You can use Configlets to enable / disable SNMP in Cisco switches. You can find the step-by-step procedure above.
SNMP can be enabled in Cisco routers by using automation templates called as Configlets. You can select script execution mode and enter device-specific commands and execute it. This will instantly enable SNMP on Cisco routers.
There are certain device-specific commands that need to be executed to configure SNMP in Cisco routers. You can use Configlets to enable / disable SNMP in Cisco routers. You can find the step-by-step procedure above.
