Wake On LAN Tool

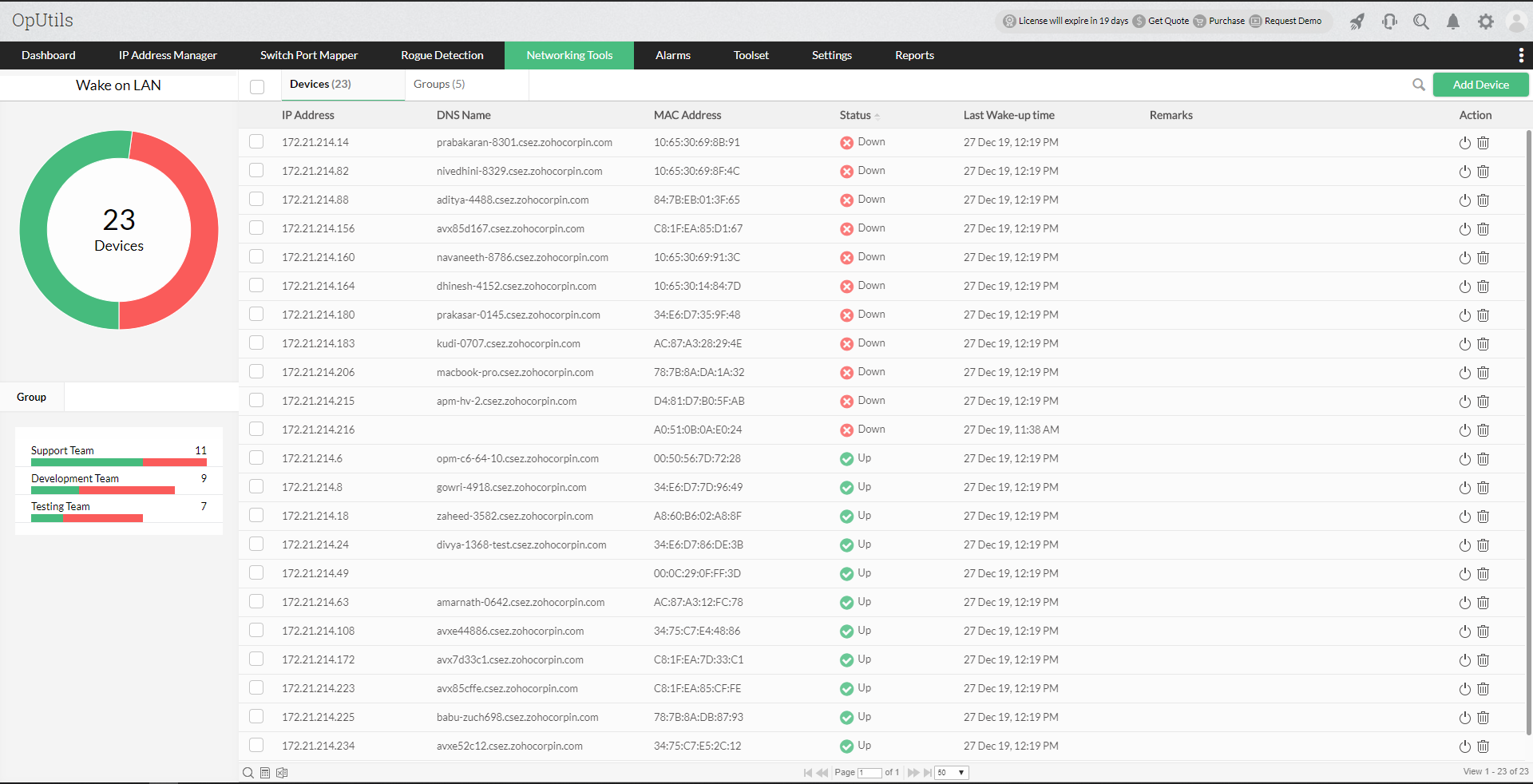

The free Wake on LAN tool can be used to boot machines in the LAN from remote. It allows you to boot multiple machines simultaneously. To wake-up a machine from remote, follow the steps below:

1. Click the Wake on LAN tool from the Launcher to start the tool.
2. Click the Add Computersbutton and specify the following:
   1. Specify the IP Addresses of the machines that you wish to wake-up. You can add multiple IP Addresses here as comma separated values.
   2. Specify the MAC Addresses of the machines. If you are adding more than one machine, ensure that the order of the MAC Addresses specified is same as the IP Addresses specified above.
   3. Specify the Subnet Mask and click OK.
3. The specified machines will get added to the list.
4. Select the machines that you wish to wake-up and click Wake Up. To select all the machines from the list, click Select All.

Configuring Wake On LAN

BIOS Settings

The Wake-On-LAN functionality is generally disabled by default. The option to enable Wake-On-LAN is different with each computer manufacturer. The most common method adopted across different PC's are as follows:

1. During the computer’s power-on self-test enter the BIOS setting screen by pressing the F1, INS, or DEL keys.
2. Select Power settings. Check for Power Up Control.
3. Enable settings related to Power Up on PCI card, LAN, or Network.
4. Click Save and exit the BIOS settings.

Operating System (OS) Settings

In some Windows OS, the drivers can enable the Wake ON LAN features of network adapters. For example in Windows 2000, click Power Management tab and under the Adapters properties, select the option Allow this device to bring the computer out of standby.

Alternatively, you can also check the Advanced setting table for parameters related to Wake on LAN and Waking on "Magic Packets" and enable them.

Wake-On-LAN (WOL) Cable

For Wake On LAN to work on computers with older PCI busses, a WOL cable must be installed between the Network Card and the Motherboard. Because this requires opening the computer case, we advice you to contact your PC manufacturer for specific instructions.
