Upgrade Manager

The upgrade process for Netflow Analyzer - installed servers across your network is simplified using the Upgrade Manager. It offers a centralised platform to manage and perform upgrades for Netflow Analyzer Standalone servers, their Failover servers. The enhanced smart upgrade feature helps to overcome the bottlenecks faced during the upgrade process.

Upgrade process using Upgrade Manager

For standalone and enterprise edition, the upgrade manager simplifies the process into three stages:

Note:

  • Manual backup prerequisites are optional, as Upgrade Manager automatically backs up the server before initiating the upgrade.
  • The QPM, designed to deliver targeted patches can be seamlessly applied across services using Upgrade Manager, following the same steps as a service pack.
  • If you are encountering issues caused by AV/EDR interactions during the upgrade process, please follow this exclusion guide.

1. Upload service packs

  • Go to Settings -> General Settings -> Upgrade Manager Settings -> Upgrade Manager.

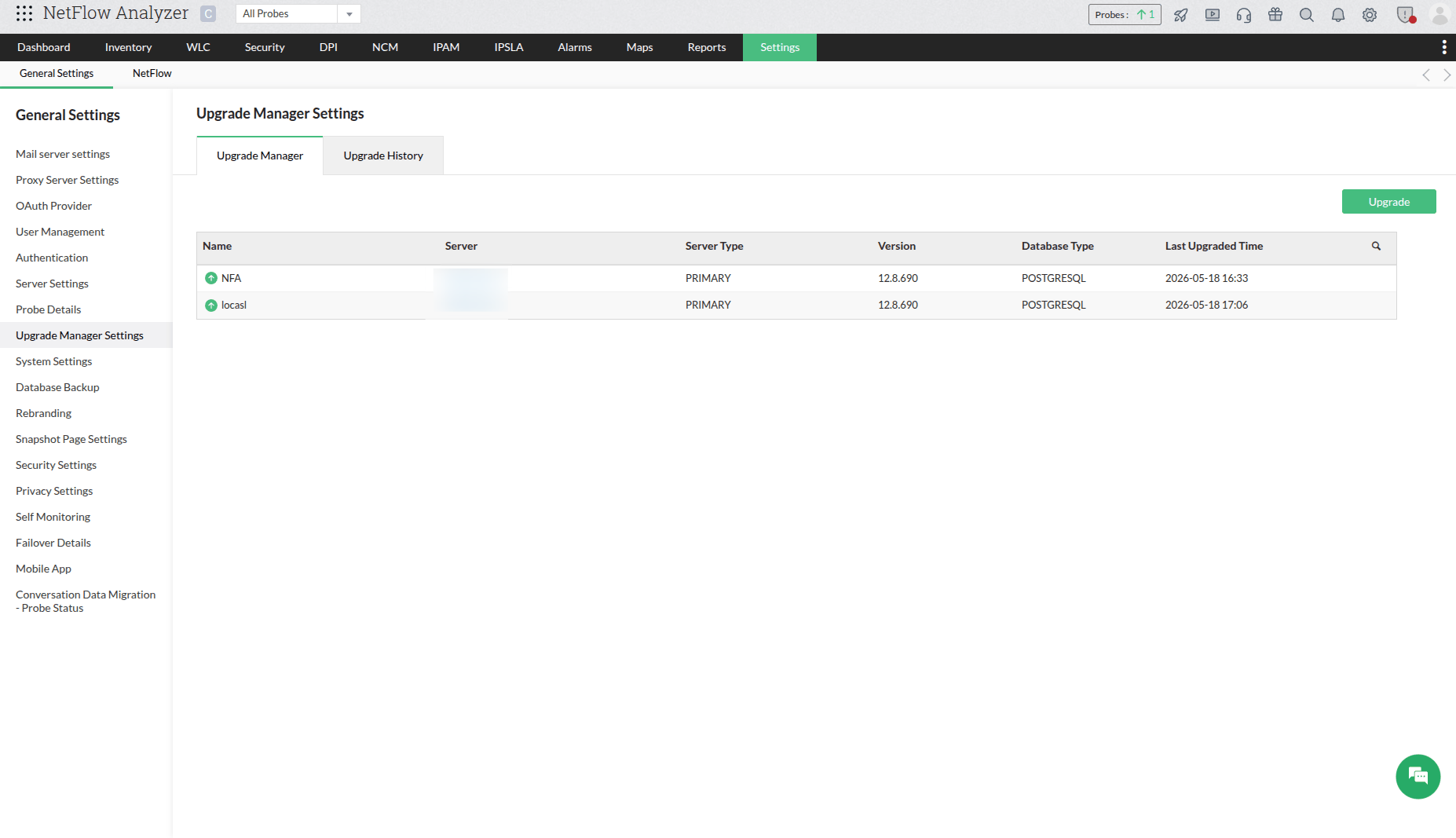

  • The upgrade manager page provides comprehensive installation details about the servers.
  • Click the Upgrade option at the top right.

Upgrade Manager

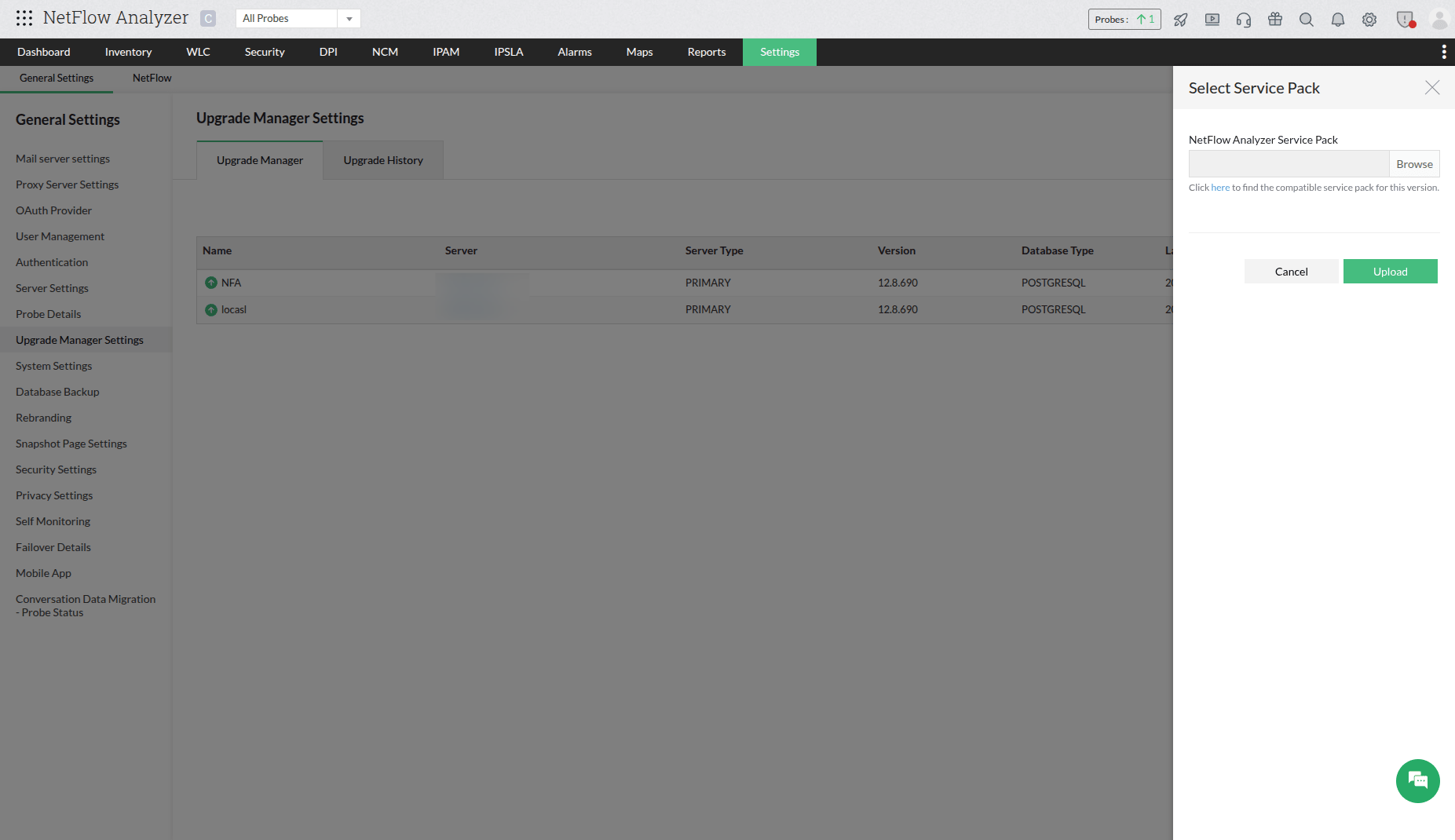

  • Download the relevant service pack from the click here option provided below the Netflow Analyzer service pack field, and click Upload.

Upgrade Manager

Note: If the service pack validation fails, you will be prompted to download and import an Integrity Certificate file to retry the validation process and proceed with the upgrade. Click here to download the certificate.

Upgrade Manager

2. Health check

Once the service pack is downloaded, the system automatically verifies the upgrade requisites via a health check.

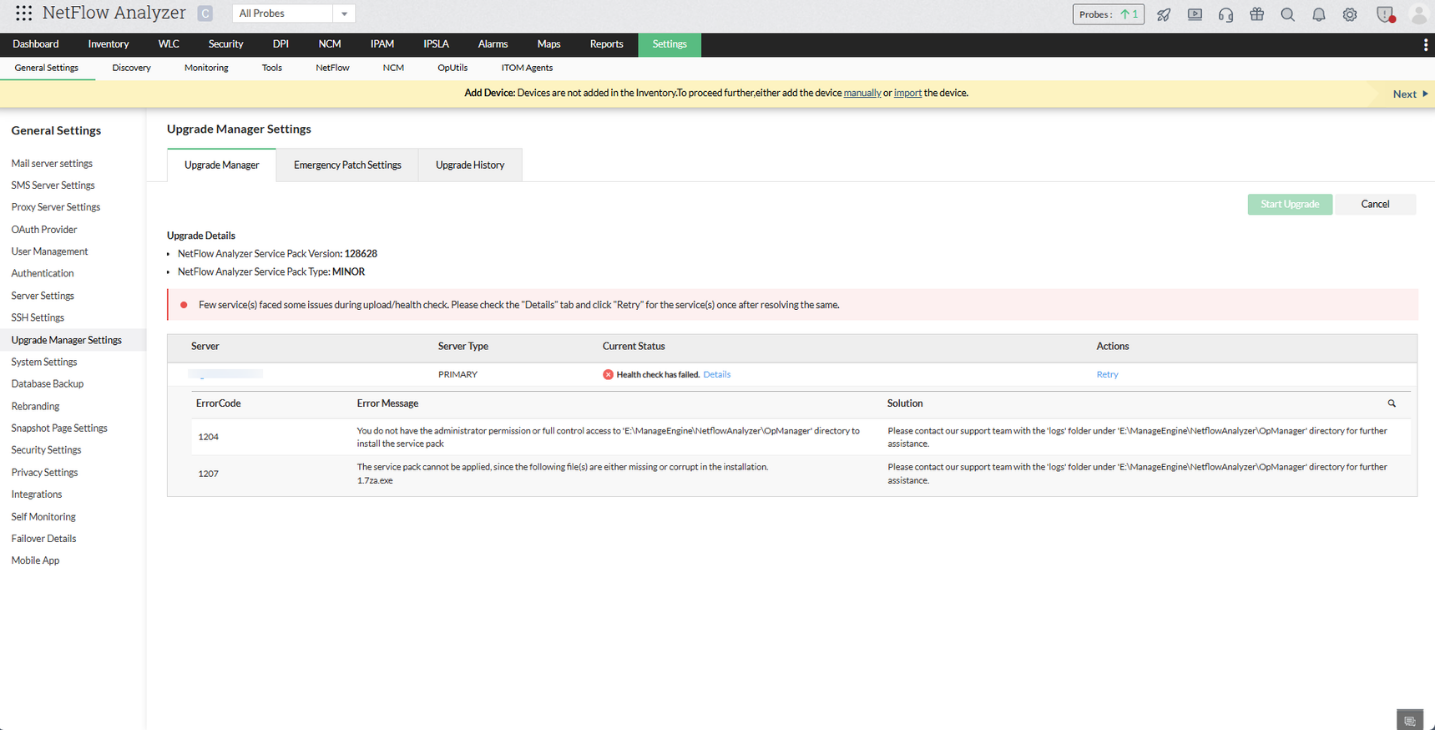

  • If the check fails, click Details to view the reasons for the failure.
  • After resolving the issues, click Retry to run the health check again.

Upgrade Manager

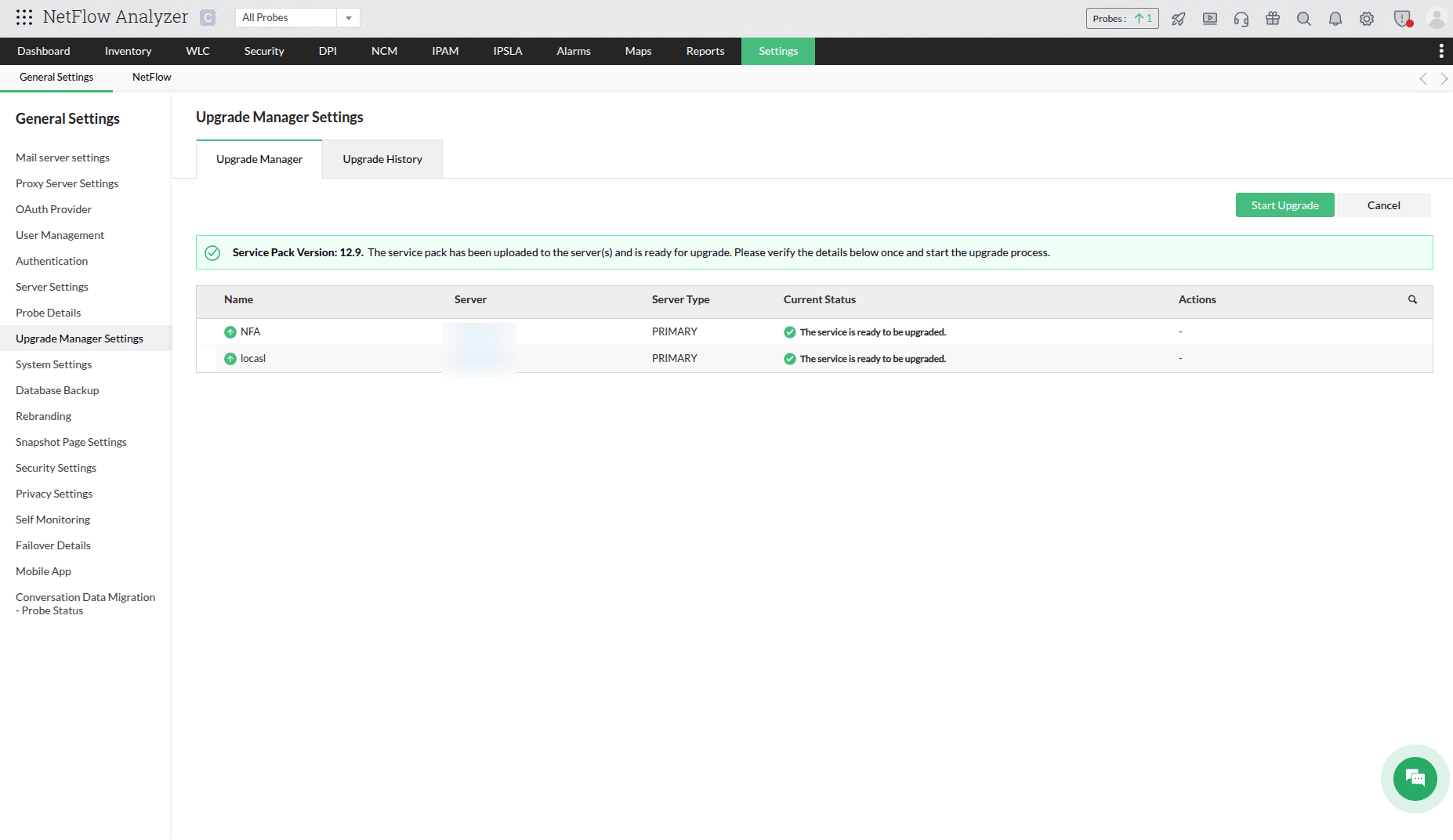

  • With a successful health check, the product will now be ready for the upgrade.
  • Click on Start Upgrade to proceed with the upgrade

Upgrade Manager

3. Upgrade process

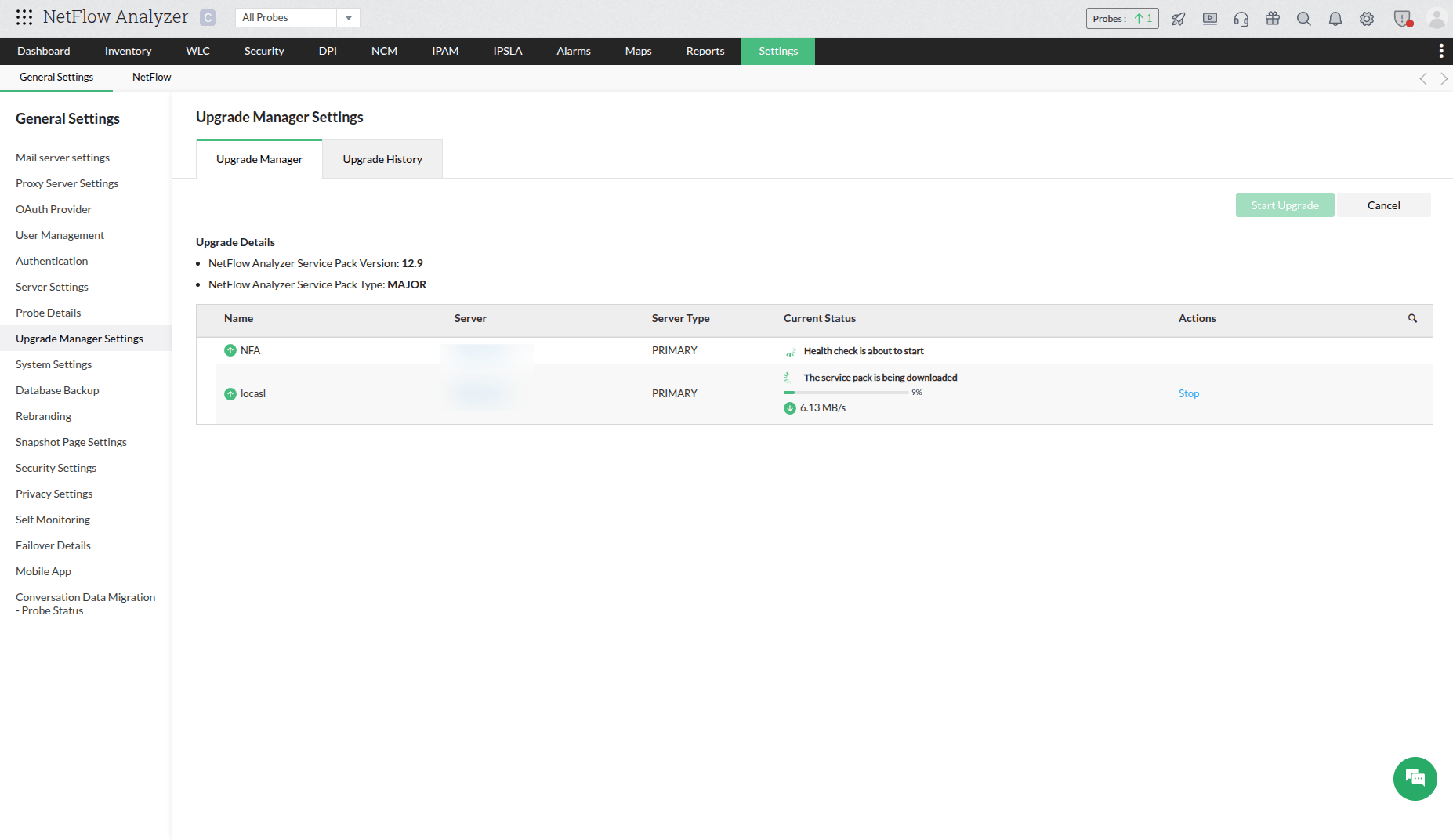

  • The upgrade will start, and the progress will be displayed automatically on the service URL.

Upgrade Manager

  • For Failover servers, the upgrade will start automatically for both the active and the standby server.
  • Upgrade details for individual servers will be automatically updated under the Current Status column.

Upgrade Manager

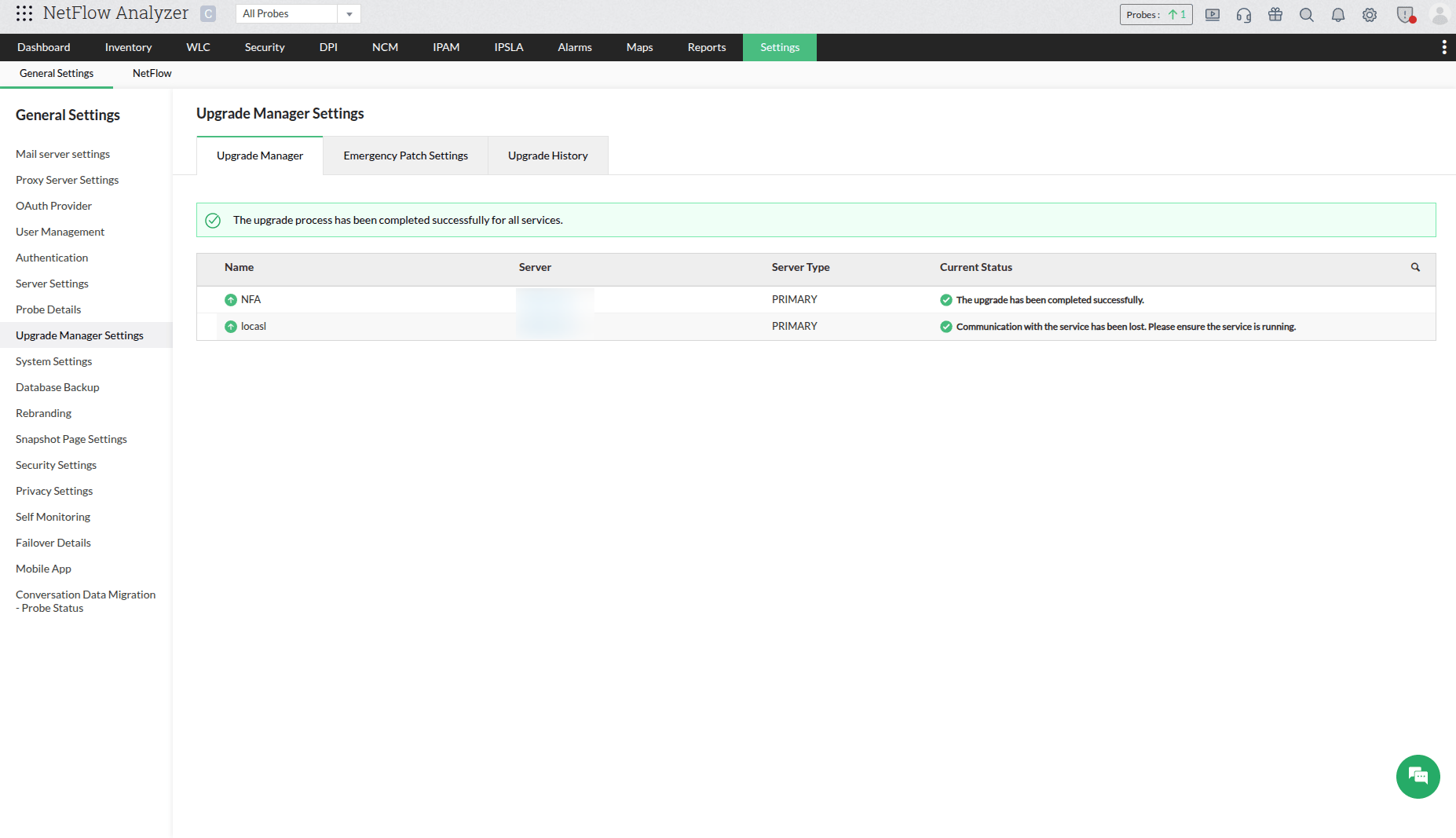

The NetFlow Analyzer upgrade process will be completed successfully for Enterprise Edition (version 12.8.665 onwards) and Professional Edition (version 12.8.344 onwards).

Upgrade process for versions below 12.8.344

Note: The QPM, designed to deliver targeted patches can be seamlessly applied across services using the UpdateManager.bat /.sh file, following the same steps as a service pack.

Upgrade Backup Pre-requisites

Note: For service pack versions below 12.8.179, following the upgrade backup prerequisites is mandatory. For versions 12.8.179 and above, these prerequisites are optional, as the backup is automatically performed during the upgrade process.
  • Take VM snapshot / folder backup of the Netflow Analyzer Service.
    • If Failover service is configured, take VM snapshot / folder backup of the Netflow Analyzer Service in both primary and secondary services.
  • If the configured database type is MSSQL or Remote PGSQL, take backup of Netflow Analyzer Database as well.

To backup only the configuration data:

  • Open command prompt with administrative privileges and go to < Netflow Analyzer Home>/bin/backup directory and execute the below command:
    <Netflow Analyzer Home>/bin/backup>BackupDB.bat -mode configdata
  • This is used to backup only the configuration data (Backup Conf., Images folder, the details of Devices, Device Templates, Interfaces, Interface Template, Dashboards & Widgets, Infrastructure Views, Business Views, Credentials, Notification Profiles and Users) and not the performance data.

Upgrade Pre-requisites

Before Upgrading Netflow Analyzer, there are certain pre-requisites to follow for a seamless upgrade process.

  • If you are encountering issues caused by AV/EDR interactions during the upgrade process, please follow this exclusion guide.
  • Ensure that the user performing the upgrade has the required permissions for the Netflow Analyzer folder.

Edition-specific Upgrade

EditionWithout FailoverNew Failover
Standard / ProfessionalUpgrade the service using the UpdateManager.bat /.sh file and once the upgrade is completed start the service to continue monitoring.
  • Stop both primary and secondary failover service.
  • Follow the steps provided under UpdateManager.bat /.sh file to upgrade the service.
  • Then, start the secondary service once as master and stop the service.
  • Now start the primary service followed by secondary service.
Enterprise Edition
  • Stop the Firewall Analyzer Central and all the Probe services.
  • Upgrade using UpdateManager.bat /.sh file.
  • Once the upgrade is completed, start the Central service.
  • Then, the Probes will detect the upgrade, perform it in all the Probes and start the services on its own.
  • Stop both primary and secondary service in Firewall Analyzer Central.
  • Stop the secondary service and ensure only the primary service in running in all Probes.
  • Follow the steps provides under UpdateManager.bat /.sh file to perform upgrade in Central.
  • Once upgrade is completed start the Firewall Analyzer Central service.
  • Then, the Probes will detect the upgrade, perform automatically in all the Probe services.
  • Start and stop the Standby service once as master across Central and Probe, then start the primary followed by the Standby service.

Upgrade Netflow Analyzer using UpdateManager.bat/.sh file

  • Download the appropriate version from the service packs page.
  • Stop the Netflow Analyzer service for the upgrade.
  • Open command prompt with administrative privileges and go to <Netflow Analyzer_Home>/bin/ directory.
  • Execute UpdateManager.bat file (use UpdateManager.sh for Linux).
  • Browse to the downloaded service pack and select the .ppm file.
  • Click install and proceed to complete the installation process.

Steps to import the public certificate during an offline upgrade

  • For service pack versions 12.8.000 and below, download this certificate, and for service pack versions above 12.8.000, download this certificate.
  • Launch the Update Manager by running UpdateManager.bat (or UpdateManager.sh for Linux) located in the <Netflow Analyzer_Home>/bin directory.
  • Click the Import Certificate button in the top-right corner.
  • Browse and select the downloaded certificate file, then click Import.
  • Once the certificate is successfully imported, proceed with applying the .ppm file to begin the upgrade.
