Network Configuration Manager provides the option to integrate with Active Directory in your environment and import users from there. Users who have logged into the Windows system using their domain account can be allowed to login to NCM directly (without separate NCM login).
The first step is to provide credential details and importing users from AD. NCM automatically gets the list of the domains present under the "Microsoft Windows Network" folder of the server of which the running NCM is part of. You need to select the required domain and provide domain controller credentials.
To do this,

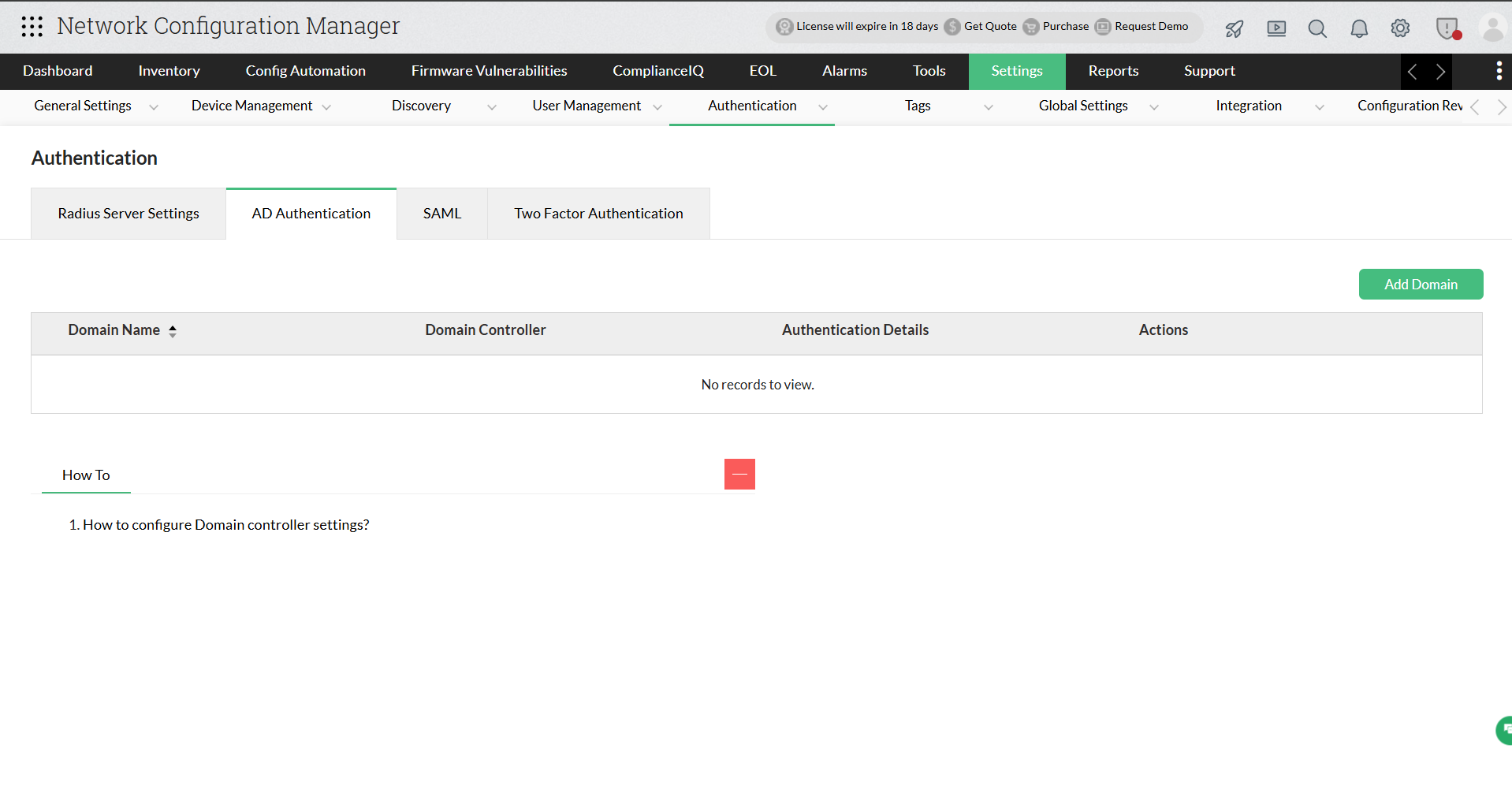

Go to "Admin" >> "User" tab and click "Active Directory".
Go to Step 1 and click the button "Import Now".

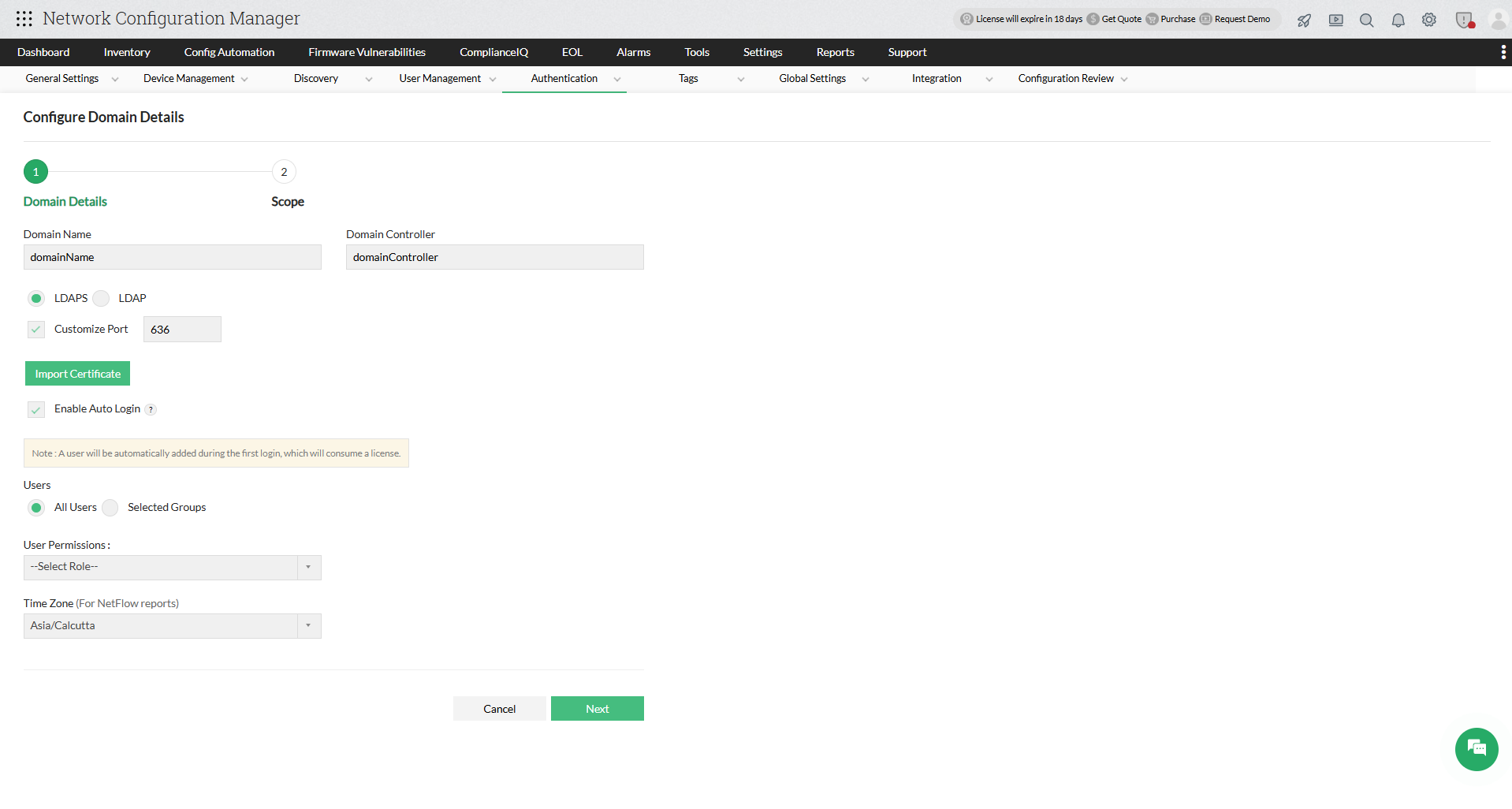

In the UI that pops-up,
Select the required Domain Name, which forms part of the AD from the drop-down.
Specify the DNS name of the domain controller. This domain controller will be the primary domain controller.
In case, the primary domain controller is down, secondary domain controllers can be used. If you have secondary domain controllers, specify their DNS names in comma separated form. One of the available secondary domain controllers will be used. When you use SSL mode make sure the DNS name specified here matches the CN (common name) specified in the SSL certificate for the domain controller.
For each domain, you can configure if the connection should be over an encrypted channel for all communication. To enable the SSL mode, the domain controller should be serving over SSL in port 636 and you will have to import the domain controller's root certificate into the NCM server machine's certificate.
As mentioned above, to enable SSL mode, the domain controller should be serving over SSL in port 636. If the certificate of the domain controller is not signed by a certified CA, you will have to manually import the certificate into the NCM server machine's certificate store. You need to import all the certificates that are present in the respective root certificate chain - that is the certificate of the NCM server machine and intermediate certificates, if any.
To import domain controller's certificate into NCM machine's certificate store: (you can use any procedure that you normally use to import the SSL certificates to the machine's certificate store. One example is given below)
NCM server can now communicate with this particular domain controller over SSL. Repeat these steps for all domain controllers to which you want NCM to communicate over SSL. Note that the DNS name you specify for the domain controller should match the CN (common name) specified in the SSL certificate for the domain controller.
Enter a valid user credential (user name and password) having read permission in the domain controller
By default, NCM imports all the users from AD. If you want to import only a particular user, enter the required user name(s) in comma separated form
Similarly, you can choose to import only specific user groups or OUs from the domain. You can specify the names in the respective text fields in comma separated form
Whenever new users get added to the AD, there is provision to automatically add them to NCM and keep the user database in sync. Enter the time interval at which NCM has to query the AD to keep the user database in sync. The time interval could be as low as a minute or it can be in the range of hours/days.
Click "Save". Soon after hitting this "Save" button, NCM will start adding all users from the selected domain. During subsequent imports, only the new users entries in AD are added to the local database
Note: In the case of importing organizational units (OUs) and AD groups, user groups are automatically created with the name of the corresponding OU / AD group. During import, every user will be notified through email about their account, along with a password that will be used to login to NCM when AD authentication is disabled.
The users added to the NCM database will have the role as "Operators". If you want to assign specific roles to specific users, proceed with Step 2 below.
Yes. You can use both your AD and local (non-AD) passwords to login to the application. The choice can be made in the GUI login screen itself.
All the users imported from AD will be assigned the 'Operator' role by default. To assign specific roles to specific users,
Go to Step 2 in the UI (Admin >> Active Directory) and click the button "Assign Roles Now".
In the UI that opens, all the Users imported from AD are shown in the LHS under the column "Operators".
Click "Save" and the required roles are set for the users.
The third step is to enable AD authentication. This will allow your users to use their AD domain password to login to NCM. Note that this scheme will work only for users who have been already imported to the local database from AD.
Note: Make sure you have at least one user with the 'Administrator' role, among the users imported from AD.
Users who have logged into the Windows system using their domain account need not separately sign in to NCM, if this setting is enabled. For this to work, AD authentication should be enabled and the corresponding domain user account should have been imported into NCM.
For Single SignOn, NCM makes use of a third party library, which provides advanced integration between Microsoft Active Directory and Java applications. the NTLM security provider validates credentials using the NETLOGON service just as a Windows server.
To facilitate this, a Computer account must be created with a specific password, which will be used as a service account to connect to the NETLOGON service on an Active Directory domain controller.
That means, NCM requires a computer account in the domain controller to perform the authentication (a computer account must be available/created - a regular User account will not work).
To enable Single SignOn,
Go to Step 4 in the UI (Admin >> Active Directory) and click the button "Enable Single SignOn".
In the UI that opens, select the domain.
Enter the fully qualified DNS domain name in the text field against "Fully qualified DNS Domain Name" (For example, zohocorpin.com).
Enter the Computer Account name created in the domain controller and specify the password.
If you want to create computer account afresh, select the checkbox "create this computer account in the domain". It contains a script to set the password on a Computer account.
The IE browser supports this by default and follow the instructions below to get this working in Firefox:
Open a Firefox browser and enter the URL about:config and hit "Enter".
You will see a big list of settings.
In the filter, type "ntlm" to look for the setting "network.automatic-ntlm-auth.trusted-uris". Double click that entry and enter NCM server url in the text field (https://<NCM Server Host Name>:<port>).
Then look for the setting "network.ntlm.send-lm-response".
Double click the entry to change it from its default setting of "False" to "True".
