Agent Performance Report for APM Insight PHP Agent

Test Environment

  • OS: 64 bit Linux OS
  • CPU: Intel i5, 2.5 Hz, 4 cores
  • Memory: 8 GB
  • Apache Web Server

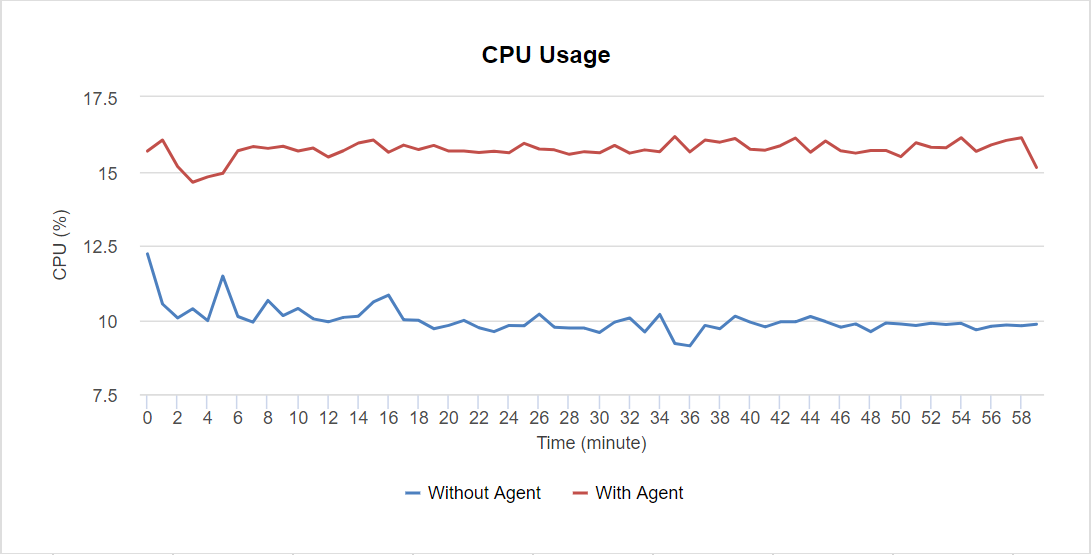

Impact on CPU usage

When the target web application is set to receive 300 requests per minute, the APM Insight PHP Agent consumes only 1 % CPU on average (using default production settings).

On increasing the throughput to 600 requests per minute, the APM Insight PHP agent consumes around 0.3-1.6% CPU on average.

The below table summarizes the details

RPM (Requests per Minute) % CPU Usage (Without Agent) % CPU Usage (With Agent)
300 0.1-0.2 0.1-1.2
600 0.6-1.9 0.9-3.5

Impact on Physical Memory (RAM) usage

The APM Insight PHP Agent by default collects performance data and pushes it to its own service, every minute, and hence, the footprint on the user memory is minimal, and only transient.

The memory usage is a maximum of 212 KB at an RPM of 300, and a maximum of 24 KB at an RPM of 600.

The below table summarizes the details:

RPM (Requests per Minute) Memory in KB (Without Agent) Memory in KB (With Agent)
300 6344-8852 6360-9064
600 6360-9856 6364-988

Impact on binary data processing

The above statistics are for agents running on an Apache web server. To understand how much memory and CPU the agent will consume when processing binary data, please see the below table.

RPM (Requests per Minute) % CPU Usage Memory (KB)
300 0.1-0.3 4740-6012
600 0.3-0.7 4740-6104

Impact on application response time

To calculate how fast php execution is, many use a PHP Benchmark script provided by The following table shows the impact of PHP agent's on your application's response time.

PHP version:

Platform: Linux

Benchmark Version 2.8 Version 2.9 No Agent
test_ifelse 1.446 sec 0.805 sec 0.763 sec
test_loop 1.911 sec 1.520 sec 1.511 sec
test_stringmanipulation 5.793 sec 3.065 sec 3.031 sec
test_math 4.578 sec 2.633 sec 2.569 sec
total 13.728 sec 8.023 sec 7.874 sec
