Auto-discovery


Auto discovery helps you to discover and monitor servers and applications automatically during the initial startup of Applications Manager. You can specify the total count of applications that are to be added for the discovery along with their discovery order for performing auto-discovery. The Default Maximum Applications count is 50. If the count of added applications remains under the default limit, MS SQL monitors will be added accordingly. For eg: Consider added applications count to be 25.Here 25 more MS SQL monitors can be added. This occurs only upon initial startup of Applications Manager for Trial and Professional Edition users in Windows.

By default, auto-discovery will be enabled in Applications Manager. If users need to disable or discovery only servers, they can configure by specifying appropriate values for the property AUTODISCOVERY in the AutomaticDiscovery.properties file. In addition, you can also specify additional criteria with which the auto-discovery is to be performed by updating the values for their respective properties in the file. Upon updating the values, discovery profile will be created to view added servers and applications.

Following are the list of properties that can be configured in the AutomaticDiscovery.properties file located under <Applications Manager Home>\working\conf\itomdiscovery directory:

Note: Since auto-discovery occurs only on initial startup, the required properties should be configured in the file before initial/first startup.

Property Description and possible values
AUTODISCOVERY Allows you to enable or disable the auto-discovery feature in Applications Manager. Possible values are:
  • enable - Both server and applications will be discovered during initial startup.
  • disable - Auto discovery feature will be disabled.
  • servers_only - Only servers will be discovered during initial startup, application discovery will be skipped.

Note: Default value for this property will be enable.

TOTAL_APPLICATION_COUNT_TO_BE_ADDED_VIA_AUTODISCOVERY Allows you to specify the count of applications to be added via auto discovery, By default, 50 applications will be added.

Note: Default value for this property will be 50.

ORDER_OF_APPLICATIONS_TO_BE_ADDED_VIA_AUTODISCOVERY Allows you to prioritize applications added via auto-discovery by changing the priority order. By default, the first given application will have highest priority.

Note: Refer to the Priority order of auto-discovery section for default priority order.

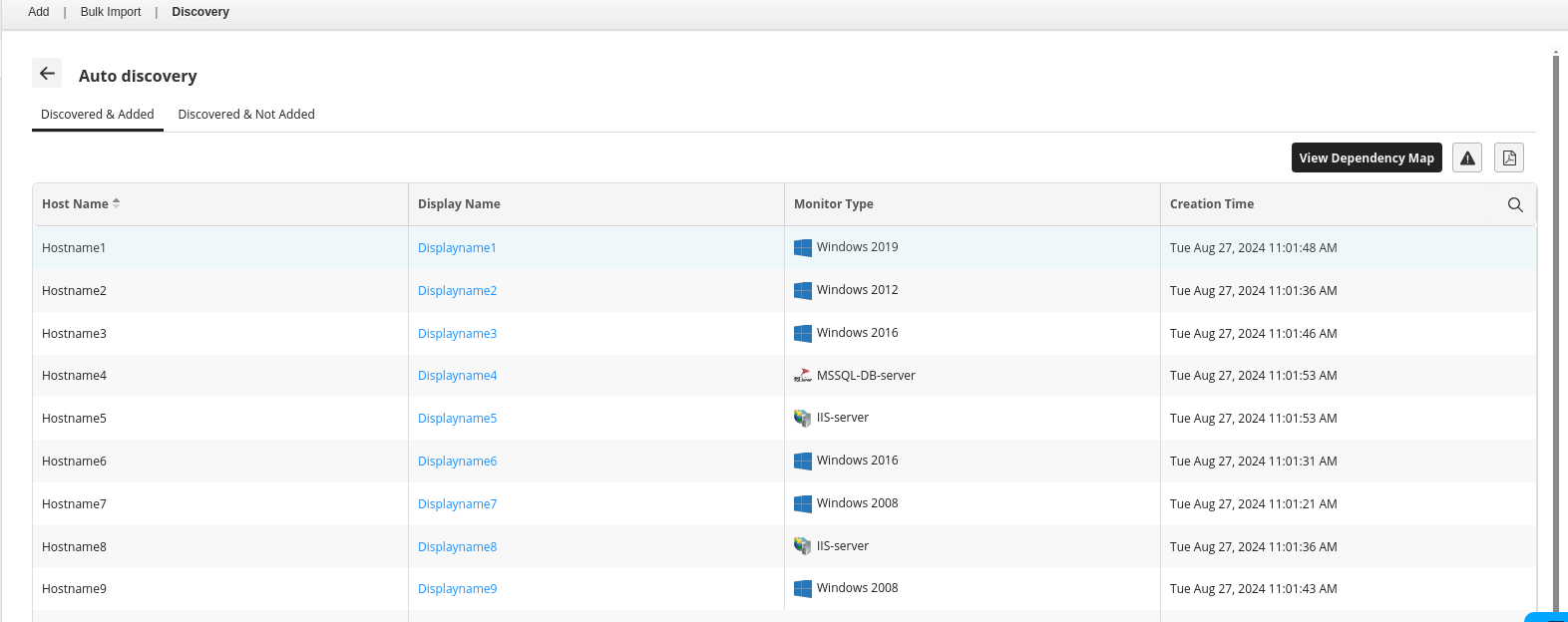

On performing the above configurations and starting Applications Manager for the first time, auto discovery will occur and discovery profile will be created, wherein all servers and applications that are added via auto-discovery can be viewed under the profile name Auto discovery.

In this newly-created discovery profile, only the View Report Page option will be enabled, whereas other options such as View Discovered Details, Edit, Delete, Rediscover now, and Schedule discovery will be disabled.

Priority order of auto-discovery

Following is the priority order used to auto-discover servers and applications in Applications Manager:

  1. Active Directory
  2. MS SQL
  3. Oracle
  4. IIS Server
  5. Tomcat Server
  6. JBoss Server
  7. MySQL
  8. PostgreSQL
  9. MongoDB
  10. Apache Server
  11. WebLogic Server
  12. Redis
  13. RabbitMQ
  14. DB2
  15. WebSphere Server
  16. Docker
  17. Nginx
  18. Memcached
  19. GlassFish
  20. Sybase ASE
  21. Cassandra
  22. Resin
  23. JDK 1.5
