Cisco ASA 5515x Configuration


    Check out the steps below to configure NetFlow export on ASA via ASDM:

    Configuring Flow Collector:

    In ASDM, under Configuration go to Device Management > Logging > NetFlow

    Here, you can set the NetFlow Analyzer server IP address, the ASA interface through which NetFlow packets are to be exported and the NetFlow listener port (By default it is 9996). When you choose the interface, select the interface which connects to the server where NetFlow Analyzer is installed. You can also set the template packet send frequency and disable syslogs that are redundant after the NetFlow information extraction.

    Set the template time out rate as 1 minute and delay transmission of flow creation events for short-lived flows to be 60 seconds.

    Then click on Apply to write the commands on ASA.

    Configuring NetFlow information extraction:

    To enable the ASA to start sending information to the NetFlow Analyzer defined above you need to go to Firewall > Service Policy Rules.

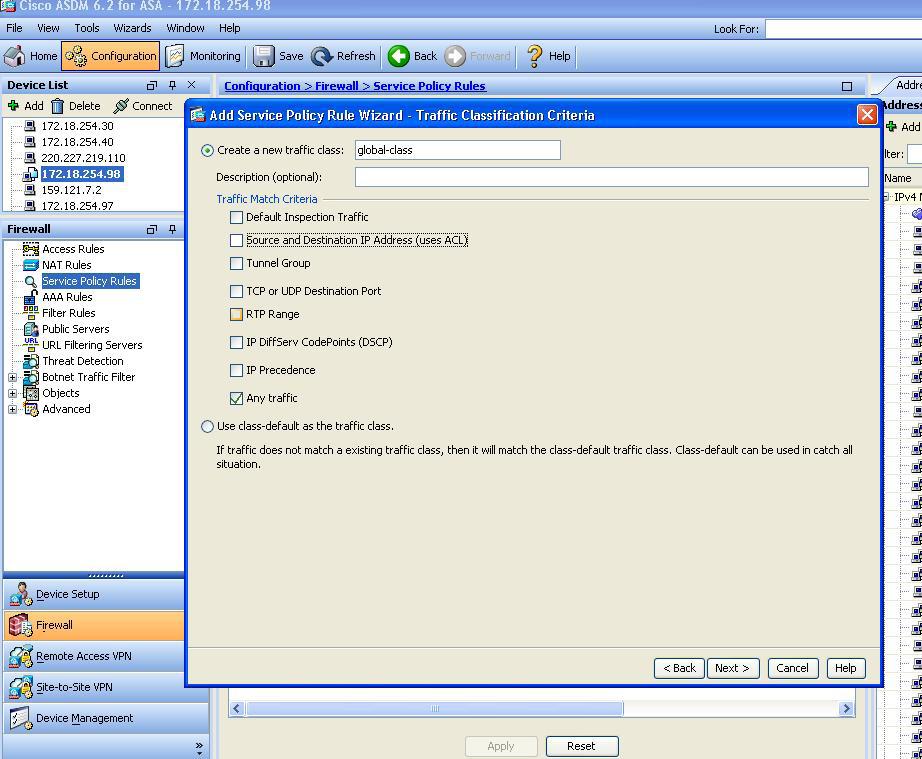

    Then you need to create a new service policy that needs to be applied GLOBALLY.

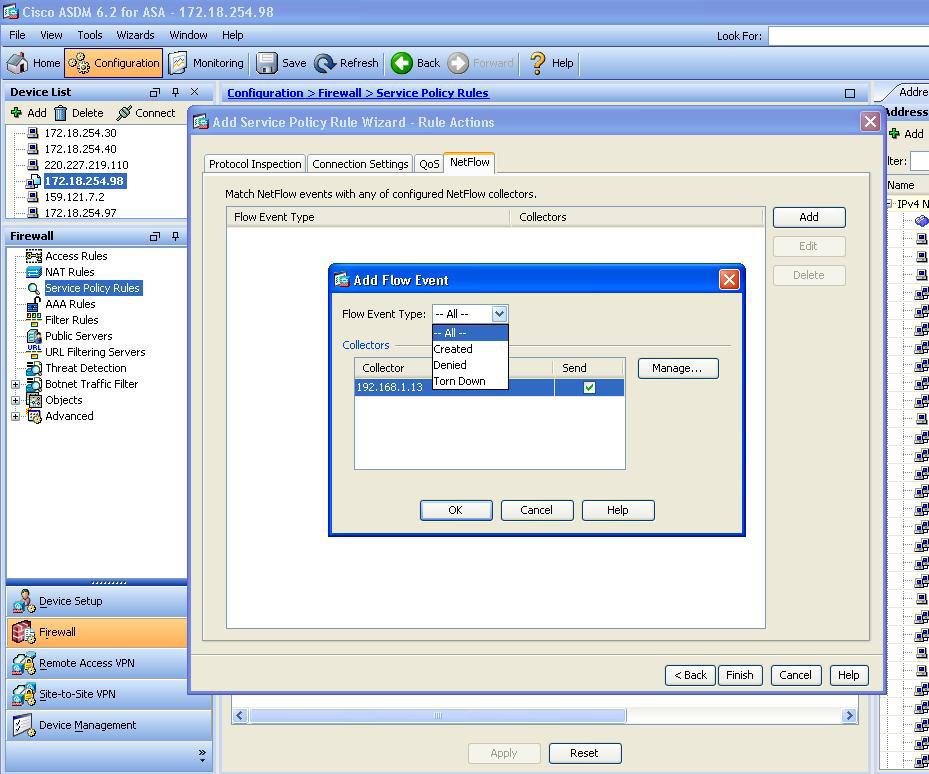

    And then define the collector to which the statistics for this traffic will be sent to (was defined initially).

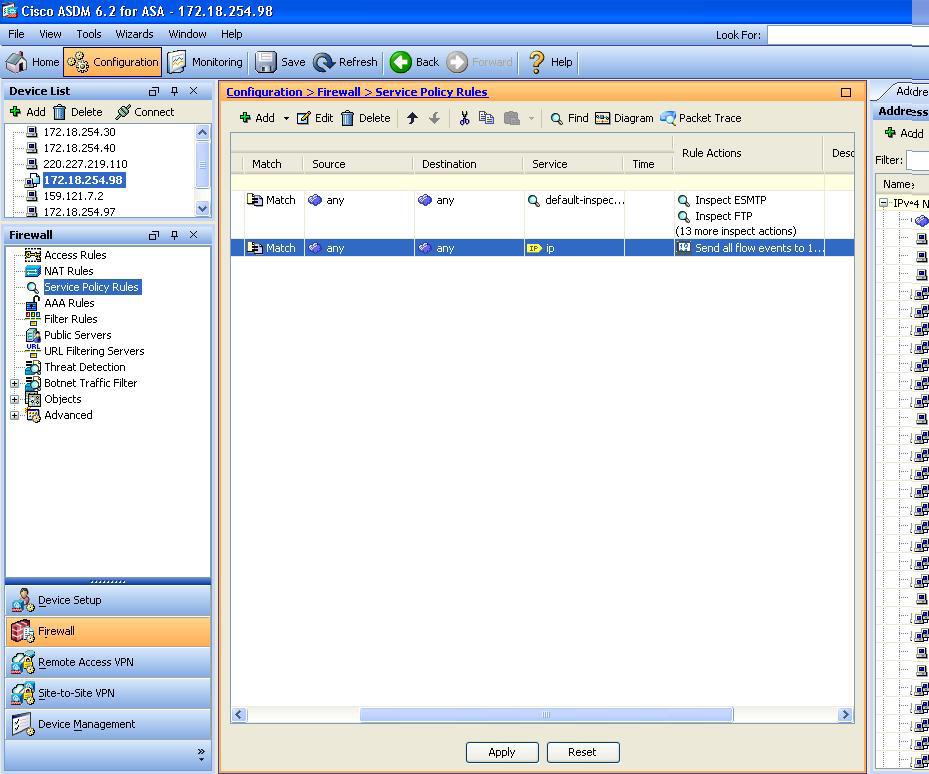

    Once the service policy is created click on Apply to write the commands on ASA.

    Once the configuration is complete, NetFlow data will be exported and you will start seeing results in NetFlow Analyzer.
