WAN Overview


    WAN dashboard view shows a detailed overview based on the IPSLA Voip monitor created in NetFlow Analyzer. IPSLA voip details are collected using SNMP from the Cisco device.

    Wan Overview

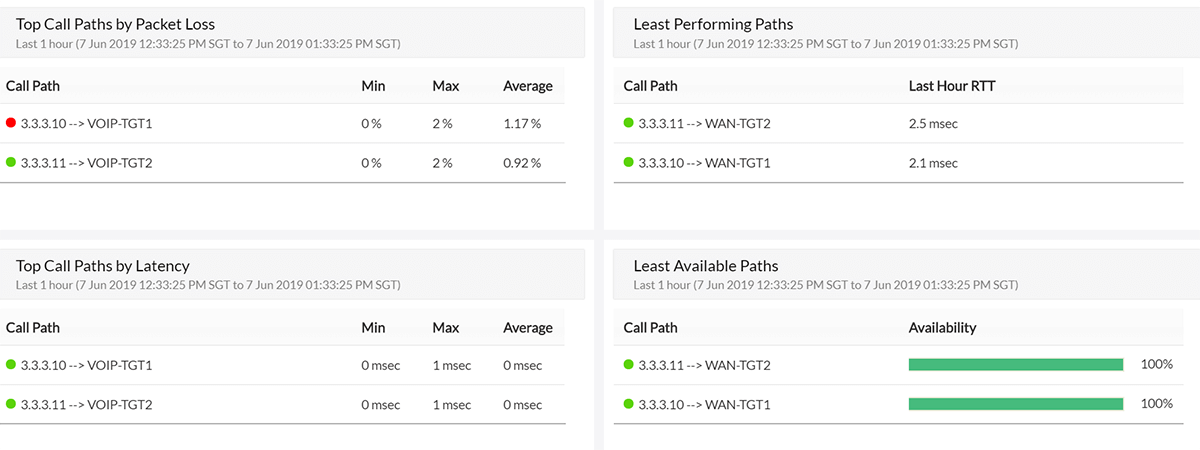

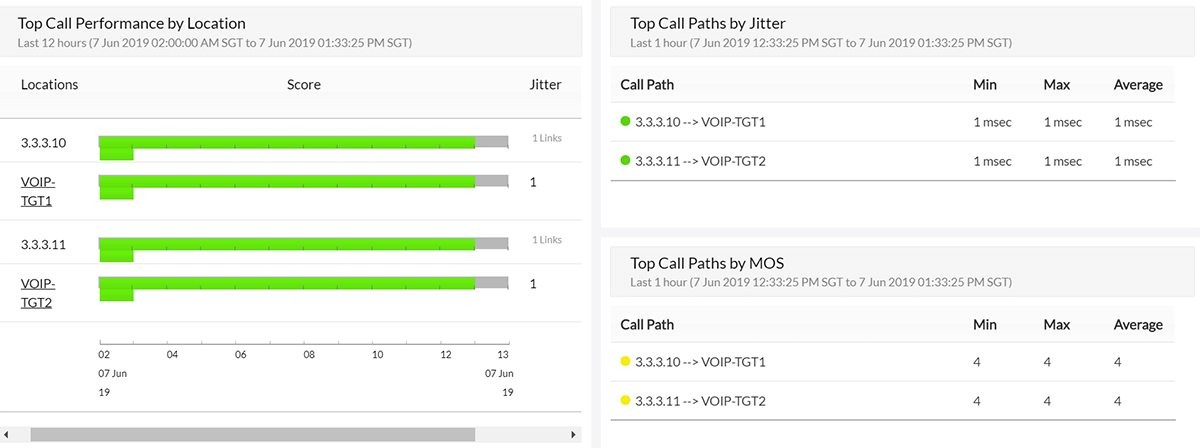

    These view show the locations and their destinations along with the jitter, latency and packet loss details. The bad call details and the top 10 call paths by jitter, latency, MOS and packet loss are also displayed. This provides you to have a quick view on VOIP link performance and helps to react proactively.

    Wan Overview 2

    HopHop Widget
