Businesses with workplaces spread across multiple global locations share and receive data via a WAN link. This demands continuous monitoring of network quality across widespread network locations and paths in order to achieve optimized performance levels and uninterrupted service delivery.
An IP service level agreement, or IP SLA, is a network measurement technology that simulates network traffic and IP services by generating continuous, reliable, and predictable data across multiple network locations/paths, and uses the statistics collected from the simulation to analyze the performance of a network in real time. The collected information is time-based, and is used in actively monitoring and troubleshooting a network.

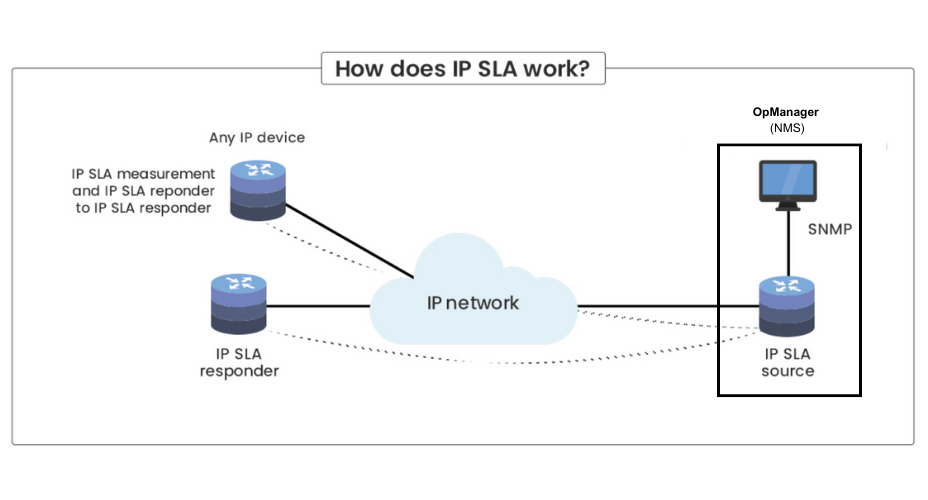

To do this, an IP SLA source (an IP SLA router or a switch) sends data packets across the network, to a destination (any device with an IP). The destination device acknowledges the received data packets, and on the basis of the type of IP SLA operation, responds with a timestamp information which is used by the IP SLA source to measure various performance metrics. If the destination is an IP SLA enabled device, it is called as an IP SLA responder, which is capable of providing much more accurate and functional measurements than a non IP SLA destination device. Cisco IP SLA technology and IP SLA monitors are widely used by leading network service providers and IT admins.
OpManager uses Cisco IP SLA technology to provide uninterrupted, real-time data on the performance of your network by continuously monitoring the traffic in the environment. Businesses utilizing IP applications and services are backed up by Cisco IP SLA monitoring tools to actively monitor IP SLA performance and ensure round the clock availability.
Be it the bandwidth on the key link of your network, the call quality, or the voice over IP (VoIP) traffic, OpManager's IP SLA monitor provides clear visibility into your networks and also helps in active troubleshooting. IP SLA performance or the performance of a network in general, is based on three parameters:
OpManager's IP SLA monitor supports the following operations.
Here are a few advantages in leveraging OpManager's IP SLA monitor.

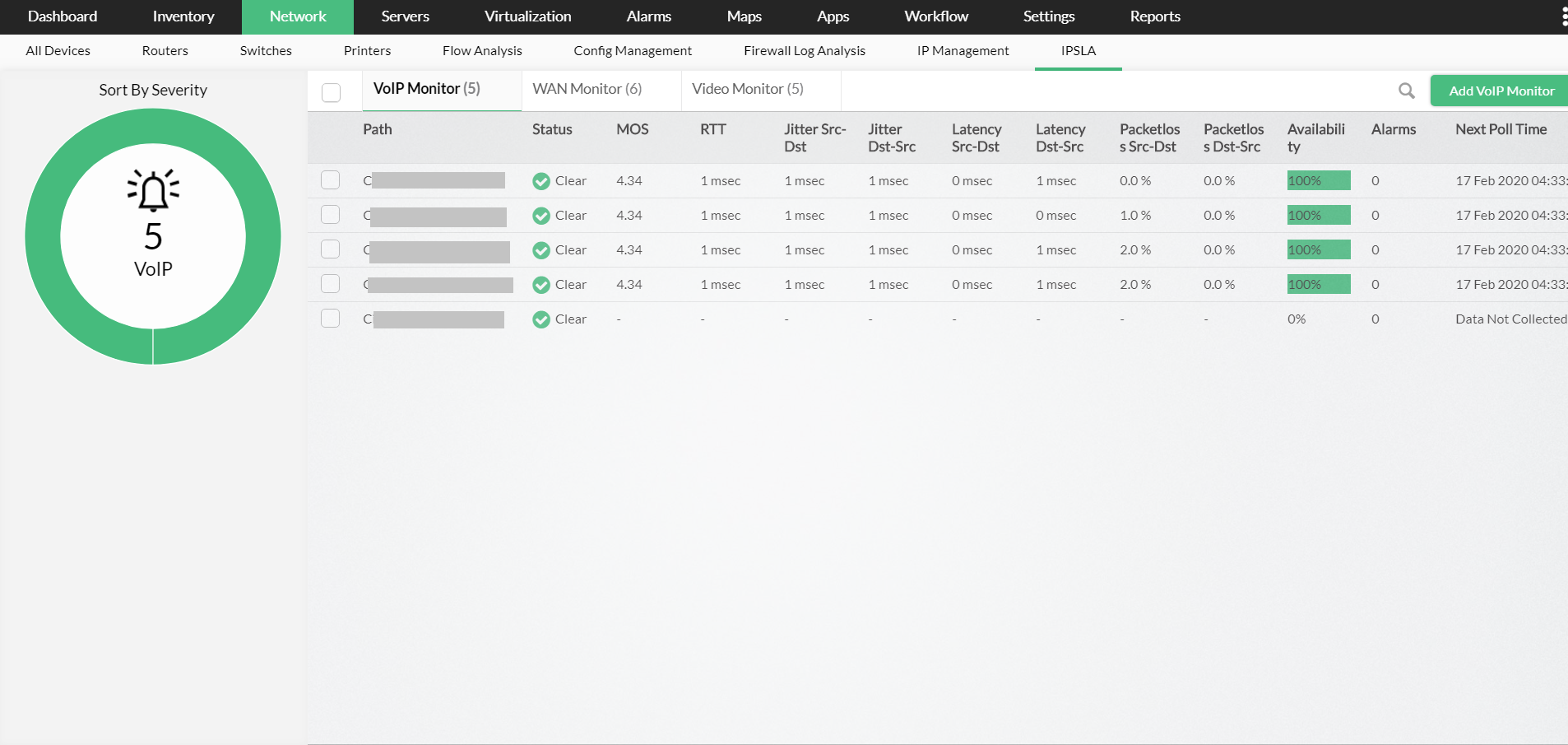

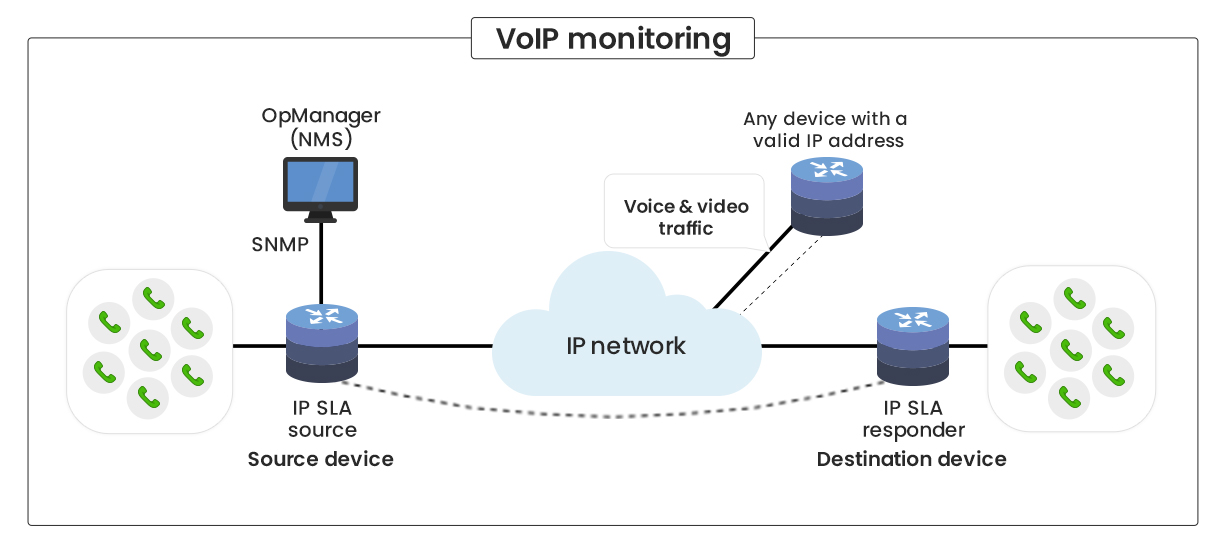

VoIP technology works by converting the analog voice signals into digital signals, and in turn breaking them down into IP packets. These packets are then transferred over the internet, reassembled in the same order, and played as audio signals on the receiver's end. The VoIP monitor in OpManager helps monitor voice call quality between two remote sites by simulating synthetic traffic to analyze various parameters like latency, MOS, RTT, jitter, and packet loss.

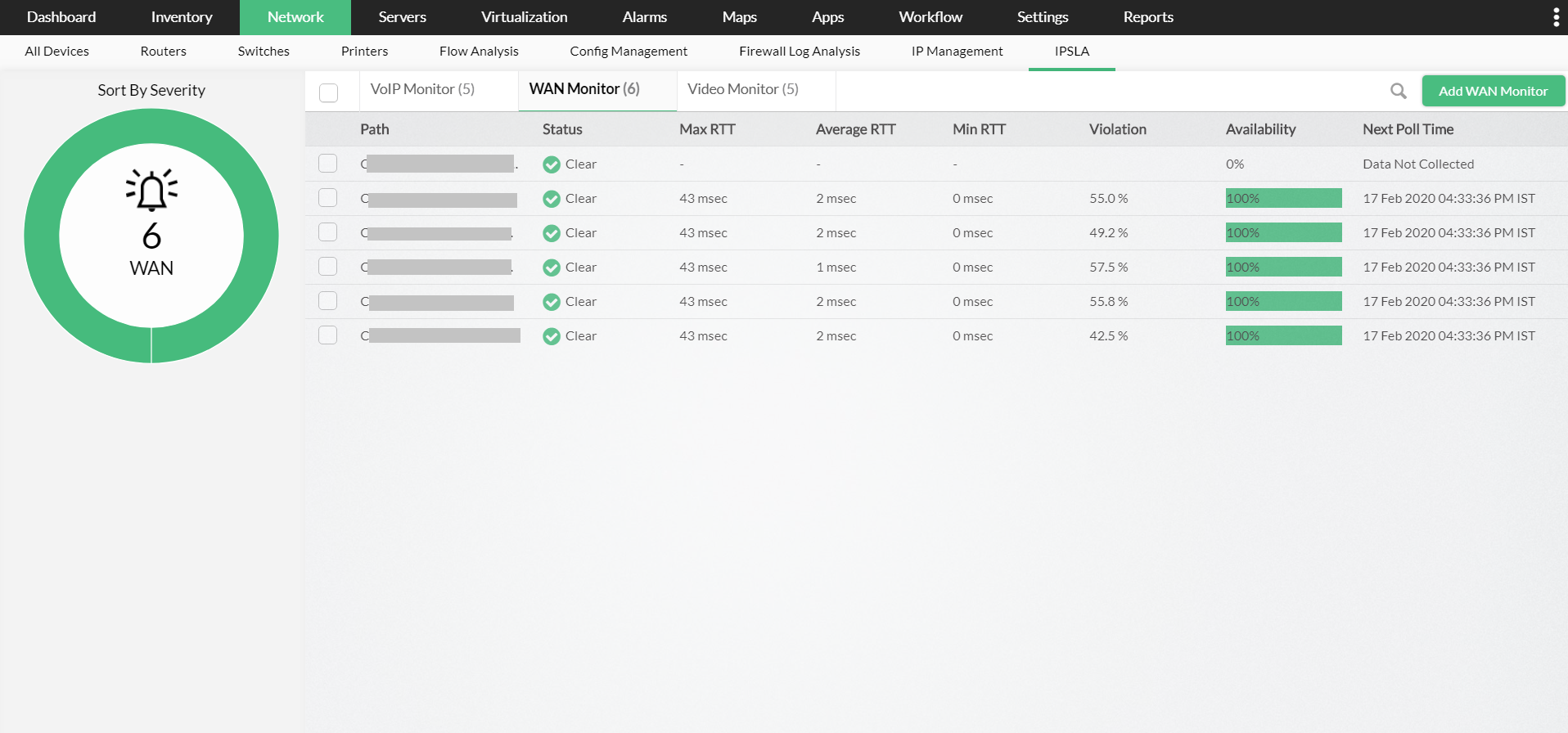

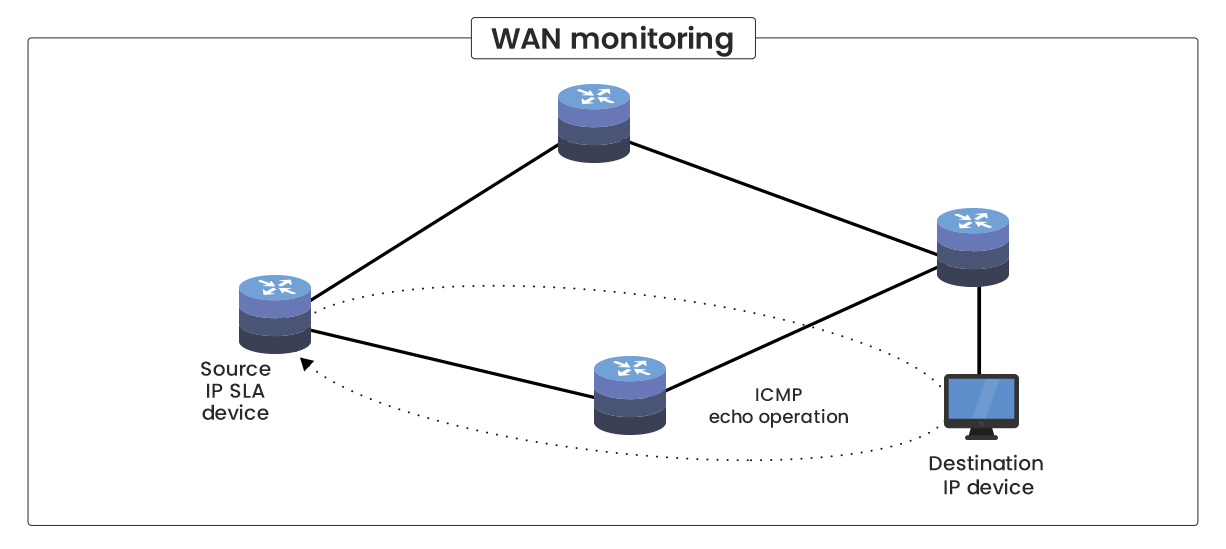

The WAN RTT monitor in OpManager helps monitor the performance of your WAN link by simulating organic traffic, which in turn helps you figure out the round trip time (RTT) for that particular path. RTT is the time taken for a data packet to travel from its source to the destination and back. RTT helps in putting together statistical data on the availability and reliability of the entire network.

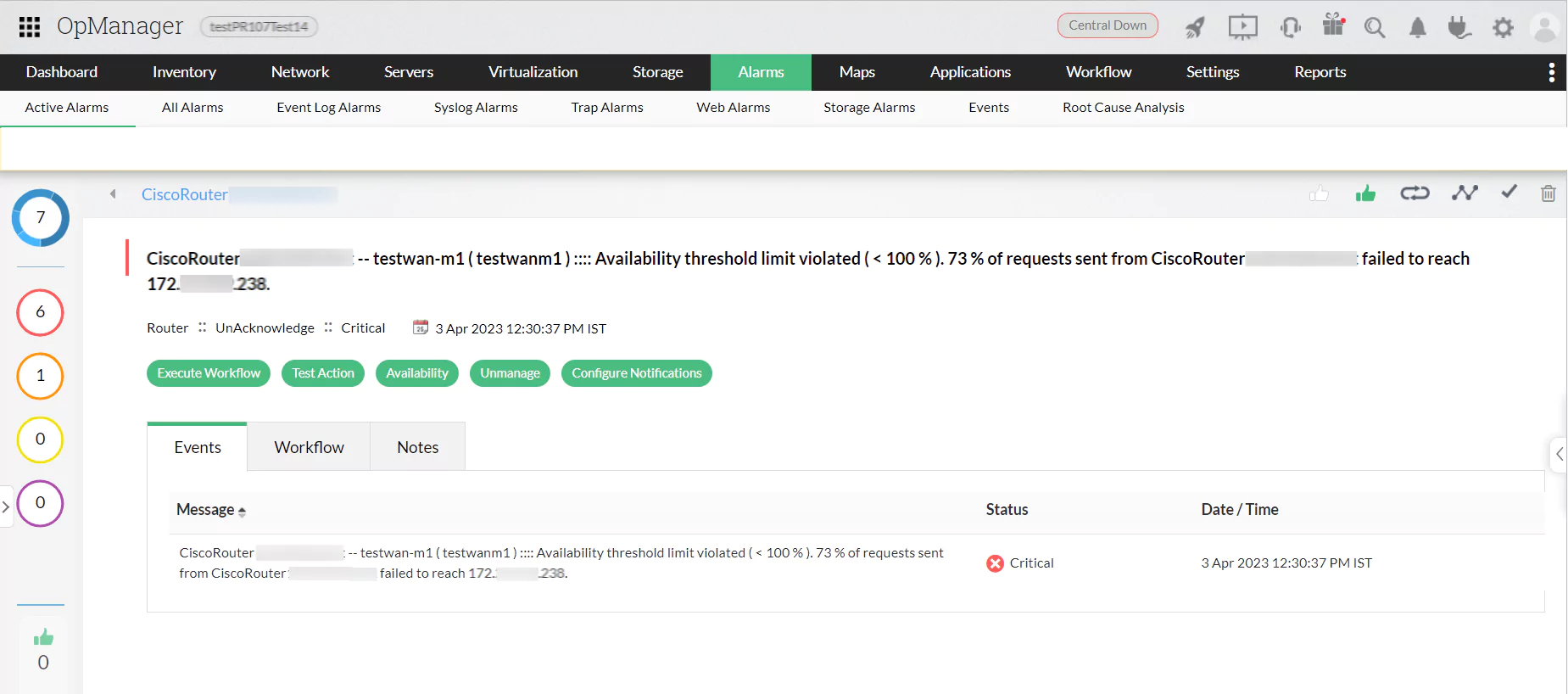

Being able to monitor the performance of IP SLA devices is just not enough. You need to have visibility into errors and violations when they occur. With flexible threshold configurations, OpManager's IP SLA monitors continuously track service levels and generate instant alerts when violated. Establish upper limit thresholds for VoIP, WAN, and video metrics to trigger alarms when their collected values exceed the configured limits.
Achieve in-depth visibility and control over your entire network. For more information on how OpManager can help effectively monitor your entire network, try a 30-day free trial, or register for a free demo.
