Configure D-Link Firewalls

Firewall Analyzer supports most versions of D-Link Firewalls

Configure D-Link Devices

To configure D-Link device to forward syslogs to Firewall Analyzer, carry out the procedure given below.

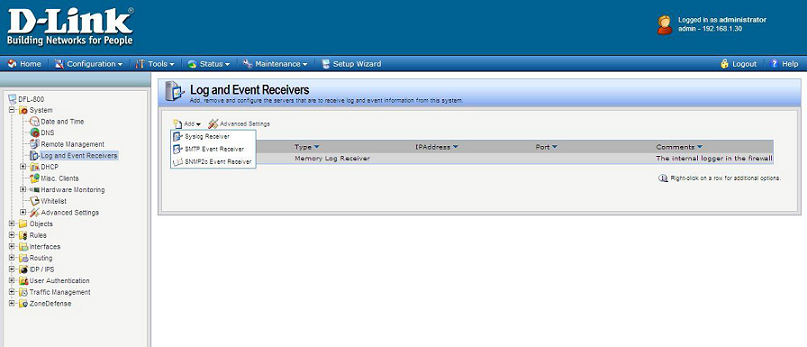

1. Navigate to System > Log and Event Receivers > Add

2. Select 'Syslog Receiver' and configure the following:

   • Name: syslog_client
   • IP Address: 192.168.1.30 (In this case IP address of Firewall Analyzer host machine is 192.168.1.30)
   • Facility: local0 (default)
   • Port: 1514 (default)

To change the default ports used by Firewall Analyzer, refer the Changing Default Ports help page.

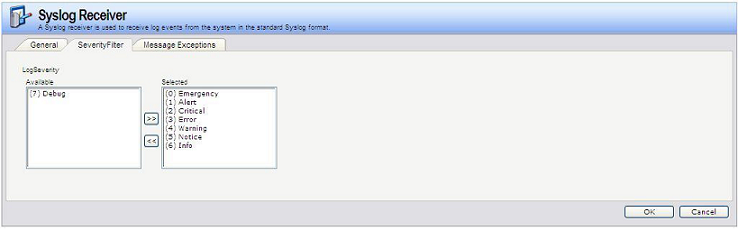

3. Select Severity filter

4. Configure SNMP

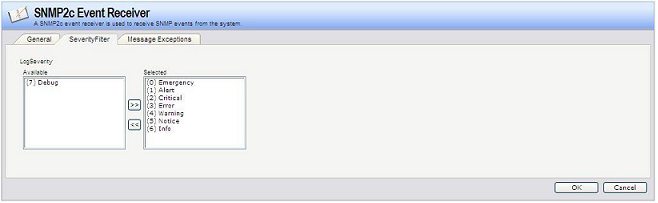

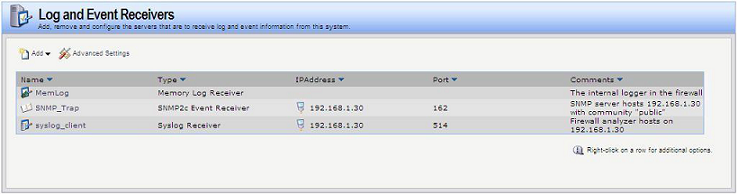

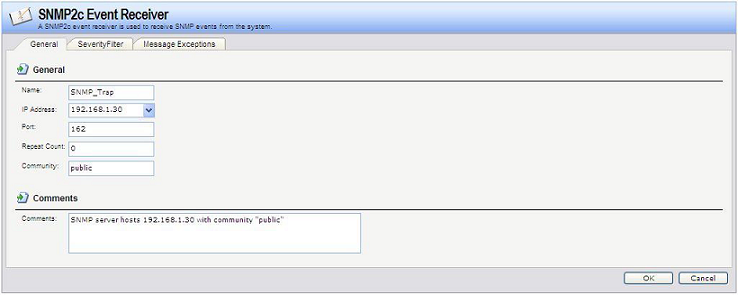

   Navigate to System > Log and Event Receivers > Add again to add a SNMP2c Event receiver as given below in the image:

• Name: SNMP_Trap
• IP Address: 192.168.1.30 (In this case IP address of Firewall Analyzer host machine is 192.168.1.30)
• Port: 162
• Repeat Count: 0
• Community: public

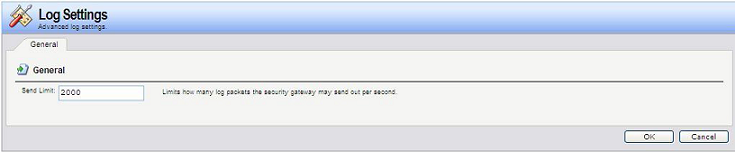

5. If syslog count goes beyond 2000 logs/second, navigate to System > Log and Event Receivers > Advanced Settings
