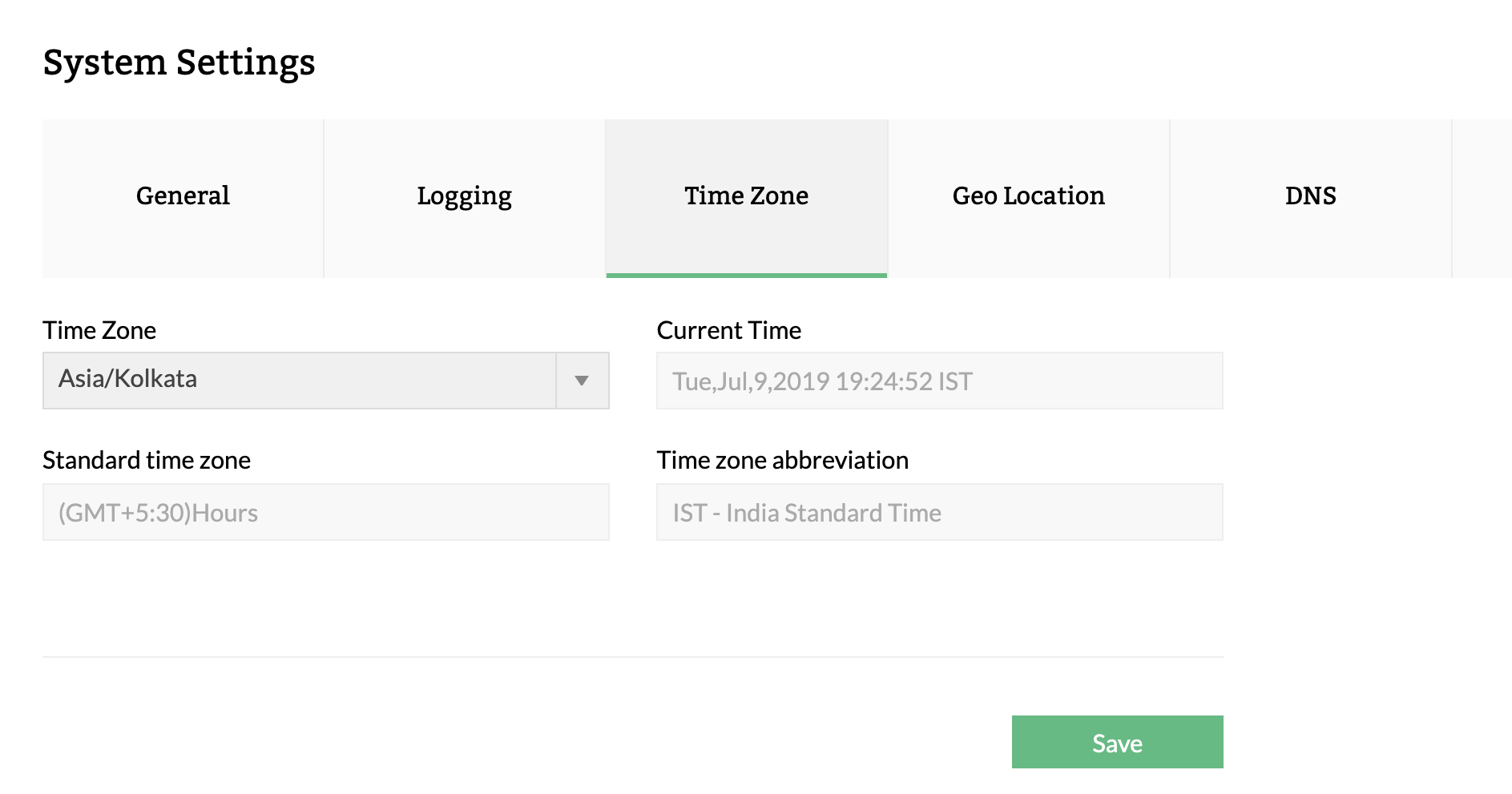

System Settings

    The System Settings option includes several configuration settings that you can configure from the user interface.

    System Settings

    Geo Location

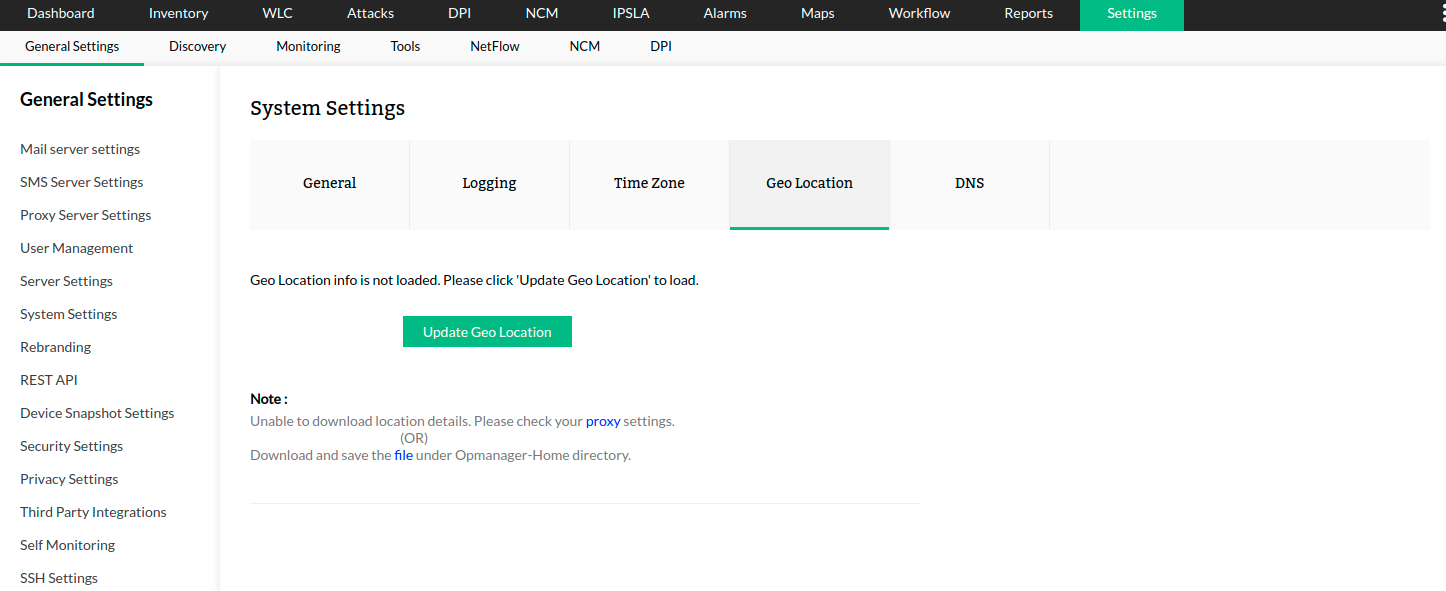

    Geo Location

    The Geo location can be updated by clicking on Update Geo location.

    In case of failure in updating Geo location, ensure that your proxy server settings has been set. Click here to learn more on proxy server settings - https://www.manageengine.com/products/netflow/help/proxy-server-settings.html

    The users can also update Geo location by downloading and saving the file named 'countrycode_2019' under Opmanager-Home directory.

    DNS Setting

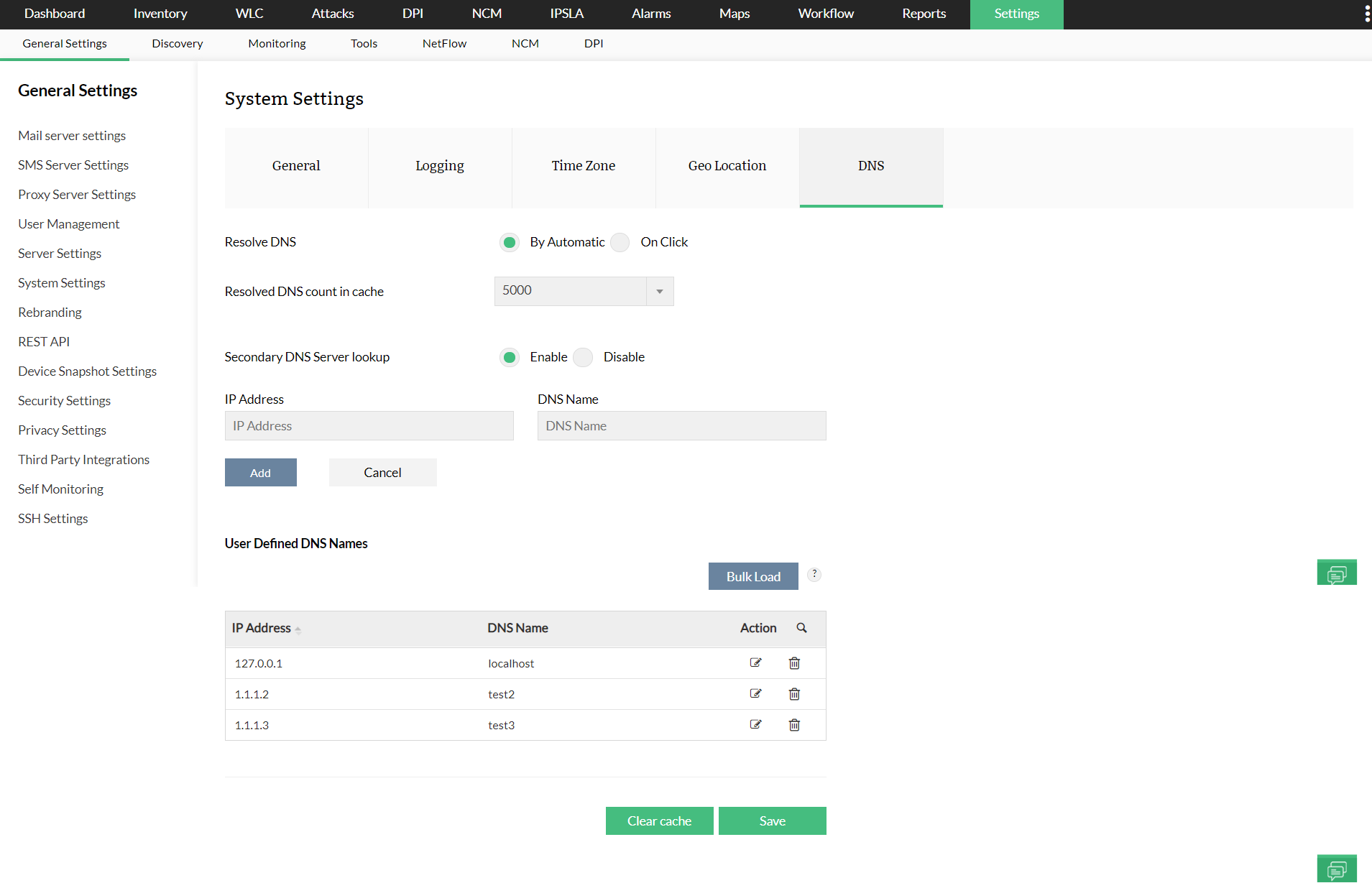

    DNS Setting

    DNS names will be resolved automatically or on click based on the chosen option.

    The resolved DNS cache count can also be altered between 5000/7500/10000.

    By enabling the Secondary DNS Server lookup, the secondary DNS names will be resolved.

    Users can define DNS names by clicking on Add option under User defined DNS names.

    DNS names can also be loaded in bulk from the configuration file DNSNames.csv available in the 'OpManager_Home/troubleshooting/' folder.
