Ethernet is a local area network technology, with networks traditionally operating within a single building, connecting devices within a close proximity. All popular broadband routers feature Ethernet ports. With this setup, multiple wired computers in a network can reach the internet and the other connected devices and switches in the network. Having an Ethernet monitoring system might be the 20% effort towards effective networking that an IT Admin needs to put in to make sure that 80% of his IT infrastructure is in optimum condition.
If you have network connectivity issues on your device, the Ethernet port is probably the first place you should look because the cable might be unplugged or loosely plugged. Ethernet may be a small element in your network but it can be the single point which can make or break your entire network's connectivity. The availability and health of the LAN connection, uptime and status of a CPU or a server, internet availability and speed, bandwidth traffic status monitoring, VoIP monitoring, etc can be known by simply monitoring an Ethernet cable.
OpManager is an end-to-end, comprehensive, and highly informative, network performance, and ethernet performance monitoring tool. Every element monitored by OpManager has it's own device snapshot page. This eliminates the need for networking teams to license separate Ethernet monitoring tool.

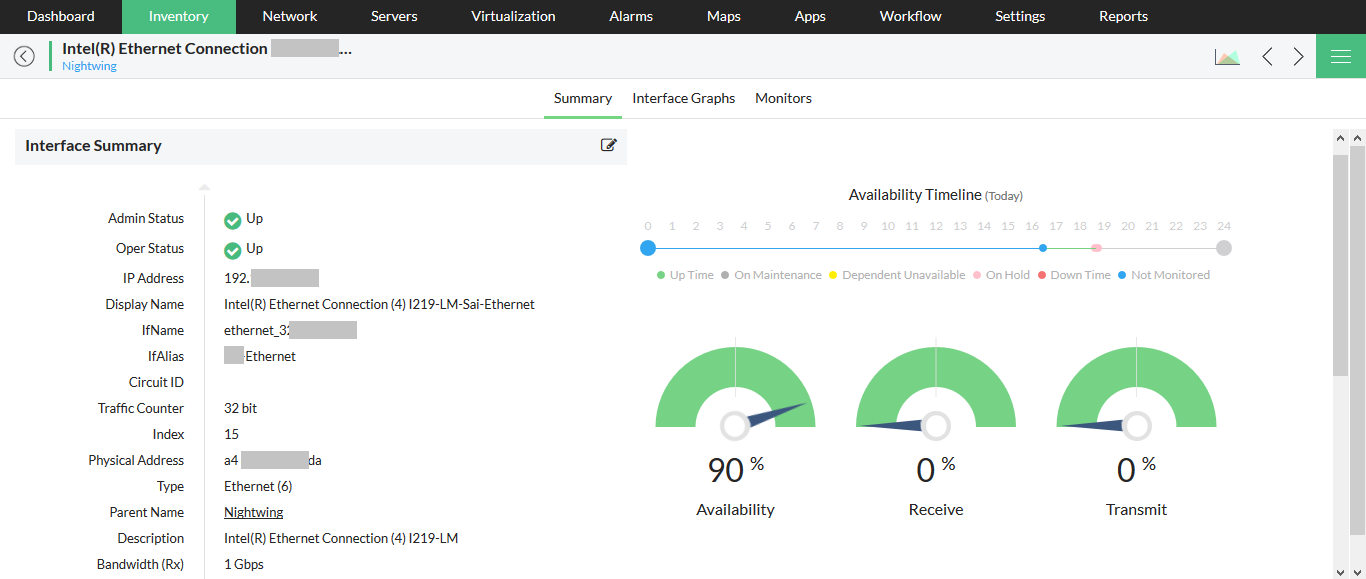

OpManager's Interface Ethernet monitor Snapshot page shows interface availability and health of an interface. In the Interface Snapshot page displays more details such as Admin Status, Operational Status, Parent Name, IfName, IfAlias, Traffic Counter, Bandwidth, Utilization, Average Packet Size, etc. You can also view a Real time Graph of an interface. You are also provided an option to define Refresh Interval and Time Window for an interface graph.

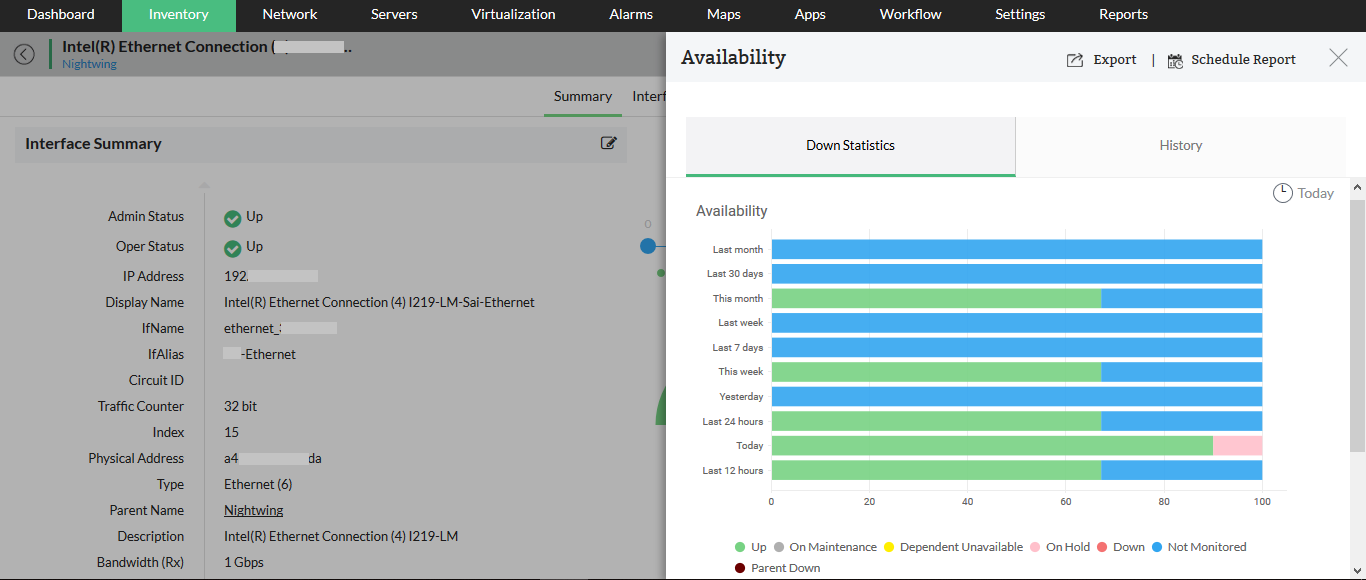

The Availability dial shows the Ethernet Interface availability of the current day. Clicking on the availability dial will show an availability graph. You can get this as a report for a set of days. You can also schedule this report to be generated at a preset time. You will be able to track if the ethernet interface is up, down, not monitored, on maintenance, etc. You can also check if the availability of an interface depends on the availability status on a particular device.
With OpManager it is possible to have severity based alarms to alert the network admin whenever there is an issue with any device in the network. OpManager also has a provision to set the consecutive number of times an event must occur or a threshold must be reached after which you will be alerted. You can also apply bulk settings and monitoring parameters to an individual ethernet cable, some, or all ethernet devices as you see fit for monitoring your IT infrastructure.
OpManager discovers and monitors over 230 different interface types in a network out-of-the-box, be it fast Ethernet interfaces or high-speed Fibre Channels. Over 230 different interface types are supported. As soon as an interface is discovered, OpManager automatically associates a user-defined monitoring interval and optimized threshold limits. These values can be changed to match the user's monitoring needs as and when required. Moreover, OpManager allows you to apply and modify these configurations individually to an interface or in bulk to a number of interfaces using interface monitoring templates. OpManager also manages DS1, Serial, PPP, Frame Relay DTE, ATM, Frame Relay DCE, AAL5, ISDN, Fibre-Channel, IEEE802.11, ADSL, SDSL, MPLS and MPLS Tunnel interfaces with ease.
