Windows - InstallUtil Download Investigation

Entities: User, Process name Log type: Windows Server

In this page

Playbook Description

Investigates InstallUtil download activities by analyzing process reputation, command line URLs, and process tree. If malicious, the playbook terminates the process, quarantines files, blocks URLs, and restricts execution.

MITRE ATT&CK mapping

Tactics Techniques Sub-techniques
Defense Evasion(TA0005) System Binary Proxy Execution(T1218) InstallUtil(T1218.004)

MITRE D3FEND mapping

Tactics Techniques Sub-techniques
Model(D3-Model) Application Hardening(D3-AH) Process Segment Execution Prevention(D3-PSEP)

Playbook input type

Alert

Prerequisites

  • VirusTotal connection - Need to connect with VirusTotal API to check URL and file hash reputation. Keep your API key secure and do not share it.
  • Log360 Cloud - Connection to execute PowerShell scripts on the target Windows host for investigation and remediation actions.
  • Privileges - Admin privileges on the target host are required.

Playbook creation input

  • connectionName - Provide the VirusTotal connection name for executing the VirusTotal APIs.

Dependencies

Extensions - VirusTotal

  • virustotal_fileReputation

Utility functions:

  • utility_convertToString
  • utility_getRequiredTime
  • utility_extractFieldFromList
  • utility_setKeyValue
  • utility_convertTimeToUTC
  • windows_commandLineAnalysis
  • windows_detectMaliciousProcessChain
  • utility_sendMail

Scripts

Script Name Description Arguments
TerminateSession.ps1 Logs off one or more user sessions using logoff, with optional RDP-only filtering by remote IP. UserNames
StopAndQuarantineProcess.ps1 Terminates processes by PID (decimal/hex) or by executable file path, then quarantines the executable to a forensic directory. Protects critical OS processes and the SOAR agent from termination. ProcessIdentifiers
BlockURLTraffic.ps1 Blocks traffic to a given URL by resolving its domain to IP addresses, creating inbound and outbound Windows Firewall block rules (via New-NetFirewallRule) for each resolved IP, and flushing the DNS cache. Url
AddSoftwareRestrictionPolicy.ps1 Creates Software Restriction Policy (SRP) rules in the Windows registry to block execution of programs from specified paths. For each path, it checks if an SRP rule already exists — if so and it's not set to "Disallowed", it updates the existing rule; otherwise it creates a new GUID-keyed rule under HKLM:\SOFTWARE\Policies\Microsoft\Windows\Safer\CodeIdentifiers\0\Paths. Enables SRP enforcement (TransparentEnabled=1, PolicyScope=0) on each run. RestrictedPath
EnableASARuleForMaliciousDownloadViaWeb.ps1 Enables the ASR rule to prevent malicious web downloads (Rule ID: BE9BA2D9-53EA-4CDC-84E5-9B1EEEE46550). -
QuarantineFiles.ps1 Moves one or more files to a quarantine directory (%USERPROFILE%\Forensic_Quarantine), strips inherited permissions via .NET ACL API, and grants read-only access to Administrators. Skips protected PowerShell executables. FilePaths

Connections

VirusTotal connection - Need to connect with VirusTotal API and fetch access key to check the malware IP/URL/File details.

Sub playbooks

  • Windows - File enrichment
  • VirusTotal - URL reputation check
  • Log360 Cloud - Create or update incident

Execution workflow

Investigation:

  • Checks for associated alerts.
  • Executes the "Windows - File enrichment" sub-playbook.
  • Analyzes the command line for suspicious patterns, URLs, or file paths.
  • Checks whether URL exists.
  • Pass URL reputation input.
  • Executes the "VirusTotal - URL reputation check" sub-playbook.
  • Checks whether file exists.
  • Executes the "Windows - File enrichment" sub-playbook.
  • Pass command analysis results.
  • Checks the process tree execution.
  • Checks the execution flow.

Decision logic:

  • Proceeds to remediation based on the following conditions:
    • The file or process reputation indicates high risk.
    • The file or process reputation indicates medium or higher risk.
    • A malicious execution flow was detected in the process tree.
    • Malicious IP addresses were identified.
    • Related investigation findings are present.
  • If no malicious indicators are confirmed, the playbook ends with no further actions.

Remediation:

  • Terminates the session.
  • Restrict the exe from execution.
  • Quarantines the exe.
  • Prevent malicious exe from download.
  • Pass malicious file results.
  • Terminates the parent process.
  • Checks whether malicious URL exists.
  • Blocks the malicious URL.
  • Checks if any remediation failed.
  • Builds the notification email with remediation details and findings.
  • Sends a notification email regarding the actions taken and required next steps.
Execution Workflow

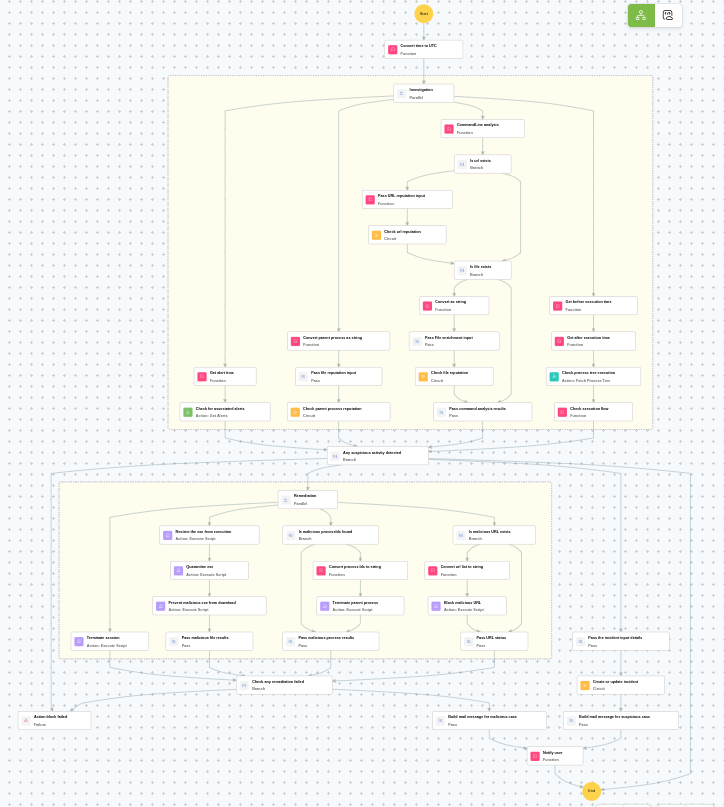

Figure: Execution workflow of the playbook

Post execution procedure

  • Review the quarantined files for further analysis and threat intelligence extraction.
  • Investigate whether the downloaded payload was executed before remediation.
  • Check for any additional LOLBin abuse or living-off-the-land techniques by the user.
  • Review network logs for any data exfiltration attempts from the affected host.
  • Audit other endpoints in the organization for similar InstallUtil abuse patterns.
