Associating Custom CLI Monitors to Devices

Manage CLI Monitors in OpManager using these three main actions:

• Add a Custom CLI Monitor – Create monitors with specific commands tailored to your needs.
• Associate a Custom CLI Monitor – Link your custom monitors to devices or templates.
• Apply Commands on a CLI Monitor – Select and configure which commands should run during polling.

Once you've created custom CLI monitors using the available methods, you can associate them with CLI-based devices using any of the following three approaches:

• From the Performance Monitors Page
• From the Device Snapshot Page
• From Device Templates

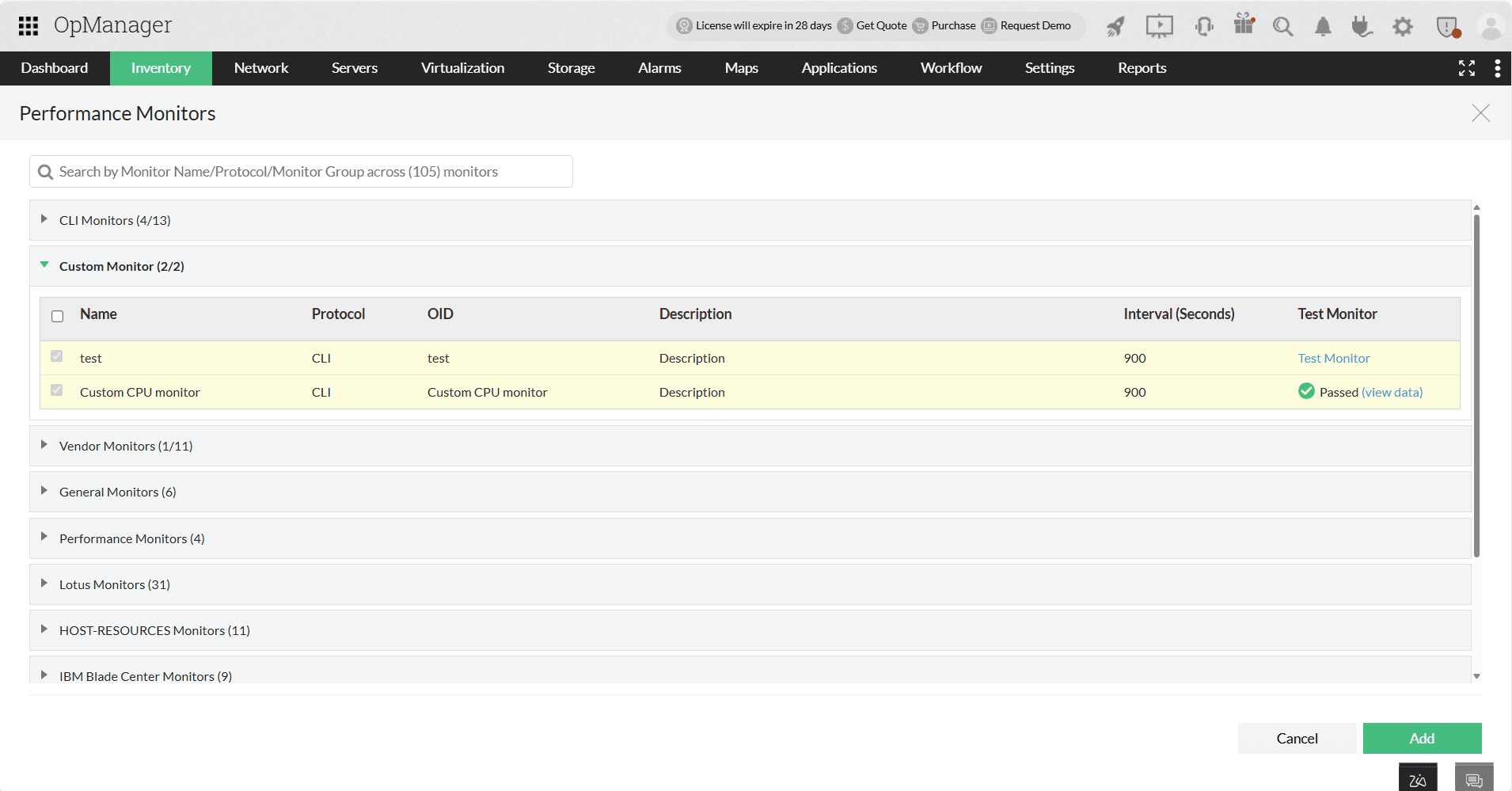

1. From the Performance Monitors Page

• Navigate to Settings → Monitoring → Performance Monitors.
• Select the Custom Monitors category to view all available custom CLI monitors.
• Locate the monitor you wish to associate and click Associate.
• In the pop-up, choose the target devices and confirm the association.

2. From the Device Snapshot Page

• Go to Inventory → Devices and click on the device name to open its snapshot.
• Navigate to Monitors → Performance Monitors → Actions → Add Performance Monitor.
• Available custom monitors will appear under the Custom Monitors category.
• Choose the ones you'd like to add and click Add to associate them with the device.

3. From Device Templates

• Go to Settings → Configuration → Device Templates.
• Click on a CLI-based device template to open it.
• In the Associated Monitors section, click Add, and select monitors from the list of categories.
• Under the Custom Monitors tab, choose the monitors you wish to associate.
• Click OK and then Save the template.

• You can associate this template with devices immediately or later using the Associate option.

Expected CLI Command Output Format

When defining a CLI command for custom monitoring, ensure the command returns output in either of the following formats:

• A single numerical value
• A series of instance–value pairs (where each instance has a corresponding numerical value)

Example Commands for Associating Custom CLI Monitors to Devices

Example 1

Command:

vmstat 1 3 | awk '{for (i=0;i<=NF;i++) if ($i == "id") cmd=i;} {print 100-$cmd}'|tail -1

Output:

29

Example 2

Command:

/bin/df -Pm | awk 'NR>1 {gsub(/%/,"",$5); print $6, $5}'

Output:

/boot/efi    1.0
/snap/snap-store/1113    100.0
/snap/core18/2846        100.0
