Install APM Insight Java Agent in JBoss EAP 6.2.x & above


  • Download latest the APM Insight java agent zip file (apminsight-javaagent.zip) here
  • Extract the zip file to a new directory to find agent jar and its configuration files
  • Open the apminsight.conf file in any text editor and include the following keys:
    license.key=[LICENSE KEY]
    apm.host=https://[HOST]:[PORT]/

    Example:

    license.key=APMI_74447444b666d7ab5174cc3021a9b68dd4b3364d50f99c2969360810313e8fac
    apm.host=https://app-w8-test:8443/
    To learn more about the agent configurations, visit our Configuration Guide page.
  • For Standalone setup, Edit <JBOSS_HOME>/bin/standalone.bat (In Linux, standalone.sh) file to add the following java arguments to the existing JAVA_OPTS
-Djboss.modules.system.pkgs=org.jboss.byteman,com.manageengine -javaagent:<agent_directory_full_path>/apminsight-javaagent.jar
  • For Domain setup, Edit <JBOSS_HOME>/domain/configuration/Host.xml file and locate <servers> tag and add the mentioned tags under your desired<server name="your_server" ...> tag.
    <system-properties>
    <property name="jboss.modules.system.pkgs" value="org.jboss.byteman,com.manageengine" boottime="true"/>
    </system-properties>
    <jvm name="insight">
    <jvm-options>
    <option value="-javaagent:<agent_directory_full_path>/apminsight-javaagent.jar" />
    </jvm-options>
    </jvm>
  • Save the file and start the JBoss EAP server

Installing Java Agent in JBoss EAP through Management Console

For version 6.2.x

Open the management console through localhost:9990/console and login as “Management Realm” user.

  • Select Hosts tab → Server ConfigurationsServer instance in which you like to install the agent → JVM Configuration tabAdmin Console

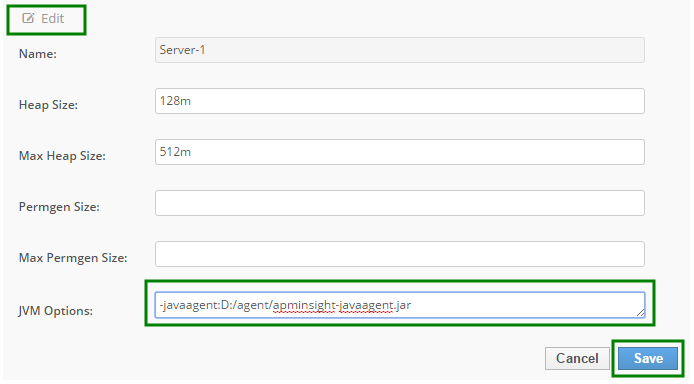

  • Click on Edit button to create a JVM Configuration for the server. In JVM options text box, add the following lines (each JVM option must be separated by a new line)
-javaagent:AGENT_HOME/apminsight-javaagent.jar
  • Click on save button, you will see “Added/Modified JVM Config” message at top of the page. If the message doesn't appear, check your configuration carefully and save it again.

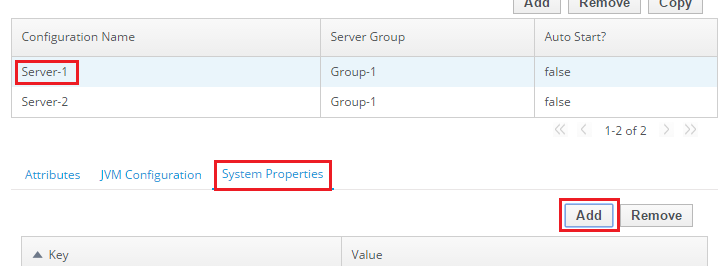

  • Now, select “System Properties” tab and Click “Add” button.
Admin Console

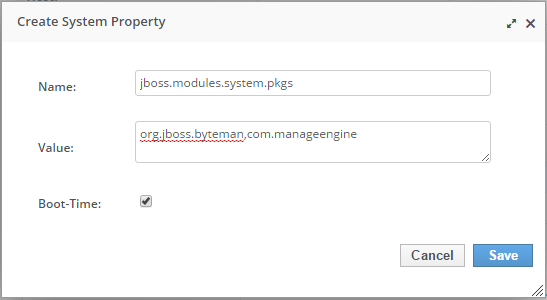

  • In the newly opened dialog box, fill in the following values:
Name : jboss.modules.system.pkgs
Value : org.jboss.byteman,com.manageengine
Boot-Time : Check
  • And click “Save” button.
  • Finally, start/restart your configured server instance from “Runtime” tab at top left corner of the page.

For version 7.x

Open the management console through localhost:9990/console and login as “Management Realm” user.

  • Select Runtime tab → Hosts → Choose the Host followed by the Server instance in which you like to install the agent → Click View to view the Server configuration.Admin Console

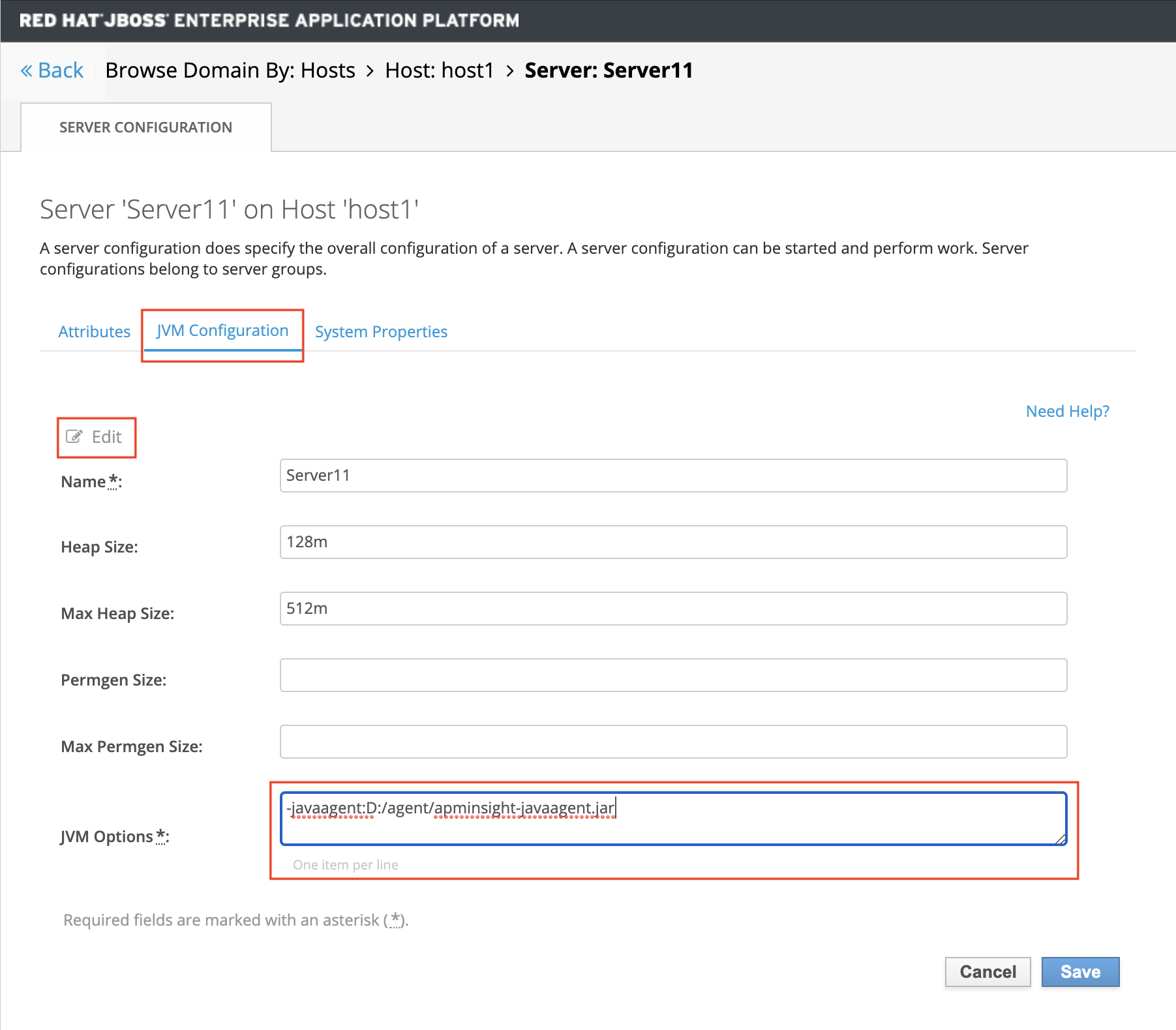

  • Click on Edit button to create a JVM Configuration for the server. In JVM options text box, add the following lines (each JVM option must be separated by a new line)
-javaagent:AGENT_HOME/apminsight-javaagent.jar
  • Click on save button, you will see “Added/Modified JVM Config” message at top of the page. If the message doesn't appear, check your configuration carefully and save it again.

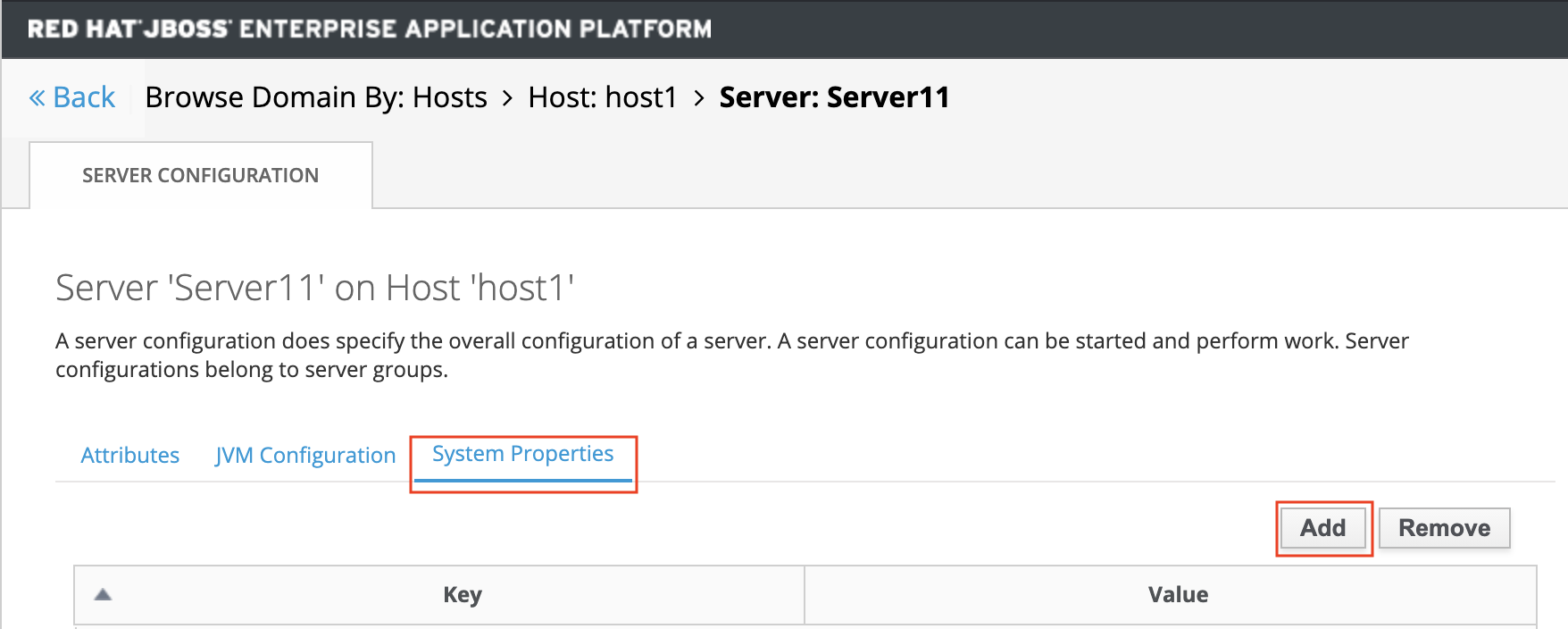

  • Now, select “System Properties” tab and click “Add” button.
Admin Console
  • In the newly opened dialog box, fill in the following values:
Name : jboss.modules.system.pkgs
Value : org.jboss.byteman,com.manageengine
Boot-Time : Check
  • And click “Save” button.
  • Finally, start/restart your configured server instance from “Runtime” tab at top left corner of the page.
