Installing the HighPerf Reporting Engine(Client)

    Pre-requisites

    Click here to find out what the pre-requisites are for installing the HighPerf Reporting Engine.

    Pre-installation tasks

    It is highly recommended to install HighPerf Reporting Engine in an external server to achieve optimum performance. However, it is also allowed to install it on the same server where ManageEngine NetFlow Analyzer is installed.

    Follow the steps below to install the HighPerf Reporting Engine:

    Installation on Windows Platform

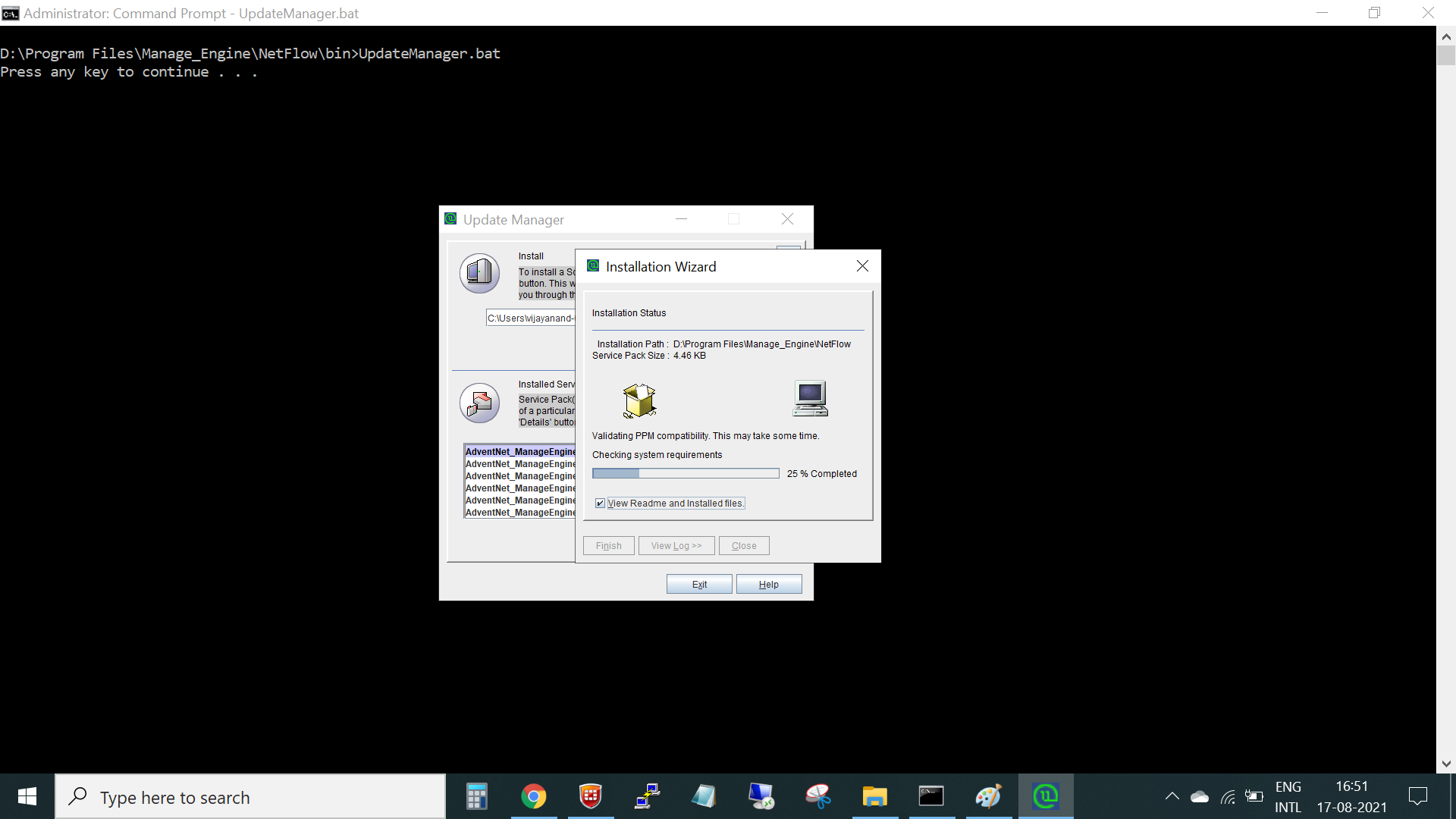

    1. As soon as the .exe file is clicked, it takes you to the Welcome screen where you could click 'Next' to proceed.
    2. Read the 'License' terms and conditions and choose 'I accept the terms of the agreement' and click 'Next' to continue with the installation.
    3. Choose your desired mode of installation. The 3 options that appear are a) Full Installation b) HighPerf DB server c) HighPerf DB client. Click 'Next' to continue. It is mandatory for the product to be shut down while opting 'Full Installation' and 'HighPerf DB Client'. Please refer the NOTE at the bottom of this page.
    4. Review the Start menu folder name and installation directory and proceed to the next step using the 'Next' button.
    5. After the required files are automatically extracted and HighPerf Reporting Engine is initiated, click 'Finish' to complete the installation.

    HighPerf Reporting Engine

    HighPerf Reporting Engine

    HighPerf Reporting Engine

    HighPerf Reporting Engine

    HighPerf Reporting Engine

    HighPerf Reporting Engine

    HighPerf Reporting Engine

    Installation on Linux platform:

    For Linux, installation should be done as 'root'

    For Ubuntu and Debian operating systems, the libaio software must be installed on Linux before installing HighPerf Reporting Engine. To install libaio ,use the following rpm command:
    rpm -ivh libaio*.rpm
    Alternatively you can use this apt-get install libaio
    Also, if the yum system update tool is available on your Linux, use this command:
    yum install libaio

    Steps:

    1. The Welcome screen appears as soon as the .bin file is executed. Click 'Next' to continue.
    2. Read the 'License' terms and conditions and choose 'I accept the terms of the agreement' and click 'Next' to continue with the installation.
    3. Choose your desired mode of installation. The 3 options that appear are a) Full Installation b) HighPerf DB server c) HighPerf DB client. Click 'Next' to continue. It is mandatory for the product to be shut down while opting 'Full Installation' and 'HighPerf DB Client'. Please refer the NOTE at the bottom of this page.
    4. Verify the destination folder and click 'Next' to continue that completes your installation.

    NOTE:

    a. Full Installation - HighPerf DB Server + Client (Please select this option to install HighPerf add-on in the NetFlow Analyzer server itself. This option requires NetFlow Analyzer home folder. Ex: C:ManageEngineNetFlow)

    b. HighPerf DB Server (Please select this option to install HighPerf DB Server on a remote machine connected to the NetFlow Analyzer Server. Requires HighPerf DB Client to be installed on the NetFlow Analyzer Server. This option is highly RECOMMENDED when  flow rate is high [greater than 1000 flows/second])

    c. HighPerf DB Client (Please select this option to install HighPerf DB Client in NetFlow Analyzer server. This option requires NetFlow Analyzer home folder. Ex: C:ManageEngineNetFlow)

    To configure High Perf from the UI, follow the page below:
    https://www.manageengine.com/products/netflow/help/configuring-high-perf.html
